AXIS I8116-E Network Video Intercom Black 02409-001 5MP 162 Degree View SIP PoE OSDP Reader Support Slim Mullion IP65 IK08

Brand:
AXIS
AXIS I8116-E Network Video Intercom Black 02409-001
AXIS I8116-E Network Video Intercom Black 02409-001 5MP 162 Degree View SIP PoE OSDP Reader Support Slim Mullion IP65 IK08
€1540.13 inc. VAT
Buy
02409-001
€1,294.23
€1,540.13 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
CI88470
EAN Code
7331021076891
Manufacturer
AXIS

Quick Specs

Camera
5 MP, 162° horizontal
Calls
SIP, peer-to-peer or PBX
Power
PoE Class 3
Rating
IP65, IK08 (IK10 with cover)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS I8116-E Network Video Intercom — Black

5 MP162° viewSIPSlim mullion

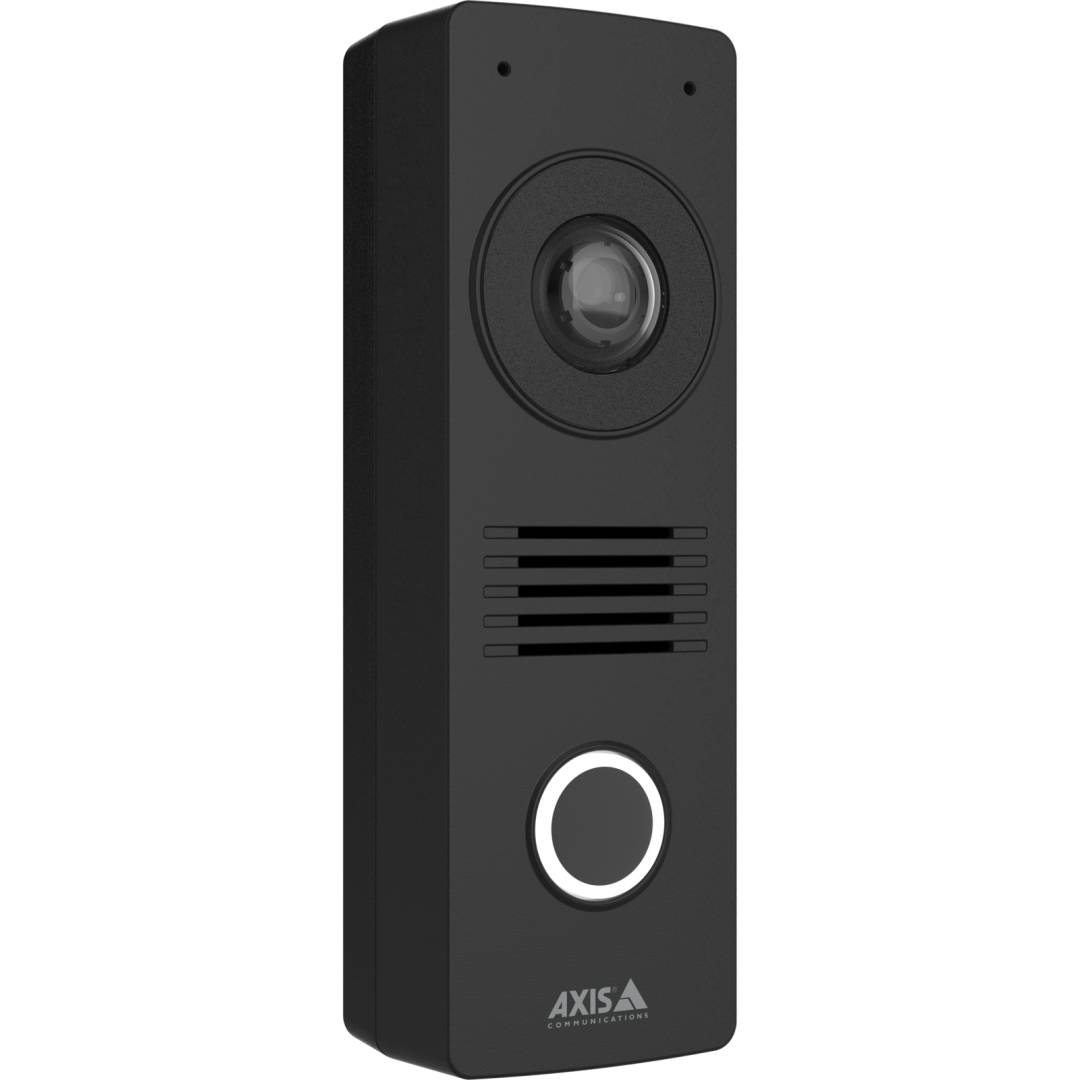

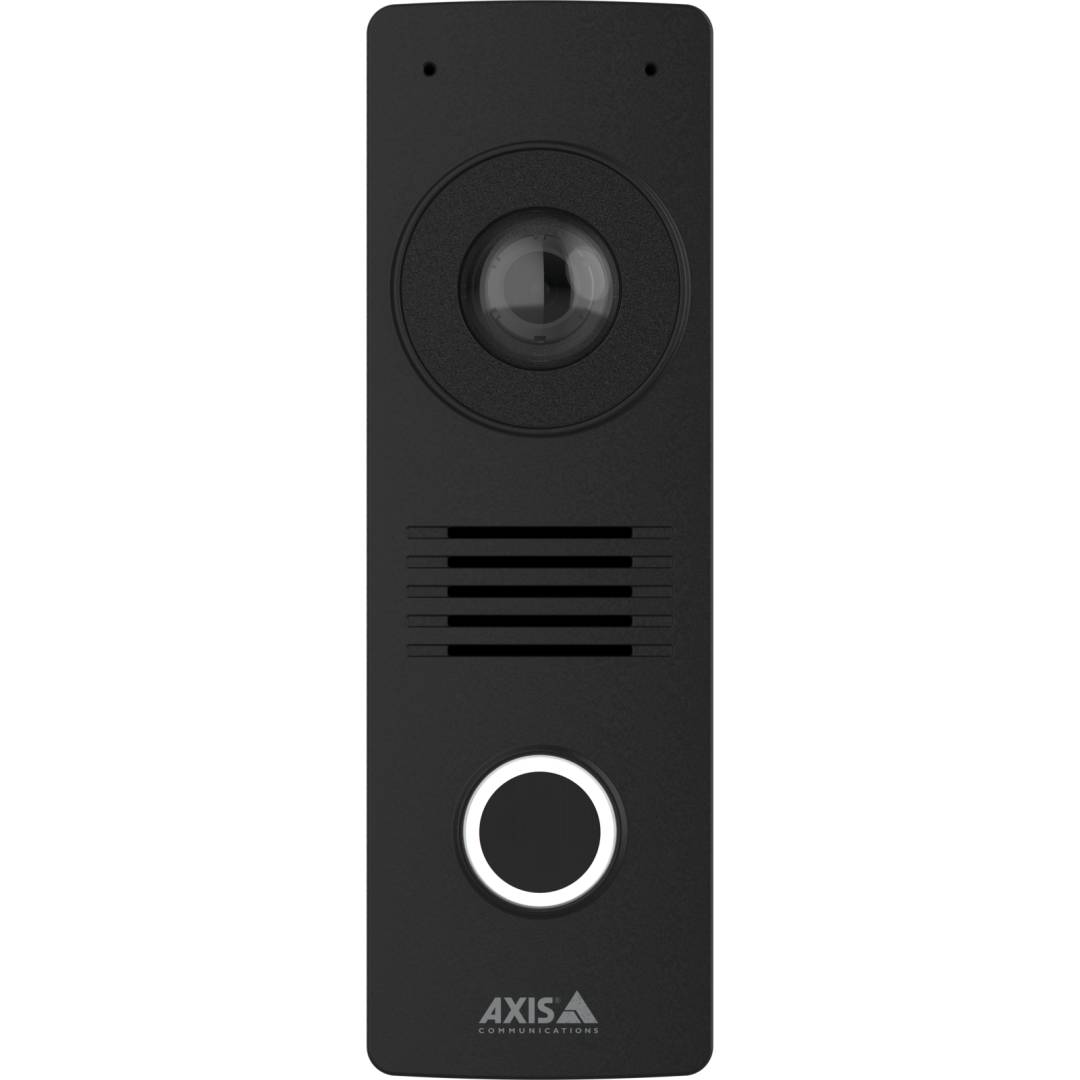

The AXIS I8116-E (part number 02409-001) is a slim black network video intercom for door entrances. At 48 mm wide it fits on a door frame or mullion. Its 5 MP camera with a 162° horizontal and 118° vertical view shows visitors from head to toe and packages on the ground. Two microphones with beamforming, echo cancellation and noise reduction, and an 85 dB speaker keep calls clear. It makes SIP calls directly to phones or through a PBX, supports an external OSDP card reader and stores up to 50 credentials, and has two configurable I/O ports and RS485. It is powered by PoE Class 3 and rated IP65 and IK08.

Compatibility — check before buying:
It cannot switch a door lock directly. To open a door it needs the AXIS A9801 Security Relay or an AXIS door controller, both sold separately. The recessed mount, the TI8605 protection cover (for IK10) and the wedge mount are optional accessories. This is the black version; the white version is 02408-001. Not sure? Tell us your model and we check it for you.

Best For

✓ Office and apartment entrances
✓ Narrow door frames
✓ Package deliveries
✓ SIP phone systems
✓ Access control with OSDP readers
✓ Video door stations

Key Features


5 MP, 162° view
Visitors from head to toe.

Clear two-way audio
Two mics, beamforming, 85 dB speaker.

SIP calling
Direct or via PBX.

Slim 48 mm body
Fits door frames and mullions.

Technical Specifications

Identification
Brand AXIS
Product AXIS I8116-E Network Video Intercom, Black
Part Number 02409-001
EAN / GTIN 7331021076891
Model AXIS I8116-E
Product Type Network video intercom (mullion)
Colour Black (white: 02408-001)
Video
Sensor 1/2.7″ CMOS
Lens 1.95 mm, F2.2
Field of view 162° horizontal, 118° vertical
Resolution Up to 2592 × 1944 (5 MP), 30/25 fps
Compression H.264, H.265
Audio & Calls
Microphones 2, beamforming, echo cancellation, noise reduction
Speaker 85 dB at 0.5 m
Calling SIP (peer-to-peer or via SIP/PBX)
Access & I/O
Reader External OSDP card reader supported
Credentials Built-in entry list, up to 50
I/O 2 configurable inputs/outputs, RS485
Door lock Via AXIS A9801 Security Relay or AXIS door controller
Power & Physical
Power PoE Class 3, typ. 4 W, max. 10.8 W
Network RJ45 10/100
Protection IP65, NEMA 4X, IK08 (IK10 with TI8605)
Colour Black NCS S 9000-N
Operating temperature −30 to 60 °C
Weight 400 g
In the Box
Included Intercom, terminal block, connector guard, cable gaskets, owner authentication key, installation guide
Not Included Security relay or door controller; recessed or wedge mount; protection cover; PoE switch
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 5-year warranty for this product in its datasheet. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can it open the door itself?
Only with the AXIS A9801 Security Relay or an AXIS door controller.
Does it work with SIP phones?
Yes, peer-to-peer or through a SIP PBX.
Can I add a card reader?
Yes, an external OSDP reader.
Is there a white version?
Yes, 02408-001.
Singular Expert Insight
On narrow entrances the I8116-E is the intercom that fits where a square unit does not. Order the security relay with it so the lock wiring stays inside. For PoE switches, see our PoE switches.

Buyer’s Guide

Buy it if

You need a slim video intercom for a door frame with SIP calling.

Skip it if

Your door needs a keypad or an anti-ligature unit.

Also consider

AXIS I8016-LVE for a square, anti-ligature design.
