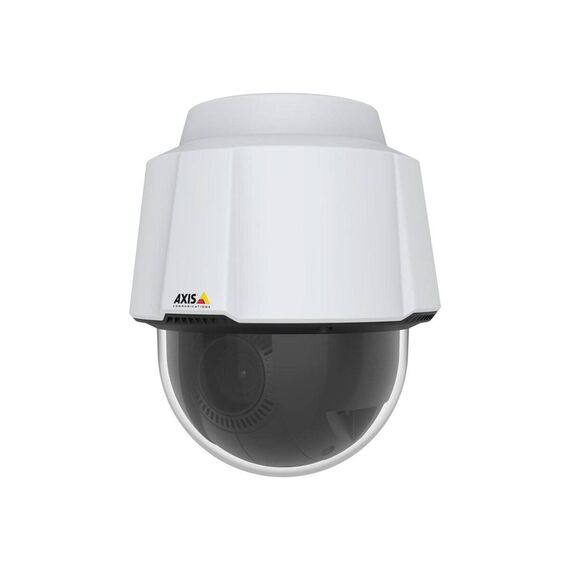

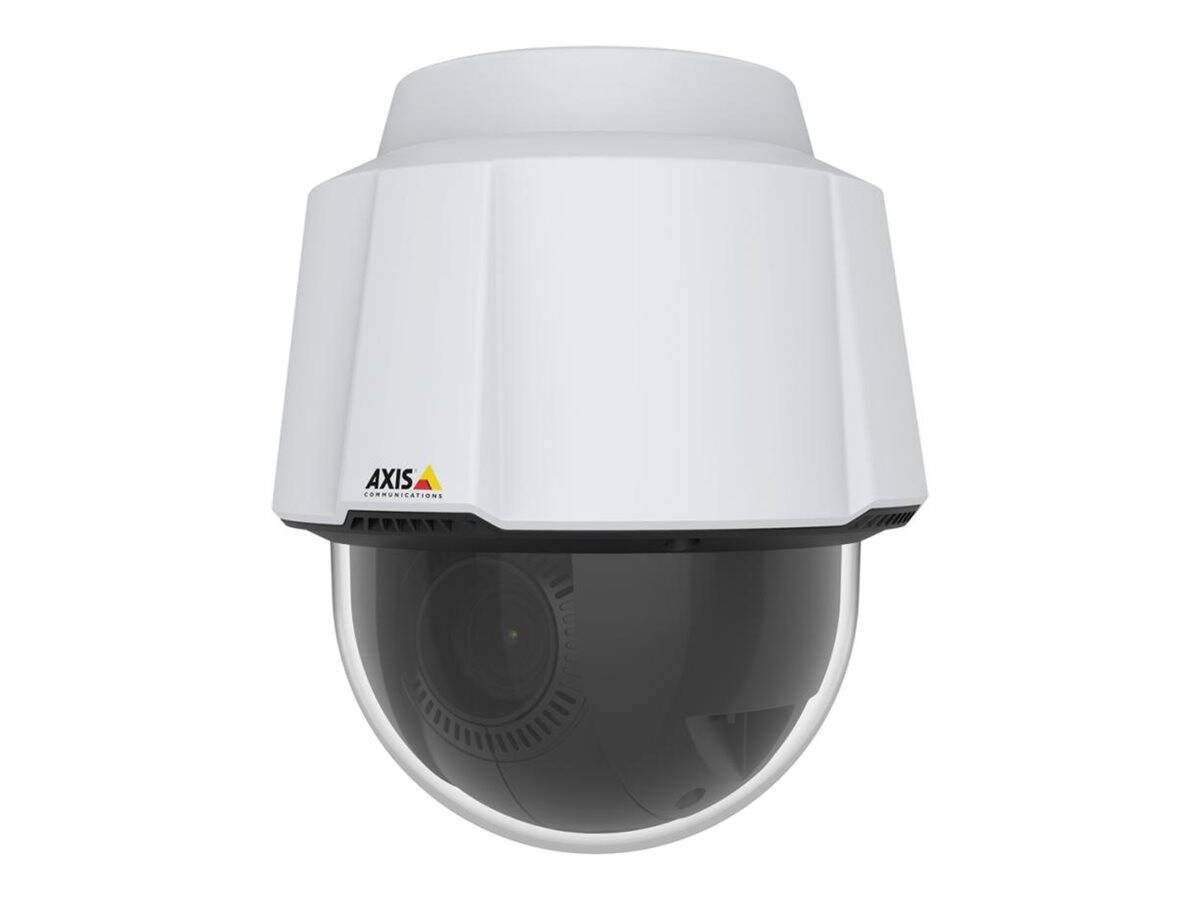

AXIS P5654-E Mk II 50 Hz Outdoor PTZ IP Camera, 1080p, 21× Optical Zoom, PoE+, IK10

Brand:
AXIS
AXIS P5654-E Mk II 50 Hz Outdoor PTZ IP Camera, 1080p, 21× Optical Zoom, PoE+, IK10
AXIS P5654-E Mk II 50 Hz Outdoor PTZ IP Camera, 1080p, 21× Optical Zoom, PoE+, IK10
€2813.33 inc. VAT
Buy
02914-001
€2,364.14
€2,813.33 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
CJ59406
EAN Code
7331021086258
Manufacturer
AXIS

Quick Specs

Image / rate
1080p / up to 50 fps
Optical zoom
21× / 4–84.6 mm
Motorized coverage
360° pan / 180° tilt
Power / housing
PoE+ / IP66, IK10
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS P5654-E Mk II 50 Hz Outdoor PTZ IP Camera, 1080p, 21× Optical Zoom, PoE+, IK10

1080p / up to 50 fps21× / 4–84.6 mm360° pan / 180° tilt

Use the P5654-E Mk II when you need to move between a broad overview and a narrower view of a selected area. This 50 Hz version delivers up to 50 fps at 1080p, with 21× optical zoom and continuous pan. Object analytics and autotracking support event-led operation, while Lightfinder 2.0, WDR and stabilization help in changing light and vibration. A PTZ watches its current direction, so plan fixed coverage for areas that must always remain visible.

Key Features


Optical detail with remote aiming
21× optical zoom and motorized pan/tilt let an operator follow a selected area. Digital zoom does not add optical detail.

Configure tracking and presets
Use Object Analytics, Autotracker2 and presets for the scene. Test transitions and competing operator requests.

Provide the required PoE+ power
The camera requires an 802.3at source. A compatible midspan and storage card are separate purchases.

Technical Specifications

Identification
Brand Axis
SKU / part number 02914-001
EAN / GTIN 7331021086258
Optics and motorized PTZ
Variant / sensor 50 Hz / 1/2.8-inch progressive RGB CMOS
Lens 4.0–84.6 mm / F1.6–4.5; autofocus, auto-iris
Field of view H / V 77°–3.6° / 43.1°–2°
Minimum illumination at F1.6 Colour: 0.11 lux at 50 IRE, 0.1 lux at 30 IRE; mono: 0.03 lux at 50 IRE, 0.01 lux at 30 IRE
Day/night / shutter Automatic IR-cut / 1/66500–2 s
Pan / speed 360° endless / 0.1–350°/s
Tilt / speed 180° / 0.1–350°/s
Zoom 21× optical / 12× digital / 252× combined
PTZ controls 256 presets, e-flip, limited guard tour, control queue, direction indicator, new pan zero, focus window and recall
Video and analytics
Processor / memory ARTPEC-7 with MLPU / 1024 MB RAM / 512 MB flash
Resolution / frame rate 1920 × 1080 to 320 × 180; up to 50 fps in all resolutions for this 50 Hz variant
Codecs H.264 baseline/main/high; H.265 main; MJPEG
Streaming controls Multiple configurable streams, controllable frame rate/bandwidth, Zipstream H.264/H.265, VBR/ABR/MBR, low-latency mode
Zipstream reference Manufacturer describes average bandwidth/storage reduction of 50%; scene, codec and settings affect the achieved reduction
Image processing Lightfinder 2.0, Forensic WDR up to 120 dB depending on scene; SNR above 55 dB; electronic image stabilization
Image controls Compression, saturation, brightness, sharpness, contrast/local contrast, white balance, exposure zones/control, defog, day/night threshold, tone mapping, low-light tuning, scene profiles
Orientation / privacy 0/180° rotation; text/image overlays; image freeze on PTZ; 20 polygon privacy masks
Included applications AXIS Object Analytics, Scene Metadata, Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard, Advanced Gatekeeper, Autotracker 2
Object Analytics Humans/vehicles; up to 10 line-crossing, object-in-area, time-in-area scenarios; polygon inclusion/exclusion, perspective, trajectories, boxes/tables, ONVIF Motion Alarm
Scene Metadata Humans, faces, vehicles, plates; confidence and position metadata
Installation / onscreen controls Pixel counter, focus recall, streaming indicator, autotracking, privacy masks, day/night
Integration and security
API / interoperability VAPIX, metadata, ACAP, one-click cloud connection; ONVIF G/M/S/T
Video management AXIS Camera Station Edge / Pro; compatible partner VMS
Network protocols IPv4/IPv6 USGv6, ICMPv4/v6, HTTP/HTTPS/HTTP2, TLS, QoS DiffServ, FTP/SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMPv1/v2c/v3, DNS/DNSv6/DDNS, NTP/PTP/NTS, RTSP/RTP/SRTP/RTSPS/RTCP, TCP/UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP/CDP, MQTT3.1.1, secure syslog, ZeroConf, NTCIP, 802.1X EAP-TLS, 802.1AR
Event conditions Temperature/fan/shock, network/IP/live-stream/system/PTZ power status; storage health; manual/digital/virtual inputs; MQTT subscriptions; PTZ queue/fault/movement/preset/ready; schedules; bitrate and day/night
Event actions Day/night, guard tour, MQTT, HTTP/HTTPS/TCP/email notifications, text overlays, presets, recording, SNMP traps, temporary tracking/autotracking profiles, FTP/SFTP/HTTP/HTTPS/network-share/email upload, WDR
Software security Signed OS, brute-force delay, digest authentication, password protection; Axis Cryptographic Module FIPS140-2 Level1
Hardware security Axis Edge Vault, secure element CC EAL6+, TEE, Axis device ID, keystore, signed video, secure boot, AES-XTS-Plain64 256-bit filesystem
Network security 802.1X EAP-TLS, 802.1AR, HTTPS/HSTS, TLS1.2/1.3, NTS, X.509 PKI, host firewall
Security documentation AXIS OS Hardening Guide, vulnerability policy, security development model, SBOM
Power, housing and installation
PoE input / consumption IEEE802.3at Type 2 Class 4; typical 8 W, maximum 16 W. PoE+ midspan not included
Ethernet RJ45 10/100 Mb/s PoE
Storage microSD/SDHC/SDXC; AES-XTS-Plain64 256-bit card encryption; NAS. Card not included; no fixed maximum capacity specified
Housing Aluminium body, polycarbonate dome; white NCS S1002-B; IP66/NEMA4X/IK10
Dimensions / weight 188 mm body width × 217 mm body height; top mounting projection 16 mm; base diameter149 mm / 2.5 kg
Operating conditions −30 to 50 °C; 55 °C intermittent maximum; 10–100% RH condensing
Storage conditions −40 to 65 °C; 5–95% RH non-condensing
Optional accessories AXIS T91B mounts, T94A02L recessed mount, outdoor premounted RJ45 cable, T8133 30 W midspan, repaintable covers, Surveillance Cards
Tools AXIS Site Designer, Device Manager, product/accessory selectors, lens calculator
Languages English, German, French, Spanish, Italian, Russian, Simplified/Traditional Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Planning, compliance and manufacturer warranty
DORI wide / tele, metres Detect57/1120; observe23/450; recognize11/225; identify6/110
DORI conditions EN62676-4 centre-image density references including distortion; motion, compression, lighting and focus affect actual distances. Plan with margins
Approvals UL/cUL, UKCA, CE, KC, EAC, RCM; TAA; regional applicability varies
EMC / safety / environment CISPR32 ClassA/CISPR35, EN55032/55035, EN50121-4/IEC62236-4, EN61000-3-2/-3, EN61000-6-1/-2; IEC/EN/UL62368-1 ed3; IEC60068-2-1/-2/-6/-14/-27/-78; IEC60529, IEC62262, NEMA250
Network / cybersecurity standards NIST SP500-267; ETSI EN303645, BSI IT Security Label, FIPS140
Substances PVC free; RoHS2011/65/EU, EN63000; REACH1907/2006
Manufacturer warranty Axis 5-year limited hardware warranty for eligible shipments from Axis on/after 1 April 2020; period starts at Axis shipment. Covers design/material/workmanship defects under normal use, repair or replacement subject to terms. Separate from seller terms

What's in the Box

Camera, installation guide and smoked dome
IP66 RJ45 push-pull connector, hard ceiling mount, spring clip adapter and U-profile adapter pipe

Frequently Asked Questions

Is the 50 Hz model a 60 fps camera?
This ordering variant is specified up to 50 fps. The 60 fps reference applies to the 60 Hz variant.
Does it include infrared lighting?
The exact datasheet does not specify integrated IR LEDs. Check scene lighting rather than assuming an IR range.
Can a normal 802.3af switch power it?
Use the documented 802.3at Type 2 Class 4 PoE+ source, with an adequate switch power budget.
Singular Expert Insight
Choose PTZ for active inspection and selected tracking. Add fixed views where continuous evidence of every area is required. Compare IP cameras

Buyer’s Guide

Buy it if

You need remote aiming and 21× optical zoom in an outdoor 1080p system.

Skip it if

You need every direction recorded continuously by one camera or integrated IR.

Also consider

Fixed cameras for continuous views, or an IR-equipped PTZ for dark sites.
