| Identification |
| Brand |
Axis |
| SKU / part number |
02507-001 |
| EAN / GTIN |
7331021078505 |
| Imaging and exact lens |
| Sensor / pixel size |
4/3-inch progressive RGB CMOS / 4.63 µm |
| Lens / focus |
Canon varifocal 12–48 mm, F1.7–4.0; remote zoom/focus, P-Iris; minimum focus 1.5 m |
| Field of view H /V |
90°–21° / 49°–12° |
| Optical zoom / aiming |
4× optical lens range; manual pan±180°, tilt 0 to−90°, roll−90 to 270° |
| Day/night |
Removable IR-cut in day mode; 800–900 nm IR-pass at night |
| Minimum illumination |
Colour 0.02 lux /mono 0.004 lux at 50 IRE, F1.7; 0 lux with IR |
| Shutter by mode |
WDR 4K: 1/22000–2 s; WDR 3712 × 2784: 1/25500–2 s; WDR off: 1/45500–2 s |
| Illumination |
850 nm OptimizedIR and white LED combo; 100 m or more depending on scene |
| Video and image controls |
| Processor / memory |
ARTPEC-8 DLPU / 2048 MB RAM / 8192 MB flash |
| Resolution modes |
4: 3: 3712 × 2784 to 160 × 120; 16: 9: 3840 × 2160 to 160 × 90; 16: 10: 1280 × 800 to 160 × 100 |
| Frame rates |
Up to 60 fps in 4K mode; up to 30 fps in 4: 3 mode, at 50/ 60 Hz |
| Video codecs |
H.264 baseline/main/high; H.265 main; MJPEG |
| Streams / rate control |
Up to 20 unique configurable streams; recommend maximum 3 unique streams, reusable by unicast/multicast clients; VBR/ABR/MBR, frame-rate/bandwidth control, low latency, stream indicator |
| Zipstream |
H.264/H.265; manufacturer average bandwidth/storage reduction 50%, varying with scene, codec and configuration |
| WDR / noise / stabilization |
Forensic WDR up to 120 dB depending on scene; Lightfinder 2.0; spatial 2D/temporal 3D reduction; SNR above 55 dB; electronic image stabilization |
| Multi-view / zoom controls |
Up to 8 cropped areas; digital PTZ, optical zoom, presets, limited guard tour, control queue, direction indicator; 10 recorded tours up to 16 minutes each, 100 guard tours, adjustable zoom speed |
| Image controls |
Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode/zones, defog, distortion correction, compression; 0/ 90/ 180/ 270° corridor rotation, mirror, dynamic text/image, polygon masks; forensic/vivid/traffic profiles |
| Installation aids |
Pixel counter, remote zoom/focus, level grid, leveling assistant |
| Analytics |
| Included applications |
AXIS Object Analytics, Scene Metadata, Image Health Analytics, Live Privacy Shield, Video Motion Detection, tamper/audio detection, orientation aid |
| Optional applications |
AXIS License Plate Verifier, Perimeter Defender, Speed Monitor; third-party ACAP apps |
| Object Analytics |
Humans, vehicles: cars/buses/trucks/bikes/other; up to 10 scenarios: line crossing, object/time in area, crossline counting (beta), occupancy (beta); trajectories, boxes/tables, polygon include/exclude, perspective, ONVIF Motion Alarm |
| Image Health Analytics |
Blocked/redirected image, blur, underexposure; sensitivity and validation-period settings |
| Scene Metadata |
Humans/faces/vehicles/plates; vehicle/clothing colour, confidence, position |
| Integration and security |
| API / interoperability |
VAPIX, metadata, ACAP, one-click cloud connection; ONVIF G/M/S/T |
| Video management |
AXIS Camera Station Edge / Pro; compatible partner VMS |
| Network protocols |
IPv4/IPv6 USGv 6, ICMPv 4/v 6, HTTP/HTTPS/HTTP2, TLS, QoS DiffServ, FTP/SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMPv 1/v 2c/v 3, DNS/DNSv 6/DDNS, NTP/PTP/NTS, RTSP/RTP/SRTP/RTSPS/RTCP, TCP/UDP, IGMPv 1/v 2/v 3, DHCPv 4/v 6, SSH, LLDP/CDP, MQTT3.1.1, secure syslog, ZeroConf |
| Hardware security |
Axis Edge Vault, TPM2.0 CC EAL4+ /FIPS 140-2 Level 2, secure element CC EAL6+, TEE, Axis device ID, keystore, signed video, secure boot, AES-XTS-Plain 64 256-bit filesystem |
| Security documentation |
AXIS OS Hardening Guide, vulnerability policy, security development model, SBOM |
| Events |
Temperature, IP/network/system/live-stream and digital audio status; storage recording/disruption/health; digital/manual/virtual inputs; MQTT; schedules; bitrate degradation and tampering |
| Audio input / output |
3.5 mm external unbalanced microphone/line input; optional 5 V microphone or 12 V digital ring power; 10-band equalizer, AGC; output through paired network speaker |
| Audio codecs |
24-bit LPCM; AAC-LC8/ 16/ 32/ 48 kHz; G.711 PCM8 kHz; G.726 ADPCM8 kHz; Opus 8/ 16/ 48 kHz; configurable bitrate |
| Audio tools |
Speaker pairing; spectrum visualizer available with ACAP. External audio equipment is separate |
| Network security |
802.1X EAP-TLS, 802.1AR, HTTPS/HSTS, TLS1.2/ 1.3, NTS, X.509 PKI, host firewall |
| Storage |
microSD/SDHC/SDXC; AES-XTS-Plain 64 256-bit card encryption; NAS. Card not included; no fixed maximum capacity specified |
| Tools |
AXIS Site Designer, Device Manager, product/accessory selectors, lens calculator |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified/Traditional Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Manufacturer warranty |
Axis 5-year limited hardware warranty for eligible shipments from Axis on/after 1 April 2020; period starts at Axis shipment. Covers design/material/workmanship defects under normal use, repair or replacement subject to terms. Separate from seller terms |
| Model-specific power and installation |
| PoE input / consumption |
802.3at Type 2 Class 4: typical 14.9 W, max 25.5 W; 802.3bt Type 3 Class 6: typical 14.9 W, max 51 W |
| PoE output requirement |
30 W 802.3at Type 2 Class 4 output requires 60 W 802.3bt Type 3 Class 6 midspan |
| Other power inputs |
10–28 V DC: typical 13.7 W, max 25.5 W; 20–24 V AC: typical 20.7 VA, max 39.2 VA |
| Ethernet / I/O |
Shielded Gigabit RJ45 PoE input and Gigabit RJ45 PoE output; 4-pin 2.5 mm terminal, 2 configurable supervised inputs/digital outputs, 12 V output maximum 50 mA; DC input |
| Additional audio / protocol support |
Microphone pairing; AAC-LC also 44.1 kHz; NTCIP |
| Additional events / actions |
Day/night and ring-power overcurrent; actions day/night, defog, I/O, illumination, MQTT, notifications, text, recordings, SNMP, image/video transfer, WDR |
| Software security |
Signed OS, brute-force delay, digest/password protection; Axis Cryptographic Module FIPS 140-2 Level 1 |

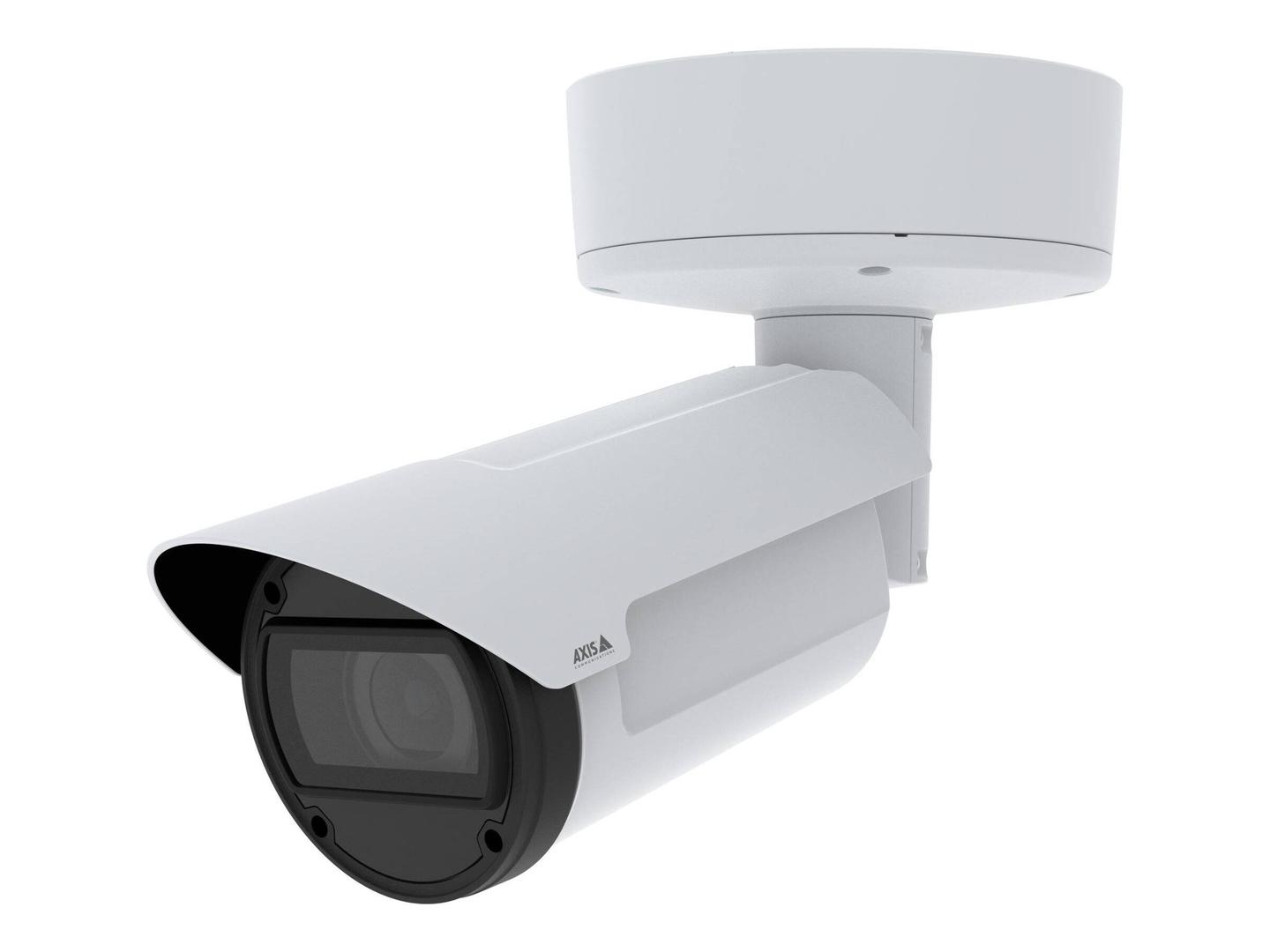

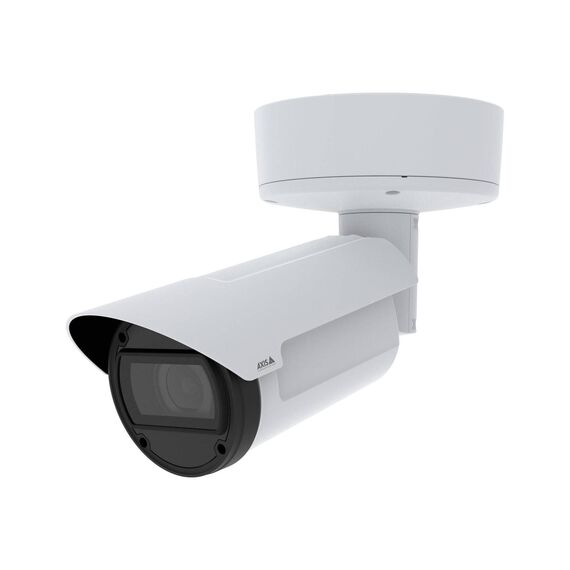

| Housing / protection |
Aluminium with dehumidifying membrane; black NCS S9000-N and white NCS S1002-B sections, shield with black anti-glare coating; IP66/IP67/NEMA4X; IK10 body, IK08 front glass |
| Dimensions / weight / EPA |
Drawing: 414 mm overall length; 114 mm front width, 183 mm mounting base diameter / 3200 g / 0.0455 m² |
| Operating conditions |
−40 to 60 °C, 10–100% RH condensing; sustained wind 60 m/s. NEMA TS2 maximum 74 °C is a test reference |
| Storage conditions |
−40 to 65 °C; 5–95% RH non-condensing |
| Optional accessories |
AXIS T8415 installation tool, Surveillance Cards, compatible manufacturer mounting and power accessories |
| Planning and compliance |
| DORI wide /tele, metres |
Detect 105.4/ 407.1; observe 41.8/ 161.6; recognize 21.1/ 81.4; identify 10.5/ 40.7 |
| DORI conditions |
EN62676-4 centre-image density with distortion; motion, compression, lighting and focus affect actual distances. Plan with margins |
| Approvals |
UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM; TAA; regional applicability varies |
| EMC / safety / environment |
CISPR32 ClassA/ 35, EN55032/ 55035, EN50121-4/IEC62236-4, EN61000-3-2/-3/-6-1/-6-2; IEC/EN/UL62368-1 ed 3, IEC62471 risk group 2, IS13252; IEC60068-2-1/-2/-6/-14/-27/-78, IEC60529/ 62262, NEMA250/TS2 |
| Network / cybersecurity / substances |
NIST SP500-267; ETSI EN303645, BSI IT Security Label, FIPS 140; PVC/BFR/CFR free underJS709, RoHS2011/ 65/EU/EN63000, REACH1907/ 2006; renewable bio-based plastic 65% |
