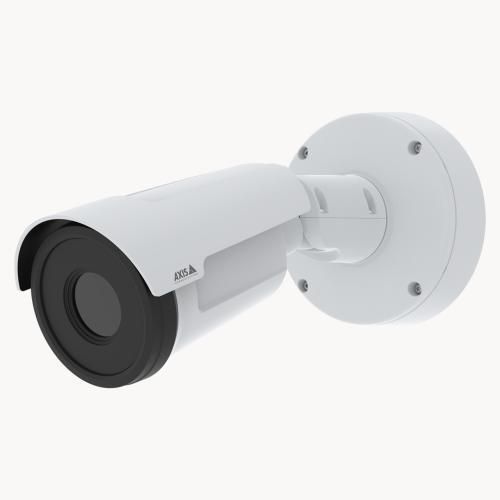

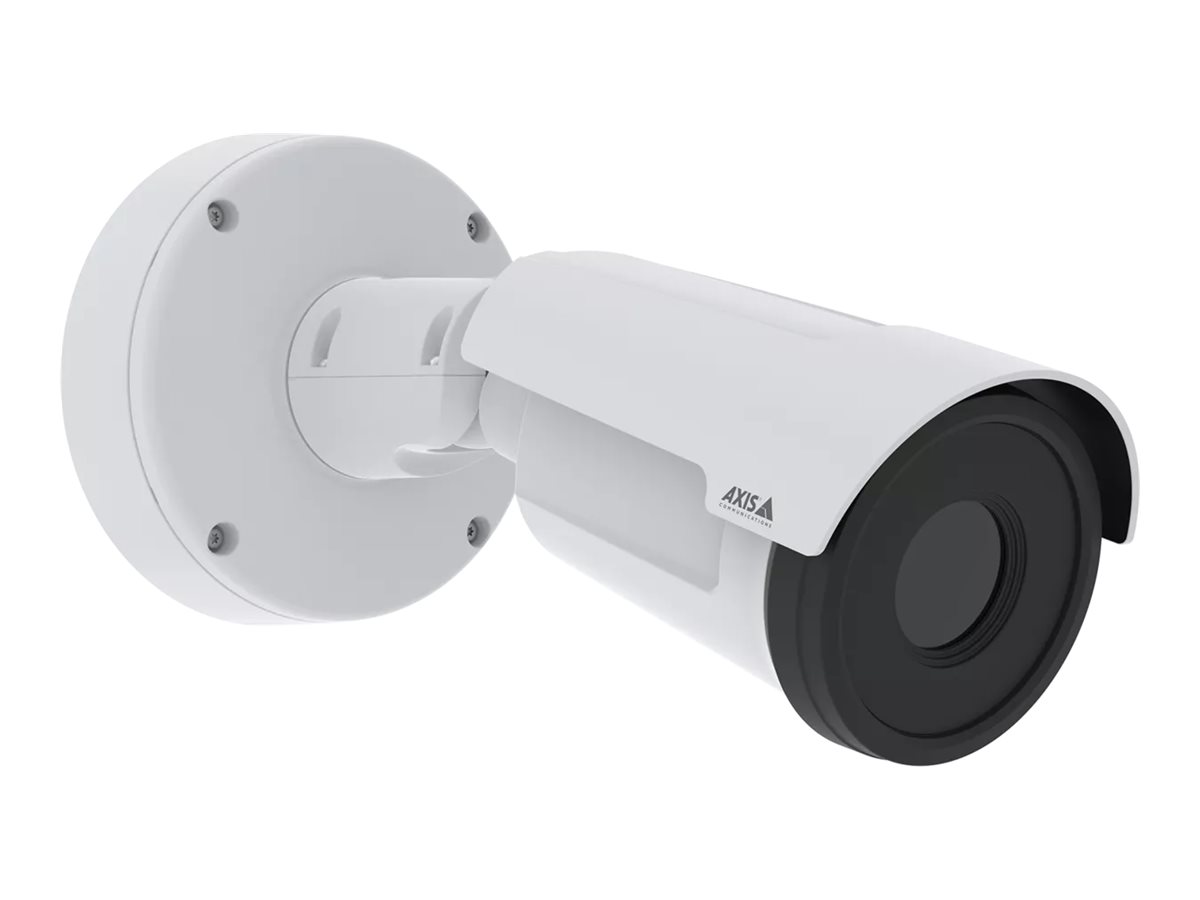

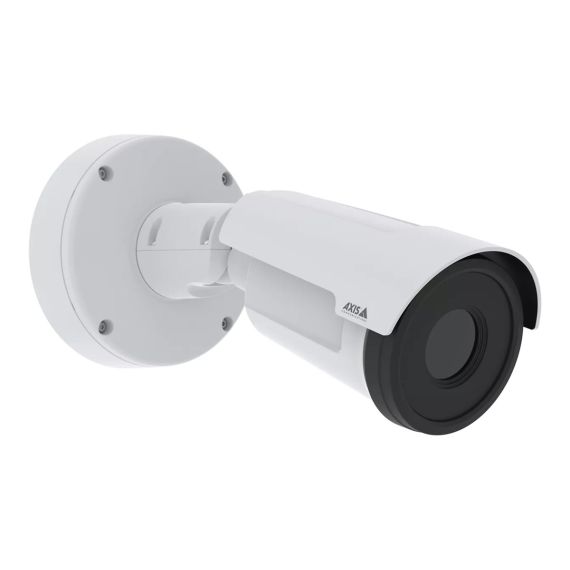

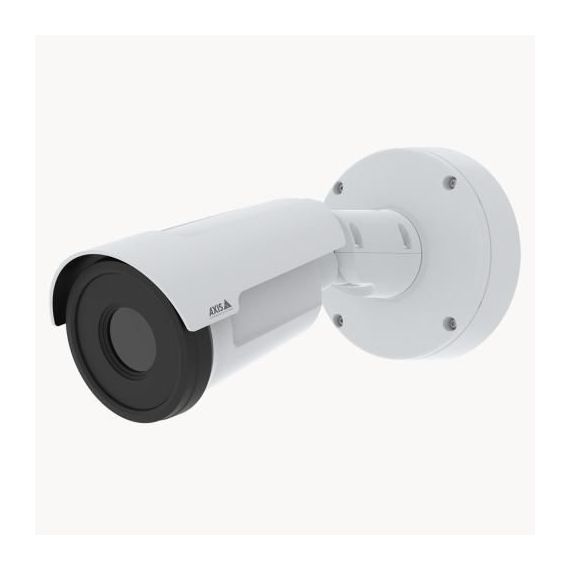

AXIS Q1971-E Outdoor Thermal IP Camera, 19 mm, 384 × 288 Sensor, 30 fps, PoE, IP66/IP67

Brand:
AXIS
AXIS Q1971-E Outdoor Thermal IP Camera, 19 mm, 384 × 288 Sensor, 30 fps, PoE, IP66/IP67
AXIS Q1971-E Outdoor Thermal IP Camera, 19 mm, 384 × 288 Sensor, 30 fps, PoE, IP66/IP67
€4951.88 inc. VAT
Buy
02949-001
€4,161.24
€4,951.88 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
CL60934
EAN Code
7331021086692
Manufacturer
AXIS

Quick Specs

Thermal sensor
384 × 288 / 17 µm
Lens / view
19 mm / 19° × 15°
Frame rate
Up to 30 fps
Power / housing
PoE Class 3 /IP66/IP67
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS Q1971-E Outdoor Thermal IP Camera, 19 mm, 384 × 288 Sensor, 30 fps, PoE, IP66/IP67

384 × 288 / 17 µm19 mm / 19° × 15°Up to 30 fps

The 19 mm Q1971-E detects thermal contrast across a narrow perimeter view without depending on visible scene lighting. Its 384 × 288 detector and 30 fps output help monitor moving targets, while stabilization and event applications support verification. Pair it with a visible-light camera when you need colour, faces or other identifying detail. Thermal detection still depends on target contrast, distance and weather.

Key Features


Thermal contrast for perimeter monitoring
The 19° horizontal view suits a selected sector. Validate target size and contrast at the intended distance.

Keep native detail in perspective
A 768 × 576 output is scaled from the 384 × 288 detector. It improves display size rather than adding captured detail.

Integrate verification and response
Use supported VMS, optional perimeter analytics and paired speakers. External audio equipment and optional software are separate.

Technical Specifications

Identification
Brand Axis
SKU / part number 02949-001
EAN / GTIN 7331021086692
Thermal sensor and exact lens
Ordering variant 19 mm / 30 fps
Detector / pixel size Uncooled microbolometer 384 × 288 / 17 µm
Spectral range 8–14 µm
Lens / field of view Athermalized 19 mm F1.24; horizontal 19° /vertical 15°
Near focus distance 8.3 m
Sensitivity reference NETD below 20 mK at 25 °C, F1.0; manufacturer reference conditions, while this lens isF1.24
Video and analytics
Processor / memory ARTPEC-8 with DLPU / 2048 MB RAM / 8192 MB flash
Sensor / scaled output Native 384 × 288; output scaled up to 768 × 576. Scaling does not increase detector detail
Frame rate Up to 30 fps for 02949-001; 8.3 fps belongs to a different ordering variant
Video codecs / streaming H.264 baseline/main/high, H.265 main, MJPEG; up to 20 unique configurable streams, recommended maximum 3; unicast/multicast reuse, VBR/ABR/MBR, frame-rate/bandwidth control, stream indicator
Zipstream reference H.264/H.265; manufacturer describes average 50% bandwidth/storage reduction, dependent on scene, codec and configuration
Image controls Contrast, brightness, sharpness, exposure zones, compression, 0/ 90/ 180/ 270° corridor rotation, mirroring, dynamic text/image, polygon masks, electronic stabilization, thermal palettes
Included applications AXIS Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard, active tamper alarm, audio detection
Optional applications AXIS Perimeter Defender; third-party ACAP applications
Installation / onscreen aids Pixel counter; stabilization, stream indicator, privacy masks, media clip, heater
Integration and security
API / interoperability VAPIX, metadata, ACAP, one-click cloud connection; ONVIF G/M/S/T
Video management AXIS Camera Station Edge / Pro; compatible partner VMS
Network protocols IPv4/IPv6 USGv 6, ICMPv 4/v 6, HTTP/HTTPS/HTTP2, TLS, QoS DiffServ, FTP/SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMPv 1/v 2c/v 3, DNS/DNSv 6/DDNS, NTP/PTP/NTS, RTSP/RTP/SRTP/RTSPS/RTCP, TCP/UDP, IGMPv 1/v 2/v 3, DHCPv 4/v 6, SSH, LLDP/CDP, MQTT3.1.1, secure syslog, ZeroConf
Hardware security Axis Edge Vault, TPM2.0 CC EAL4+ /FIPS 140-2 Level 2, secure element CC EAL6+, TEE, Axis device ID, keystore, signed video, secure boot, AES-XTS-Plain 64 256-bit filesystem
Security documentation AXIS OS Hardening Guide, vulnerability policy, security development model, SBOM
Events Temperature, IP/network/system/live-stream and digital audio status; storage recording/disruption/health; digital/manual/virtual inputs; MQTT; schedules; bitrate degradation and tampering
Audio input / output 3.5 mm external unbalanced microphone/line input; optional 5 V microphone or 12 V digital ring power; 10-band equalizer, AGC; output through paired network speaker
Audio codecs 24-bit LPCM; AAC-LC8/ 16/ 32/ 48 kHz; G.711 PCM8 kHz; G.726 ADPCM8 kHz; Opus 8/ 16/ 48 kHz; configurable bitrate
Audio tools Speaker pairing; spectrum visualizer available with ACAP. External audio equipment is separate
Network security 802.1X EAP-TLS, 802.1AR, HTTPS/HSTS, TLS1.2/ 1.3, NTS, X.509 PKI, host firewall
Storage microSD/SDHC/SDXC; AES-XTS-Plain 64 256-bit card encryption; NAS. Card not included; no fixed maximum capacity specified
Tools AXIS Site Designer, Device Manager, product/accessory selectors, lens calculator
Languages English, German, French, Spanish, Italian, Russian, Simplified/Traditional Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Manufacturer warranty Axis 5-year limited hardware warranty for eligible shipments from Axis on/after 1 April 2020; period starts at Axis shipment. Covers design/material/workmanship defects under normal use, repair or replacement subject to terms. Separate from seller terms
Model-specific audio, security and event actions
Audio duplex Configurable half/full duplex; external microphone input and output through speaker pairing
Additional event conditions Audio detection/clip playing, ring-power overcurrent, shock; digital audio input status
Event actions Play/stop audio clips; I/O, MQTT, HTTP/HTTPS/TCP/email notification, overlays, pre/post-alarm buffering, SD/NAS recording, SNMP traps, FTP/SFTP/HTTP/HTTPS/share/email uploads
Software security Signed firmware, brute-force delay, digest/OAuth 2/ADFS authentication, password protection; Axis Cryptographic Module FIPS 140-2 Level 1; AES-XTS-Plain 64 256-bit SD encryption
Additional network security 802.1X PEAP-MSCHAPv 2; 802.1AE MACsec PSK/EAP-TLS
Power, housing and installation
Power inputs / consumption PoE802.3af/at Type 1 Class 3: typical 3.5 W, max 12.95 W; 12–28 V DC: typical 3.6 W, max 12.95 W
Ports / I/O Shielded Gigabit RJ45 PoE, 3.5 mm mic/line input, DC terminal; 1 supervised alarm input and 1 output, 12 V DC maximum 50 mA
Housing / protection Aluminium/polycarbonate; white NCS S1002-B; IP66/IP67/NEMA4X; IK10 excluding front window
Dimensions / weight / EPA Drawing: 272 mm overall length, 132 mm mounting-base diameter, 95 mm body width / 1.4 kg / 0.022 m²
Operating conditions −40 to 60 °C; 10–100% RH condensing; NEMA TS2 maximum 74 °C is a test reference
Storage conditions −40 to 65 °C; 5–95% RH non-condensing
Optional accessories AXIS T94F01M J/gang-box plate, T91A47 pole mount, T94P01B corner, T94F01P conduit box, Weather ShieldK, PoE midspans, T8415 installation tool, Surveillance Cards
19 mm planning references and compliance
Human DRI Detect 567 m /recognize 142 m /identify 71 m
Vehicle DRI Detect 1739 m /recognize 435 m /identify 217 m
DRI conditions Theoretical Johnson criteria: 1.5/ 6/ 12 pixels; assumed human 1.8 × 0.5 m, vehicle 4.0 × 1.5 m. Evaluate actual scene and weather; these are thermal target-detail references, not guaranteed personal identification
Approvals CSA, UL/cUL, CE, KC; TAA compliant; regional applicability varies
EMC / safety CISPR32 ClassA/ 35, EN55032/ 55035, EN50121-4/IEC62236-4, EN61000-3-2/-3/-6-1/-6-2; IEC/EN/UL62368-1 ed 3, IS13252
Environment / network / cybersecurity IEC60068-2-1/-2/-6/-14/-27/-78, IEC60529/ 62262 (front window excluded from IK10), ISO21207 MethodB, MIL-STD-810H methods 501.7/ 502.7/ 505.7/ 506.6/ 507.6/ 509.7/ 510.7/ 514.8/ 516.8/ 521.4, NEMA250/TS2; NIST SP500-267; ETSI EN303645, BSI IT Security Label, FIPS 140
Substances / export PVC/BFR/CFR free underJS709; RoHS2011/ 65/EU/EN63000, REACH1907/ 2006; export/re-export controls apply

What's in the Box

Camera, installation guide, drill template, TORX L-keys, RESISTORX L-key, terminal connector, connector guard, cable gaskets and owner authentication key

Frequently Asked Questions

Is it a 768 × 576 thermal sensor?
The detector is 384 × 288. The higher output resolution is scaling.
Can it measure a precise target temperature?
This exact datasheet describes thermal surveillance and does not substantiate a calibrated radiometric temperature-measurement function.
Does the DRI identification distance reveal a person’s identity?
These are theoretical thermal target-detail criteria. Use a visible-light camera when personal identification or colour evidence is required.
Singular Expert Insight
Use this 19 mm 30 fps variant for thermal detection in the selected sector, then plan a separate visual verification view and evaluate the real site with adequate margins. Compare IP cameras

Buyer’s Guide

Buy it if

You need narrow-view perimeter thermal surveillance at 30 fps.

Skip it if

You need colour evidence, calibrated temperature readings or a wider lens variant.

Also consider

A visible-light camera for identification or another verified thermal lens for broader coverage.
