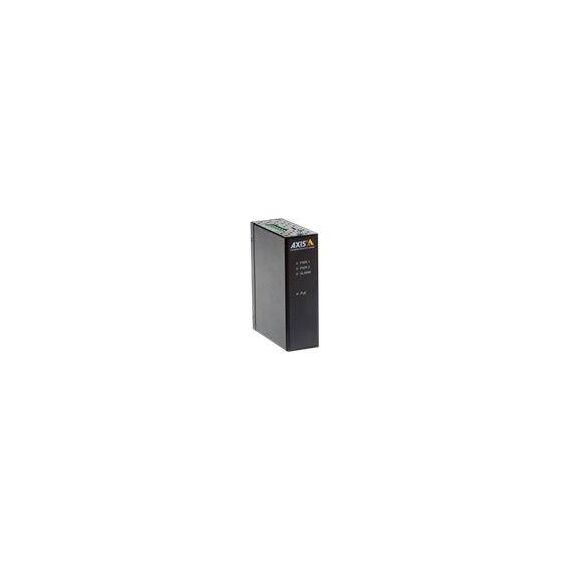

AXIS T8144 Industrial Midspan / PoE injector / DC 20 / 60 V / 60 Watt / black | 01154-001
01154-001
Find similar
Delivery
✓
Delivery time within 3 to 8 business days.
✓
Free delivery to your nearest Akis Express for all orders over €100.
Ships from EU stock — fast delivery to Cyprus
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Special Features
- 60 W Power over Ethernet
- Wide temperature range
- Dual DC inputs
- Supports all Axis PoE devices
- Plug-and-play
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | High PoE |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | DC 20 - 60 V |
| Input Connectors | 6 pin terminal block |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | 55 V |
| Power Capacity | 60 Watt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | Miscellaneous |
| Features | Wall mountable, LED indicator, DIN rail mountable |
| Compliant Standards | EN55024, EMC, ICES-003 Class A, RoHS, WEEE, REACH, FCC Part 15 B Class A, VCCI Class A, EAC, RCM, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, UL 62368-1 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.8 cm |
| Depth | 11.1 cm |
| Height | 3.6 cm |
| Weight | 315 g |
Features - AXIS - 01154-001
More Details
Product Code
B093068
EAN Code
7331021061149
Manufacturer
AXIS
