AXIS T90 Multi Bracket 01221-001 Wall and Pole Mounting Bracket for AXIS T90D20 T90D25 T90D30 T90D35 T90D40 Illuminators

Brand:
AXIS
AXIS T90 Multi Bracket for T90D Illuminators 01221-001
AXIS T90 Multi Bracket 01221-001 Wall and Pole Mounting Bracket for AXIS T90D20 T90D25 T90D30 T90D35 T90D40 Illuminators
€116.01 inc. VAT
Buy
01221-001
€97.49
€116.01 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
B093206
EAN Code
7331021062276
Manufacturer
AXIS

Quick Specs

For
AXIS T90D illuminators
Mounting
Wall or pole
Models
T90D20/25/30/35/40
Outline
Approx. 370 × 158 × 135 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS T90 Multi Bracket — for illuminators

IlluminatorsWall or poleT90D seriesEasy install

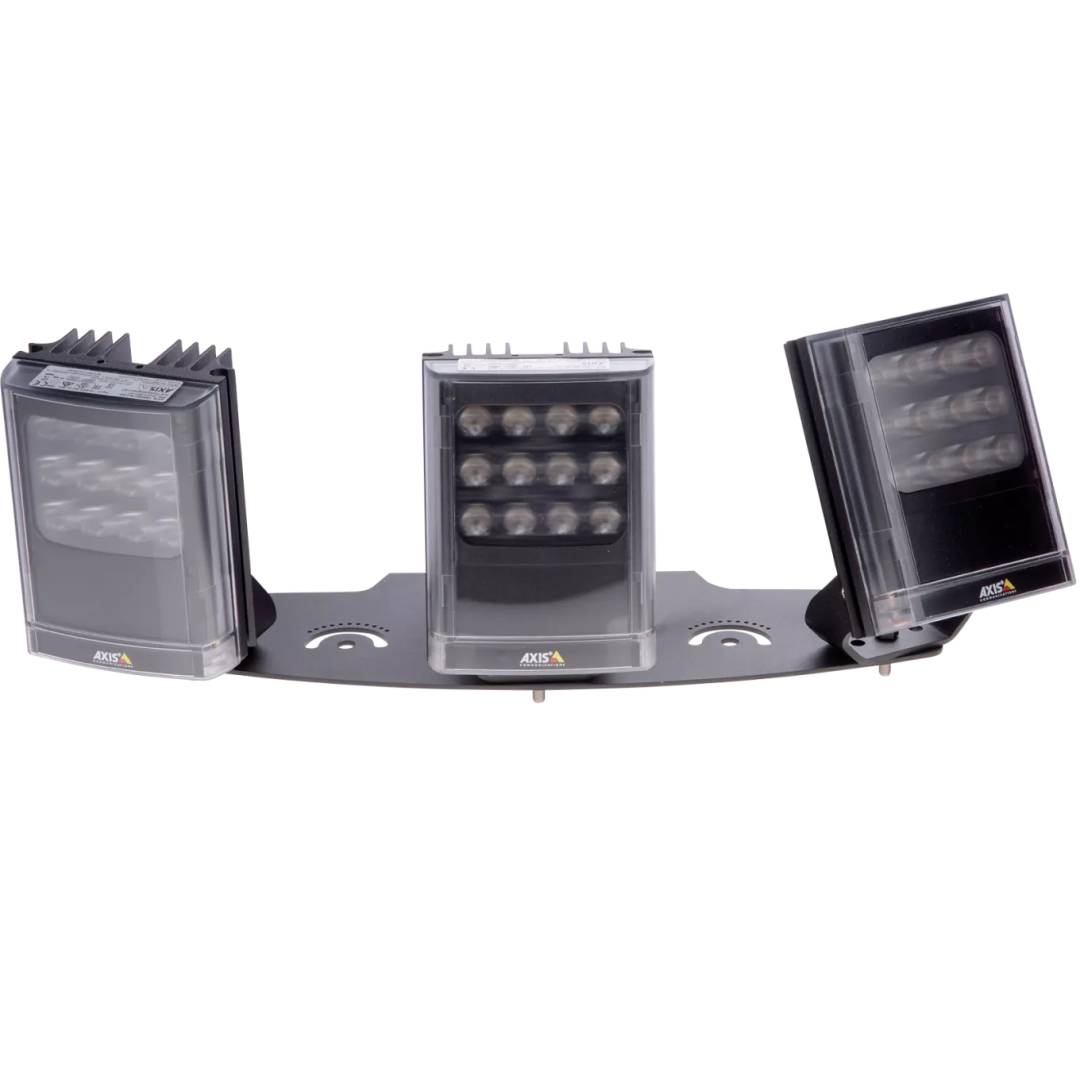

The AXIS T90 Multi Bracket (part number 01221-001) is a mounting bracket designed to fit several AXIS illuminators. It holds an IR-LED or white-light LED illuminator on a wall or pole so it can light the area a camera watches at night. AXIS lists the T90D20 IR-LED, T90D25 W-LED, T90D30 IR-LED and T90D35 W-LED, each in standard and PoE versions, plus the T90D40 IR-LED. The bracket can also be combined with the AXIS T90 Wall-and-Pole Mount. Its outline is about 370 × 158 × 135 mm.

Compatibility — check before buying:
For AXIS illuminators, not cameras. AXIS lists the T90D20, T90D25, T90D30, T90D35 (and their PoE versions) and T90D40. The illuminator is not included. AXIS does not publish the material, weight or pole-diameter range for this bracket. Not sure? Tell us your camera model and we check it for you.

Best For

✓ AXIS T90D illuminators
✓ Night surveillance
✓ Car parks and yards
✓ Perimeter lighting
✓ Adding light next to cameras
✓ Pole and wall installs

Key Features


Fits several illuminators
One bracket for the T90D20 to T90D40 range.

Wall or pole
Mounts on walls and, with the right mount, poles.

Easy installation
Designed for AXIS illuminators.

Works with T90 mount
Combines with the AXIS T90 Wall-and-Pole Mount.

Technical Specifications

Identification
Brand AXIS
Product AXIS T90 Multi Bracket
Part Number 01221-001
EAN / GTIN 7331021062276
Model AXIS T90 Multi Bracket
Product Type Mounting bracket for AXIS illuminators
Compatibility
Illuminators AXIS T90D20 IR-LED, T90D25 W-LED, T90D30 IR-LED, T90D35 W-LED (standard and PoE), T90D40 IR-LED
Mount AXIS T90 Wall-and-Pole Mount
Physical
Outline (drawing) Approx. 370 × 158 × 135 mm
Mounting Wall or pole
In the Box
Included Bracket (AXIS does not list further box contents)
Not Included Illuminator; pole straps; wall anchors
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 3-year warranty for this product on its product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I mount a camera on it?
No. It is designed for AXIS illuminators.
Which illuminators fit?
T90D20, T90D25, T90D30, T90D35 (and PoE versions) and T90D40.
Can it go on a pole?
Yes, AXIS describes wall and pole mounting.
Is the illuminator included?
No.
Singular Expert Insight
An illuminator mounted slightly away from the camera reduces insects and glare in the image. The multi bracket makes that placement easy. For cameras, see our IP cameras.

Buyer’s Guide

Buy it if

You install an AXIS T90D illuminator on a wall or pole.

Skip it if

You need a camera mount.

Also consider

AXIS T90 Wall-and-Pole Mount.
