AXIS T91H61 Wall Mount for Axis Dome Cameras with Pendant Kit, IP66 Aluminium, Built-in RJ45 Cable, White
Brand:
AXIS
AXIS T91H61 Wall Mount for Axis Dome Cameras with Pendant Kit, IP66 Aluminium, Built-in RJ45 Cable, White
€344.64 inc. VAT
5507-641
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
AXIS T91H61 Wall Mount — for Axis Dome Cameras
IP66 · IK10 · NEMA 4XBuilt-in RJ45 cableMax load 30 kgWhite NCS S 1002-B

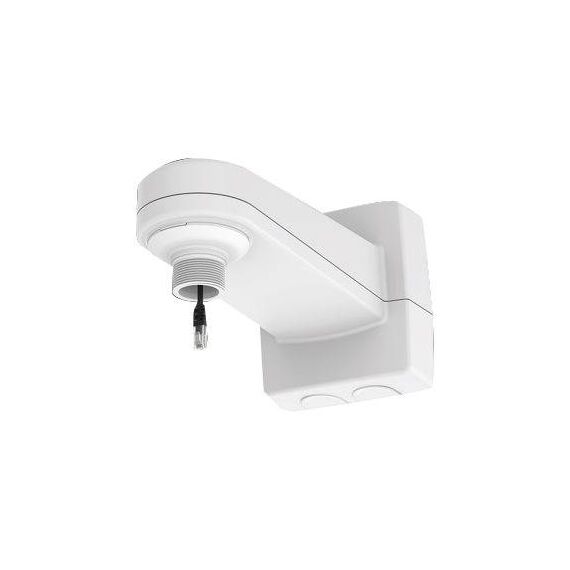

The AXIS T91H61 Wall Mount (part 5507-641) is a powder-coated aluminium wall bracket for Axis fixed dome cameras installed with a pendant kit, indoors or outdoors. Inside the arm there is room to protect accessories such as a midspan, and a built-in Ethernet cable with RJ45 connectors on both ends lets you connect power and data quickly without opening the camera housing in the rain.
It fits all Axis camera pendant kits with a 1.5" NPS thread and carries up to 30 kg. Cables can be routed from behind the wall or through two 3/4" conduit entries, and the mount is rated IP66, IK10 and NEMA 4X for impact and weather resistance.
Before you order: The camera is attached through an Axis pendant kit (sold separately) with a 1.5" NPS thread — for example AXIS T94M01D, T94T02D, T94N01D, T94K01D, T94F01D or the TP31xx/TQ3103-E kits, depending on your camera. Tell us your camera model and we will match the right pendant kit.
What's in the Box
- AXIS T91H61 Wall Mount
- Ethernet cable with male RJ45 connectors and gasket (pre-mounted)
- Foam gaskets and silicone strap (pre-mounted)
- Cable ties
- AXIS ACI Conduit Cover A
- Installation guide
What It Means in Practice
- Typical use: an AXIS P32/P33/Q35/Q36 dome on an outside wall — the pendant kit screws into the end of the arm, the mount screws to the wall.
- A midspan can sit inside the mount, so you only need to bring mains or a single cable to the wall.
- Combine with the AXIS T91B57 Pole Mount or AXIS T91A64 Corner Bracket for poles and building corners.
- White NCS S 1002-B matches the standard white Axis dome housings.
What Will Not Work
- It does not include the pendant kit — without the right kit the camera cannot be attached.
- It does not include a midspan or power supply.
- It is not for PTZ cameras that need the T91G61-type PTZ mount.
- It is not a ceiling mount.
Key Features
Protected accessories
Room inside the arm for a midspan and other accessories.
Quick connection
Built-in Ethernet cable with RJ45 connectors for power and data.
Rugged
Powder-coated aluminium, IP66, IK10, NEMA 4X.
Flexible cabling
Back cable hole and 2 × 3/4" conduit entries.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most dome camera wall installations fail on the details: the wrong pendant kit or an unsealed cable entry. Order the T91H61 together with the pendant kit for your camera; if you are still choosing the camera, see our IP cameras.
✓ Buy it if you are wall-mounting an Axis fixed dome with a 1.5" NPS pendant kit and want the cabling protected inside the mount.
✕ Skip it if you need a ceiling mount or are mounting a PTZ camera.
→ Also consider AXIS T91B57 Pole Mount for poles, AXIS T91A64 Corner Bracket for corners.
Not sure which pendant kit you need? Send us your camera model and we will put the full mounting set together before you order.
Features - AXIS - 5507-641
Colour
white
More Details
Product Code
B092932
EAN Code
7331021057067
Manufacturer
AXIS
