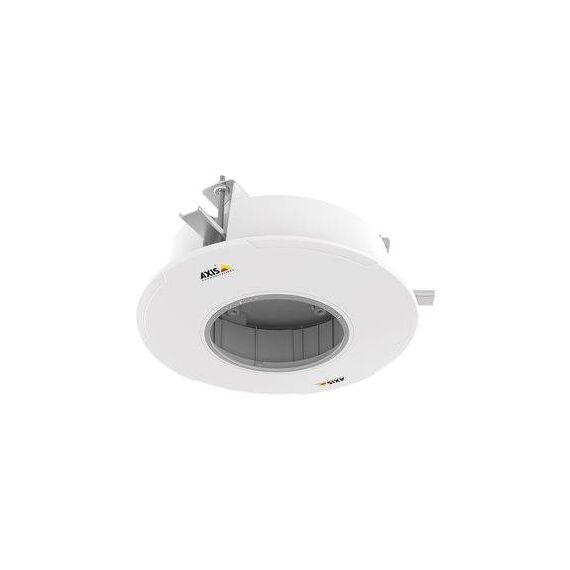

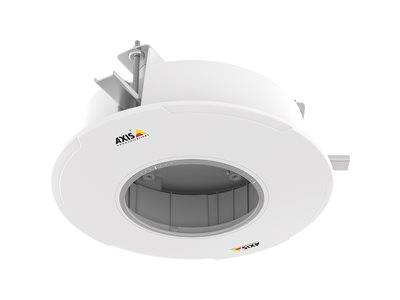

AXIS T94P01L Recessed Mount 01172-001 for M55 Series PTZ Cameras Indoor/Outdoor White
Brand:
AXIS
AXIS T94P01L Recessed Mount 01172-001 for M55 Series PTZ Cameras Indoor/Outdoor White
€181.45 inc. VAT
01172-001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
AXIS T94P01L Recessed Mount — Discreet M55 Series Installation
Indoor / outdoorIK094.5 kg max load3/4-inch conduit entry
The AXIS T94P01L Recessed Mount (01172-001) is designed for discreet recessed installation of compatible AXIS M55 Series PTZ cameras in drop ceilings, ceiling tiles and roof overhangs or soffits. Its metal back box includes a 3/4-inch (M25) conduit entrance, making the mount suitable for protected cable routing and for use in air-handling or plenum spaces where permitted by the installation design.
Compatibility — check before buying:
AXIS currently lists the AXIS M5526-E PTZ Camera as compatible. The discontinued AXIS M5525-E is also supported. This is an M55 Series-specific recessed mount, so confirm the exact camera model before ordering rather than assuming compatibility with other Axis PTZ families.
Best For
✓ Recessed AXIS M55 Series PTZ installations
✓ Drop ceilings and ceiling tiles
✓ Roof overhang and soffit installations
✓ Installations requiring protected conduit routing
Key Features
Low-profile recessed installation
When installed with a compatible camera, only the camera dome and low-profile cover ring remain visible below the ceiling, helping produce a cleaner and less intrusive installation.
Suitable for indoor and outdoor use
Axis specifies the T94P01L for both indoor and outdoor environments, including ceiling and soffit applications with a compatible M55 Series camera.
Metal back box for protected cabling
The metal rear enclosure includes an M25 / 3/4-inch conduit entrance for cable protection and makes the mount suitable for air-handling or plenum-space installations.
IK09 impact resistance
The mount is tested to IEC 62262 IK09, adding verified mechanical impact resistance to the mounting assembly.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The T94P01L is useful when the objective is to make an M55 Series PTZ installation look integrated into the ceiling rather than surface-mounted. The camera sits largely above the ceiling plane, leaving only the dome and slim cover ring visible. The metal back box and M25 conduit entry are especially relevant in commercial installations where protected cable routing or plenum-space suitability matters. Measure the required 215 mm cut-out and confirm the exact camera model before installation.
Buyer’s Guide
Buy it if
You need a genuine recessed mount for a compatible AXIS M55 Series PTZ camera in a ceiling, tile or soffit installation.
Check first
Confirm the exact camera model, allow for the 215 mm ceiling cut-out and make sure the mounting surface can support the camera and mount safely.
Installation note
Use the 3/4-inch conduit entrance where protected cable routing is required. An AXIS Safety Wire 3 m is available separately for installations that need it.
Features - AXIS - 01172-001
More Details
Product Code
B093233
EAN Code
7331021061347
Manufacturer
AXIS
