AXIS TU9001 Control Board, Joystick and Keypad Set for AXIS Camera Station and Compatible VMS, USB, 5-Year Axis Warranty
Brand:
AXIS
AXIS TU9001 Control Board, Joystick and Keypad Set for AXIS Camera Station and Compatible VMS, USB, 5-Year Axis Warranty
€1567.44 inc. VAT
02474-001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
AXIS TU9001 Control Board — Joystick and Keypad for AXIS Camera Station
Joystick + keypad setUSB poweredAXIS Camera Station / partner VMS5-year Axis warranty

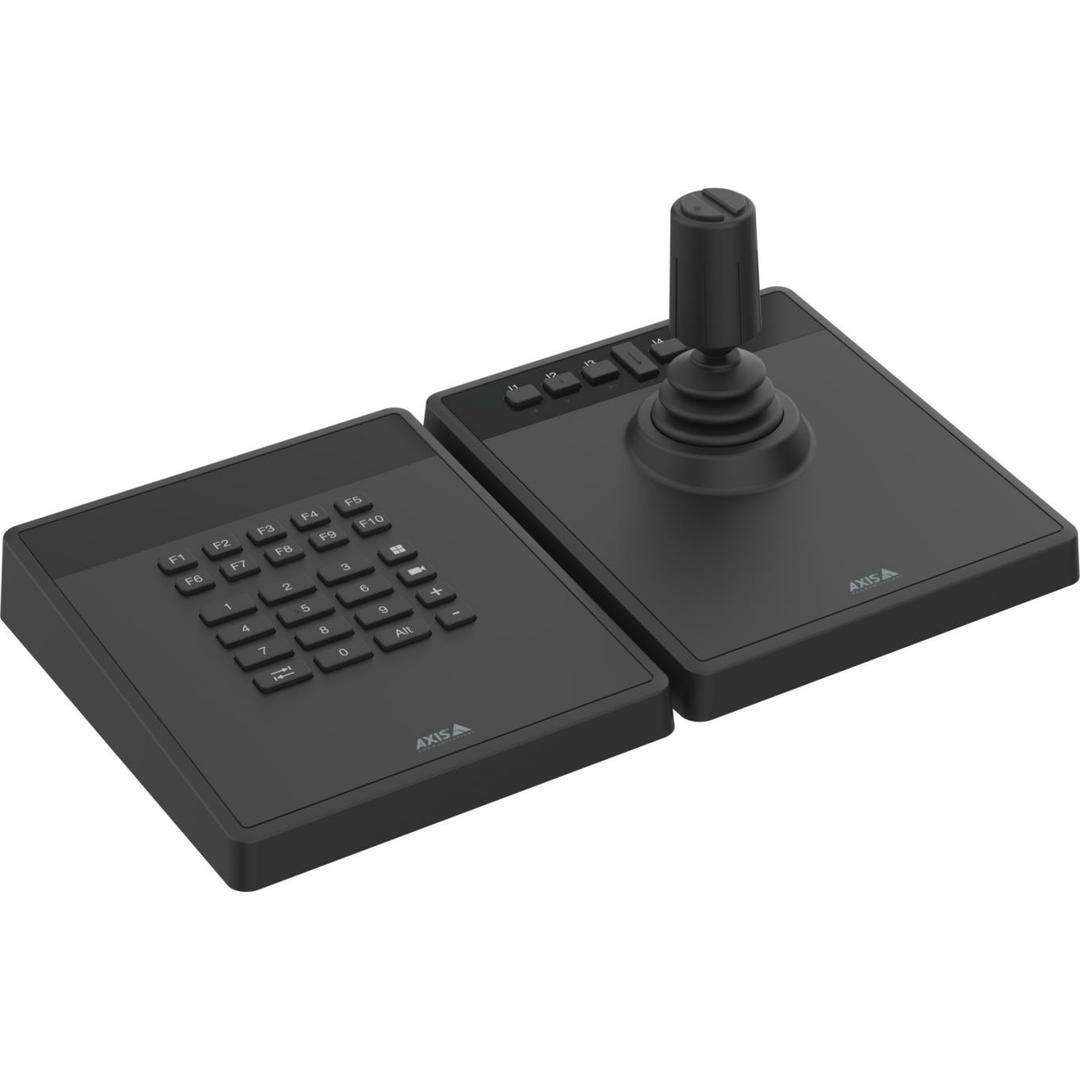

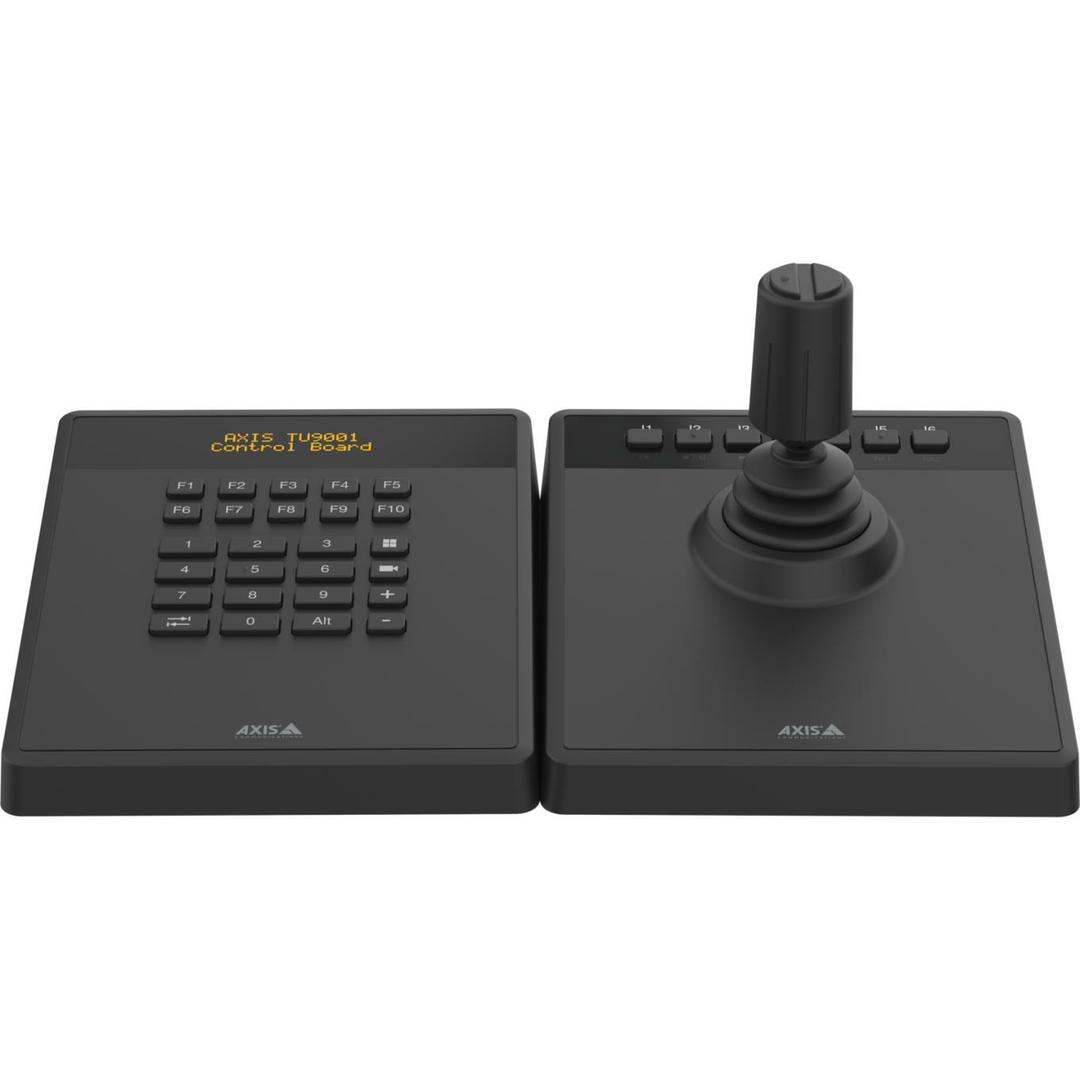

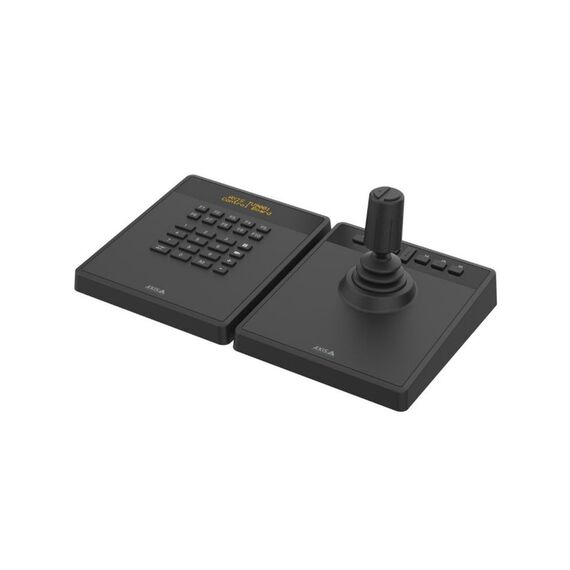

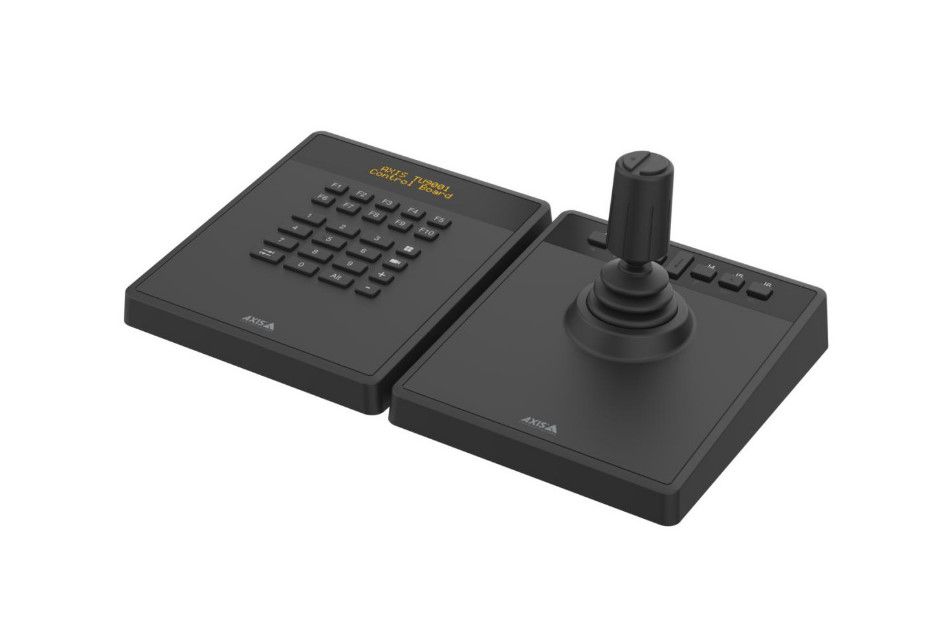

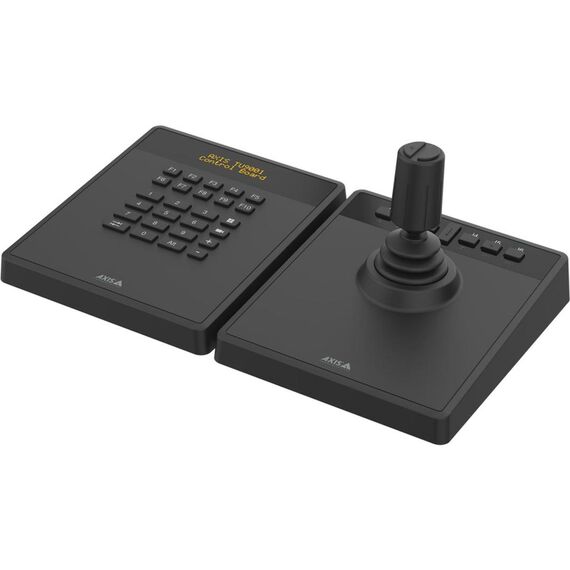

The AXIS TU9001 Control Board is an ergonomic operator control set for video surveillance, combining the AXIS TU9002 Joystick and the AXIS TU9003 Keypad. It is made for control rooms and security desks that run AXIS Camera Station and need fast, precise control of PTZ cameras and video views without reaching for the mouse.
The 3-axis Hall-effect joystick handles pan/tilt and twist-to-zoom, and its toggle key switches between joystick and jog-dial mode for scrubbing through recordings. The keypad adds 26 customizable keys and a 2 × 20 character display. Both units are powered over USB and connect to the PC with a single cable — the joystick acts as a USB hub for the keypad.
Before you order: Requires a Windows PC running AXIS Camera Station 5.54 or later, AXIS Camera Station Pro, or a compatible partner VMS. No macOS or Linux support is listed, and the board does not connect to cameras directly.
What's in the Box
- AXIS TU9002 Joystick
- AXIS TU9003 Keypad with bracket
- USB cable 200 cm (USB-A to PC, USB-C to joystick)
- USB cable 50 cm (joystick USB-A to keypad USB-C)
- Installation guides
What It Means in Practice
- Operators can pan, tilt and zoom PTZ cameras with one hand while switching camera views and presets with the other.
- Jog-dial mode makes it quick to scrub through recorded video during an incident review.
- Keys are customizable, so common actions (presets, views, bookmarks, exports) can sit on dedicated buttons.
- Only one USB port is needed on the PC: the keypad connects through the joystick's USB-A port.
- The top surfaces are IP54-rated against dust and splashes, suited to busy security desks.
What Will Not Work
- Not a standalone controller — it needs a PC with a supported VMS.
- No network, serial (RS-485) or analog PTZ control output — it cannot drive cameras directly.
- No macOS or Linux support listed by Axis.
- Not compatible with VMS software that does not support Axis joysticks.
Key Features
3-axis joystick
Hall-effect X/Y pan/tilt (±15°) and Z twist zoom (±25°), usable as a mouse.
26-key keypad
Customizable keys and a 2 × 20 character display.
Single USB connection
Powered over USB 2.0; joystick works as a hub for the keypad.
5-year warranty
Covered by Axis's 5-year warranty.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For anyone who spends hours in AXIS Camera Station, the TU9001 turns PTZ control and video review into a one-hand job and pays for itself in operator efficiency. Confirm your VMS version first. More surveillance hardware in our IP cameras section.
✓ Buy it if you operate AXIS Camera Station with PTZ cameras or frequent video review.
✕ Skip it if your VMS does not support Axis joysticks or you run macOS/Linux workstations.
→ Also consider the AXIS TU9002 joystick alone if you do not need the keypad.
Tell us your VMS and version and how many operator desks you have and we will confirm compatibility before you order.
Features - AXIS - 02474-001
More Details
Product Code
CJ41085
EAN Code
7331021078086
Manufacturer
AXIS
