AXIS W800 System Controller 01964-003 UK for AXIS Body Worn Solution up to 40 Cameras 5 Docking Stations 480 GB Encrypted SSD

Brand:
AXIS
AXIS W800 System Controller UK 01964-003
AXIS W800 System Controller 01964-003 UK for AXIS Body Worn Solution up to 40 Cameras 5 Docking Stations 480 GB Encrypted SSD
€2992.52 inc. VAT
Buy
01964-003
€2,514.72
€2,992.52 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
B094114
EAN Code
7331021071827
Manufacturer
AXIS

Quick Specs

Capacity
40 cameras, 5 docking stations
Storage
480 GB SSD, AES 256-bit
Ports
1 uplink + 5 device ports, Gigabit
Power
12 V DC, max. 16 W
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS W800 System Controller — UK

40 cameras5 docks480 GB SSDTPM 2.0

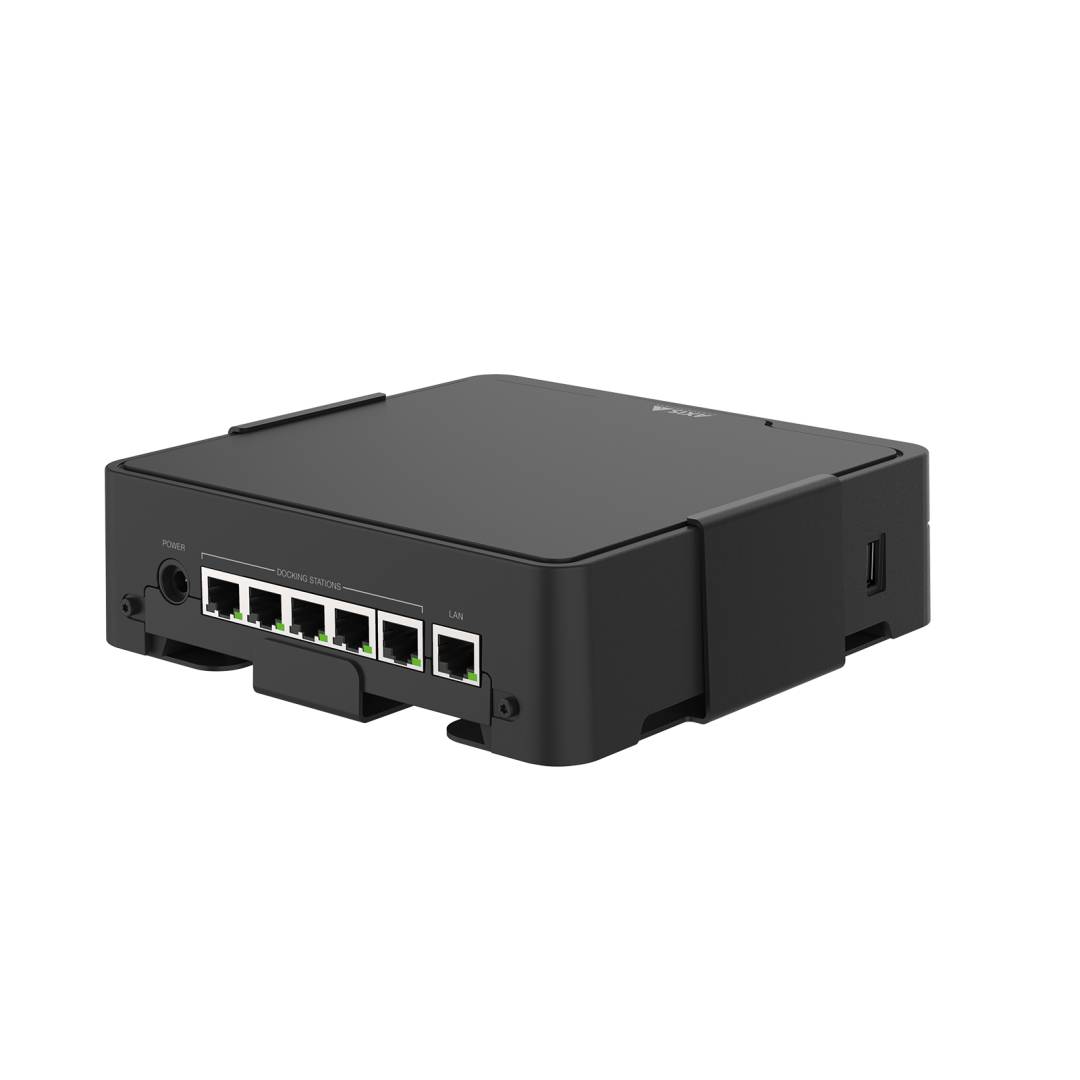

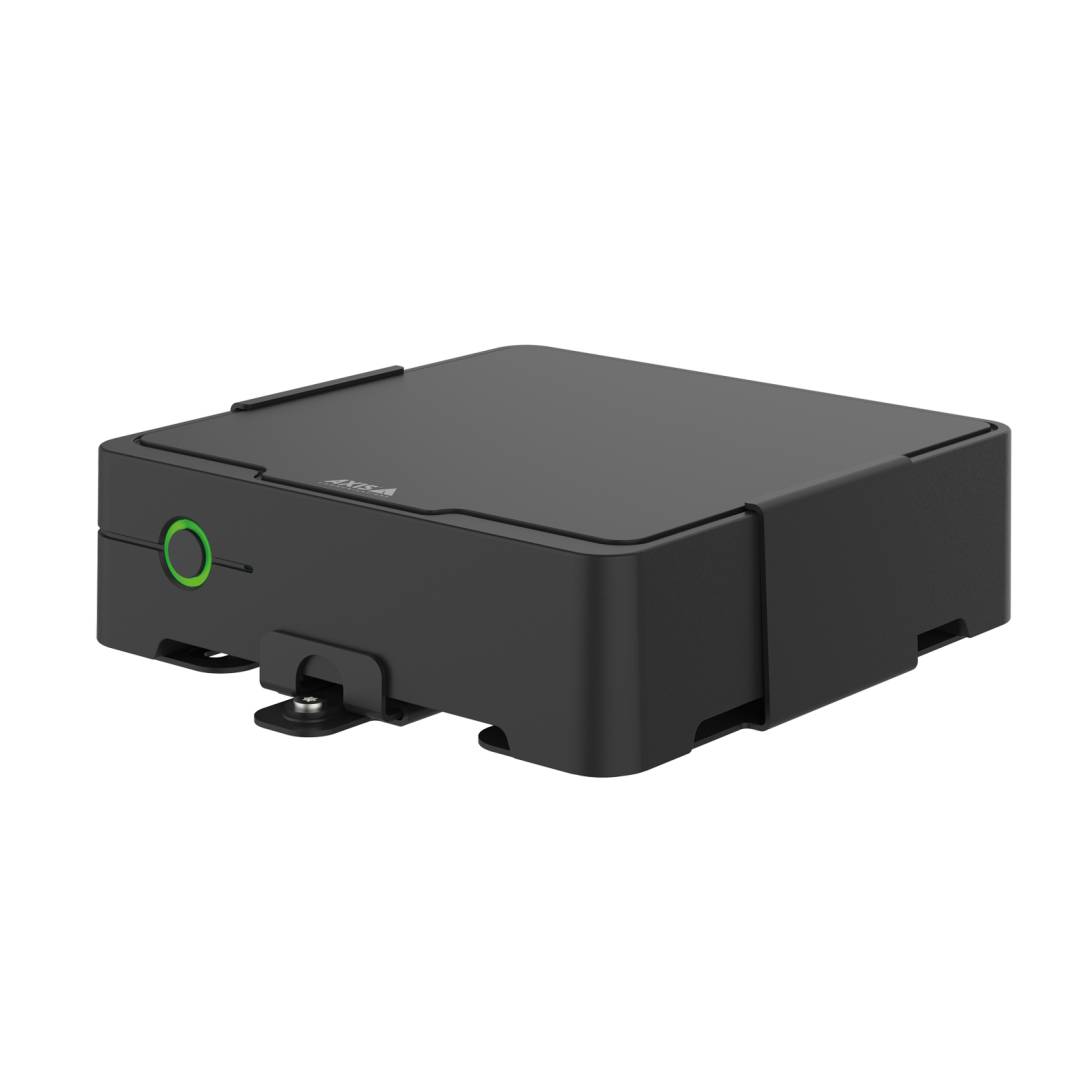

The AXIS W800 System Controller UK (part number 01964-003) is the central unit of the AXIS body worn solution. AXIS body worn cameras and their docking stations connect to it; it registers the cameras, manages users and settings, and offloads the recorded video to the content destination — AXIS Camera Station or a supported third-party video management system. One controller handles up to 40 cameras and 5 docking stations, and a system can grow to 1000 cameras. Video is buffered on a 480 GB SSD with 256-bit encryption, and a TPM 2.0 chip protects the keys. The compact black box measures 53 × 180 × 180 mm and weighs 765 g. In practice it is the part that turns body cameras into a managed evidence system.

Compatibility — check before buying:
It does nothing on its own. You need AXIS body worn cameras, AXIS docking stations and a content destination. It is not a PoE switch and does not power the docking stations. It runs on 12 V DC; AXIS lists only a mounting bracket as included and does not state whether a power adapter comes in the box — ask us before you plan the installation. This is the UK regional variant; AXIS sells the same controller as 01964-002 (EU), -004 (US) and other regions. Not sure? Tell us your model and we check it for you.

Best For

✓ AXIS body worn camera systems
✓ Security and patrol teams
✓ Retail and hospitality staff
✓ Municipal and transport operators
✓ AXIS Camera Station users
✓ Sites with several docking stations

Key Features


40 cameras per controller
Up to 5 docking stations; up to 1000 cameras per system.

Encrypted storage
480 GB SSD with AES-XTS 256-bit.

Secure by design
TPM 2.0, IEEE 802.1X, HTTPS.

Gigabit uplink
1 Gbit/s to the video management system.

Technical Specifications

Identification
Brand AXIS
Product AXIS W800 System Controller, UK
Part Number 01964-003
EAN / GTIN 7331021071827
Model AXIS W800 System Controller
Region UK variant (01964-003)
Product Type Body worn system controller
System
Role Central management and video offload for AXIS body worn cameras
Capacity Up to 40 cameras and 5 docking stations per controller; up to 1000 cameras per system
Content destination AXIS Camera Station or supported third-party VMS
Storage 480 GB SSD, AES-XTS-Plain64 256-bit encryption
Network & Connectors
Uplink 1 × shielded RJ45 10/100/1000BASE-T
Device ports 5 × shielded RJ45 10/100/1000BASE-T
Throughput 100 Mbit/s per camera; 1 Gbit/s controller to content destination
USB 1 × USB 2.0 Type-A (max. 500 mA; HID and mass storage)
Power input DC input connector
Power & Security
Power 12 V DC, typical 12.25 W, max. 16 W
PoE None (in or out)
Security HTTPS, IEEE 802.1X (EAP-TLS), TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2)
Physical & Environment
Dimensions 53 × 180 × 180 mm (H × W × L)
Weight 765 g
Casing Aluminium and plastic, IP3X, PVC-free
Colour Black NCS S 9000-N
Operating conditions 0 to 40 °C, 10–85% RH non-condensing
Approvals EN 55032 Class A, IEC/EN/UL 62368-1, ETSI EN 303 645, FIPS 140
Regional Versions
UK 01964-003 (this item)
EU / US 01964-002 / 01964-004
Other regions -005 JP, -006 AU, -007 KR, -008 AR, -012 BR, -113 IN
In the Box
Included AXIS W800 System Controller, mounting bracket
Not Included Body worn cameras; docking stations; AXIS TW8100 Rack Mount; RFID card reader; network cables
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 5-year warranty for the W800 System Controller in its datasheet. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

How many cameras can one controller handle?
Up to 40 cameras and 5 docking stations.
Does it power the docking stations?
No, it has no PoE. The docks need their own power.
Where does the video go?
To AXIS Camera Station or a supported third-party VMS.
What is the difference between -003 and -002?
They are regional variants: -003 is the UK version, -002 the EU version.
Singular Expert Insight
We plan body worn systems from the number of cameras per shift: each dock charges and offloads a group of cameras, and the W800 ties them to the VMS. Put the controller and docks in the room where staff start and end their shift. For AXIS cameras and the recording side, see our IP cameras.

Buyer’s Guide

Buy it if

You are building or expanding an AXIS body worn camera system.

Skip it if

You need a controller for fixed IP cameras.

Also consider

AXIS TW8100 Rack Mount for the controller.
