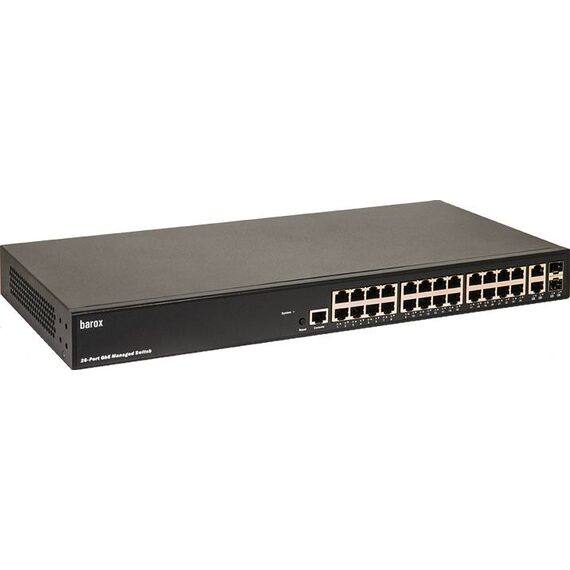

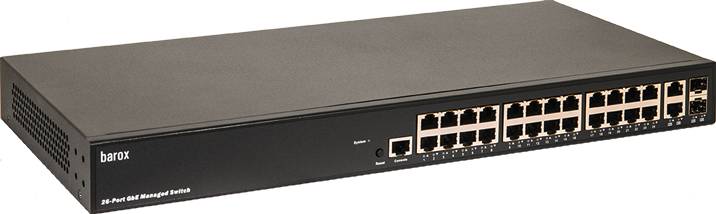

barox RY-LGS23-26 Managed Gigabit Switch with SFP
Brand:
Barox
RY-LGS23-26
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Managed Gigabit switching with DMS visibility for video networks
24 Gigabit copper ports2 × combo SFP uplinksIPv4 / IPv6 static routingFanless 19-inch 1U
The barox RY-LGS23-26 combines managed Gigabit access, optical uplink options and integrated DMS network visibility in a fanless rack switch. The manufacturer specifies 24 copper ports and two 100/1000 Mbit/s SFP combo uplinks, with a 52 Gbps backplane. VLAN, multicast controls and static routing help organise demanding IP video and general Ethernet installations.
Best For: Managed rack networks for IP video, multicast traffic and other applications needing visible topology and controlled Gigabit connectivity.
Before you order: Plan compatible SFP modules and fibre separately, and use the combo uplinks according to the switch configuration rather than counting shared media connectors as independent links. The exact manufacturer specifications do not establish PoE power output for this SKU: use separately powered endpoints or a separately verified PoE source. Operate indoors within 0–40°C.
What's in the Box
- barox RY-LGS23-26 managed switch.
- SFP modules, fibre and Ethernet cables are separate planning items.
- The available manufacturer documents do not establish a complete accessory list; confirm rack hardware and regional AC cord with the supplier.
What It Means in Practice
- Separate cameras, servers and other devices with supported VLAN arrangements.
- Use IGMP snooping and multicast settings to manage IP video distribution.
- Review device topology and per-port traffic using integrated DMS.
- Configure static IPv4/IPv6 routes and appropriate loop prevention for the actual network.
What Will Not Work
- Combo copper/fibre media must not be treated as simultaneous independent ports.
- Do not assume PoE camera power or PoE reboot features from another RY-series model.
- The SFP uplinks are 100/1000 Mbit/s, not 10G SFP+.
- Static routing is not evidence of a WAN firewall, VPN appliance or dynamic routing suite.
Key Features
DMS network overview
Graphical map, device discovery, per-port traffic display and network diagnosis.
Traffic organisation
Tagged, private and Q-in-Q VLAN, QoS and supported link aggregation.
Multicast visibility
IGMP v1/v2/v3 snooping, source-specific multicast and IGMP proxy support.
Fanless rack deployment
19-inch 1U chassis with internal universal AC input and no cooling fan.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For a video network, plan topology, multicast membership and link utilisation together. DMS can make the installation easier to inspect, while VLAN, IGMP and loop controls need deliberate configuration. Keep endpoint power and the chosen combo uplink media explicit in the design.
Buyer’s Guide
✓ Buy it if You need managed Gigabit rack switching, multicast controls and integrated network visibility.
✕ Skip it if You require documented PoE power delivery, 10G uplinks or outdoor installation.
→ Also consider SFP compatibility, fibre type, VLAN and multicast plan, endpoint power, rack hardware and mains cable.
Features - Barox - RY-LGS23-26
Colour
black
Interface
- Ethernet
Port Speed
- 1 Gbps
More Details
Product Code
04:247498
Manufacturer
Barox
