barox PC-PIGE502-GBTE Industrial PoE+ Switch with SFP
Brand:
Barox
PC-PIGE502-GBTE
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Four Gigabit PoE+ connections with copper and fibre uplink options
4 × Gigabit PoE+Up to 120 W shared2 × 100/1000 SFP baysNon-B: 44–56 V DC PoE

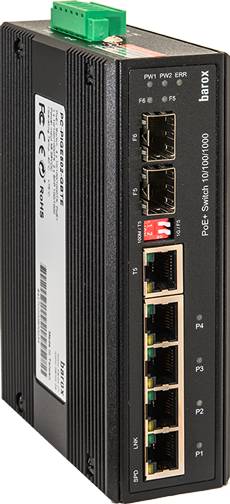

The barox PC-PIGE502-GBTE is an industrial PoE+ switch for connecting and powering up to four compatible Ethernet endpoints. It adds a non-PoE copper uplink and two SFP bays, with an uplink-mode requirement when the fifth copper port is used. This is the exact non-B model with external DC power, not the lower-voltage B booster version.
Best For: Protected industrial video and Ethernet installations requiring four Gigabit PoE+ connections and appropriate copper or fibre uplinks.
Before you order: For PoE on this non-B model, select a suitable separate 44–56 V DC supply with sufficient capacity for the connected load. The 12–56 V PoE range belongs to the B version. When using the fifth RJ45 port, set the uplink/SFP mode to 1 Gbit/s as specified by barox. IP30 requires a protected enclosure. Manufacturer lists this model as EOL, replaced by PC-PIGE502-2.
What's in the Box
- barox PC-PIGE502-GBTE industrial switch.
- Industrial DC power supply, SFP modules, optical and Ethernet cables are selected separately.
- Confirm exact mounting accessories with the supplier; DIN-rail and table/wall mounting options are documented.
What It Means in Practice
- Connect up to four IEEE 802.3af/at devices, observing the shared PoE limit and supply capacity.
- Select compatible barox SFP modules and matching fibre for the required link.
- Set the uplink DIP mode correctly when using the fifth copper port.
- Design grounding, protected housing and any redundant external power sources for the installation.
What Will Not Work
- This non-B model does not provide PoE from a 12 V supply.
- Do not count combo media connectors as seven independent simultaneous network links.
- IP30 and an extended temperature range do not make the switch weatherproof.
- Redundant DC inputs do not provide battery backup, and this model does not establish managed routing or SNMP functions.
Key Features
Four powered endpoints
Four Gigabit IEEE 802.3af/at ports, up to 30 W each within a 120 W shared limit.
Fibre uplink choice
Two 100/1000 SFP bays with exact module and uplink-mode requirements.
Separate industrial power
Non-B PoE input range is 44–56 V DC; capacity must cover switch and endpoint load.
Protected industrial mounting
Fanless IP30 housing, -40°C to +75°C, with DIN-rail installation capability.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the exact power and uplink arrangement before installation. A sufficient 44–56 V industrial supply enables the non-B model to serve its PoE endpoints; the B model’s lower-voltage capability must not be assumed. Keep the fifth copper port’s 1 Gbit/s uplink setting and SFP compatibility explicit.
Buyer’s Guide
✓ Buy it if You need four industrial Gigabit PoE+ connections and have suitable external DC power and compatible uplink components.
✕ Skip it if You need 12 V PoE boosting, waterproof exposure, 10G links or documented managed routing.
→ Also consider Power capacity, non-B voltage range, uplink DIP setting, SFP compatibility, enclosure and lifecycle availability.
Features - Barox - PC-PIGE502-GBTE
Colour
black
Interface
- Ethernet
Port Speed
- 1 Gbps
More Details
Product Code
04:323025
Manufacturer
Barox
