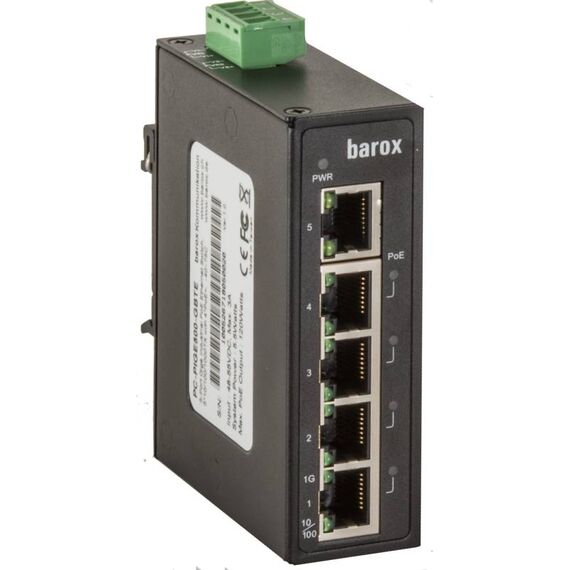

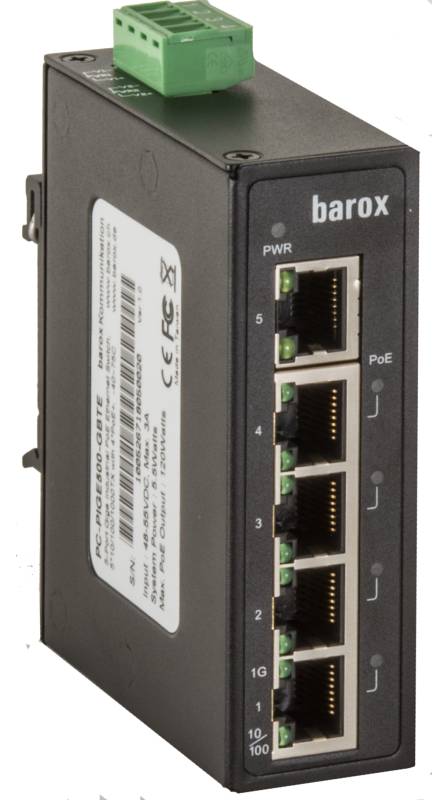

barox PC-PIGE500-GBTE Industrial 5-Port Gigabit PoE+ Switch
Brand:
Barox
PC-PIGE500-GBTE
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Five Gigabit ports for industrial video networks
4 × Gigabit PoE+1 × copper uplinkRedundant DC inputsDIN rail, IP30
The barox PC-PIGE500-GBTE is an unmanaged industrial Gigabit switch with four IEEE 802.3af/at PoE+ ports and one non-PoE copper uplink. Its compact housing, DIN-rail mounting and extended temperature range support protected industrial and video-surveillance installations. The exact model uses five RJ45 connections and has no SFP cages.
Best For: Protected industrial cabinets and small camera networks needing straightforward Gigabit PoE+ connectivity.
Before you order: Provide a suitable separate industrial 48–55 V DC power supply with enough capacity for the switch and all PoE loads. The manufacturer lists up to 120 W total PoE and up to 30 W per PoE port. Redundant inputs require appropriate external supplies. IP30 does not provide rain or water protection.
What's in the Box
- PC-PIGE500-GBTE switch.
- Manufacturer manual lists a six-pin terminal block, one DIN-rail bracket, two wall brackets and four screws.
- External industrial DC power supplies and Ethernet cabling selected separately.
What It Means in Practice
- Connect up to four compatible PoE+ cameras or endpoints to the powered Gigabit ports.
- Use the fifth non-PoE Gigabit RJ45 connection for the upstream network.
- Select the correct external DC supply and account for both PoE demand and switch consumption.
- Mount securely on DIN rail or the supplied wall brackets inside a suitable protected installation.
What Will Not Work
- No SFP or fibre uplink on this exact five-port model.
- Unmanaged operation; no model-specific web GUI, VLAN configuration or DMS function is established.
- No direct AC mains input or documented included external PSU.
- IP30 is not a waterproof outdoor enclosure.
Key Features
Four PoE+ connections
IEEE 802.3af/at, up to 30 W per supported port with sufficient external power.
Copper Gigabit uplink
A fifth 10/100/1000 RJ45 port connects the upstream network without PoE.
Industrial power
Two DC inputs support redundant external power with reverse-polarity protection.
Compact mounting
Narrow housing with DIN-rail and wall mounting hardware listed in the manual.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Build the power system around actual camera demand and the DC supply capacity. Four 30 W outputs require the full 120 W PoE capability plus switch overhead. Keep the IP30 switch protected and do not plan a fibre uplink or management features belonging to other barox models.
Buyer’s Guide
✓ Buy it if You need compact unmanaged copper Gigabit PoE+ in a protected industrial cabinet.
✕ Skip it if You need SFP uplinks, managed configuration, direct mains input or weatherproof equipment.
→ Also consider External industrial power supplies, combined camera demand, cable routing, grounding and the protective cabinet.
Features - Barox - PC-PIGE500-GBTE
Colour
black
Interface
- Ethernet
Standard
5-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:327387
Manufacturer
Barox
