be quiet! Light Base 600 LX — Black Panoramic ARGB PC Case
4 Light Wings LX FansPanoramic GlassDual 360mm RadiatorsInverted / Horizontal

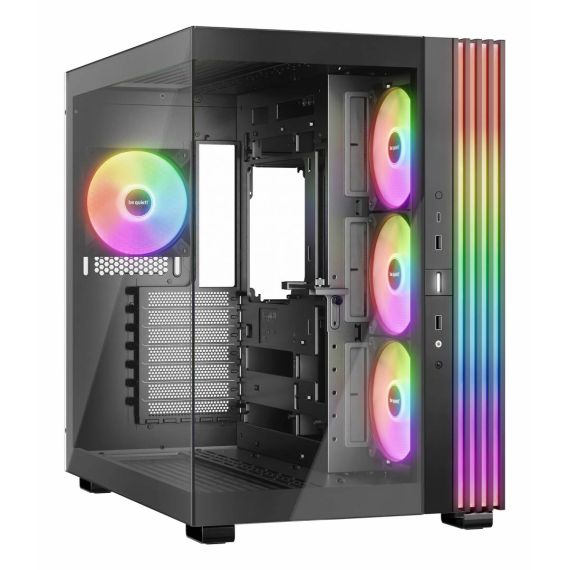

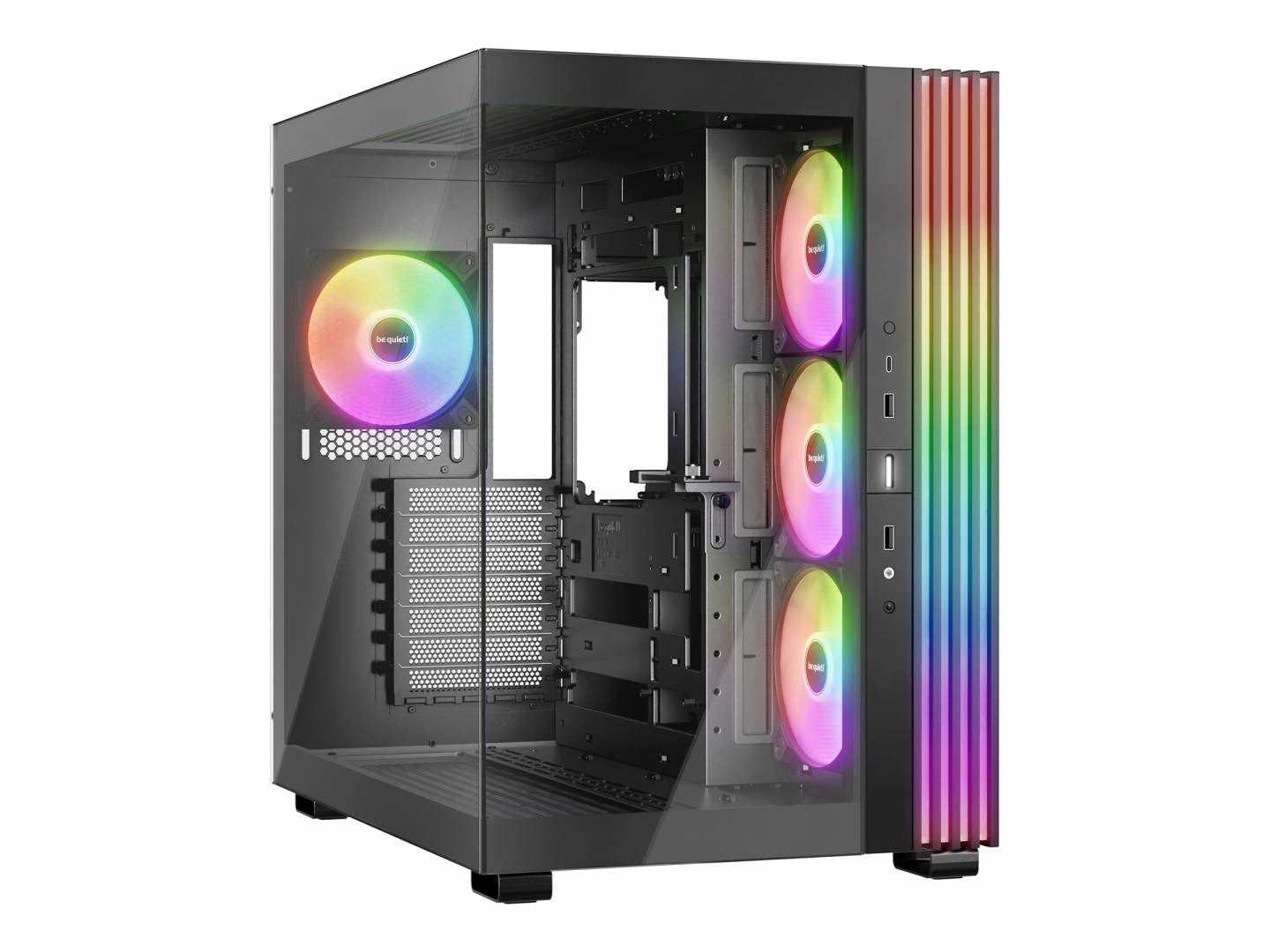

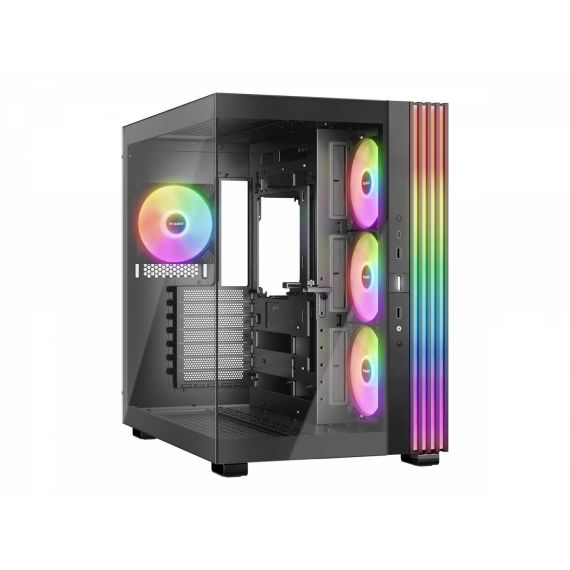

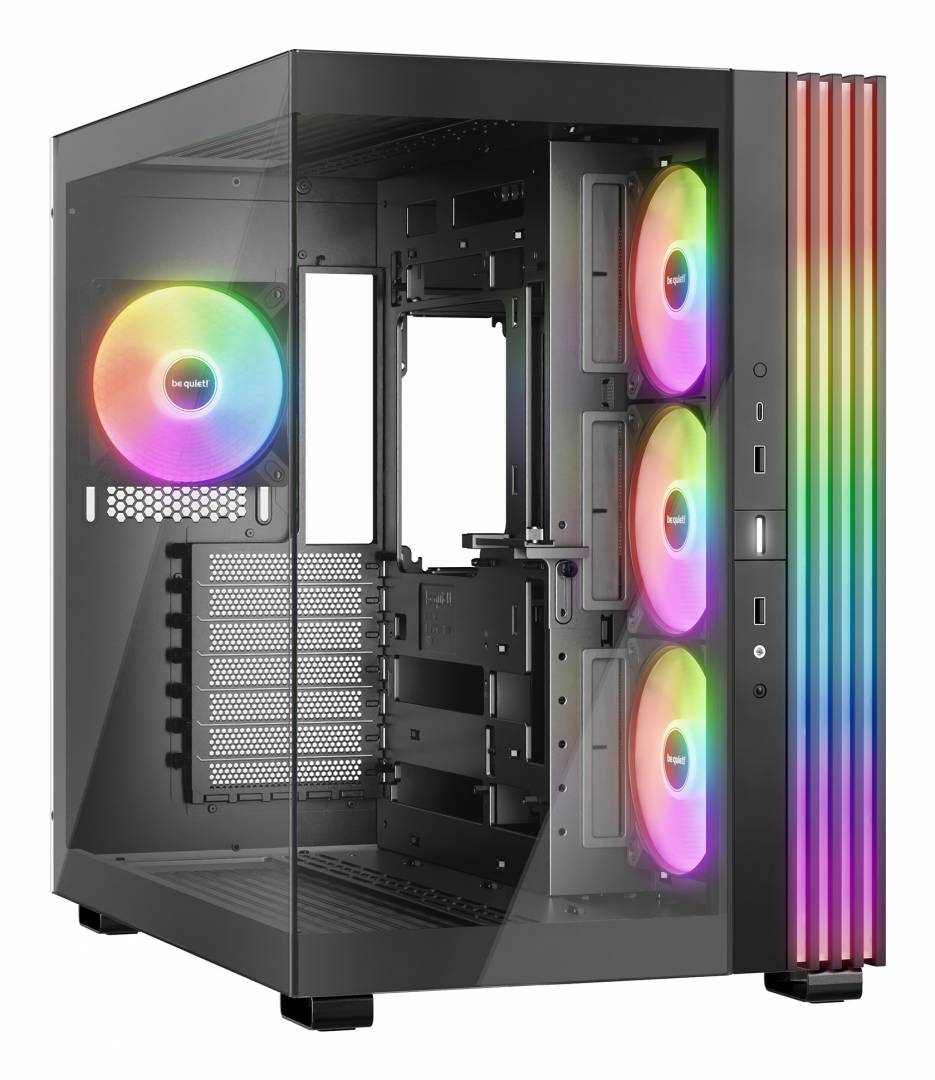

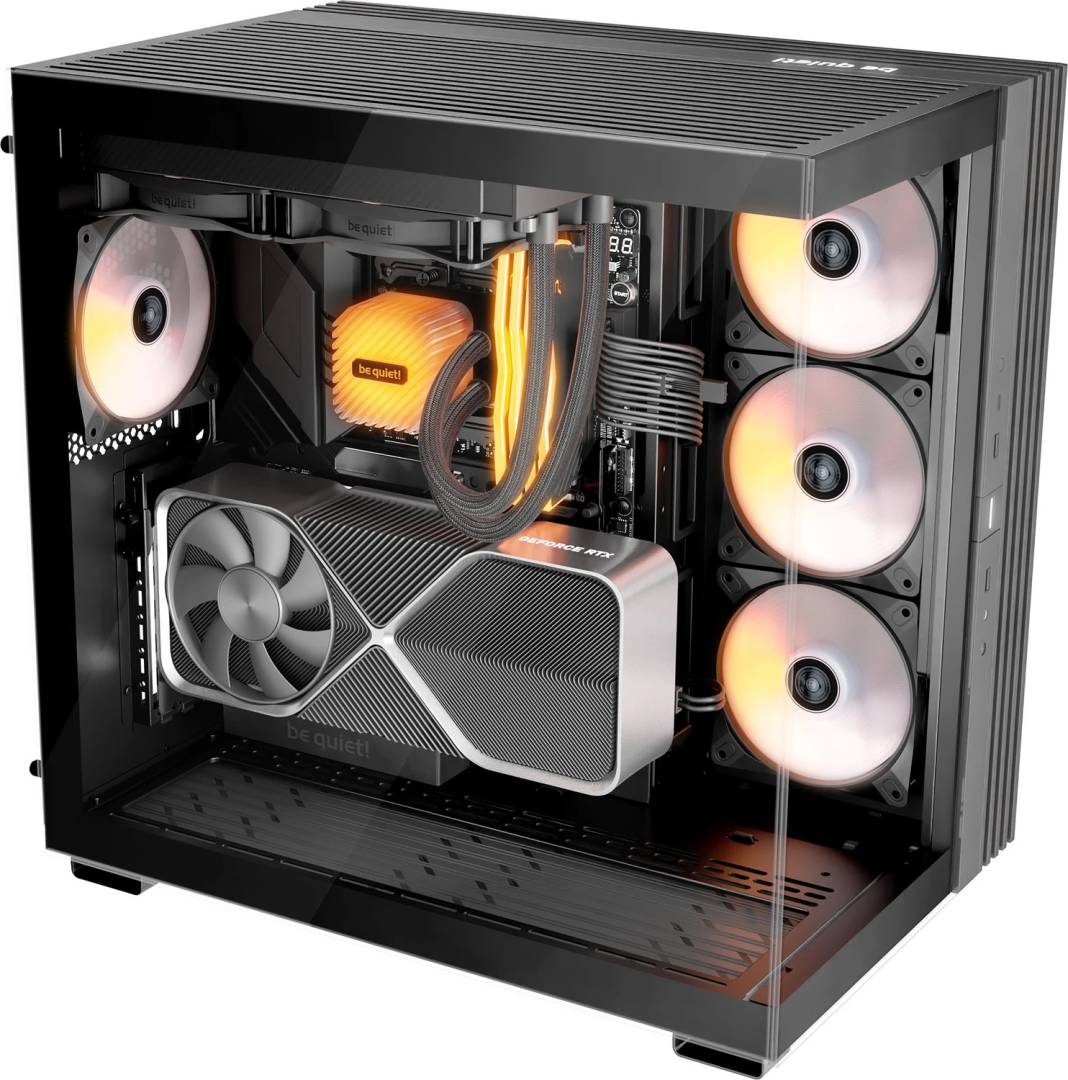

The be quiet! Light Base 600 LX Black (BGW67) is an ATX mid tower PC case designed to display gaming and enthusiast hardware through its panoramic glass front and side panels. Its dual-chamber construction separates the main component area from the power supply, storage and cabling, while four preinstalled Light Wings LX 120mm PWM fans provide illuminated cooling from the outset. A 1.33-metre addressable RGB light strip with 77 LEDs frames the case, and a flexible chassis design allows conventional upright, inverted upright or horizontal installation. With support for graphics cards up to 400mm, CPU coolers up to 170mm and two 360mm radiators simultaneously, the Light Base 600 LX combines substantial hardware capacity with a distinctive presentation.
Compatibility — check before buying:
Motherboard compatibility: ATX, Micro-ATX and Mini-ITX. The chassis also accommodates supported backside-connector motherboard layouts, including ASUS BTF, MSI Project Zero and Gigabyte Project Stealth designs. Component clearance: maximum graphics-card length is 400mm, CPU cooler height is 170mm and ATX power-supply length must be below 200mm. Radiator compatibility: top and bottom positions support up to 360mm radiators, while the side position supports up to 240mm. Check combined radiator, fan and component clearances before installation. This is the Light Base 600 LX version with four preinstalled ARGB fans, not the differently equipped Light Base 600 DX. An ATX power supply is required and is not included.
Best For
✓ Panoramic gaming PC builds with visible components
✓ ATX systems using addressable RGB lighting
✓ Liquid-cooled systems with multiple radiators
✓ Builds with compatible backside-connector motherboards
✓ Horizontal or inverted PC installations
✓ Enthusiasts seeking integrated fan and ARGB hubs
Key Features
Panoramic glass with integrated ARGB illumination

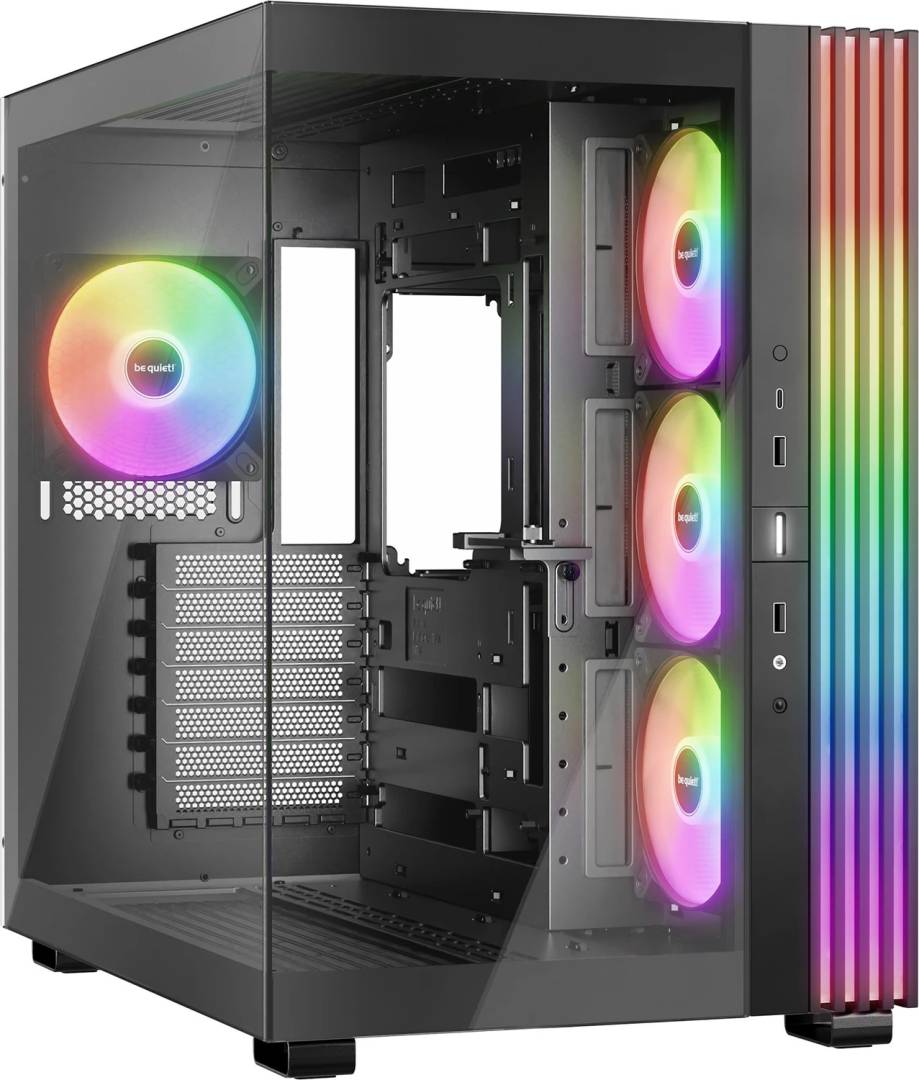

Large glass panels at the front and side provide a wide view of installed hardware. A 1.33m addressable RGB strip containing 77 LEDs adds illumination around the chassis. Lighting effects can be selected through the integrated ARGB controller button or synchronised with a compatible motherboard using the supported 5V ARGB connection.
Four preinstalled Light Wings LX PWM fans

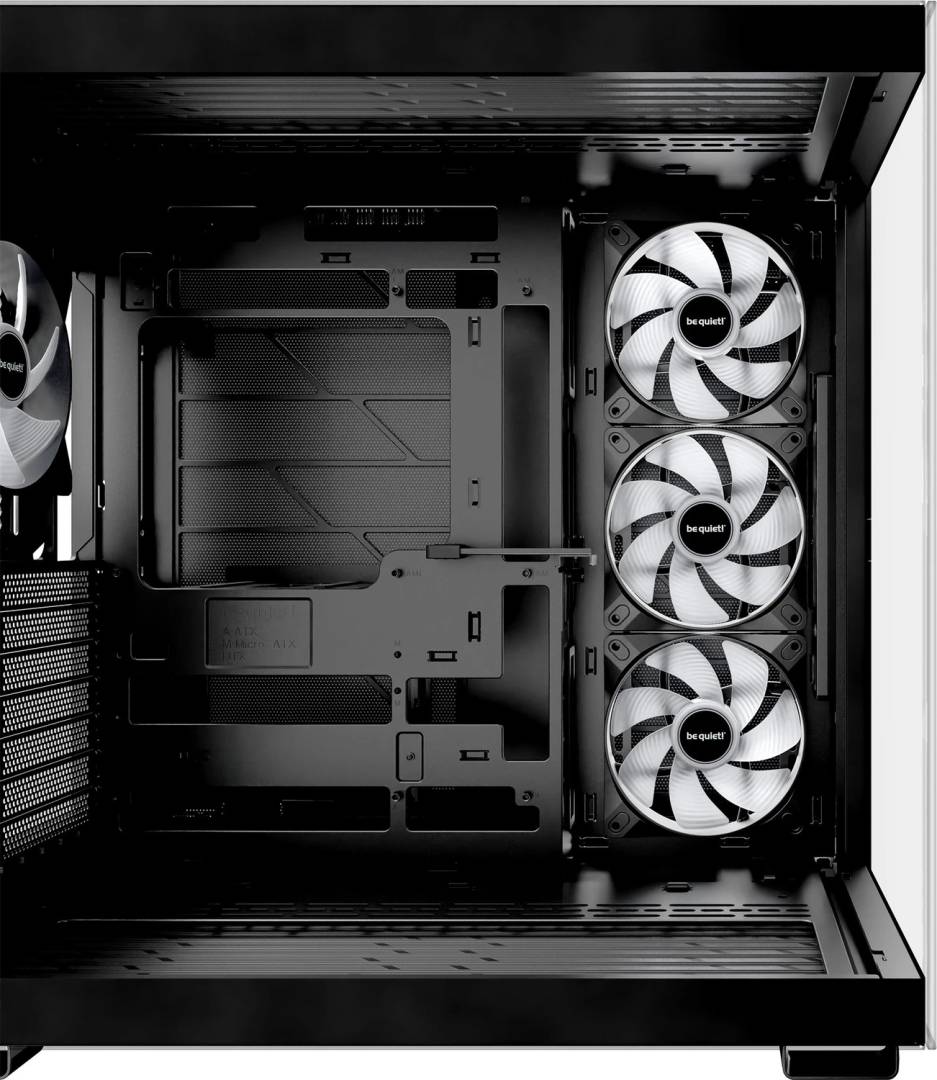

Three Light Wings LX Reversed 120mm PWM fans are installed at the side intake, with one standard Light Wings LX 120mm PWM fan at the rear exhaust. The reversed side fans display their illuminated side while drawing air into the case. The chassis can accommodate up to ten 120mm fans in total, depending on the selected cooling configuration.
Three installation orientations
The relocatable feet and adjustable chassis arrangement support conventional upright, inverted upright and horizontal orientations. This lets the system be positioned to suit different desks, display arrangements and viewing directions without requiring a different enclosure. Component mounting and airflow should be planned for the chosen orientation.
Support for two 360mm radiators

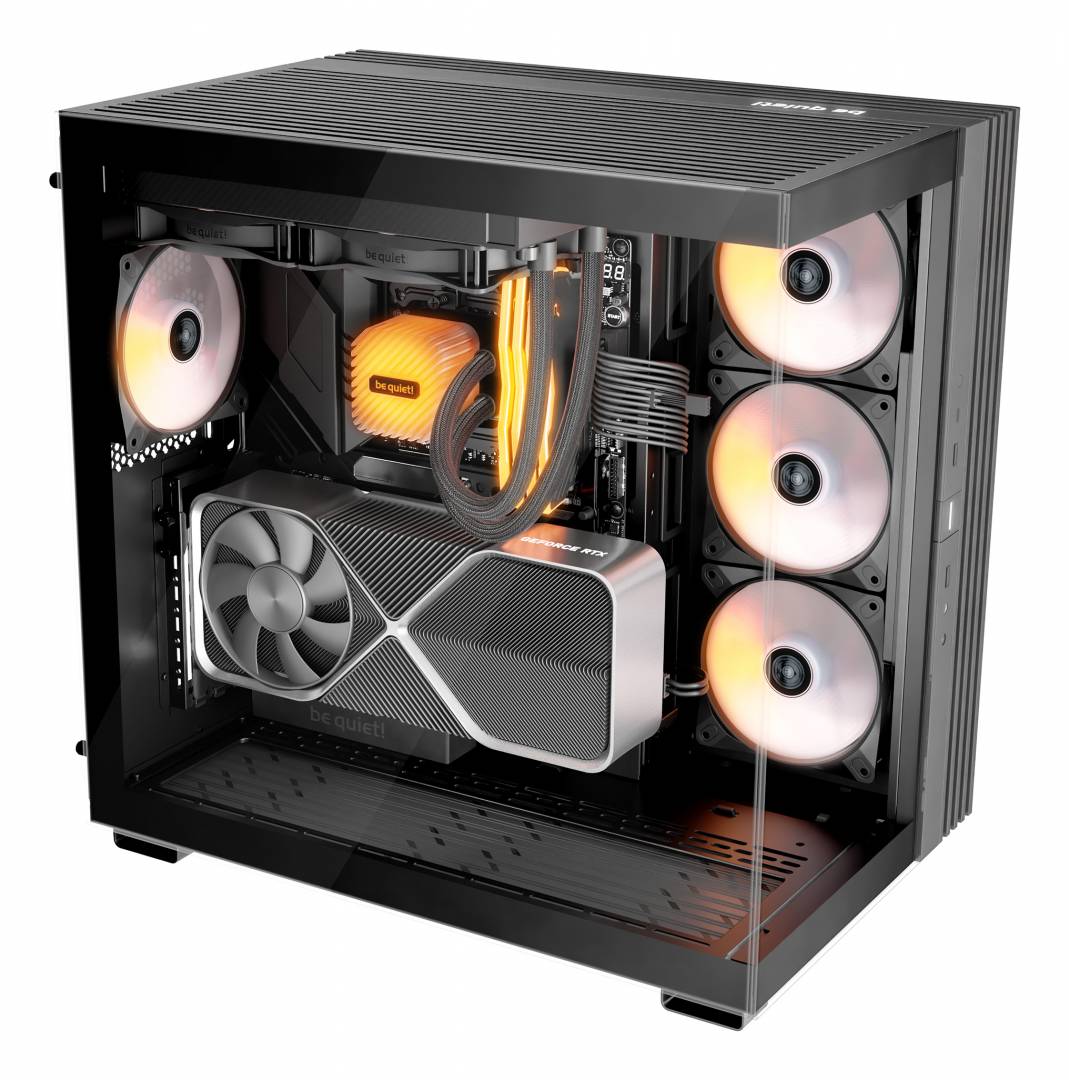

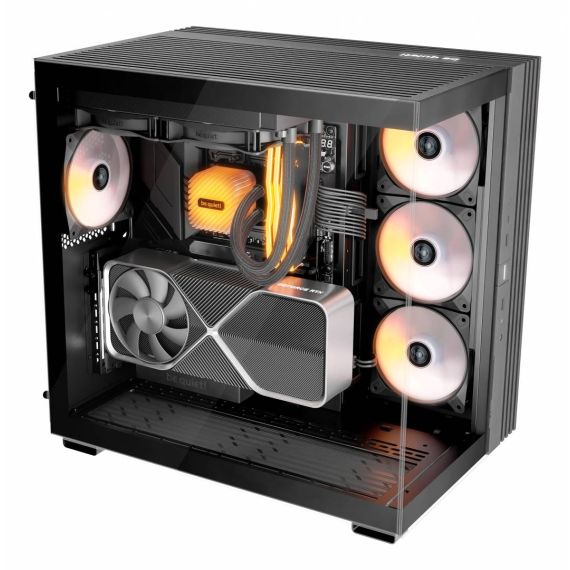

Top and bottom mounting positions each support radiators up to 360mm, with simultaneous installation supported by the chassis design. A further radiator up to 240mm can be installed at the side, and a 120mm radiator at the rear. Radiators and additional fans are optional equipment, and actual combinations depend on their dimensions and installed components.
Dual-chamber design and integrated hubs
The dual-chamber interior places the power supply, drive mounts and cabling behind the main motherboard compartment. Two integrated ARGB and PWM fan hubs provide twelve connectors in total, distributed across the upper and lower sections of the chassis. This helps organise fan wiring and lighting connections when expanding the cooling system.
Modern connectivity and GPU support

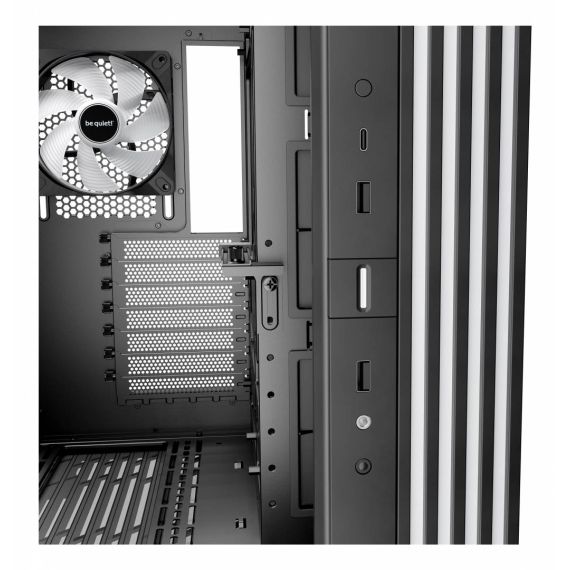

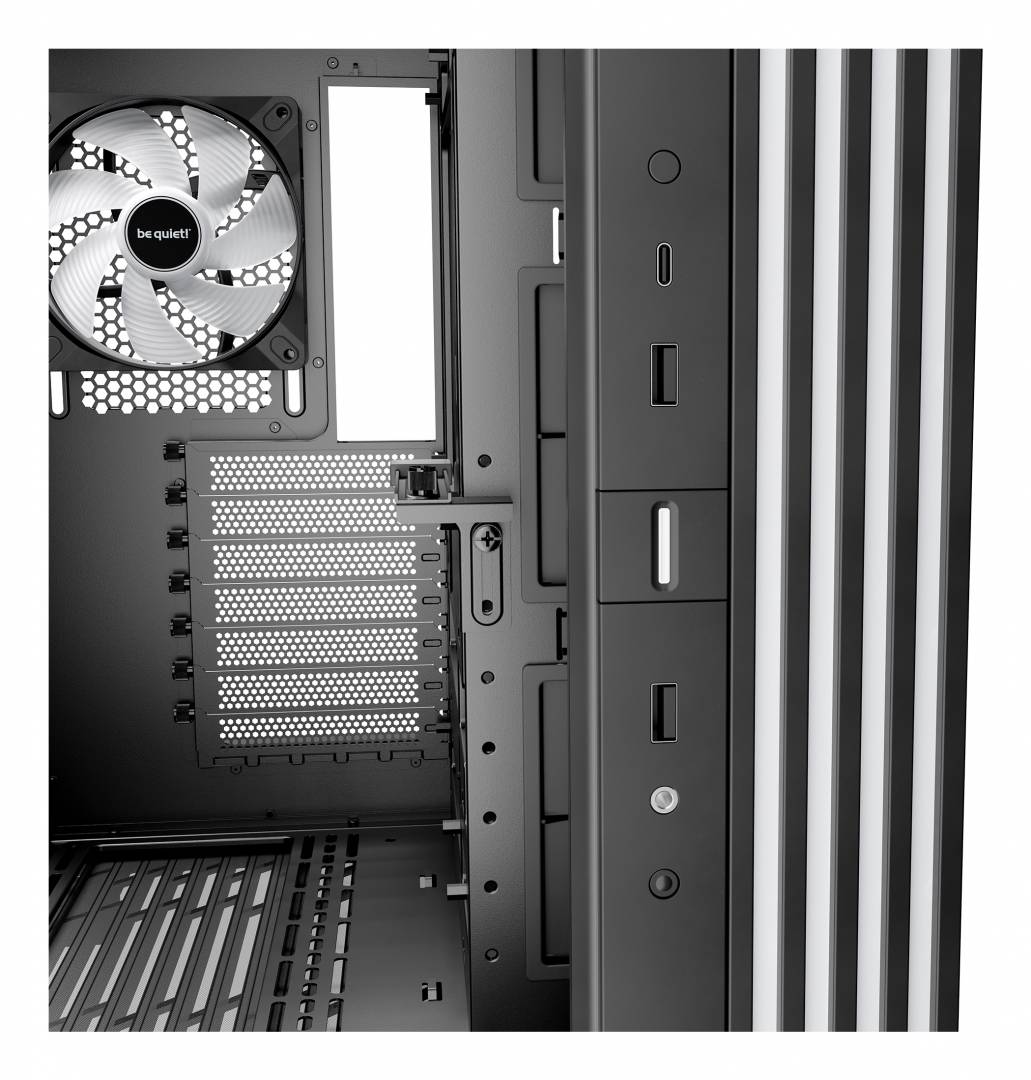

The I/O panel provides one USB 3.2 Gen 2 Type-C port, two USB 3.2 Type-A ports and a combined audio connection, alongside power, reset and lighting controls. A flexible graphics-card support holder is included to reduce GPU sag and is designed for different chassis orientations and compatible graphics-card mounting arrangements.
Technical Specifications
| Identification |
| Brand |
be quiet! |
| Model |
Light Base 600 LX |
| Manufacturer Part Number |
BGW67 |
| EAN / GTIN |
4260052191736 |
| Case Type |
ATX Mid Tower, dual chamber |
| Colour |
Black |
| Motherboard & Hardware Compatibility |
| Supported Motherboards |
ATX, Micro-ATX, Mini-ITX |
| Backside Connector Support |
Supported layouts including ASUS BTF, MSI Project Zero and Gigabyte Project Stealth |
| Maximum GPU Length |
400mm |
| Maximum CPU Cooler Height |
170mm |
| Power Supply Format |
ATX PS/2, not included |
| PSU Length Limit |
Less than 200mm |
| Expansion Slots |
7 |
| Preinstalled Cooling & Lighting |
| Included Fans |
4 × Light Wings LX 120mm PWM ARGB |
| Side Fans |
3 × Light Wings LX Reversed 120mm PWM |
| Rear Fan |
1 × Light Wings LX 120mm PWM |
| Maximum Fan Capacity |
10 × 120mm fans |
| Side Fan Speed |
Up to 1600 RPM |
| Rear Fan Speed |
Up to 1500 RPM |
| Integrated Lighting |
1.33m ARGB strip with 77 LEDs |
| Lighting Standard |
5V 3-pin ARGB |
| Integrated Hubs |
2 ARGB / PWM fan hubs, 12 connectors in total |
| Additional Cooling & Radiator Support |
| Top Fan Support |
3 × 120mm or 2 × 140mm |
| Side Fan Support |
3 × 120mm |
| Bottom Fan Support |
3 × 120mm or 2 × 140mm |
| Rear Fan Support |
1 × 120mm |
| Top Radiator Support |
120 / 240 / 360mm |
| Bottom Radiator Support |
120 / 240 / 360mm |
| Side Radiator Support |
120 / 240mm |
| Rear Radiator Support |
120mm |
| Storage & Connectivity |
| 3.5-inch Drive Positions |
Up to 2; mounting equipment for 1 included |
| 2.5-inch Drive Positions |
Up to 4; mounting equipment for 2 included |
| USB-C |
1 × USB 3.2 Gen 2 Type-C |
| USB-A |
2 × USB 3.2 Type-A |
| Audio |
Combined HD Audio headset connection |
| Controls |
Power, Reset, ARGB controller |
| Physical Specifications |
| Dimensions Including Feet (L × W × H) |
450 × 305 × 455mm |
| Dimensions Excluding Feet |
450 × 305 × 435mm |
| Net Weight |
12.1kg |
| Main Materials |
Steel, ABS, glass |
| Front / Window Panels |
Panoramic glass front and side window |
| Installation Orientations |
Upright, inverted upright, horizontal |
| Removable Dust Filter |
Side |
| Package Contents & Warranty |
| Included Cooling |
4 preinstalled Light Wings LX 120mm PWM ARGB fans |
| Included Accessories |
GPU support holder, inverted-layout GPU holder, mounting screws, additional standoff and 12 cable ties |
| Power Supply |
Not included |
| Manufacturer Warranty |
3 years, subject to manufacturer warranty terms |
Frequently Asked Questions
How many fans are included with the Light Base 600 LX?
Four Light Wings LX 120mm PWM ARGB fans are included: three reversed-blade fans at the side and one standard fan at the rear. The chassis supports up to ten 120mm fans in total, so additional fans can be installed separately.
Can I mount two 360mm radiators simultaneously?
Yes. be quiet! specifies support for simultaneous 360mm radiators in the top and bottom positions. Additional 240mm side and 120mm rear radiator positions are also available. Check the thickness of the selected radiators and fans along with motherboard and GPU clearance before installing multiple units.
Can the case be installed horizontally or inverted?
Yes. The repositionable feet and configurable chassis allow standard upright, inverted upright and horizontal layouts. The included GPU holder also supports different mounting orientations.
Does it support ASUS BTF and other backside-connector motherboards?
The motherboard tray is designed to support compatible backside-connector layouts, including ASUS BTF, MSI Project Zero and Gigabyte Project Stealth. Check the exact motherboard form factor and connector placement against the case before purchasing.
Does the case include an RGB controller and fan hubs?
Yes. It has an ARGB controller button and two integrated ARGB/PWM hubs with twelve connectors in total. The illuminated fans and 77-LED case strip can also be synchronised through a compatible motherboard lighting connection.
Is a graphics-card riser cable included?
A GPU support holder is included, but a PCIe riser cable is not listed among the supplied accessories. For vertical GPU installation requiring a riser cable, select an appropriate compatible accessory separately.
What is the difference between the Light Base 600 LX and 600 DX?
The key purchasing distinction is the included cooling equipment. The Light Base 600 LX (BGW67) includes four Light Wings LX 120mm PWM ARGB fans, whereas the Light Base 600 DX is a separate version without that four-fan configuration. Check the exact manufacturer part number when comparing offers.
Singular Expert Insight
The Light Base 600 LX stands out for combining a panoramic glass presentation with an unusually flexible physical layout. Most conventional computer cases are designed primarily for one upright orientation; this model can also be inverted or positioned horizontally by relocating its feet and adjusting its arrangement. That makes it particularly useful when the available desk space or the preferred viewing direction would otherwise hide the glass side panel. The four preinstalled Light Wings LX PWM fans are an important advantage of the LX version, particularly because three use reversed blades to provide side intake airflow while keeping their illuminated appearance visible through the glass. Another practical benefit is the pair of integrated ARGB/PWM hubs, reducing the need for separate basic fan distribution accessories. For liquid cooling, the capacity to fit two 360mm radiators in the top and bottom positions offers substantial flexibility, although radiator thickness and GPU clearance still require careful checking. The two main purchasing limitations are the 400mm graphics-card length and 170mm CPU-cooler height limits. The 305mm chassis width and glass construction also make it a substantial enclosure, so measure the intended installation space before ordering. Choose this version when the included ARGB fans, configurable orientation and glass-focused appearance are features you will actually use.
Buyer's Guide
Buy it if
You want a black panoramic ATX case with four included ARGB fans, flexible upright or horizontal orientation, backside-connector motherboard support and room for two 360mm radiators.
Skip it if
You need an E-ATX enclosure, a graphics card longer than 400mm, a CPU cooler taller than 170mm or a compact chassis for limited desk space. It is also unnecessary if you prefer a conventional mesh-front case without extensive lighting.
Also consider
The be quiet! Light Base 600 DX if you prefer choosing your own fan configuration, or the larger Light Base 900 series if you require a more spacious platform for additional hardware and cooling equipment.
