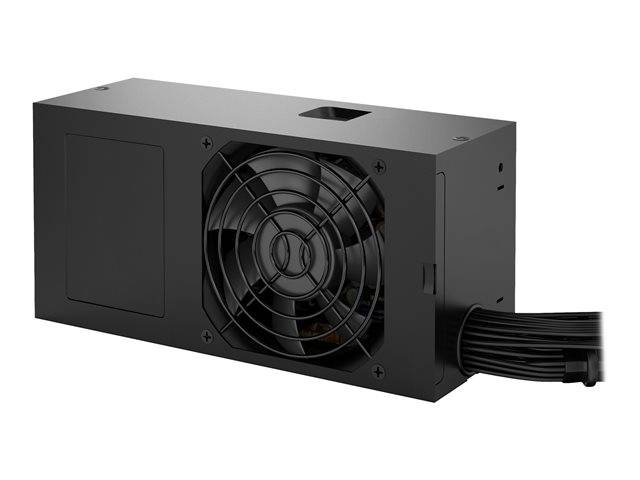

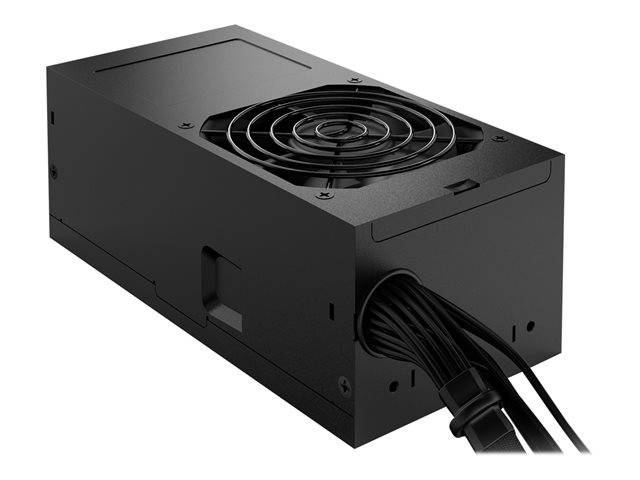

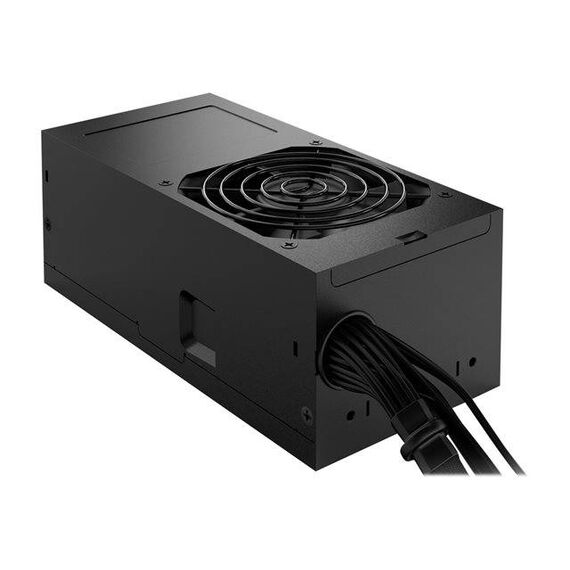

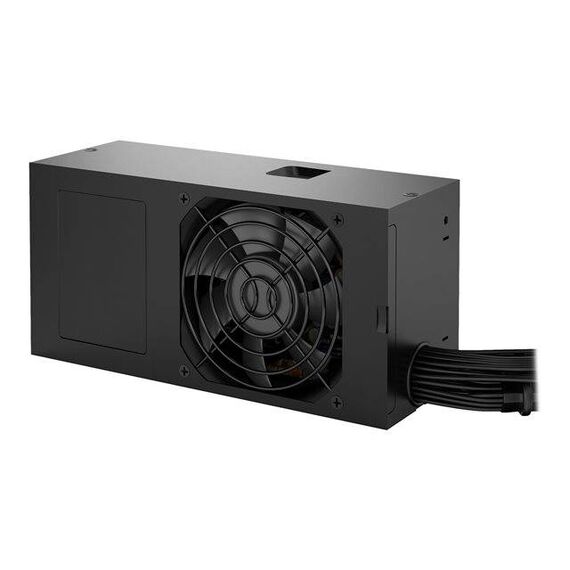

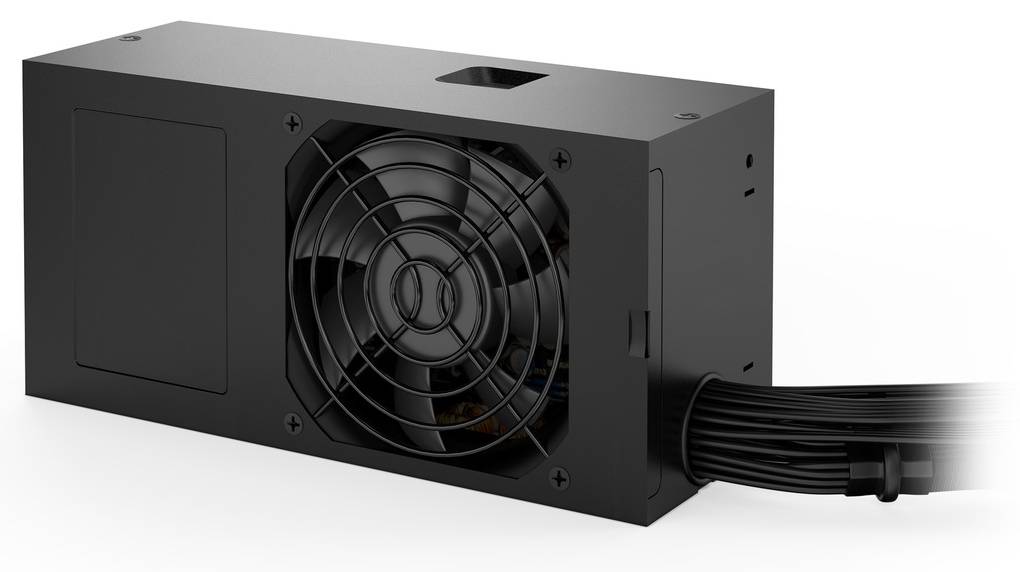

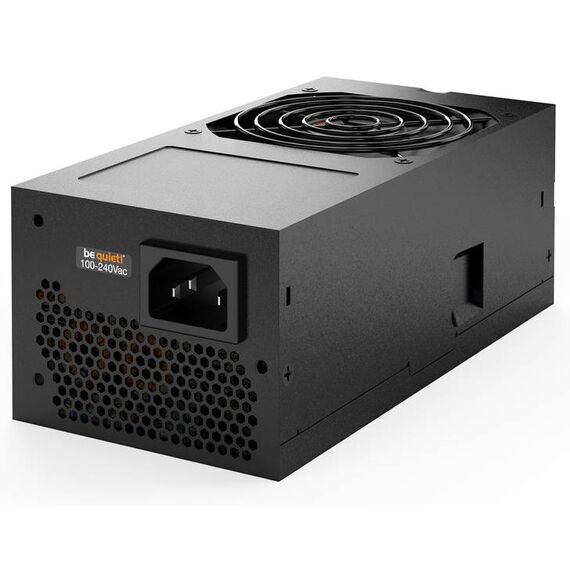

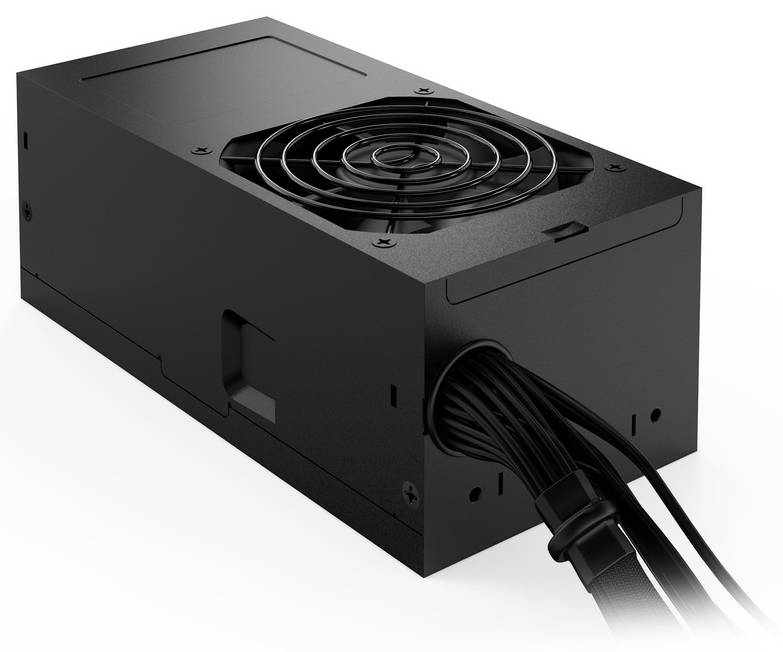

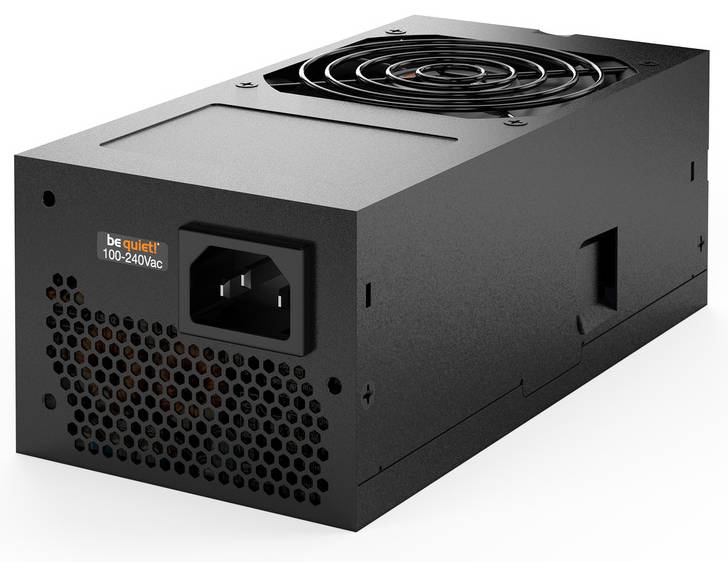

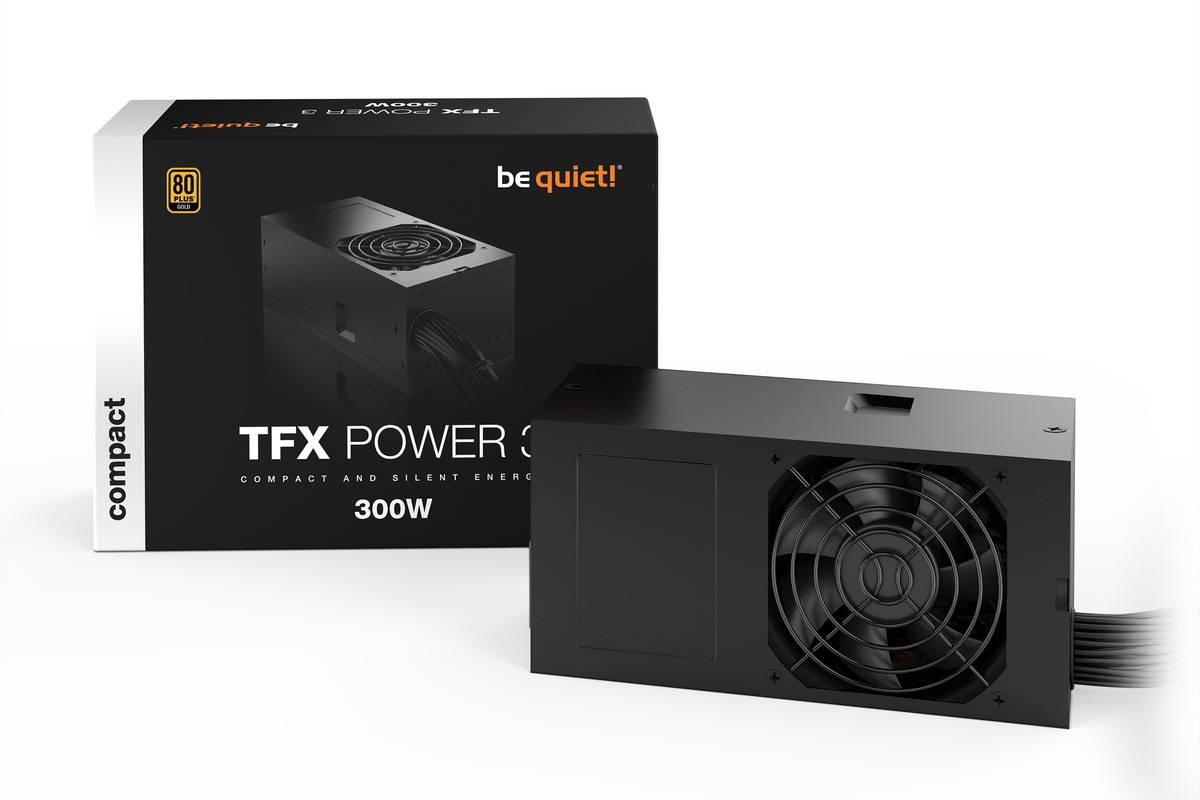

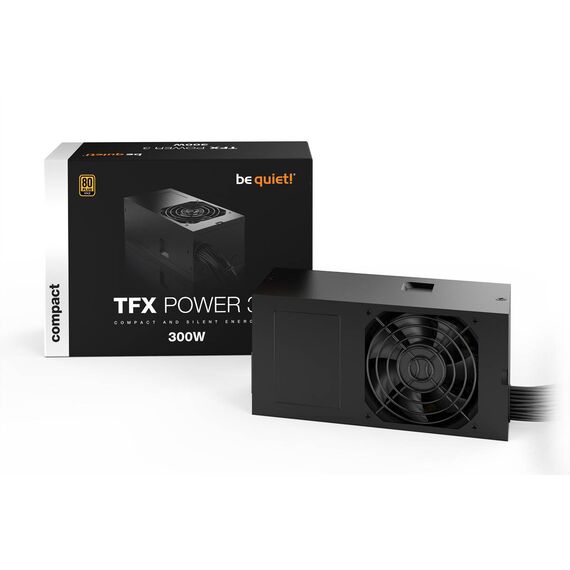

be quiet! TFX Power 3 / Power supply (internal) / TFX12V 2.52/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 300 Watt / active PFC / Europe | BN323
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | TFX12V 2.52/ EPS12V 2.92 |
| PSU Form Factor | TFX |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 3 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 4 pin ATX12V connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 300 Watt |
| Output Current | +3.3V - 18 A ¦ +5V - 18 A ¦ +12V1 - 13 A ¦ +12V2 - 13 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 91.7% |
| 80 PLUS Certification | 80 PLUS Gold |
| Cooling System | 80 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, dual 12V rails, short-circuit protection |
| Compliant Standards | ErP Ready, EAC, TUV Rheinland |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 3 years |
| Sound Emission | 21.7 dBA |
| Width | 8.5 cm |
| Depth | 17.5 cm |
| Height | 6.5 cm |
Features - be quiet! - BN323
More Details
Product Code
04:371552
EAN Code
4260052188293
Manufacturer
be quiet!
