BIOSTAR B760MXC PRO DDR5 Micro-ATX Motherboard, LGA1700, Eight SATA, Two PCIe 4.0 M.2, 2.5GbE

Brand:
Biostar
BIOSTAR B760MXC PRO DDR5 Micro-ATX Motherboard
BIOSTAR B760MXC PRO DDR5 Micro-ATX Motherboard, LGA1700, Eight SATA, Two PCIe 4.0 M.2, 2.5GbE
€137.67 inc. VAT
Buy
B760MXC PRO
€115.69 €128.54
€137.67 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:535795
EAN Code
4712960687257
Manufacturer
Biostar

Quick Specs

Platform
Intel LGA1700 / B760
Memory
4 × DDR5 / up to 256GB
Storage
8 × SATA / 2 × NVMe M.2
Network
2.5GbE; Wi-Fi optional
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

BIOSTAR B760MXC PRO DDR5 Micro-ATX Motherboard, LGA1700, Eight SATA, Two PCIe 4.0 M.2, 2.5GbE

Intel LGA1700 / B7604 × DDR5 / up to 256GB8 × SATA / 2 × NVMe M.2

B760MXC PRO gives a compact Intel build eight SATA connections alongside two PCIe 4.0 NVMe sockets. It supports compatible 12th, 13th and 14th generation LGA1700 processors and four DDR5 DIMMs. The built-in network connection is 2.5GbE. Its M.2 E Key socket allows a separately purchased wireless module; a Wi-Fi card is not included.

Compatibility — check before buying:
Requires compatible LGA1700 CPU, DDR5 and micro-ATX case; components purchased separately.

Key Features


Storage options for a compact build
Connect SATA drives through eight ports and NVMe drives through two PCIe 4.0 x4 sockets. CPU-connected M.2 accepts 2280; the second also accepts 2242 and 2260.

Know the expansion wiring
Use the main PCIe 4.0 x16 slot for graphics. The three additional full-length slots run at PCIe 3.0 x1, so their shape does not imply x16 bandwidth.

Legacy displays and front USB-C
HDMI, DVI and VGA provide display choices when your CPU has integrated graphics. A compatible case can use the internal 10Gbps USB-C header.

DDR5 and optional wireless
Four DDR5 sockets support up to 256GB. Check CPU, BIOS and memory support before selecting high-capacity modules or XMP; add a compatible wireless card if needed.

Technical Specifications

Platform and memory
Manufacturer / model BIOSTAR B760MXC PRO
SKU / EAN B760MXC PRO / 4712960687257
Socket / chipset Intel LGA1700 / B760
CPU support Intel Core i9/i7/i5/i3 12th/13th/14th generation, Pentium and Celeron; check exact CPU/BIOS support
Form factor / dimensions Micro-ATX, 24.4 × 24.4cm
Memory slots / capacity 4 × DDR5 DIMM, up to 256GB, dual channel
Memory rate / types 6000+(OC)MT/s; non-ECC unbuffered DIMM and CUDIMM; XMP; exact memory/CPU/BIOS compatibility required
Storage and expansion
CPU M.2 M2M_CPU: Key M 2280, PCIe 4.0 x4 NVMe, up to 64Gb/s interface
Chipset M.2 M2M_SB: Key M 2242/2260/2280, PCIe 4.0 x4 NVMe, up to 64Gb/s interface
Storage rate conditions Interface maxima; actual transfer depends on SSD and system
SATA / RAID 8 × SATA III 6Gb/s; AHCI, RAID 0/1/5/10, Intel Rapid Storage Technology
Main PCIe slot 1 × PCIe 4.0 x16, x16 mode, CPU-connected
Secondary PCIe slots 3 × physical x16, PCIe 3.0 x1 mode, chipset-connected
Networking and rear connections
Ethernet Realtek RTL8125B, 10/100/1000/2500Mb/s; auto negotiation, half/full duplex
Wireless expansion M.2 E Key 2230 for Wi-Fi/Bluetooth module, Intel CNVi; supports Wi-Fi 6/6E modules; card not included

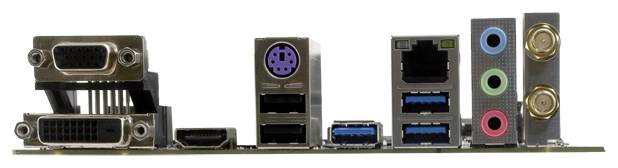

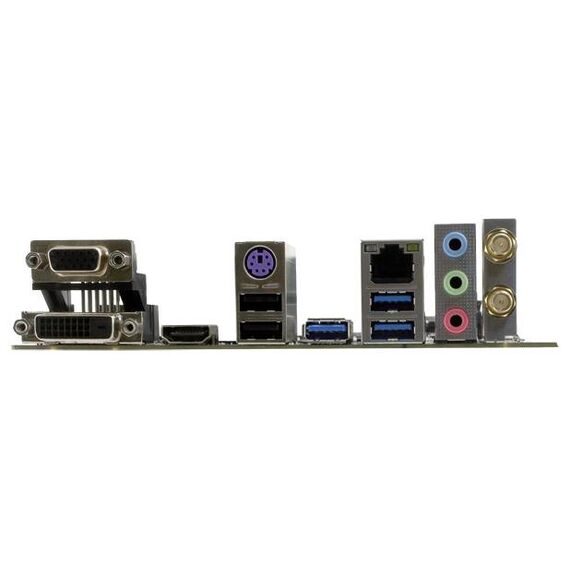

Rear display outputs 1 × HDMI 4K2K, 1 × DVI, 1 × VGA; requires CPU integrated graphics; DX12/HDCP, CEC Ready
Rear USB 3 × USB 3.2 Gen 1 Type-A (5Gbps), 2 × USB 2.0
Other rear connections 1 × PS/2 keyboard/mouse, 1 × RJ-45, 3 × audio jacks, 2 × antenna ports
Audio Realtek ALC897, 7.1 HD audio, front Hi-Fi; isolated analog PCB routing; Smart Ear gain/volume utility
Internal connections and controls
Front USB-C 1 × USB 3.2 Gen 2 Type-C header, 1 port, up to 10Gbps
Other front USB 1 × Gen 1 header for 2 ports (5Gbps); 3 × USB 2.0 headers for 6 ports
Power connectors 1 × 24-pin main, 1 × 8-pin CPU
Fan connectors 1 × CPU fan, 1 × system fan
Lighting 2 × 5V LED headers, 1 × 12V LED header; VIVID LED DJ, RGB SYNC
Other headers 1 each: front panel, front audio, speaker, Clear CMOS, COM, TPM
Hardware monitoring CPU/system temperature and fan monitoring; CPU/DDR voltage; smart/manual CPU fan control
Construction / protection Solid capacitors, moisture-resistant PCB, ESD and overcurrent/overvoltage/overheat protection, 2.5Guard LAN protection
Firmware / utilities UEFI BIOS, BIO-Flasher USB BIOS update, Debug LED, A.I TP Control, Smart Update
Operating systems Windows 10 / 11, 64-bit

What's in the Box

B760MXC PRO motherboard
Two SATA cables
I/O shield
Driver DVD
Quick guide
M.2 anchor

What Will Not Work

Requires compatible LGA1700 CPU, DDR5 and micro-ATX case; components purchased separately.
Wi-Fi card and antenna accessories are not included.
Rear display outputs require CPU integrated graphics; extra PCIe slots are x1 wired.

Frequently Asked Questions

Does the rear antenna connection mean Wi-Fi is included?
No. BIOSTAR explicitly excludes the Wi-Fi card and lists antenna accessories as optional. Buy a supported M.2 E Key 2230 module separately.
Is this the DDR4 PRO 2.0 board?
No. B760MXC PRO is this DDR5 model; the similarly named PRO 2.0 is a different board.
Can I install four cards at x16 speed?
No. Only the main CPU-connected slot is x16 wired. The three additional x16-shaped slots operate at x1.
Singular Expert Insight
Choose it when eight SATA connections and DDR5 matter in a micro-ATX build. Check card widths against the compact layout, and include a wireless module in your budget if wired LAN is insufficient. Check your upgrade with Singular Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

You need eight SATA ports, DDR5 and 2.5GbE in micro-ATX.

Skip it if

You need DDR4, integrated Wi-Fi or several high-bandwidth PCIe cards.

Also consider

A board with installed Wi-Fi if you prefer an included wireless connection.
