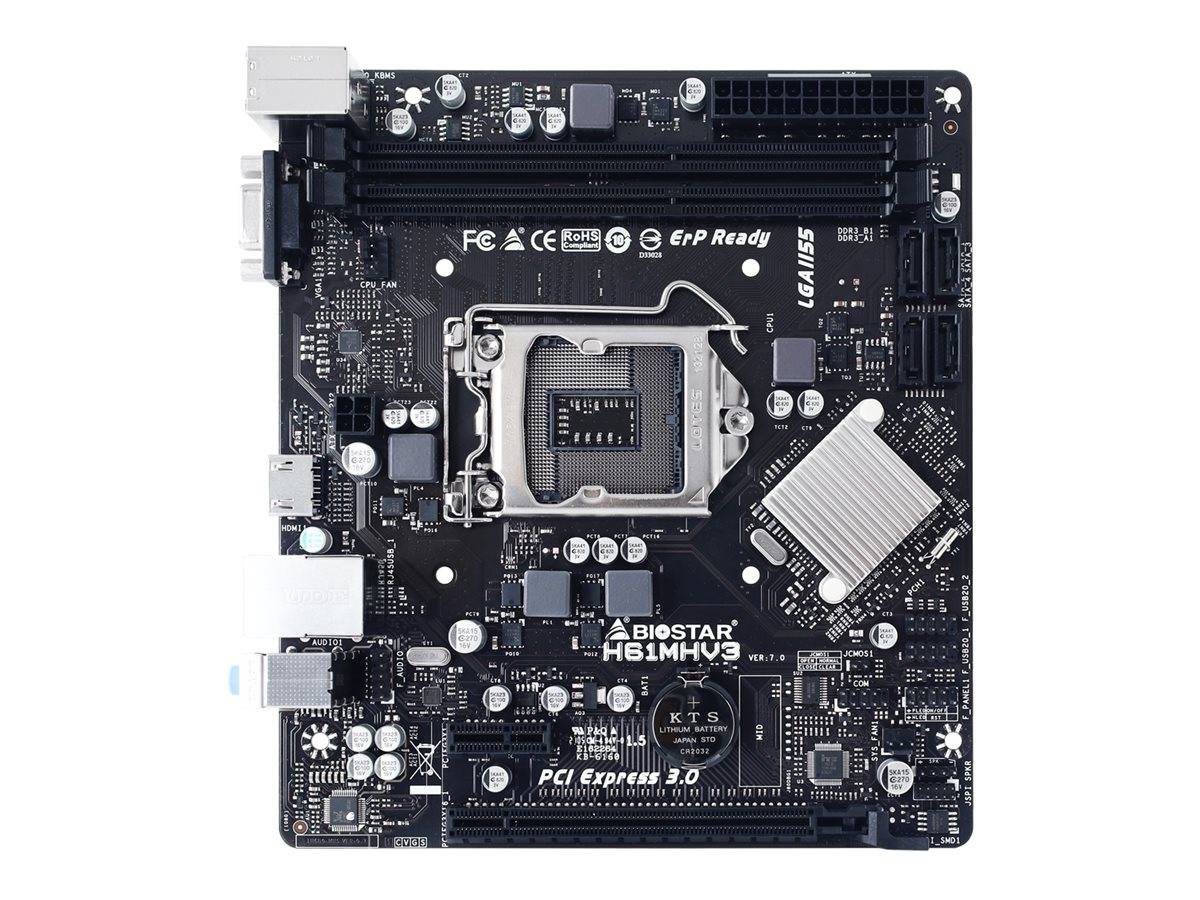

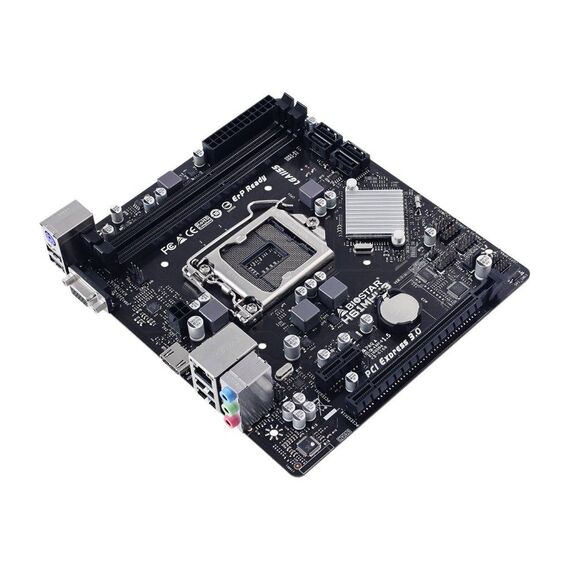

Biostar H61MHV3 / Motherboard / micro ATX / LGA1155 Socket / H61 Chipset / Gigabit LAN / onboard graphics (CPU required) / HD Audio (6-channel) | H61MHV3
Product Features
- HD audio
Provides high quality sound with minimal loss of audio fidelity. - HDMI 4K2K
The 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data. - DX11
Direct3D 11 enables Direct3D 10 APIs and Direct3D 11 APIs to use one underlying rendering device. And it allows developers to achieve a high speed, fully conformant software rasterizer. - Charger Booster
Charger booster is the best and efficient charger solution for apple devices such as iPad, iPhone. Basically, Charger booster Technology is able to boost the charging time to be more efficiency and faster once any apple goods connecting to the motherboard. With charger booster technology, you are able to charge your apple devices up to 42 % faster. - PCIe Gen 3.0
PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces. - Dual DDR3-1600
It supports 2 or 4 DIMM Slots DDR3 memory that features data transfer rates of DDR3 1600/1333. The processor support 2 memory channels and setting the memory multiplier, allows selection of the channel speed. These clearly uplift the band width and boost the overall system performance. - X.D.C
Biostar adopts low ESR and high ripple conductive solid state caps that provide sufficient, stable power supply to the CPU. The life span can also be more than 6.25 x of ordinary liquid caps. - ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy the PC by electrical overstress (EOS) condition. ESD occurred by PC users when touch any devices connect to a PC, which may result in damage to the motherboard or parts. ESD protection is designed to protect the motherboard and equipment from damage by EOS. - OC / OV / OH Protection
OC / OV / OH Protection design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system. - UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly. - BIO-Flasher
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.
Special Features
- HD audio
- HDMI 4K2K
- DX11
- Charger Booster
- PCIe Gen 3.0
- Dual DDR3-1600
- X.D.C
- ESD Protection
- OC / OV / OH Protection
- UEFI BIOS
- BIO-Flasher
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel H61 Express |
Processor Socket | LGA1155 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
Supported RAM | Supported RAM |
Max Size | 16 GB |
Technology | DDR3, DDR3L |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
Features | Dual channel memory architecture |
Audio | Audio |
Type | HD Audio (6-channel) |
Audio Codec | Realtek ALC662 |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 240-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 2.0 x1 |
Storage Interfaces | SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices |

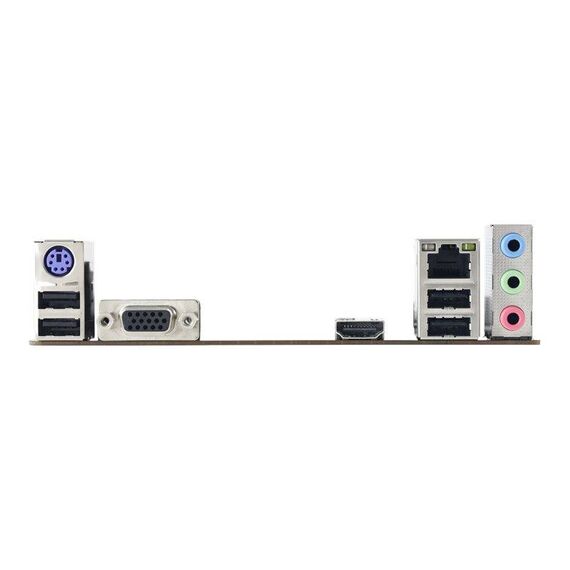

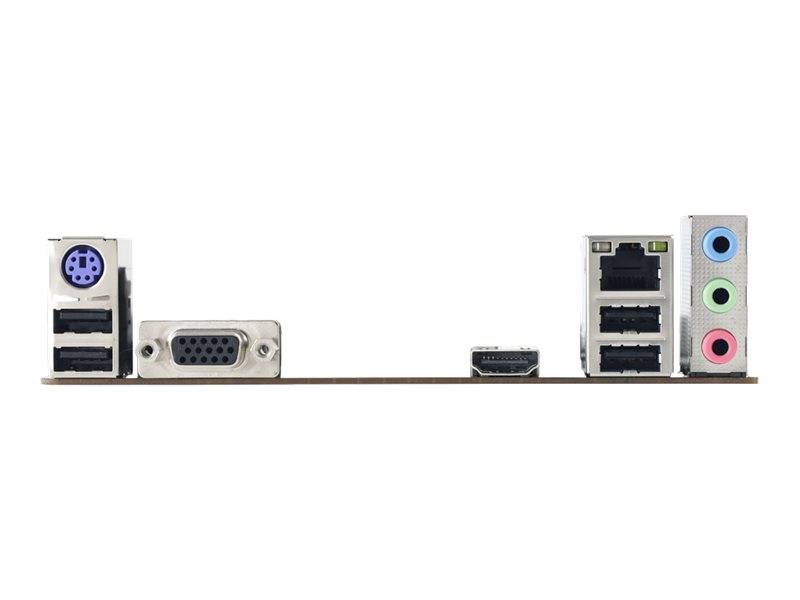

Interfaces | 1 x PS/2 keyboard ¦ 1 x HDMI ¦ 4 x USB 2.0 ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Features | Features |
BIOS Features | BIOSTAR [FLASHER] |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
Hardware Features | ESD Protection, X.D.C (eXtreme Durable Capacitors), Charger Booster, overcurrent protection, overvoltage protection, overheat protection |
Miscellaneous | Miscellaneous |
Included Accessories | I/O back plate |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, BIO-Remote2, BullGuard Internet Security (90 days trial), BIOScreen |
Width | 19.1 cm |
Depth | 17 cm |
