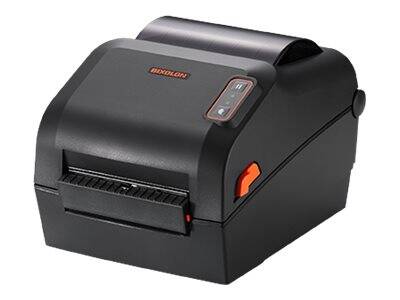

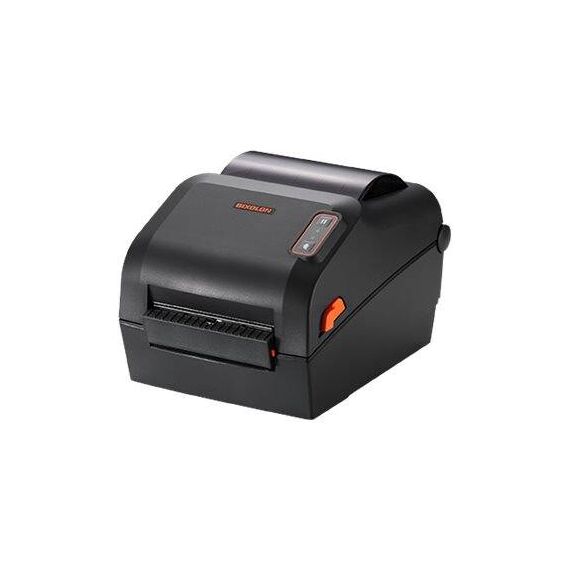

Bixolon XD5-43d 4-inch Direct Thermal Label Printer, 300 dpi, USB, LAN, Serial, Black
Brand:
Bixolon
Bixolon XD5-43d 4-inch Direct Thermal Label Printer, 300 dpi, USB, LAN, Serial, Black
€448.65 inc. VAT
XD5-43DEK/BEG
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Bixolon XD5-43d — 4-inch direct thermal label printer, 300 dpi
300 dpiUp to 127 mm/s105.7 mm print widthUSB, LAN, Serial
The Bixolon XD5-43d (XD5-43DEK/BEG) is a 4-inch desktop label printer that prints directly on heat-sensitive media, with no ribbon at 300 dpi and up to 127 mm/s, built for shipping and logistics labels, warehouse, retail and product labelling.
This configuration connects via USB, USB Host, Ethernet 10/100 and RS-232 serial. It takes media from 15 to 118 mm wide and speaks SLCS plus the BPL-Z (ZPL II) and BPL-E (EPL) emulations, so it can usually replace a Zebra-language desktop printer without rewriting label templates.
Before you order: Direct thermal only — there is no ribbon. You need direct-thermal labels, and the print fades with heat, sunlight and abrasion. For labels that must last for years or outdoors, choose a thermal-transfer model instead.
What's in the Box
- Bixolon XD5-43d printer
- External AC/DC power adapter (24 V DC, 2.5 A) and power cord
- USB cable
- Quick manual
- No labels — order media separately; serial cable is an optional extra
What It Means in Practice
- 300 dpi gives sharper small text, small 2D codes and fine logos (electronics, pharmacy, jewellery labels); the trade-off is speed — up to 127 mm/s versus the 203 dpi version.
- Media from 15–118 mm wide on rolls up to 127 mm outside diameter (core 25.4–38.1 mm): gap, black-mark, notch, continuous and fan-fold stock — standard 100 × 150 mm shipping labels fit.
- Connections on this configuration: USB, USB Host, Ethernet 10/100 and RS-232 serial. It is a wired printer — share it over the network (if Ethernet is fitted) or connect it to one PC by USB.
- The BPL-Z (ZPL II) and BPL-E (EPL) emulations accept the label formats most ERP, WMS and courier systems already send to Zebra-language printers; Bixolon also supplies Windows drivers, Label Artist II and BarTender support.
What Will Not Work
- Ribbons — this printer has no ribbon mechanism.
- Media wider than 118 mm (maximum print width 105.7 mm).
- Peel-and-present or cutting — the peeler and auto cutter are separate options, not included.
- Wi-Fi or Bluetooth printing — this configuration is wired only.
Key Features
ZPL / EPL emulation
BPL-Z (ZPL II) and BPL-E (EPL) alongside Bixolon SLCS, so existing Zebra-language label formats usually print without changes.
Easy drop-in loading
Clamshell cover opens fully; adjustable reflective sensor plus transmissive sensor handle gap, black-mark, notch and continuous media.
Wired connectivity
USB, USB Host, Ethernet 10/100 and RS-232 serial.
Fonts and barcodes
Bitmap and scalable fonts, Unicode, downloadable TrueType fonts, all common 1D barcodes plus QR, Data Matrix, PDF417, Aztec and MaxiCode.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The XD5-43d makes sense when you want a compact, Zebra-compatible 4-inch printer without paying Zebra prices: the emulation lets it slot into existing label workflows, and Bixolon backs it with a 3-year warranty in Europe. Budget for the right media — we stock labels and can match the size and material to your application.
✓ Buy it if you print shipping, picking or product labels that are used within weeks and want ZPL/EPL compatibility at a lower cost.
✕ Skip it if labels must survive sunlight, heat, chemicals or years of storage — direct thermal fades; choose the thermal-transfer XD5-40t.
→ Also consider Bixolon XD5-40t (thermal transfer) for durable labels, or the 300 dpi XD5-43 versions for very small text and codes.
Not sure which configuration you need? Tell us your labels, software and how the printer will connect, and we will check before you order.
Features - Bixolon - XD5-43DEK/BEG
Colour
black
More Details
Product Code
CK27946
EAN Code
8809521199659
Manufacturer
Bixolon
