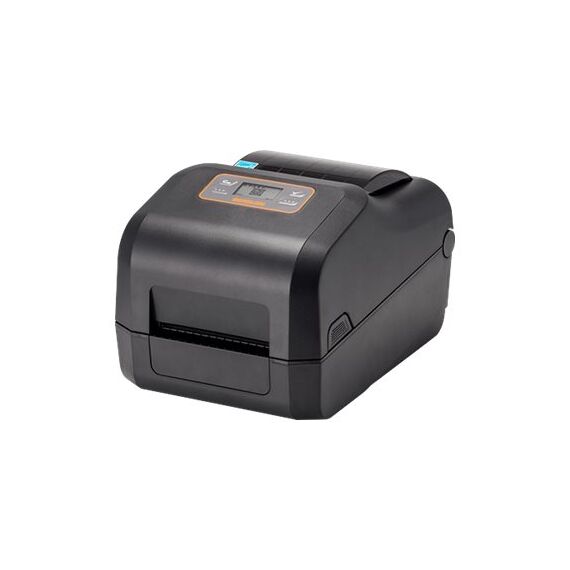

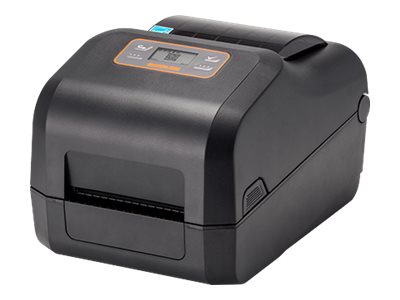

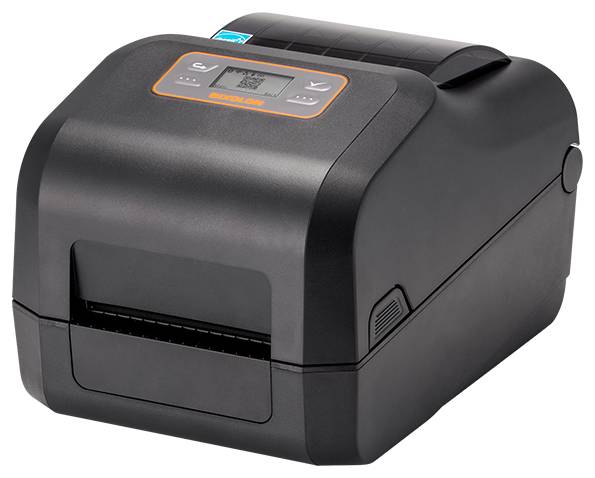

BIXOLON XD5-43t - Label printer - direct thermal / thermal transfer - Roll (11.8 cm) - 300 dpi - up to 102 mm/sec - USB, LAN, serial, Wi-Fi(n), USB host | XD5-43TOEWK/BEG
Please sign in so that we can notify you about a reply
Special Fetures
- 4-inch (118mm) mid-range Thermal Transfer label and barcode printer
- Quick data processing and print speed up to 6 ips (152mm/sec) to produce high quality text, graphics and barcodes
- Interface Standard: USB2.0 + USB Host, plus optional 802.11a/b/g/n Dual-WLAN, MFi Certified Dual-Bluetooth (Classic + LE), Serial or Ethernet
- Standard USB Host supports Twin Function
- Optional built-in dual-mode Bluetooth and dual-band 802.11a/b/g/n WLAN
- Dual-band WLAN functionality with support for SNMP
- Enhanced memory space up to 256MB SDRAM and 256MB Flash
- Suitable for both 1/2-inch and 1-inch core ribbon (74m and 300m ribbon length)
- Enhanced ribbon handling with the new ribbon left-right balance adjustment
- Fully compatible with market-leading programming languages
- Supporting stand-alone configuration mode by visual LED
- Smart switch programming languages without setting the mode
- Easy paper loading with adjustable paper guide and holder
- Simple to setup media sensor
- In the field installable Peeler, Auto Cutter and External Paper Supply
- Compatible with label design software including BIXOLON's Label Artist -II and Seagull's BarTender UltraLite
- Twin Function supported: copy printer settings and data via USB
- SNMP enabled WLAN functionality
- XPM & XCM - Web-based printer management software and connection app
- Energy Star Certified
Product Specification
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 102 mm/sec - monochrome - 300 dpi |
| Built-in Devices | LCD display |
| Connectivity Technology | Wireless |
| Interface | USB, LAN, serial, Wi-Fi(n), USB host |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | SLCS, BPL-Z, BPL-E |
| Features | Transmissive media sensor, reflective media sensor, open head sensor |
| Display Resolution | 200 x 100 |
| Fonts Included | 10 x bitmapped SLCS ¦ 1 x scalable SLCS ¦ 16 x bitmapped BPL-Z ¦ 1 x scalable BPL-Z ¦ 5 x bitmapped BPL-E |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, GS1 DataBar-14, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC/EAN supplementals, IMB |
| RAM | |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |
| Media Handling | |
| Media Type | Labels, continuous labels, fanfold labels, black mark labels, notch, gap |
| Max Media Size | Roll (11.8 cm) |
| Min Media Size (Custom) | 15 mm |
| Max Media Size (Custom) | 118 mm |
| Media Sizes | Roll (11.8 cm), Roll (1.5 cm) |
| Max Printing Width | 105.7 mm |
| Max Printing Length | 1 m |
| Media Thickness Range | 0.06 mm - 0.2 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.8 cm) |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | WEP, WPA-PSK, WPA, WPA2-PSK, Wi-Fi Direct |
| Expansion / Connectivity | |
| Connections | 1 x USB host ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ Serial |
| Miscellaneous | |
| Cables Included | USB cable |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, Bartender UltraLite, OPOS/JavaPOS Drivers, CUPS Driver (Linux, MAC OS), Virtual COM software, Bixolon LabelArtist-II |
| OS Required | Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% RH |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 28.4 cm |
| Height | 18.8 cm |
| Weight | 2.48 kg |
Features - Bixolon - XD5-43TOEWK/BEG
More Details
Product Code
CK52978
EAN Code
8809521198492
Manufacturer
Bixolon
