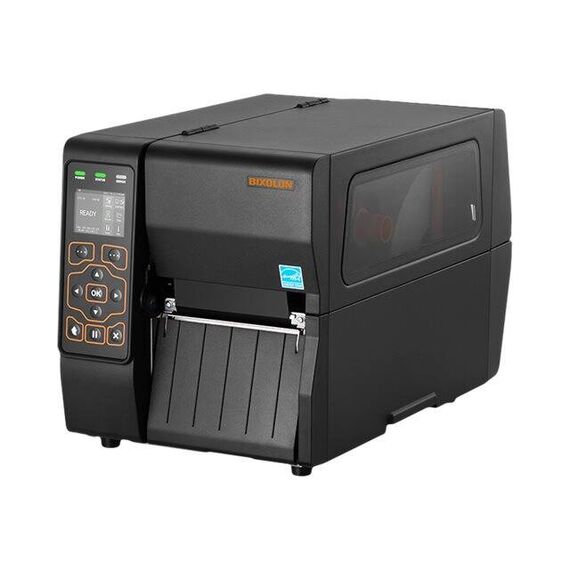

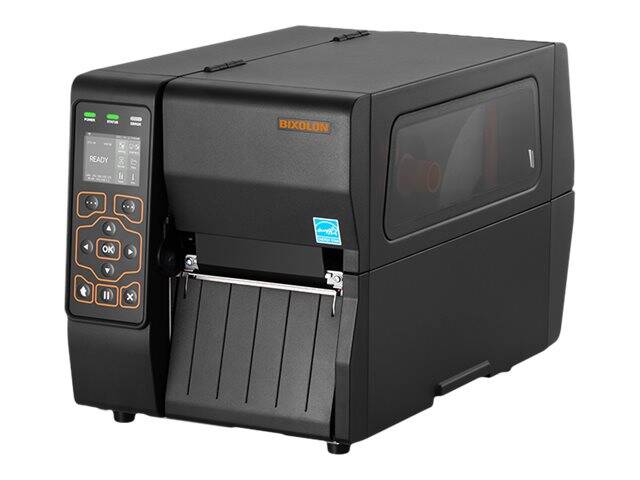

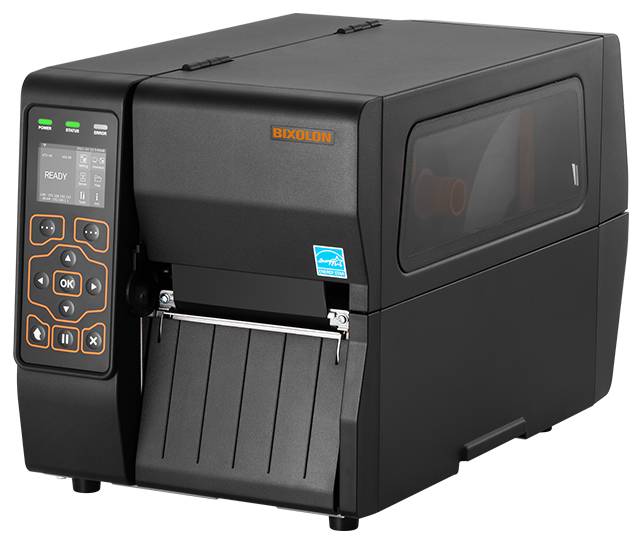

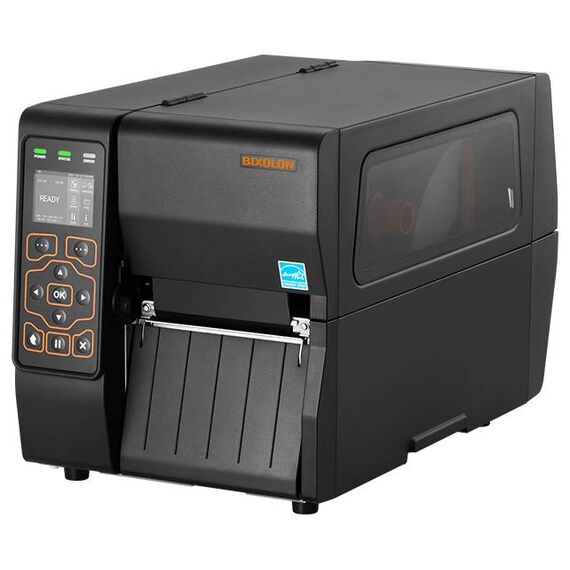

BIXOLON XT3-40 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 203 mm/sec - USB, LAN, serial, USB host | XT3-40/BEG
XT3-40/BEG
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4-inch full color LCD display
- Toolless maintenance of roller and print head
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)
- Twin function supported: copy printer settings and data via USB
Product Specification
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Printer | |
| Print Speed | Up to 203 mm/sec - monochrome - 203 dpi |
| Built-in Devices | 2.4" (6 cm) LCD |
| Connectivity Technology | Wired |
| Interface | USB, LAN, serial, USB host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SLCS, BPL-Z, BPL-E |
| Features | Transmissive media sensor, reflective media sensor, ribbon end sensor, open head sensor |
| Fonts Included | 10 x bitmapped SLCS ¦ 1 x scalable SLCS ¦ 16 x bitmapped BPL-Z ¦ 1 x scalable BPL-Z ¦ 5 x bitmapped BPL-E |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, TLC39, GS1 DataBar-14, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI, UPC/EAN supplementals, IMB |
| Printer Features | Real time clock |
| RAM | |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | |
| Flash Memory | 128 MB |
| Media Handling | |
| Media Type | Labels, continuous labels, fanfold labels, black mark labels, notch, gap |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 20 mm |
| Max Media Size (Custom) | 114 mm |
| Media Sizes | Roll (11.4 cm), Roll (2 cm) |
| Max Printing Width | 108 mm |
| Max Printing Length | 4 m |
| Media Thickness Range | 0.06 mm - 0.25 mm |
| Roll Maximum Outer Diameter | 203 mm |
| Roll Core Diameter | 25.4 mm, 76.2 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Expansion / Connectivity | |
| Connections | 1 x USB host ¦ 1 x USB ¦ 1 x LAN - RJ-45 ¦ Serial |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, Bartender UltraLite, OPOS/JavaPOS Drivers, CUPS Driver (Linux, MAC OS), Virtual COM software, Bixolon LabelArtist-II |
| OS Required | Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% RH |
| Dimensions & Weight | |
| Width | 24 cm |
| Depth | 43.05 cm |
| Height | 27.67 cm |
| Weight | 9.3 kg |
Features - Bixolon - XT3-40/BEG
More Details
Product Code
CJ81447
EAN Code
8809794031861
Manufacturer
Bixolon
