BlueOptics AXM765-BO — NETGEAR Coded 10GBASE-T SFP+
10 GbpsRJ-45 copperUp to 30 mNETGEAR coded

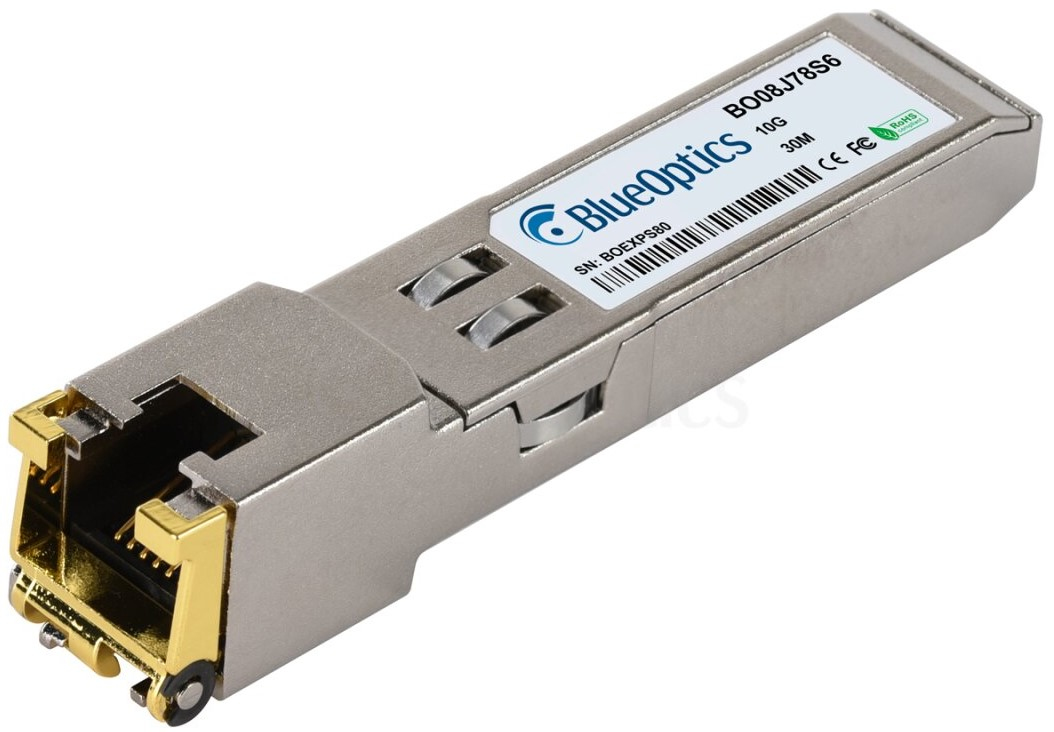

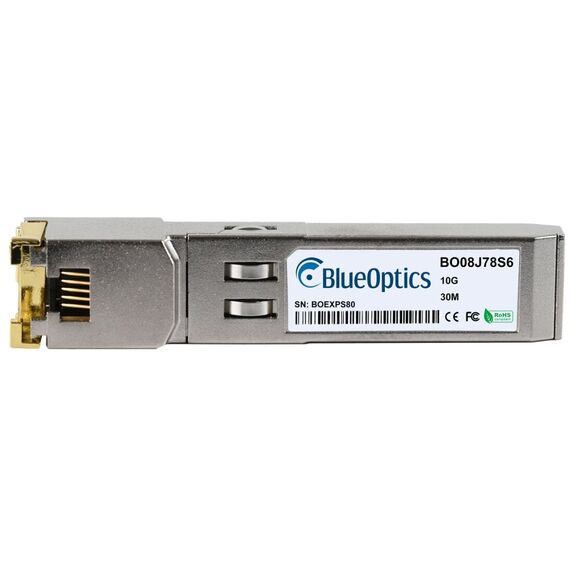

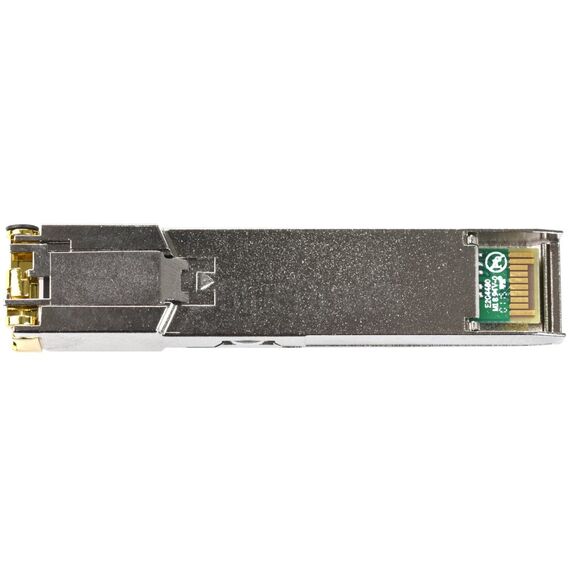

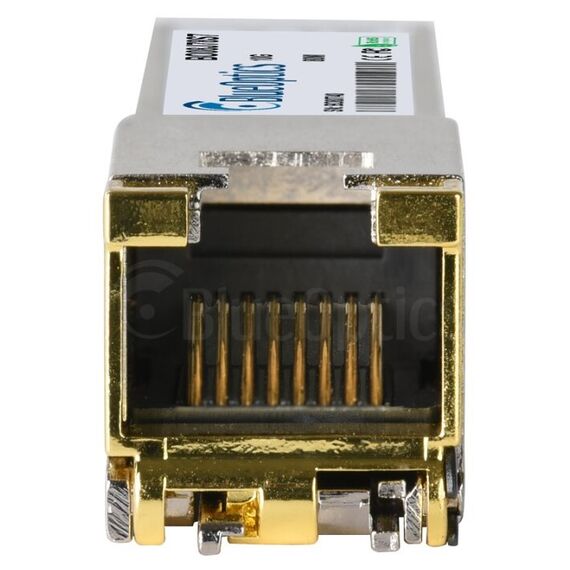

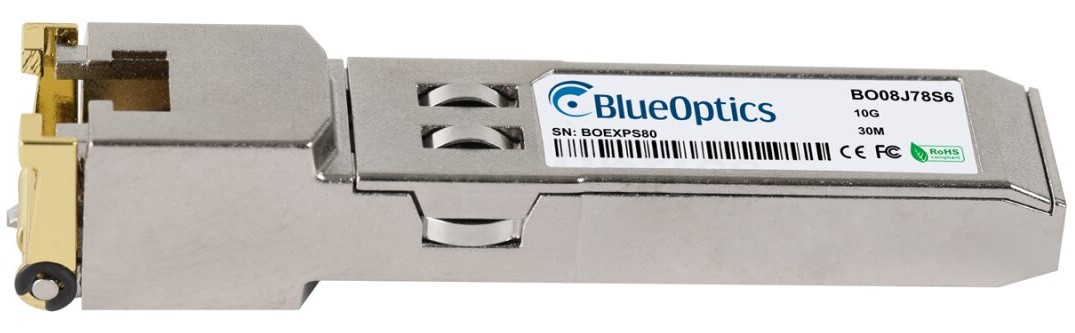

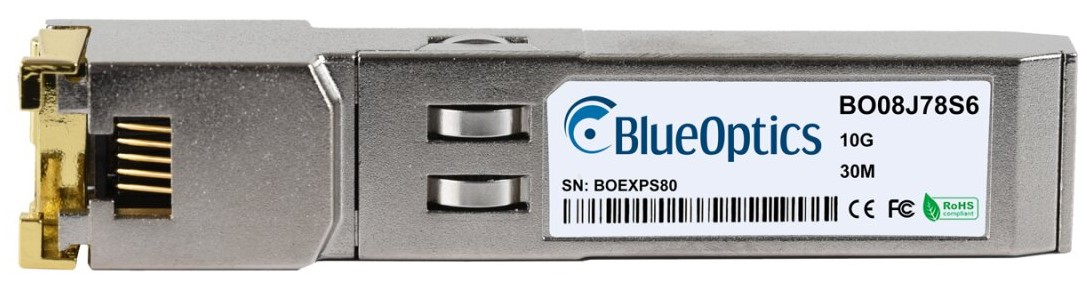

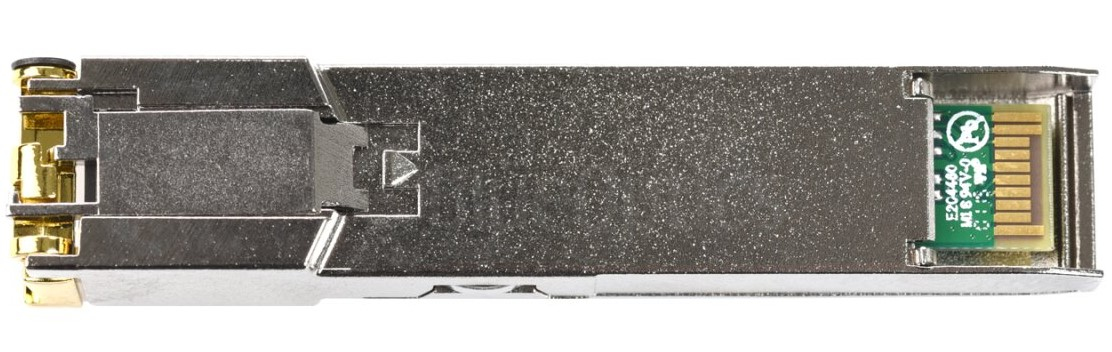

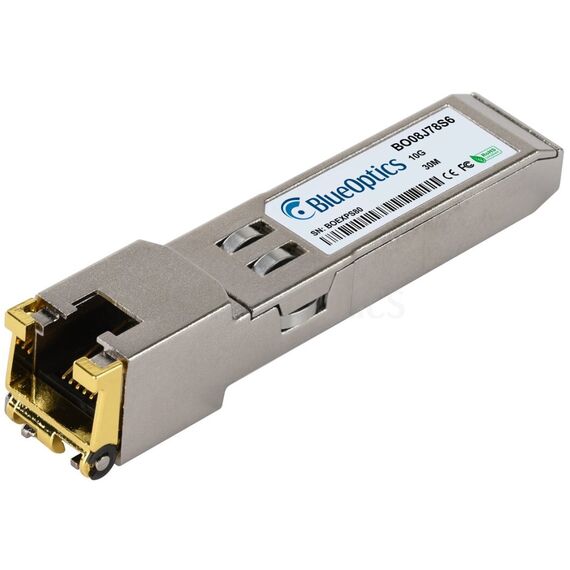

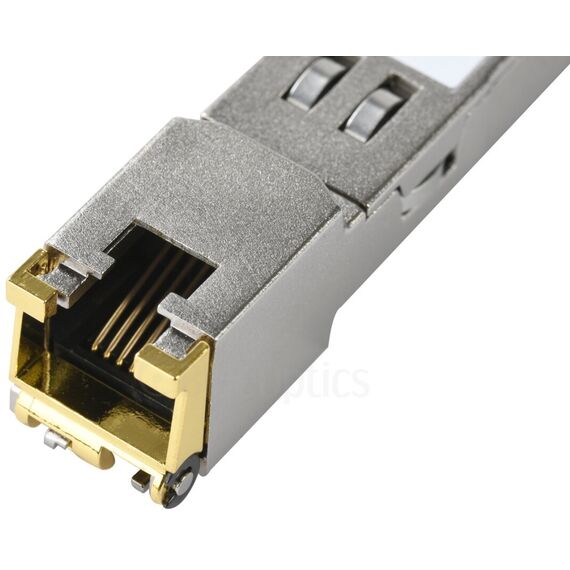

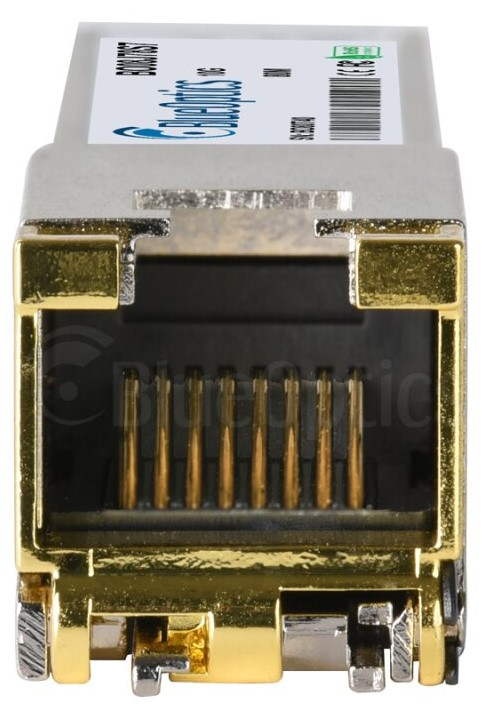

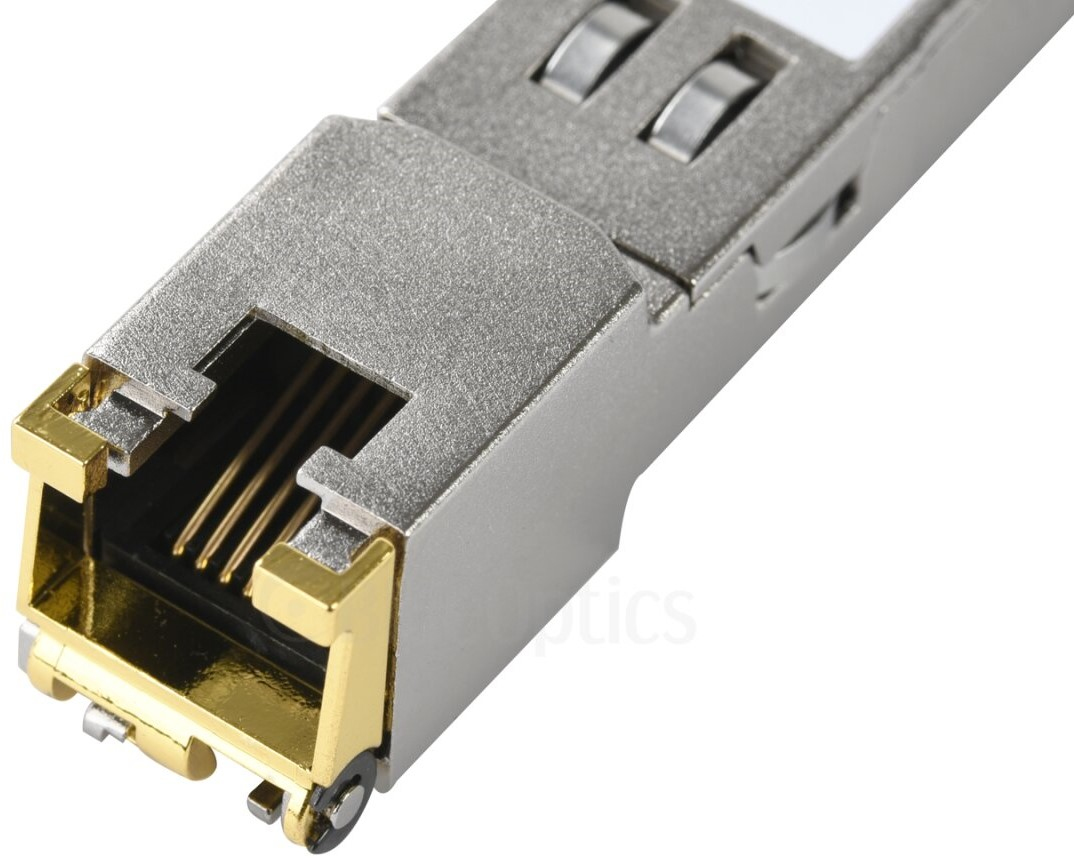

The BlueOptics AXM765-BO is a copper SFP+ module that turns an SFP+ slot into a 10GBASE-T RJ-45 port, reaching up to 30 m on Cat6A or Cat7 cable. It is the BlueOptics BO08J78S6 module coded as NETGEAR AXM765, so NETGEAR switches that check optics accept it, and its RJ-45 side can also negotiate 5G, 2.5G and 1G with the device at the other end. In practice, a copper module is the quickest way to connect a nearby device that only has an RJ-45 port, without buying a media converter. Use fibre for anything beyond the copper reach shown in the table.
Compatibility — check before buying:
The reach is 30 m, not the 100 m of a built-in 10GBASE-T port, and it needs at least Cat6A. BlueOptics lists 1G, 2.5G and 5G on the RJ-45 side while the switch side always runs 10GBASE-R, so whether a slower device works depends on the switch — send us the model. The module draws up to 2.5 W; some switches limit how many copper modules can sit side by side. It is coded as NETGEAR AXM765. BlueOptics also sells AXM765-10000S-BO, coded for NETGEAR’s retail part code — same module, different code. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ 10G servers next to the switch
✓ NAS units with 10GBASE-T ports
✓ NETGEAR switches with free SFP+ slots
✓ Short copper runs on Cat6A
✓ Multi-gig devices at the far end
✓ Spare copper modules at a lower cost
Key Features
Coded for NETGEAR
Programmed as NETGEAR AXM765, so NETGEAR switches that check optics identify it as a supported module.
Copper instead of fibre
Turns an SFP or SFP+ cage into an RJ-45 port, so the switch can reach a server, NAS, camera recorder or other device over twisted-pair cable. Check the cable grade and reach in the table before you plan the run.
Hot-swappable
Modules and cables plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch or pull tab to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end part, the cable and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We offer the AXM765-BO for NETGEAR switches that need a 10GBASE-T port from an SFP+ slot. It is a copper RJ-45 module, not a fibre optic, so plan a Cat6A cable of up to 30 m. Keep the run under 30 m on Cat6A and leave airflow around the switch, because copper modules run warmer than optics. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 10G RJ-45 port from an SFP+ slot on a switch that accepts NETGEAR AXM765 modules, within 30 m.
Skip it if
The run is longer than 30 m, the cable is Cat5e/Cat6, or your switch is another brand.
Also consider
NETGEAR AXM765v2 (AXM765-20000S), the NETGEAR original.
Features - BlueOptics - AXM765-BO
More Details
Product Code
04:546409
EAN Code
4063232638003
Manufacturer
BlueOptics
