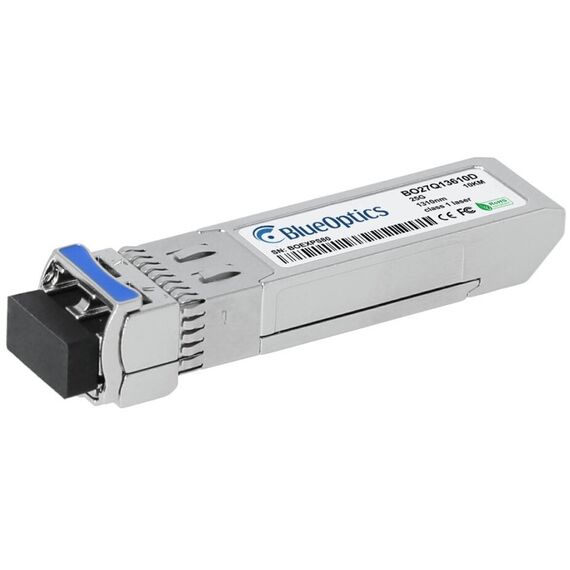

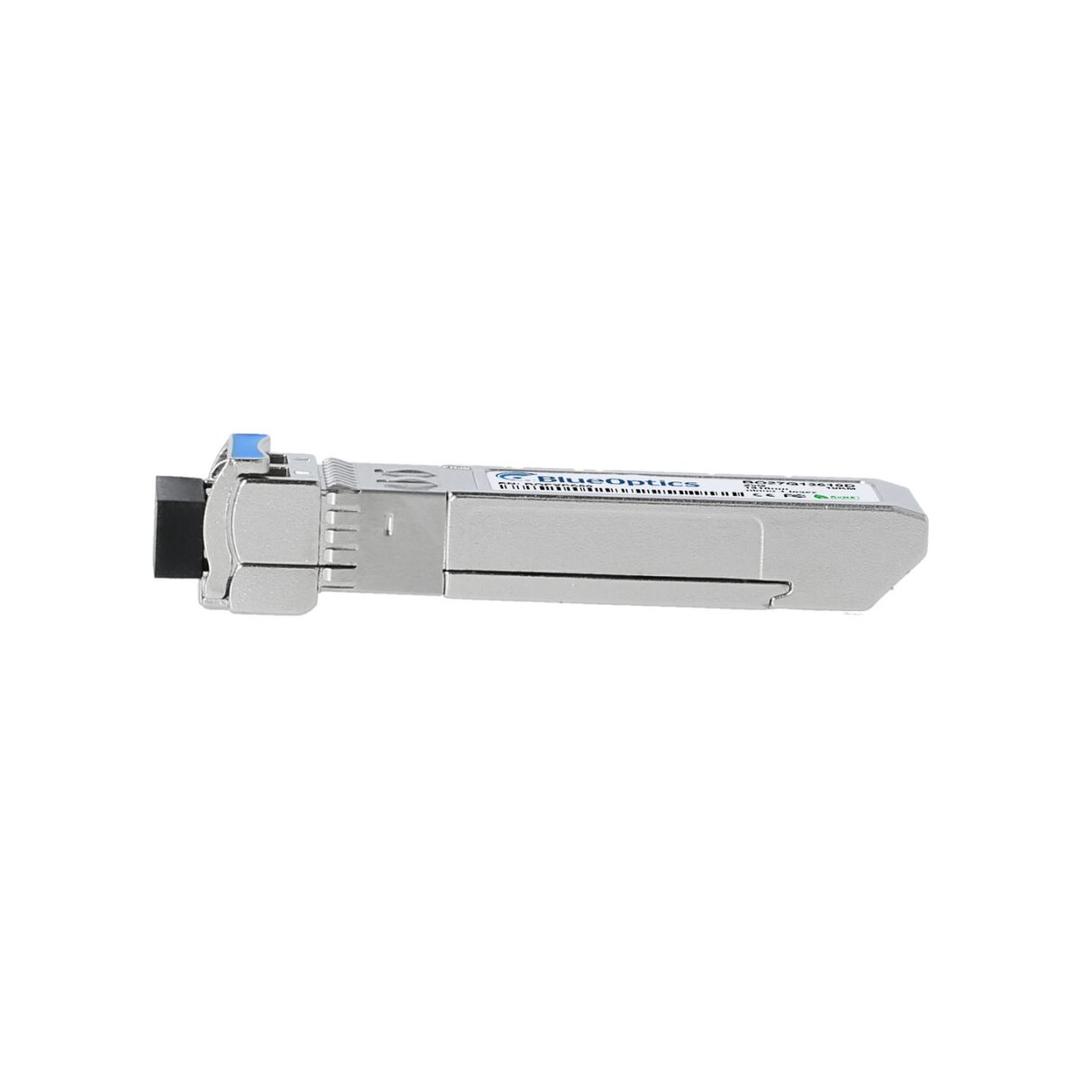

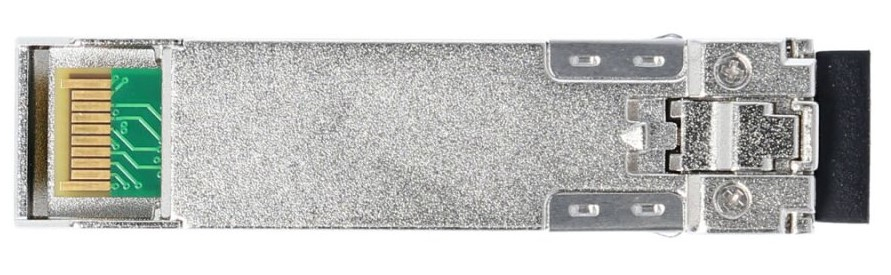

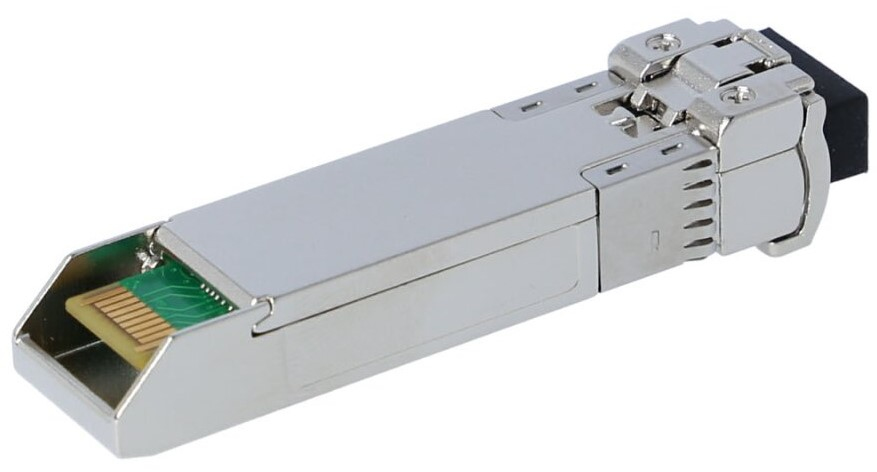

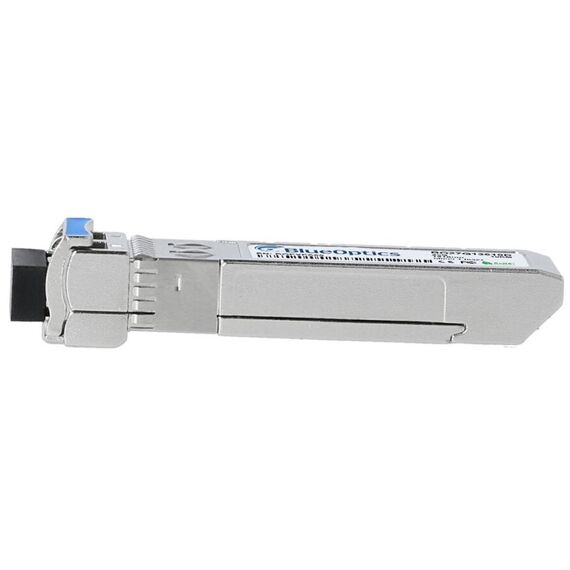

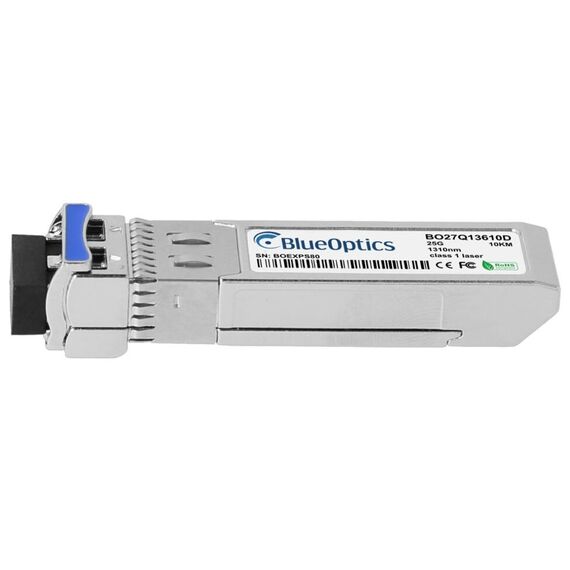

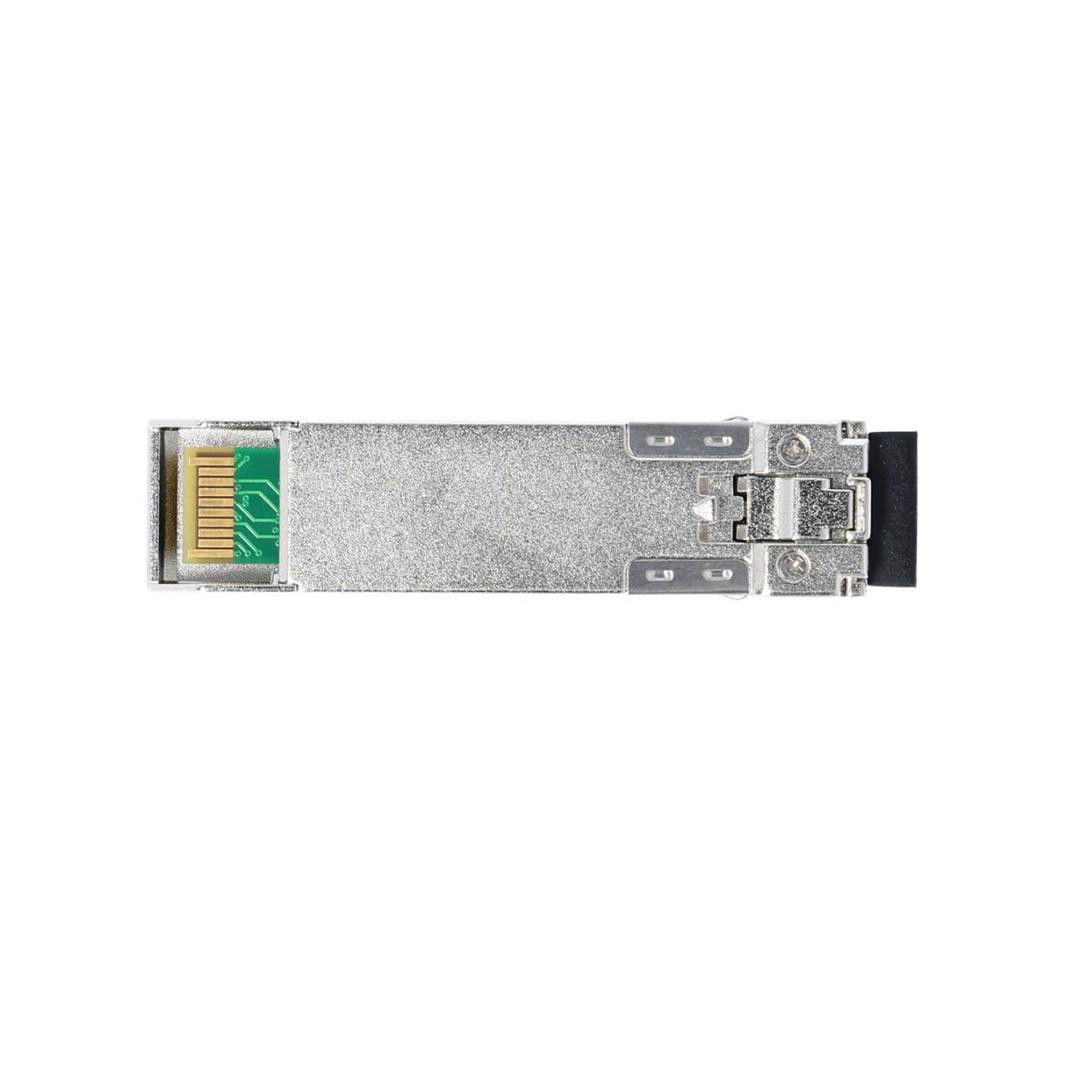

BlueOptics JL486A-BO HPE Aruba JL486A Compatible SFP28 Transceiver 25GBASE-LR 1310 nm LC Single-Mode 10 km DDM
Brand:
BlueOptics
BlueOptics JL486A-BO HPE Aruba JL486A Compatible SFP28 Transceiver 25GBASE-LR 1310 nm LC Single-Mode 10 km DDM
€101.88 inc. VAT
JL486A-BO
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
BlueOptics JL486A-BO — HPE Aruba-Compatible 25G LR SFP28
25 Gbps25GBASE-LRSingle-mode 10 kmHPE Aruba coded

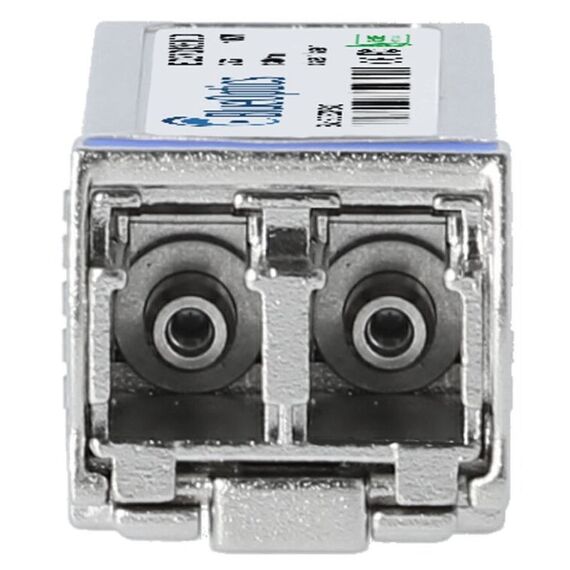

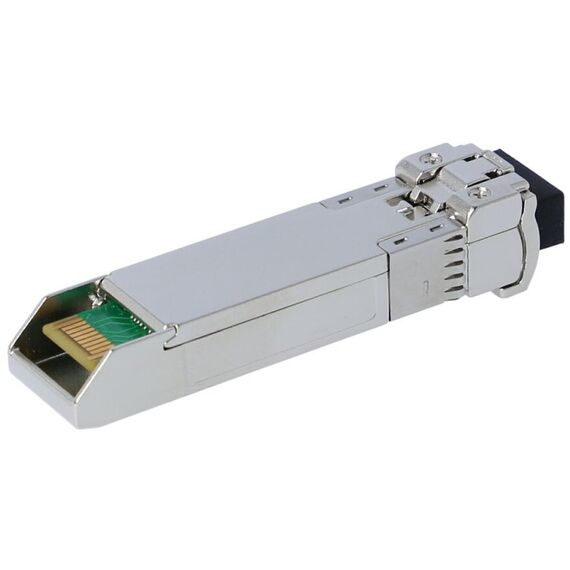

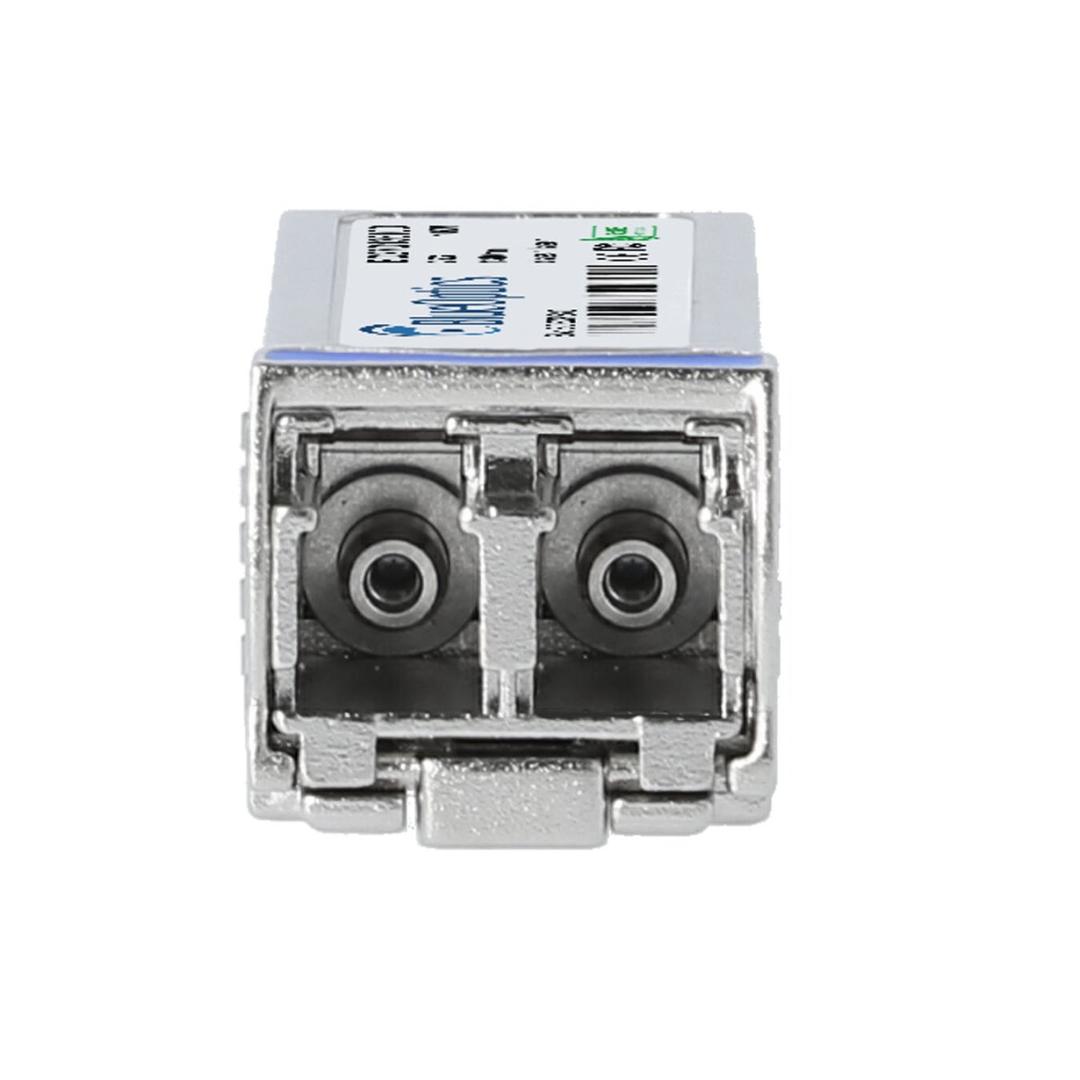

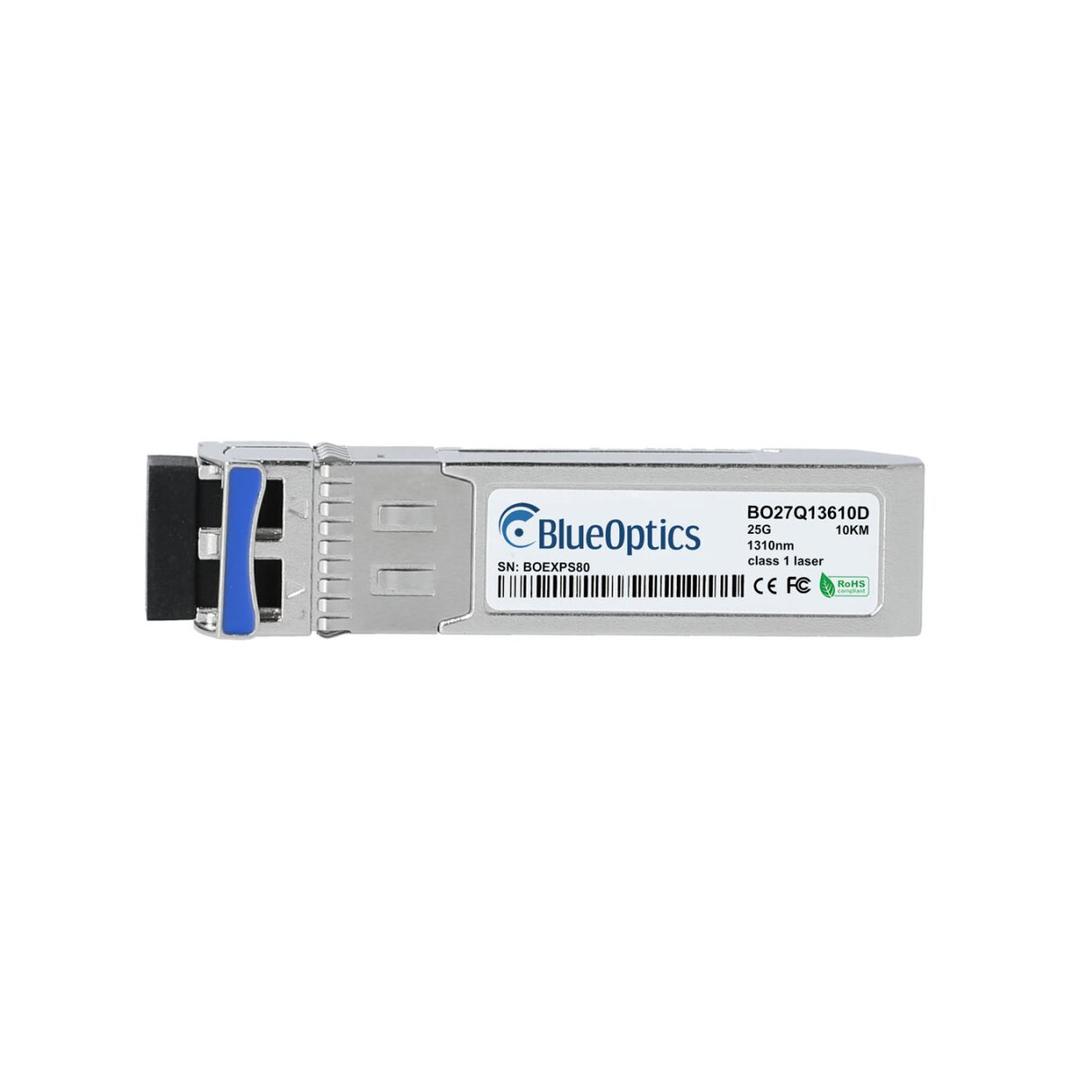

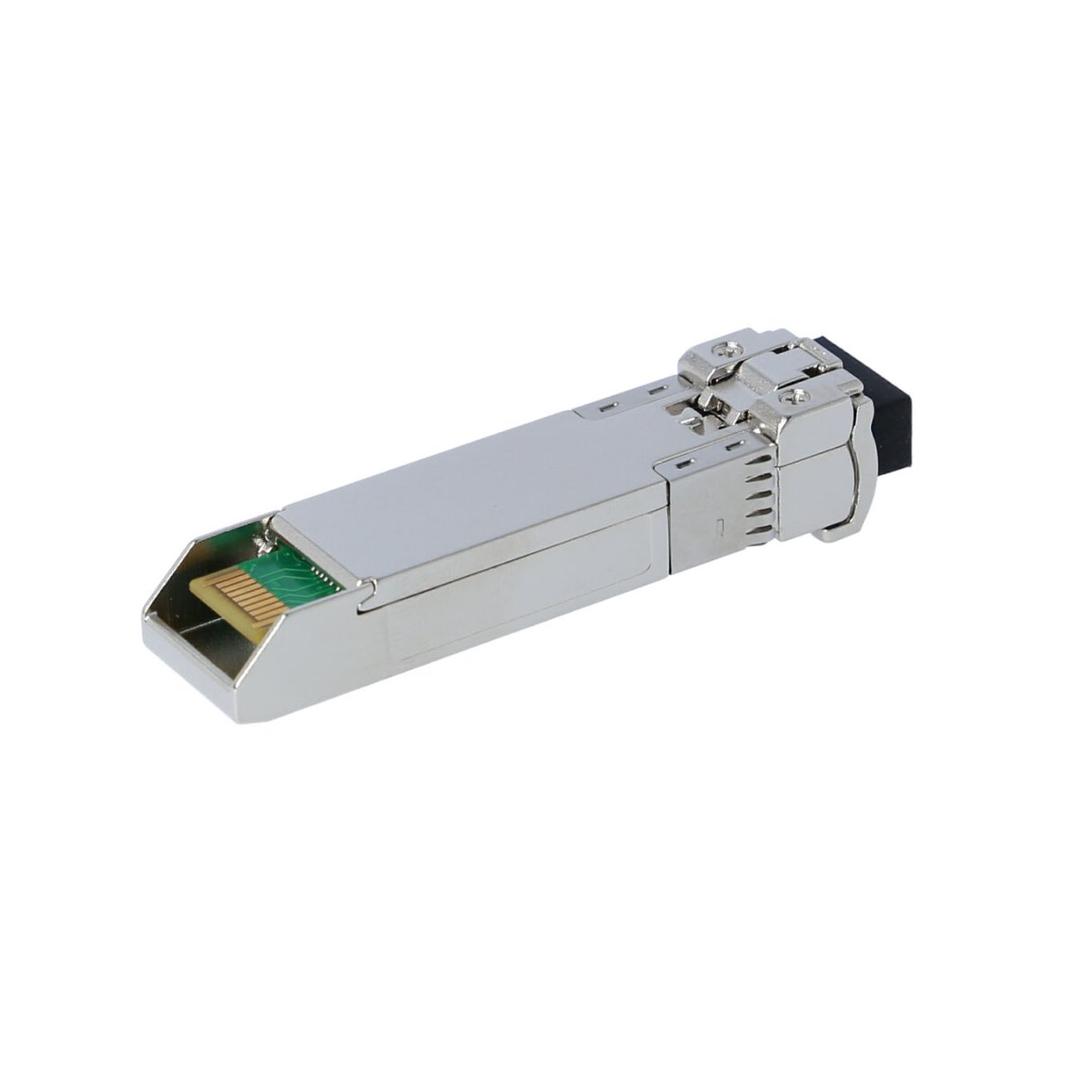

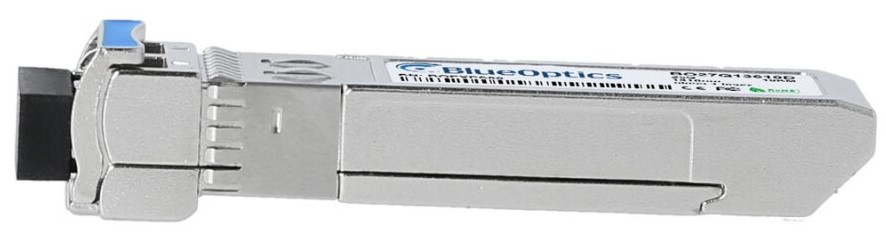

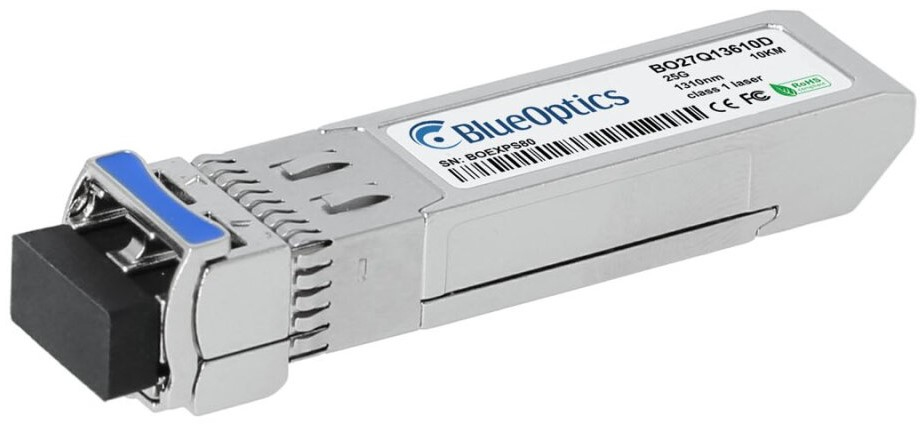

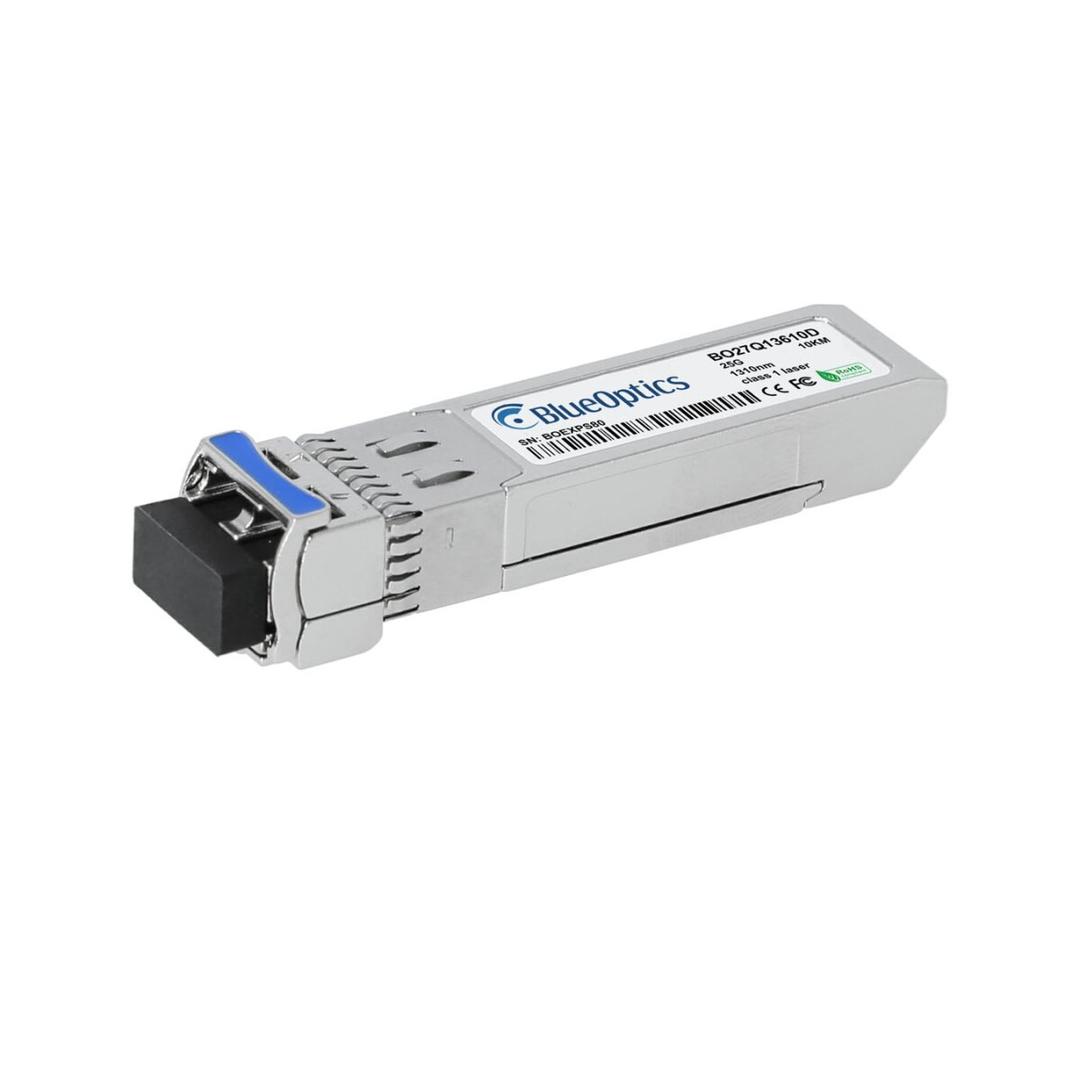

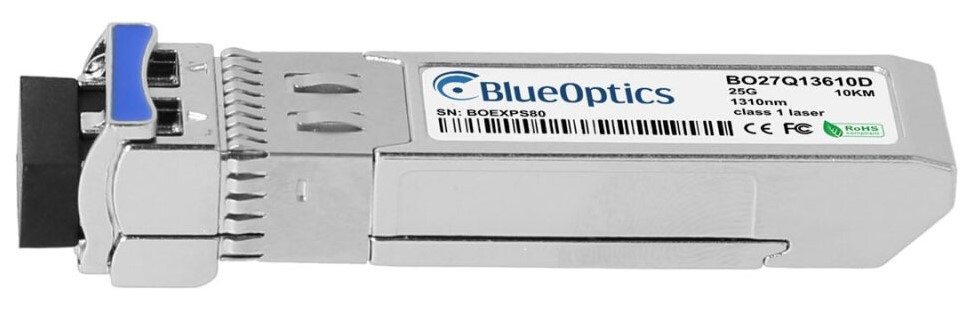

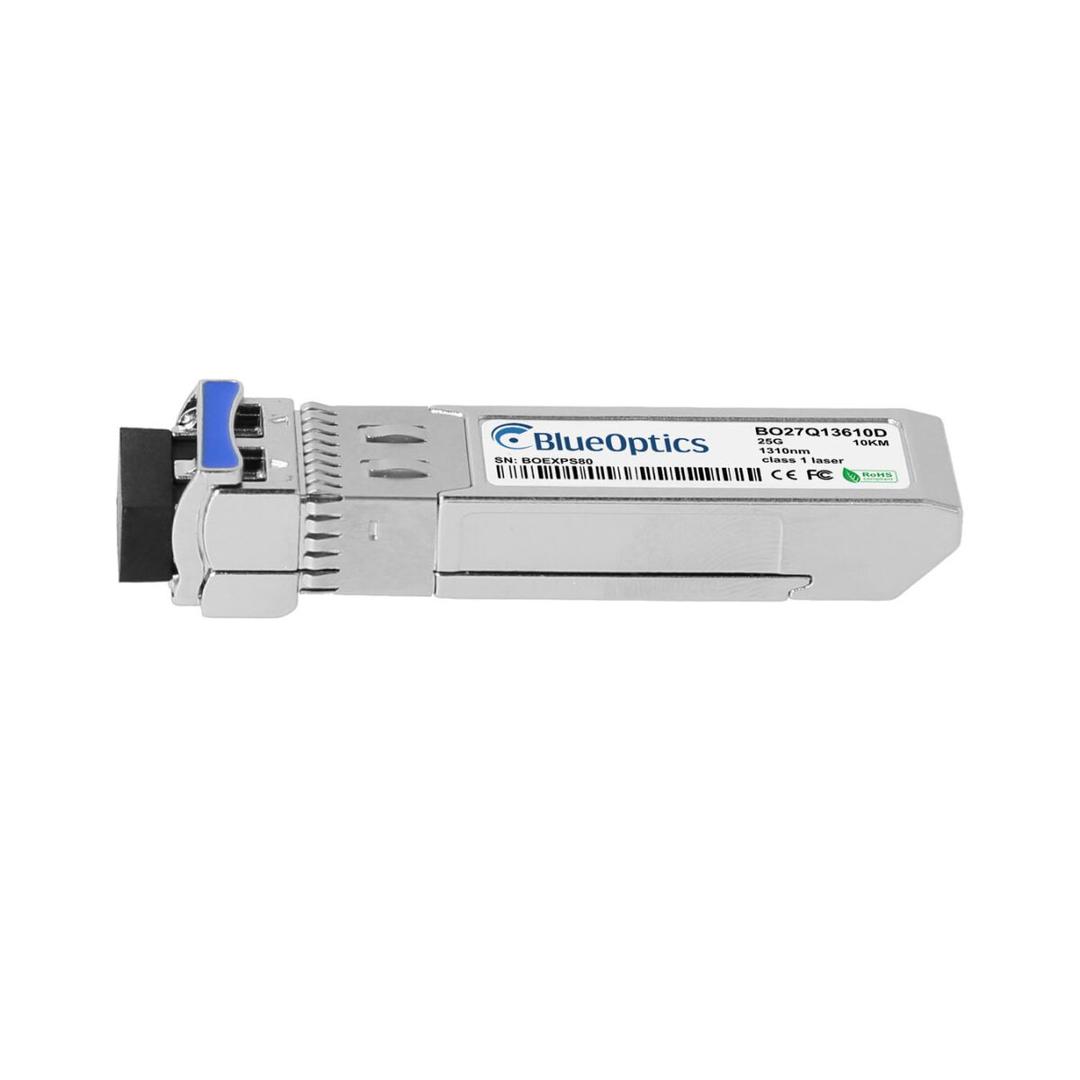

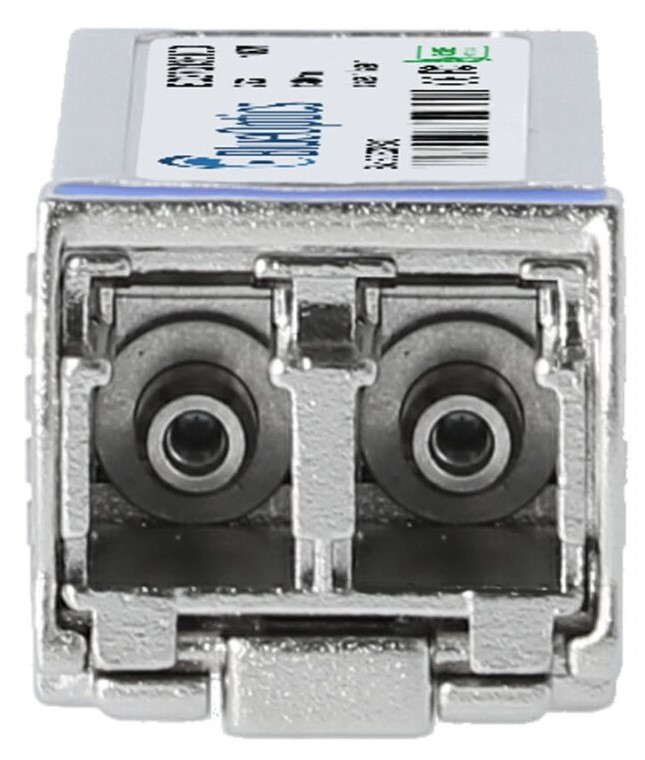

The BlueOptics JL486A-BO is a 25 Gbit SFP28 transceiver for single-mode fibre, reaching up to 10 km at 1310 nm over an LC duplex connection, with digital diagnostics. It is programmed as an HPE Aruba JL486A, so Aruba switches that check optics accept it, and it is made by CBO in Germany as an alternative to the original HPE part. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.
Compatibility — check before buying:

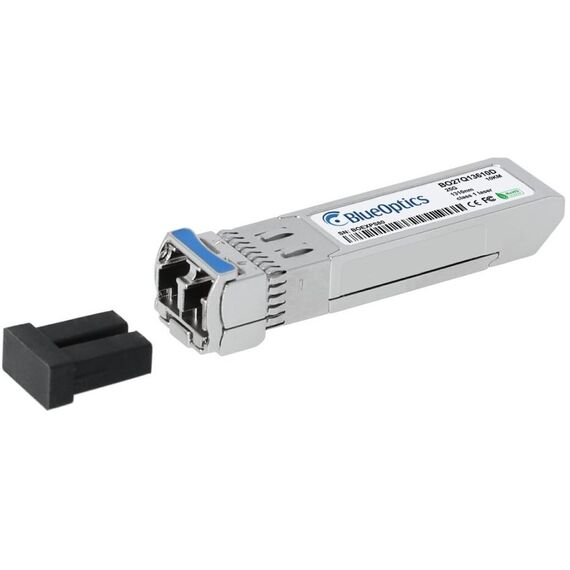

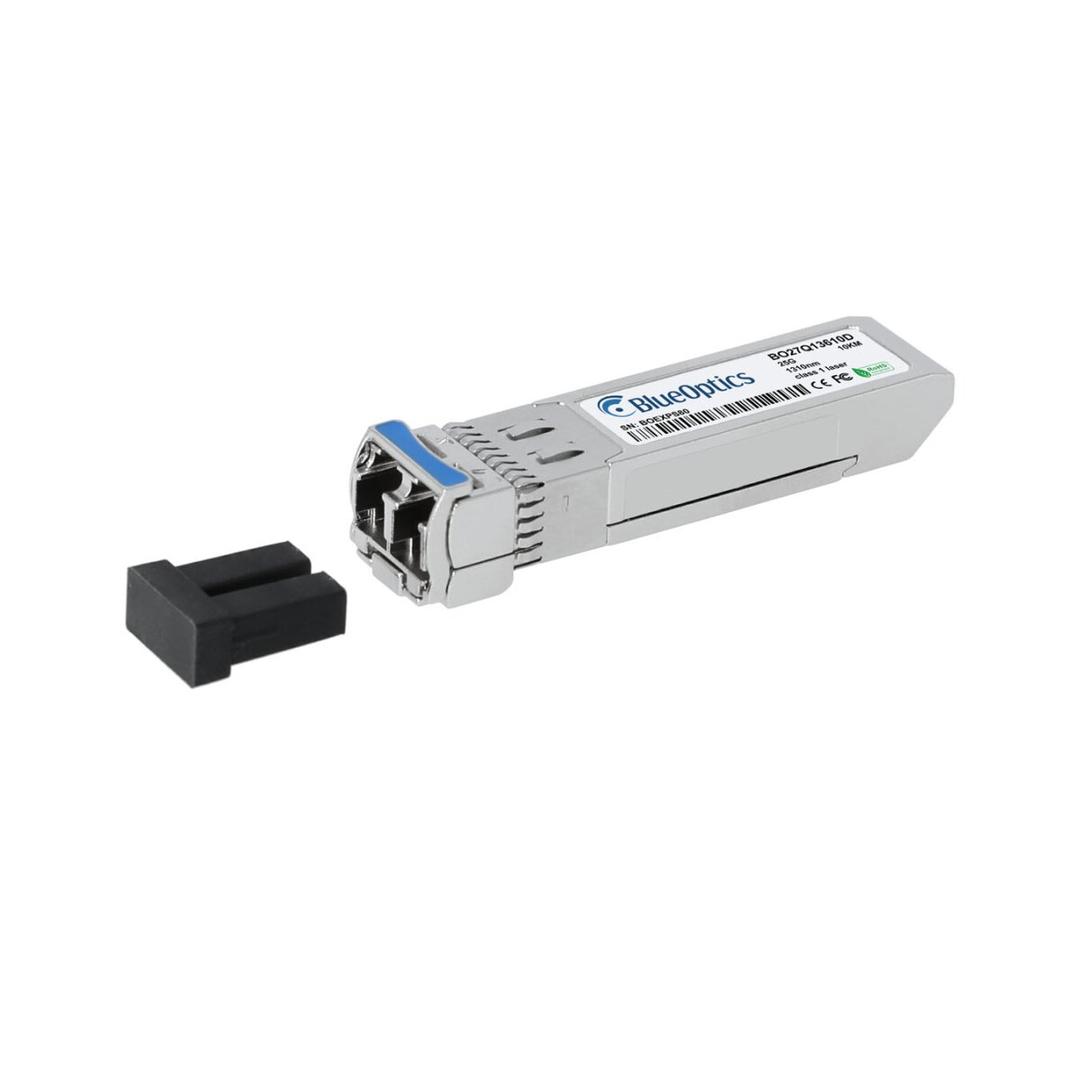

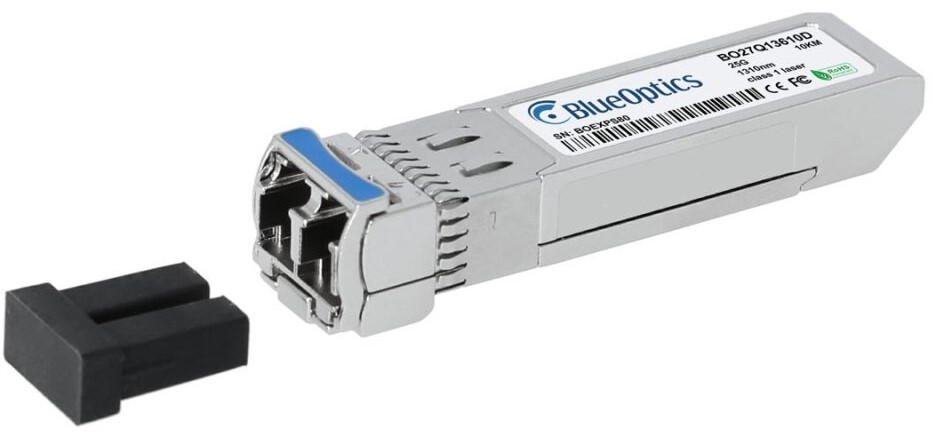

This is a long-reach single-mode optic: it will not link to 850 nm SR optics and will not work on OM3/OM4 multimode fibre — for that, the JL484A-BO is the SR version. It is coded for HPE Aruba; BlueOptics offers the same optic with other vendor codings, so tell us the switch brand. BlueOptics does not publish 10G operation. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ 25G links between buildings on Aruba
✓ Aruba CX switch SFP28 ports
✓ Single-mode runs up to 10 km
✓ Server links over long runs
✓ Spare optics at a lower cost
✓ Replacing an HPE JL486A
Key Features
Coded for HPE Aruba
Programmed as an HPE Aruba JL486A, so Aruba switches that check optics accept it as a supported module.
Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.
Monitoring you can read
Digital diagnostics (SFF-8472) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We offer the JL486A-BO for Aruba networks that want a coded 25G LR optic at lower cost, with a 5-year functional warranty from CBO. Check that the switch port supports 25G SFP28, and order the far-end module with it. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 25G single-mode link up to 10 km on an HPE Aruba switch that accepts JL486A.
Skip it if
Your fibre is multimode, the port is SFP+ (10G), or you need an HPE-branded optic.
Also consider
BlueOptics JL484A-BO for 25G multimode, or the original HPE JL486A.
Features - BlueOptics - JL486A-BO
More Details
Product Code
04:539022
EAN Code
4063232045894
Manufacturer
BlueOptics
