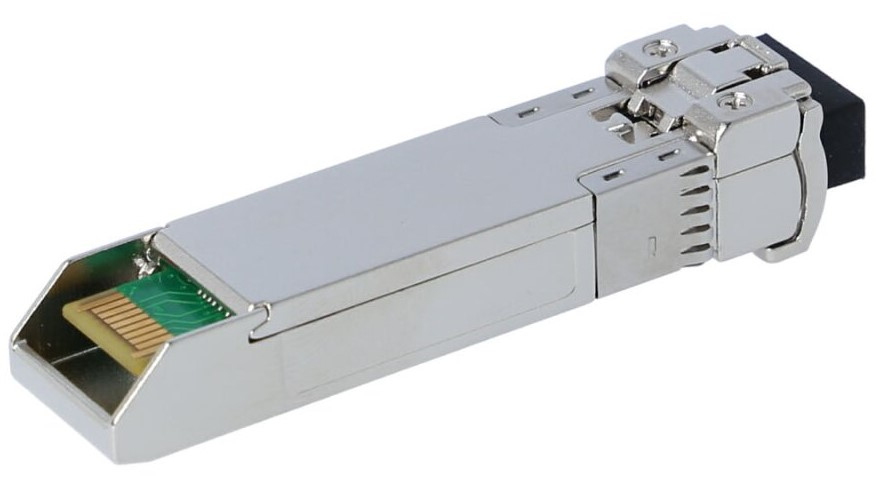

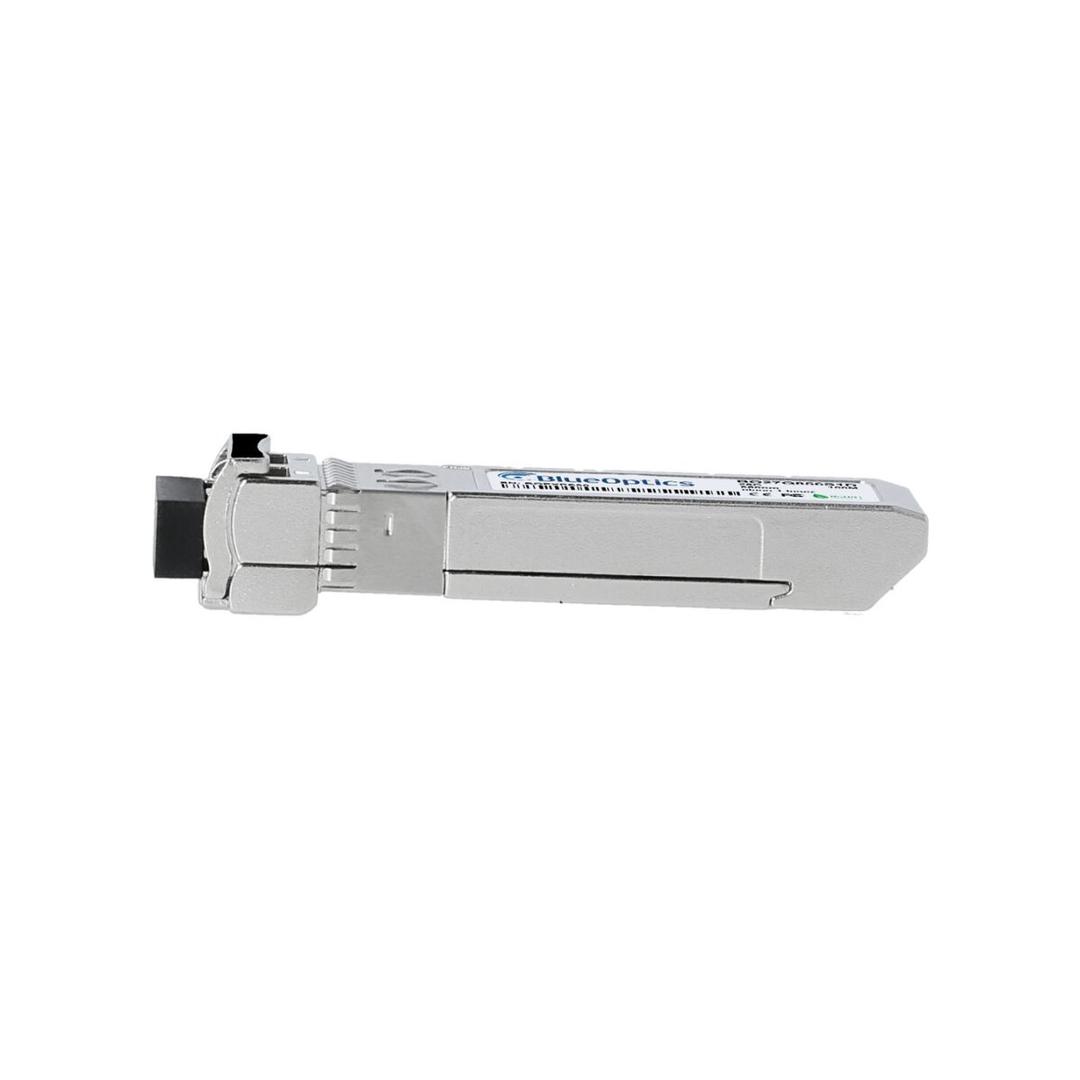

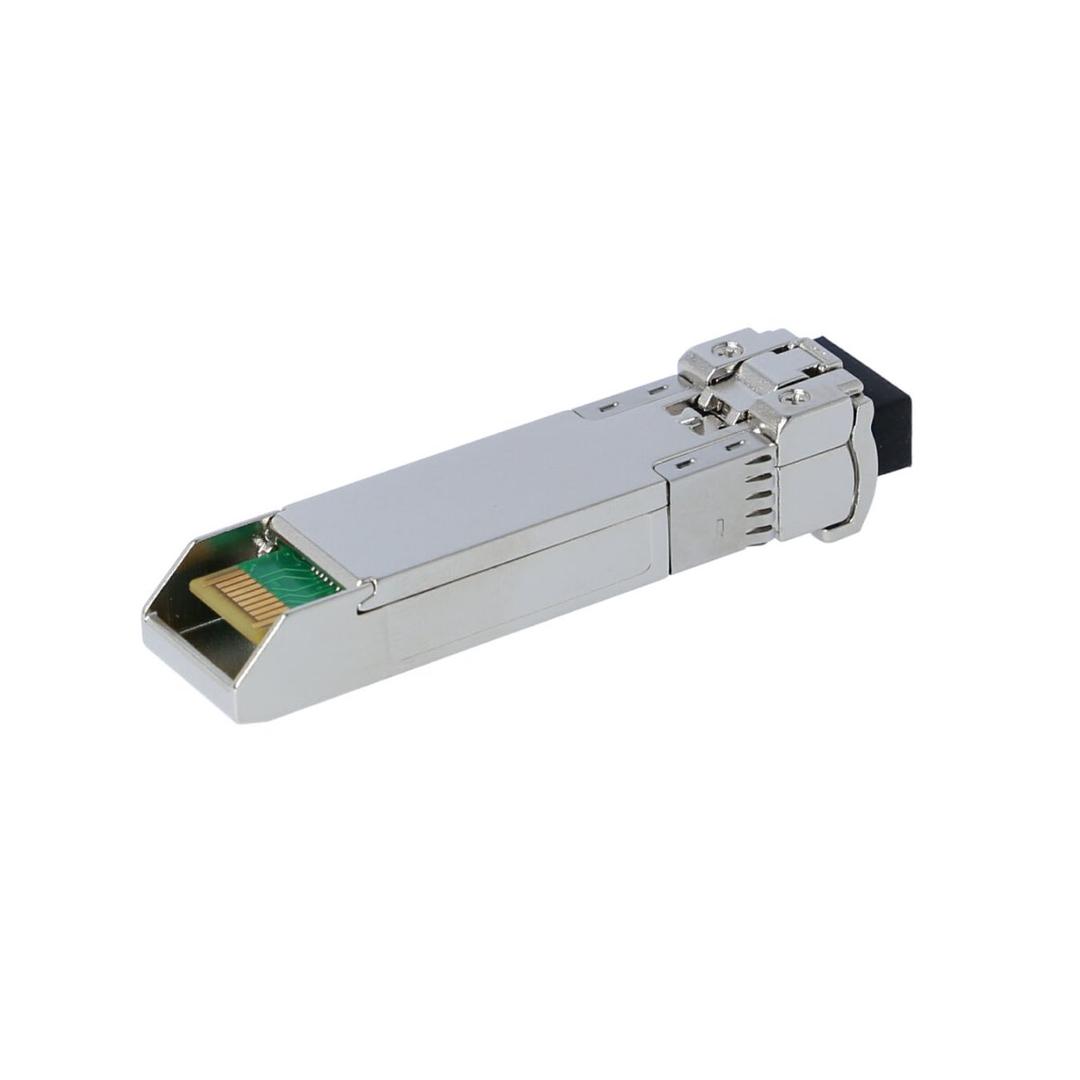

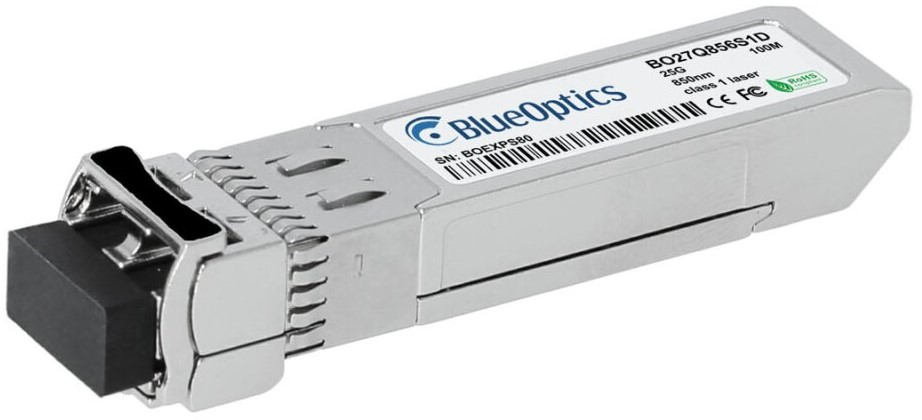

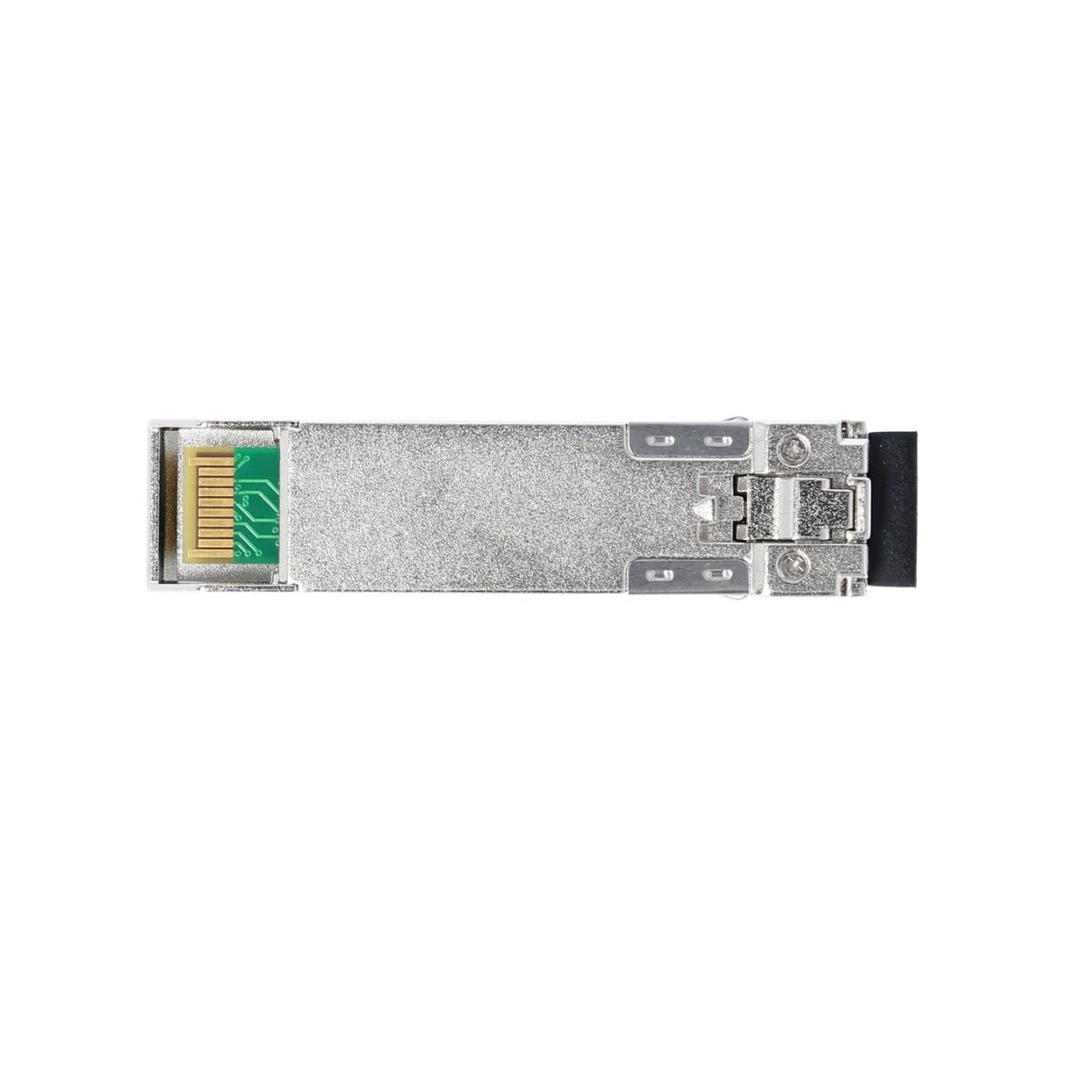

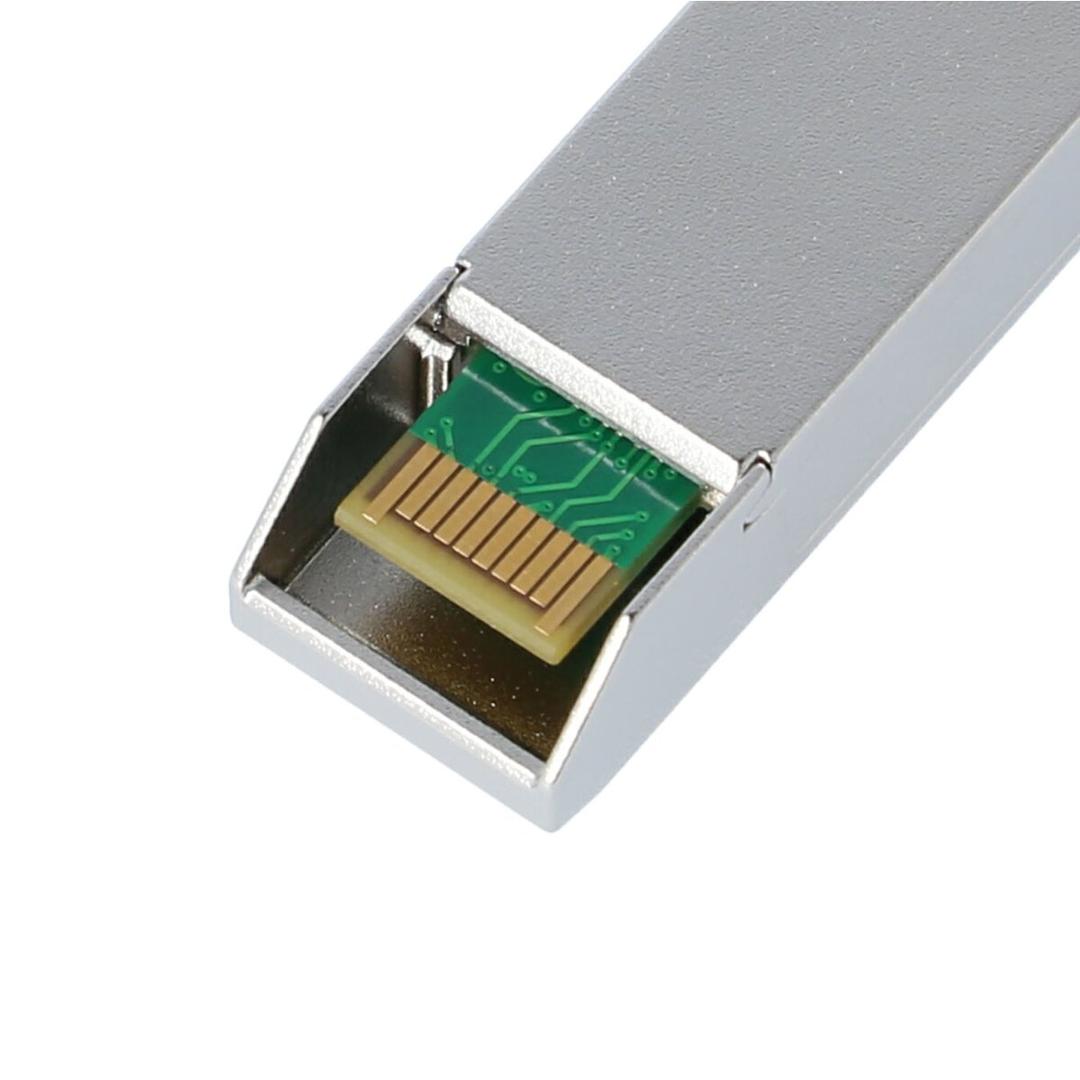

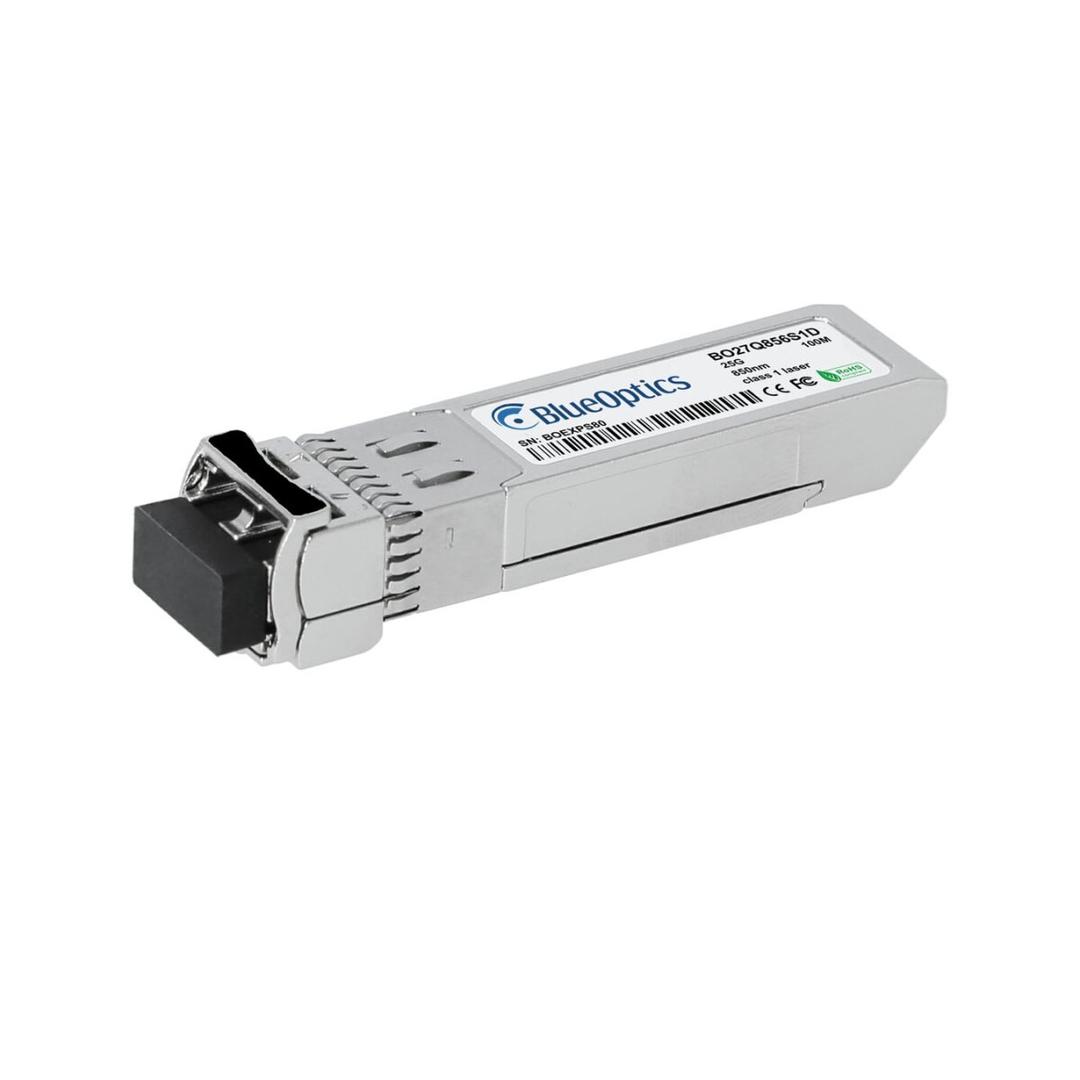

BlueOptics JNP-SFP-25G-SR-BO Juniper JNP-SFP-25G-SR Compatible SFP28 Transceiver 25GBASE-SR 850 nm LC Multimode up to 100 m DDM

Brand:
BlueOptics
BlueOptics JNP-SFP-25G-SR / Fiber optic / 250 | JNP-SFP-25G-SR-BO
BlueOptics JNP-SFP-25G-SR-BO Juniper JNP-SFP-25G-SR Compatible SFP28 Transceiver 25GBASE-SR 850 nm LC Multimode up to 100 m DDM
€57.02 inc. VAT
Buy
JNP-SFP-25G-SR-BO
€47.92
€57.02 inc. VAT
Ships from EU stock: 19 item(s)
+ −
Add to wish list Ask a question
Product Code
04:546738
EAN Code
4063232055312
Manufacturer
BlueOptics

Quick Specs

Standard
25GBASE-SR · 25 Gbps
Fibre & Reach
Multimode · up to 100 m
Coded As
Juniper JNP-SFP-25G-SR
Connector
Duplex LC · 850 nm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

BlueOptics JNP-SFP-25G-SR-BO — Juniper JNP-SFP-25G-SR Compatible 25G SR SFP28

25 Gbps25GBASE-SRJuniper JNP-SFP-25G-SR codedUp to 100 m

The BlueOptics JNP-SFP-25G-SR-BO is a 25 Gbit SFP28 transceiver for multimode fibre, reaching up to 100 m at 850 nm over a duplex LC connection, with digital diagnostics. It is programmed with the coding of the Juniper JNP-SFP-25G-SR, so Juniper switches and routers identify it as that part. BlueOptics backs it with a 5-year functional warranty. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.

Compatibility — check before buying:

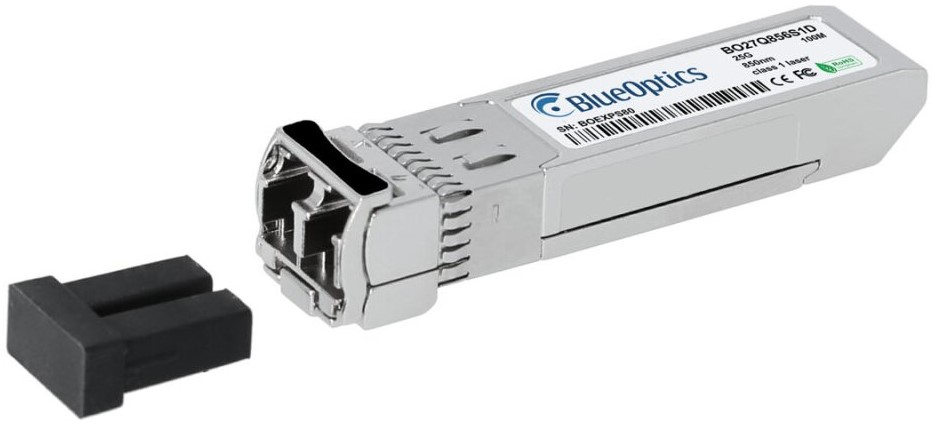

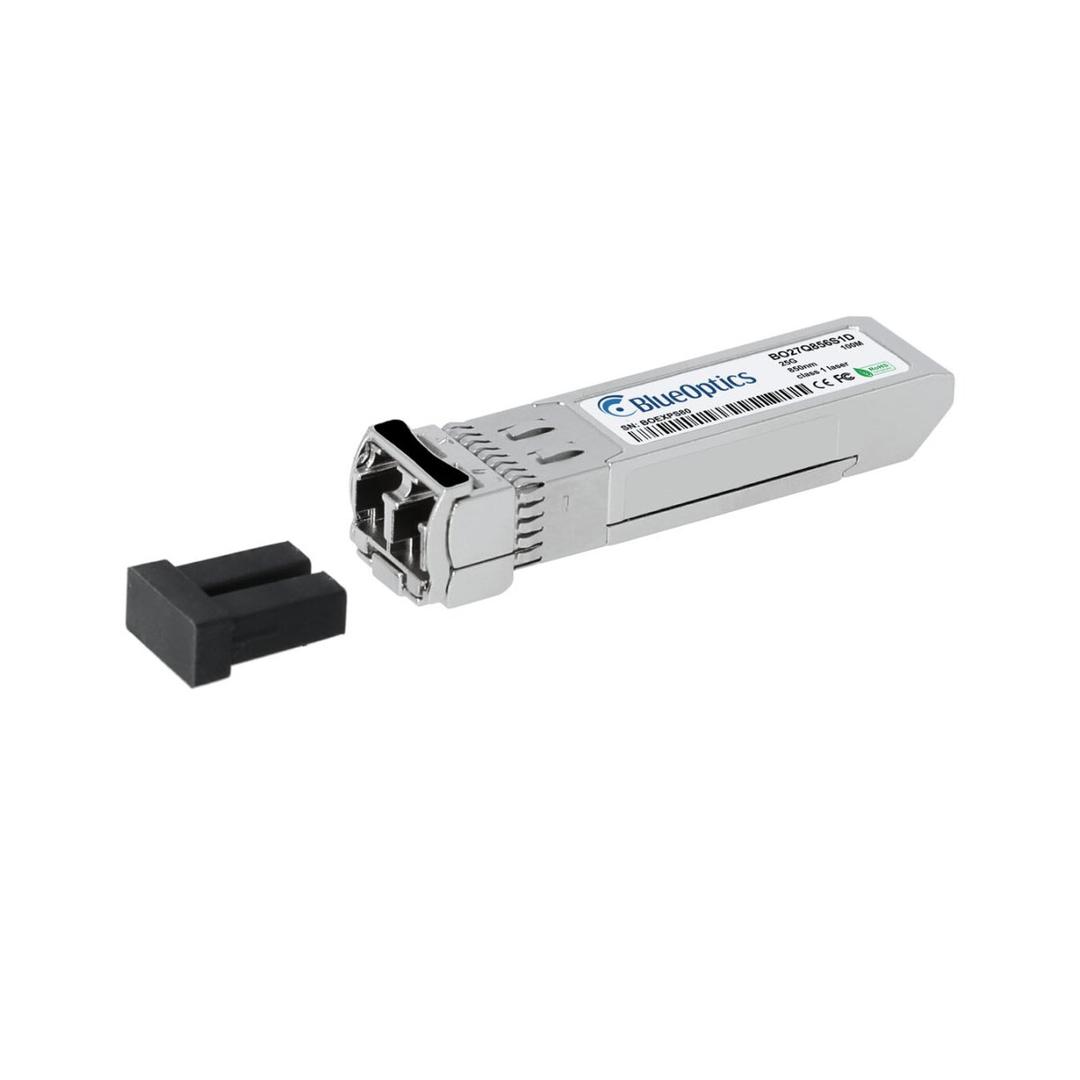

It is coded as a Juniper JNP-SFP-25G-SR. Juniper also uses the SFP-25G-SR-C coding for 25G SR — check the part your device expects. BlueOptics publishes it as a 25G module and does not publish a 10G mode or a FEC setting, so do not plan it for a 10G-only SFP+ port. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ Juniper QFX and EX 25G ports
✓ 25G server links inside one data room
✓ Top-of-rack to server runs up to 100 m
✓ Replacing a failed Juniper JNP-SFP-25G-SR module
✓ Spare optics at a lower cost than the original
✓ Networks that want a 5-year module warranty

Key Features


Coded as Juniper JNP-SFP-25G-SR
Programmed with the Juniper JNP-SFP-25G-SR coding, so the host treats it as the original part instead of an unsupported third-party optic.

Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.

Monitoring you can read
Digital diagnostics (SFF-8472) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Technical Specifications

Identification
Brand BlueOptics (CBO GmbH)

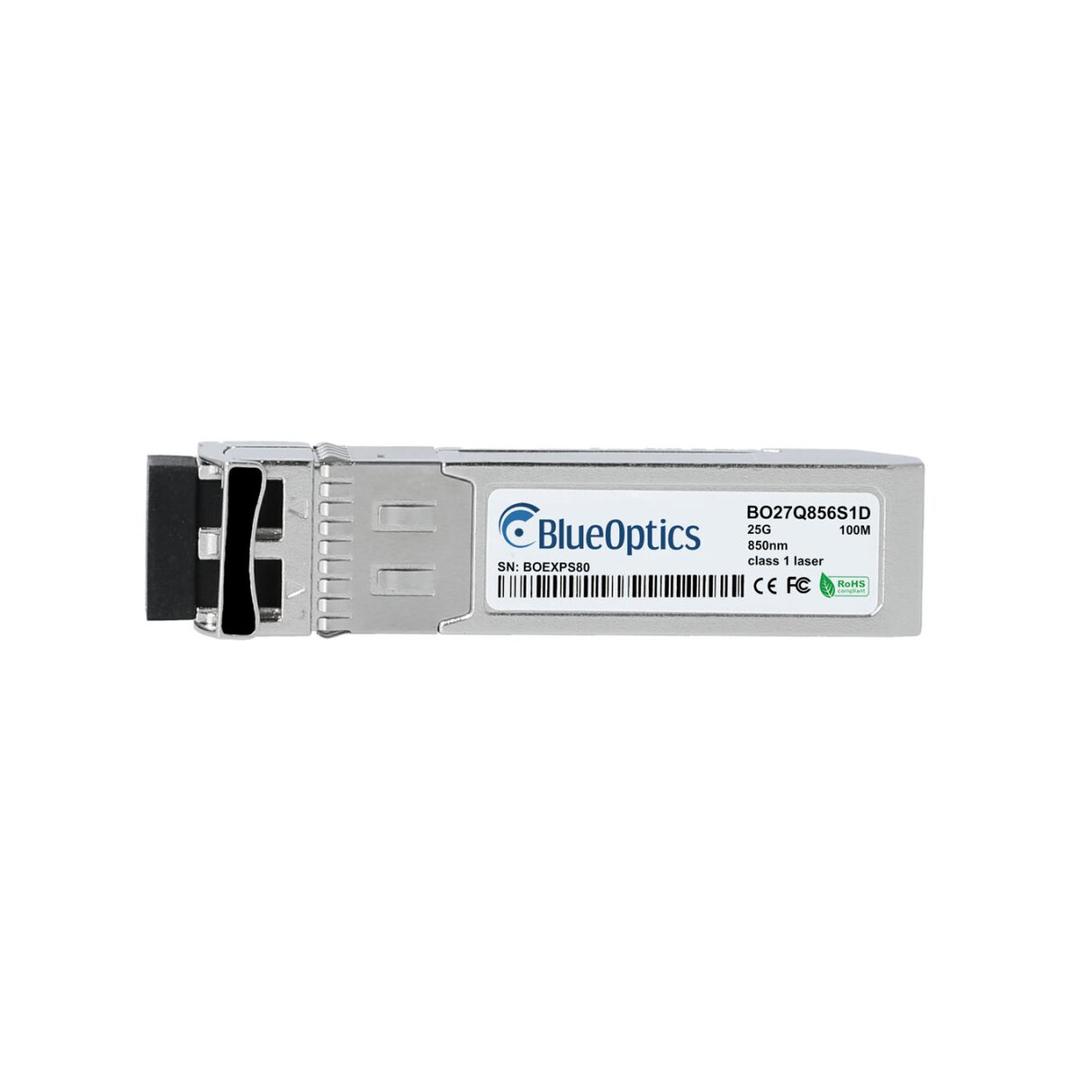

Model Compatible Juniper JNP-SFP-25G-SR SFP28 25GBASE-SR (BO27Q856S1D)
Part Number JNP-SFP-25G-SR-BO
EAN / GTIN 4063232055312
Pack Size Single unit
BlueOptics Hardware BO27Q856S1D
Coded As Juniper JNP-SFP-25G-SR
Interface
Form Factor SFP28
Standard 25GBASE-SR
Data Rate 25 Gbps

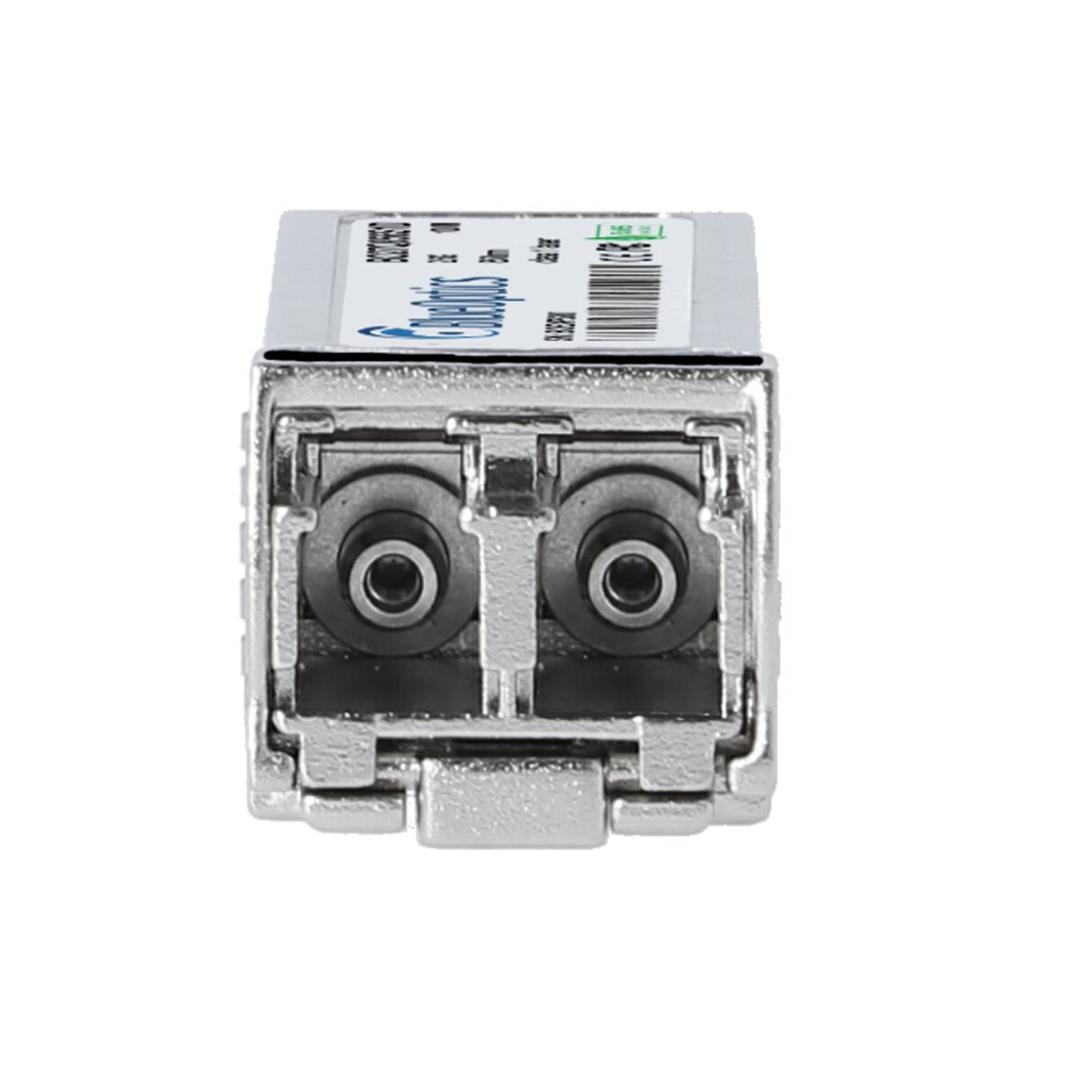

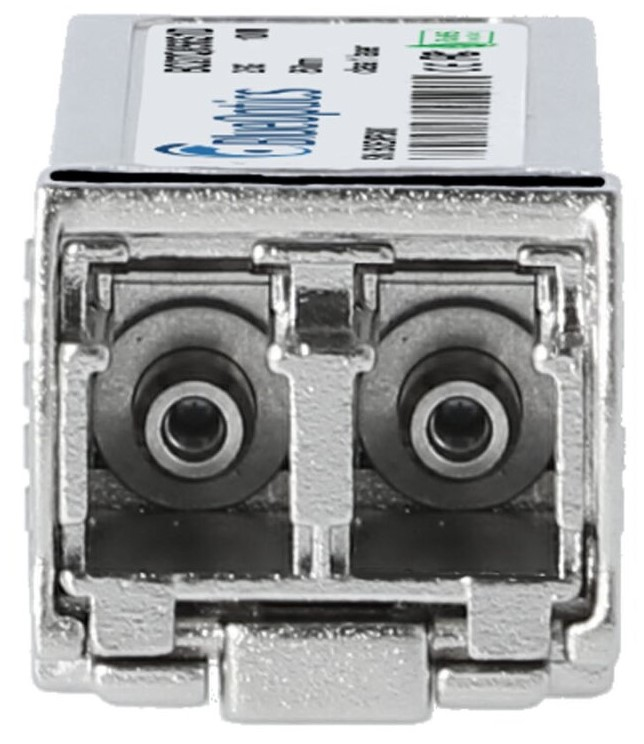

Connector Duplex LC/UPC
Optics & Reach
Wavelength 850 nm (VCSEL)
Fibre Multimode 50/125 µm
Reach Up to 100 m (BlueOptics does not split this by OM grade)
Tx Power −6 to −1 dBm
Rx Sensitivity −10 dBm (overload +0.5 dBm)
Environment & Power
Operating Temperature 0 to 70 °C (commercial)
Supply 3.3 V, max. 250 mA
Diagnostics (DDM) Yes, SFF-8472
10G mode and FEC Not published by BlueOptics
Compatibility
Designed For Juniper switches and routers that accept the JNP-SFP-25G-SR
Link Partner Another 25GBASE-SR module on multimode fibre, of any brand
In the Box
Included 1 module
Not Included Fibre patch cords and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term BlueOptics (CBO GmbH) publishes a 5-year functional warranty on this transceiver, plus lifetime technical support. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it run at 10G?
BlueOptics publishes this module for 25GBASE-SR only and does not list a 10G rate. If the port or the far end runs at 10G, tell us and we find the right module.
JNP-SFP-25G-SR or SFP-25G-SR-C?
They are two Juniper codings for 25G SR optics. Send us the device model or the label of the optic you replace and we supply the matching coding.
Are fibre patch cords included?
No. You get 1 module. The patch cord for the Duplex LC/UPC connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
BlueOptics programs each module with the coding of the original part it replaces. A host from another brand may reject it or show an “unsupported transceiver” message when the coding does not match — send us the switch or server model and we check it before you order.
Singular Expert Insight
We offer the JNP-SFP-25G-SR-BO for Juniper networks that need 25G over multimode inside a data room, at a lower cost than the original and with a 5-year warranty. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need 25G over multimode up to 100 m on Juniper equipment that accepts JNP-SFP-25G-SR.

Skip it if

Your device expects SFP-25G-SR-C, you need 10G, or your fibre is single-mode.

Also consider

A BlueOptics module with Juniper SFP-25G-SR-C coding.
