BlueOptics QSFP-100G-SR4-S-BO — Cisco-Compatible 100G SR4
100 GbpsQSFP28 SR4MPOCisco coded

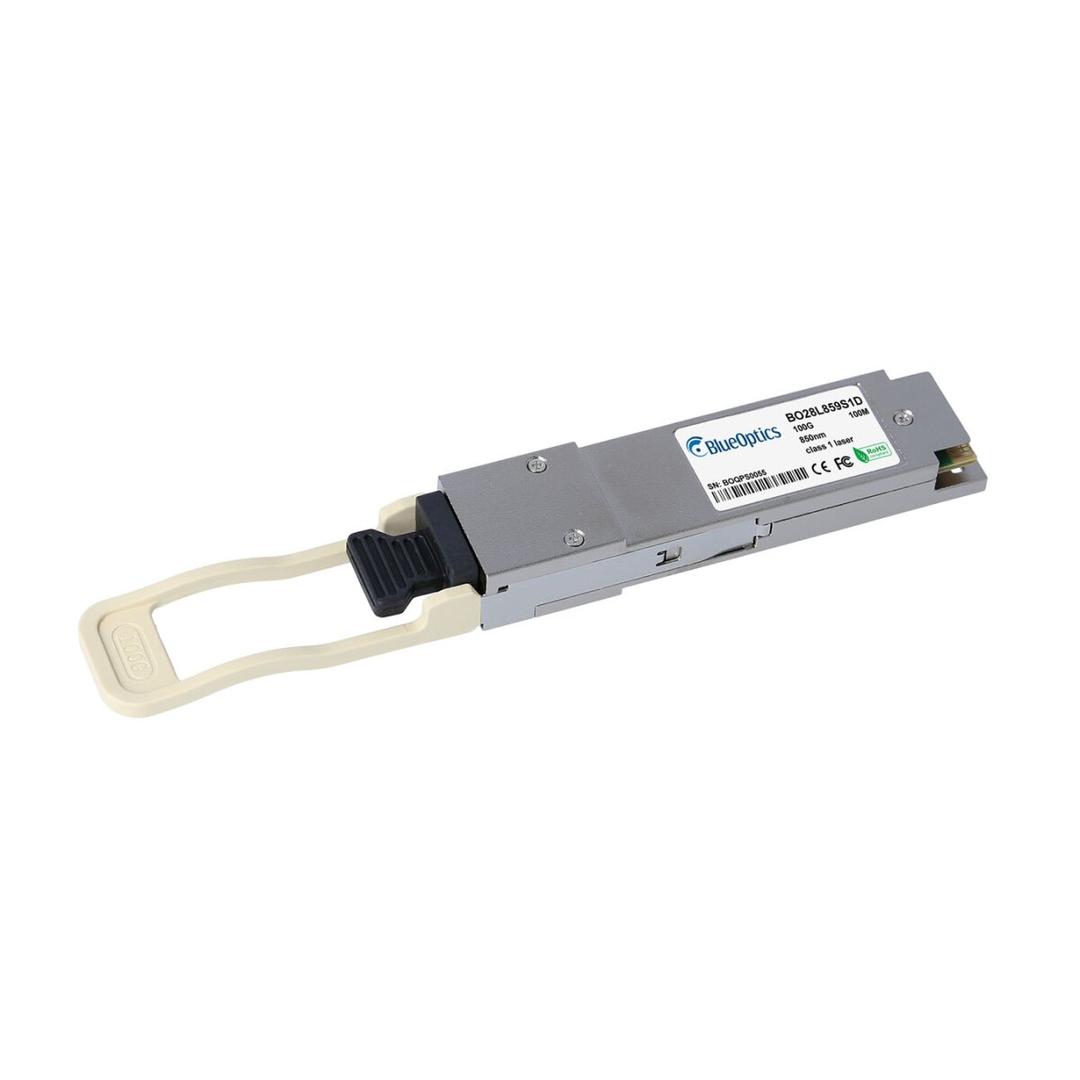

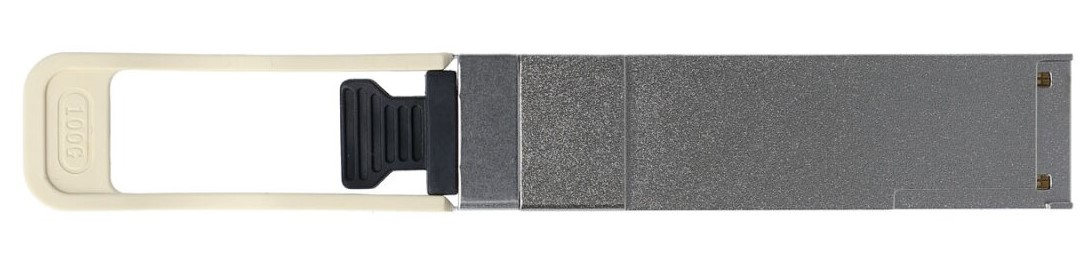

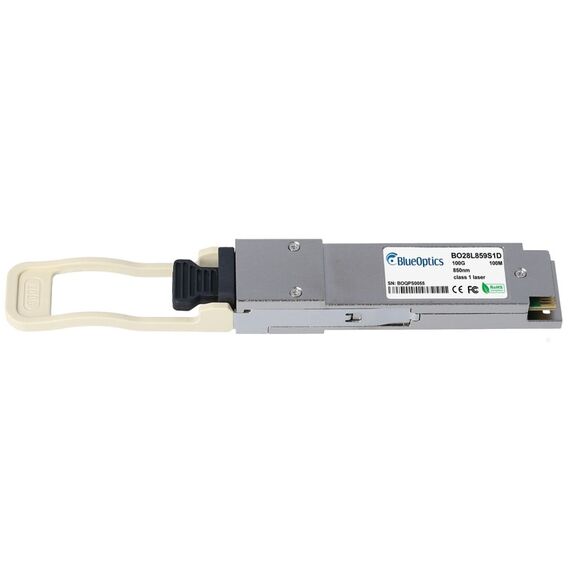

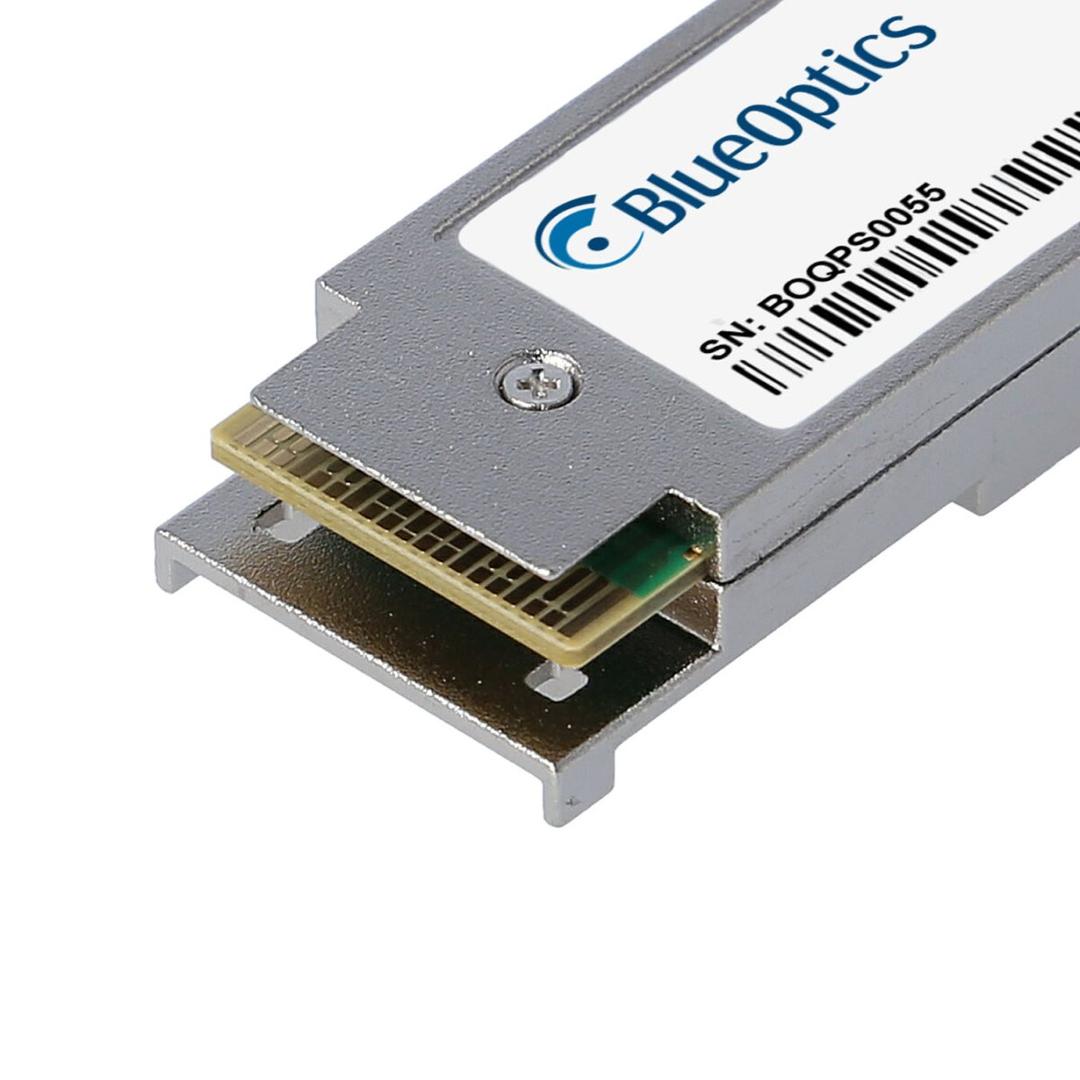

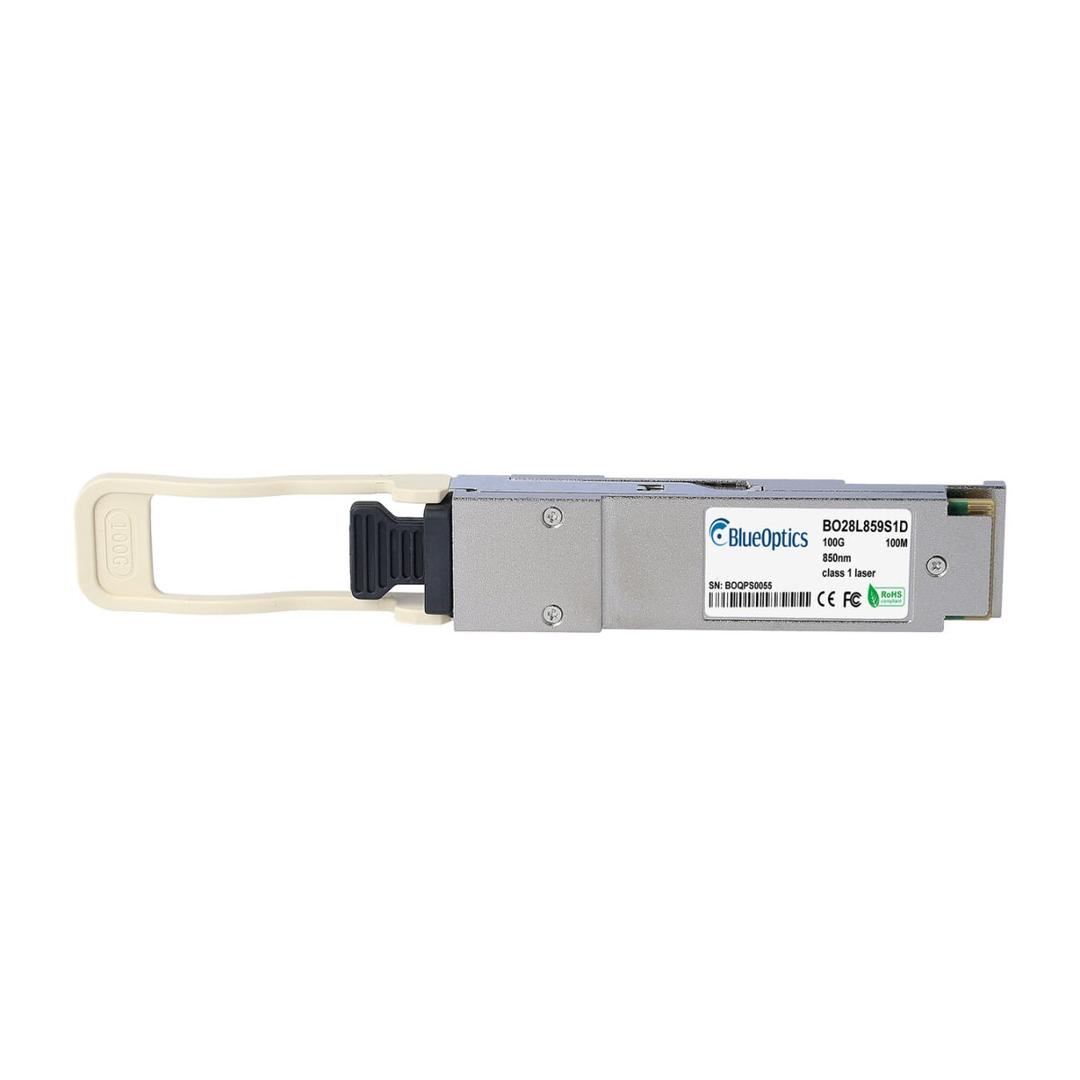

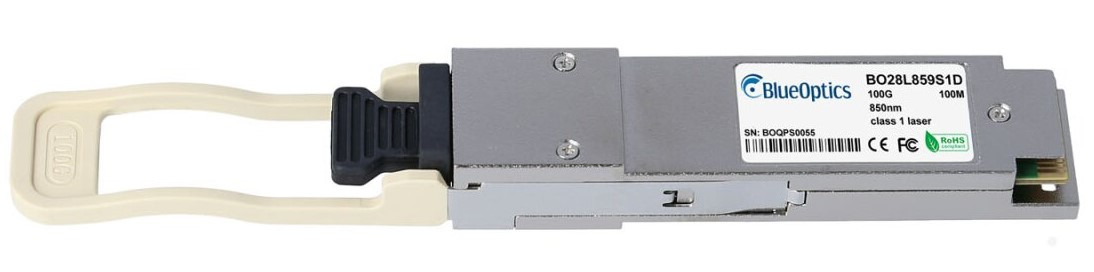

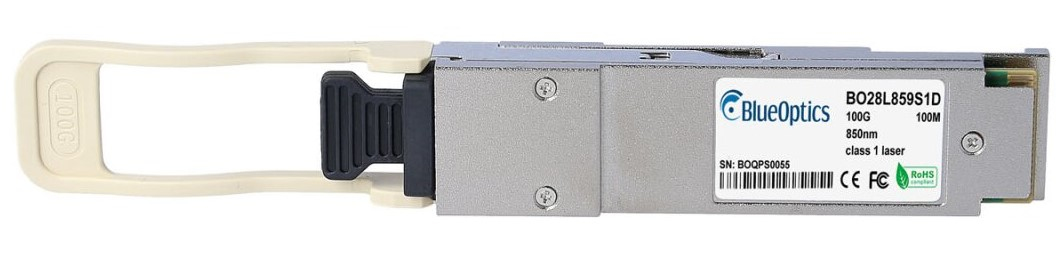

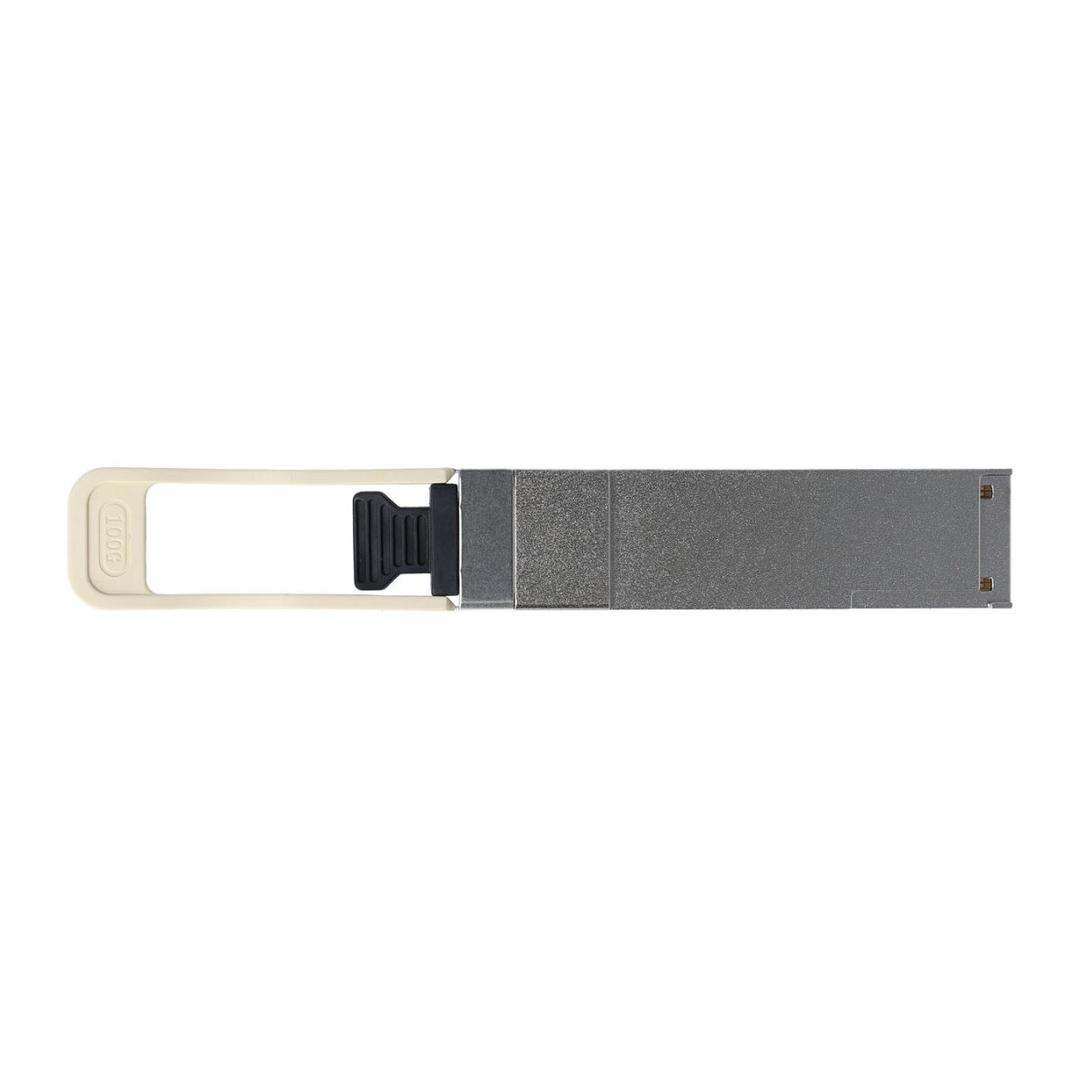

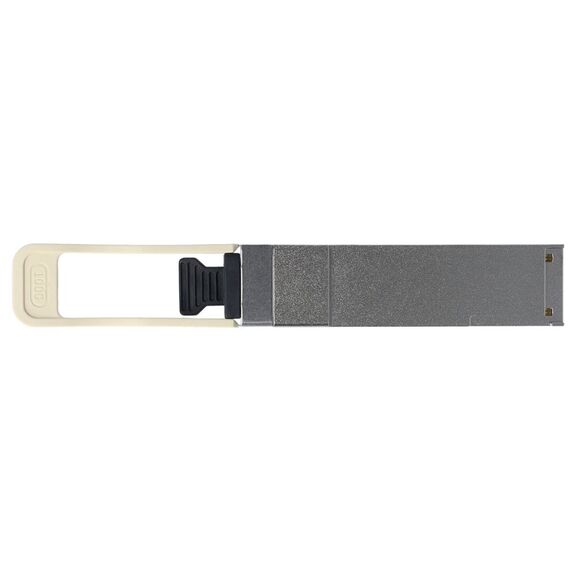

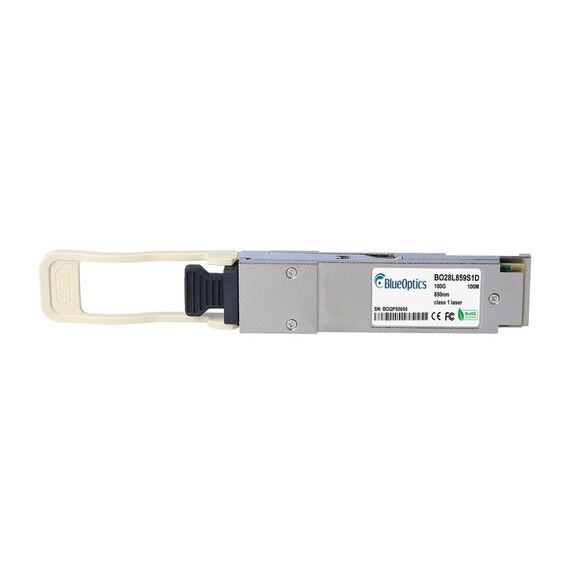

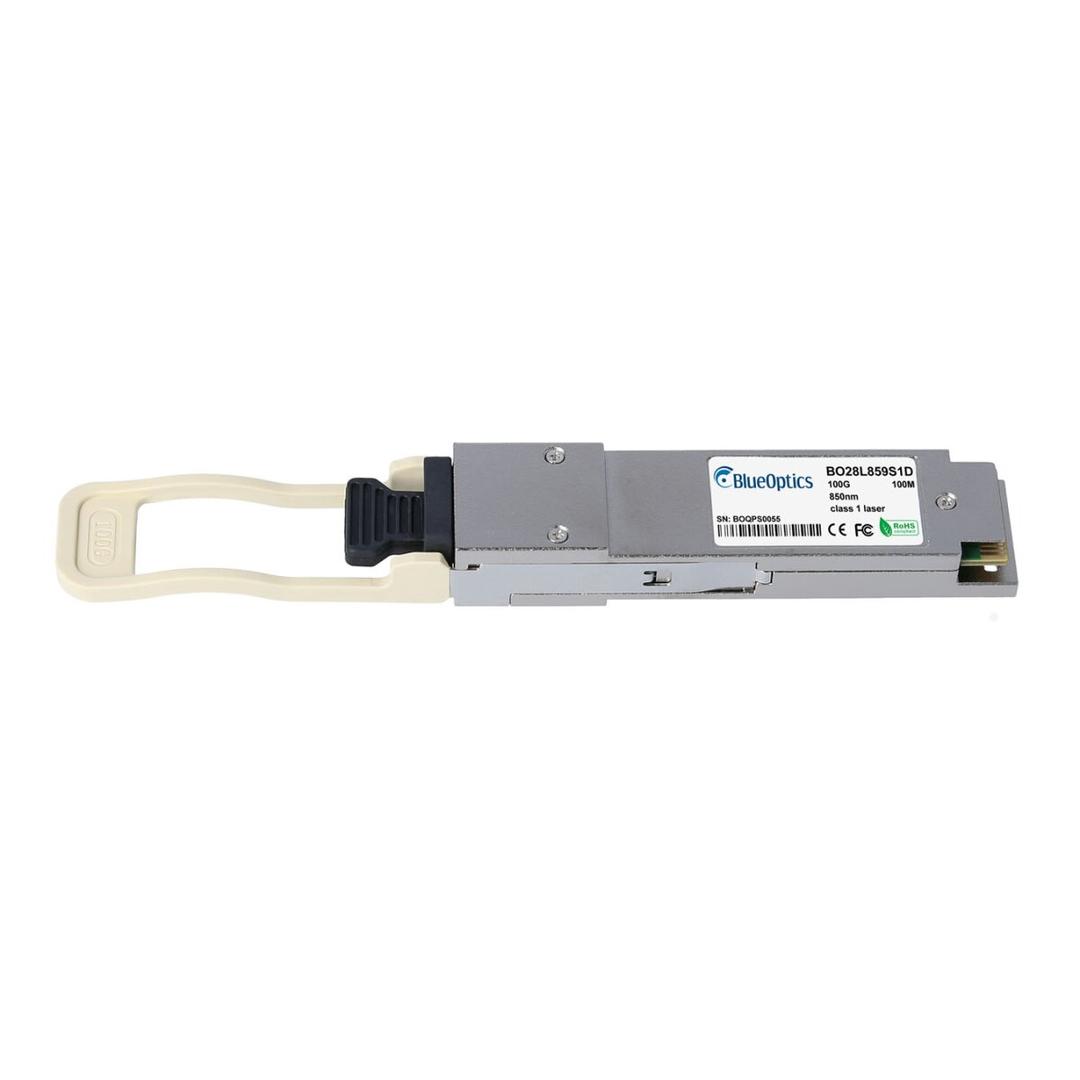

The BlueOptics QSFP-100G-SR4-S-BO is a 100 Gbit QSFP28 transceiver of the SR4 type: four 850 nm lanes over an MPO multimode trunk, up to 100 m on OM4, with digital diagnostics. It is programmed as a Cisco QSFP-100G-SR4-S, so Cisco Nexus and Catalyst switches that check optics accept it, and it is made by CBO in Germany as an alternative to the original part. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.
Compatibility — check before buying:
SR4 needs an MPO-12 multimode trunk: it will not take LC duplex patch cords and will not work on single-mode fibre. BlueOptics publishes 100 m on OM4 and no OM3 figure. It is coded for Cisco; the same hardware is sold with other codings, such as the NVIDIA-coded MMA1B00-C100-BO — the wrong coding may be refused by the switch. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ 100G links inside one data room
✓ Cisco Nexus and Catalyst QSFP28 ports
✓ MPO-based structured cabling
✓ Spine-leaf links on OM4
✓ Spare Cisco-coded optics at lower cost
✓ Replacing a Cisco SR4 module
Key Features
Coded for Cisco
Programmed as a Cisco QSFP-100G-SR4-S, so Cisco switches that check optics accept it.
Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.
Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.
Hot-swappable

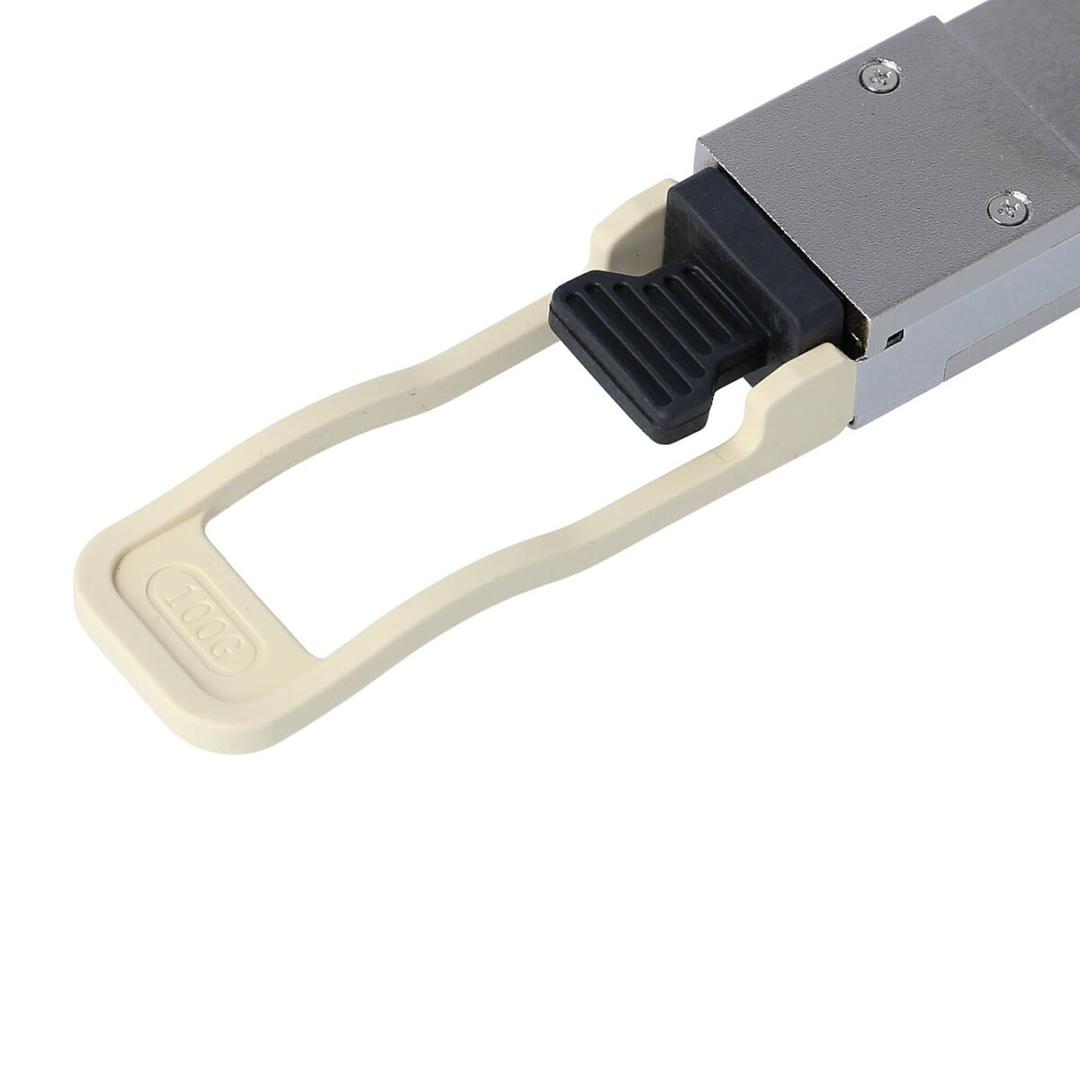

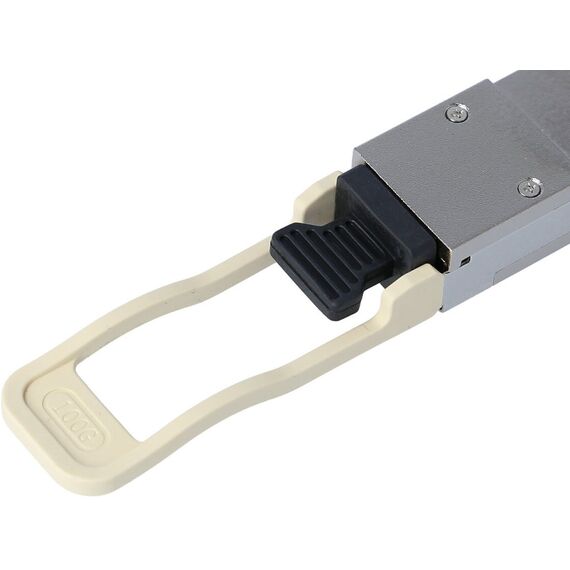

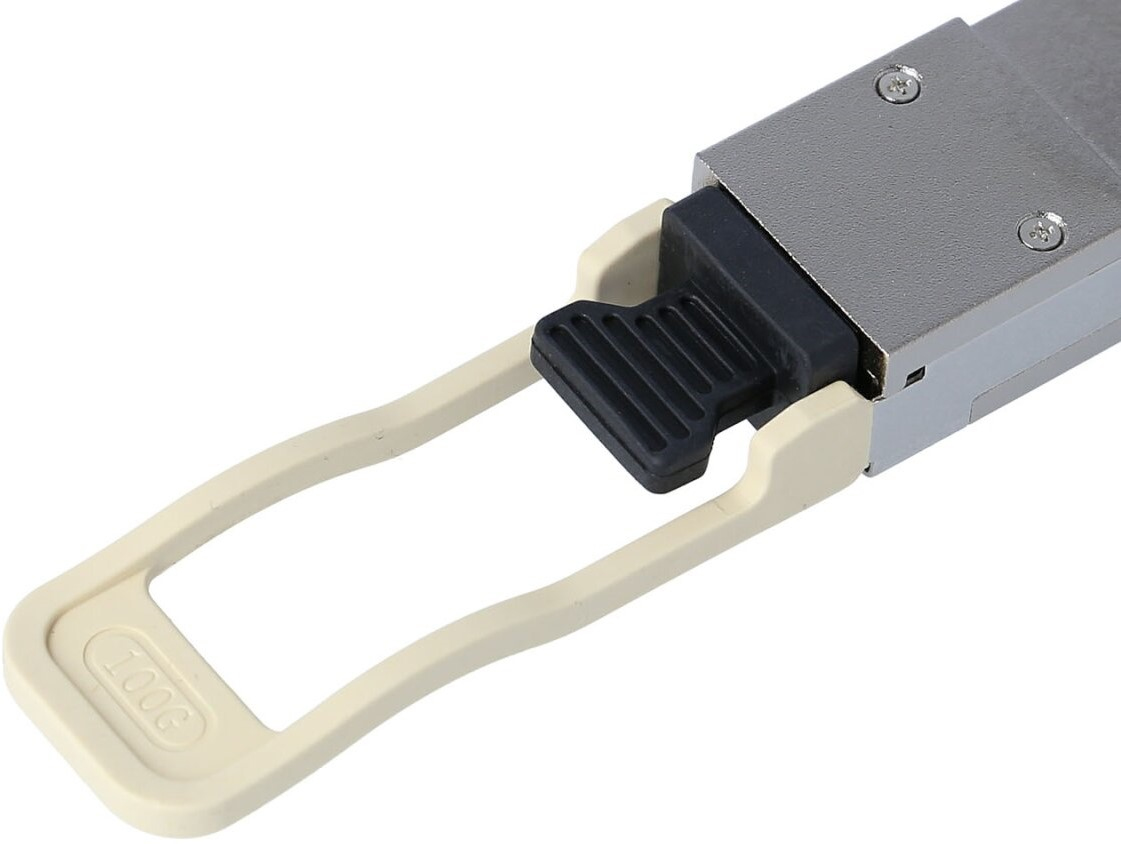

Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We offer the QSFP-100G-SR4-S-BO for Cisco data rooms that want coded 100G optics at lower cost, with a 5-year functional warranty from CBO. Plan the MPO trunks on OM4; for single-mode or LC-duplex plants, ask us for an LR4, CWDM4 or BiDi option. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need 100G over MPO multimode up to 100 m on Cisco QSFP28 ports.
Skip it if
Your cabling is LC duplex or single-mode, the run is over 100 m, or you need a Cisco-branded optic.
Also consider
Cisco QSFP-100G-SR4-S original, or BlueOptics with another coding.
Features - BlueOptics - QSFP-100G-SR4-S-BO
More Details
Product Code
04:546408
EAN Code
4063232063324
Manufacturer
BlueOptics
