Brennenstuhl 1081690 CEE 5-Pole 400V/16A to Earthed 230V/16A Adapter, IP44

Brand:
Brennenstuhl
Brennenstuhl 1081690 CEE 400V to Earthed 230V IP44 Adapter
Brennenstuhl 1081690 CEE 5-Pole 400V/16A to Earthed 230V/16A Adapter, IP44
€24.85 inc. VAT
Buy
1081690
€20.88
€24.85 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:344733
EAN Code
4007123670383
Manufacturer
Brennenstuhl

Quick Specs

Input plug
5-pole CEE 400V / 16A
Output socket
Earthed 230V / 16A
Protection
IP44 with hinged socket cover
Use requirement
Extension lead; no direct wall use
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

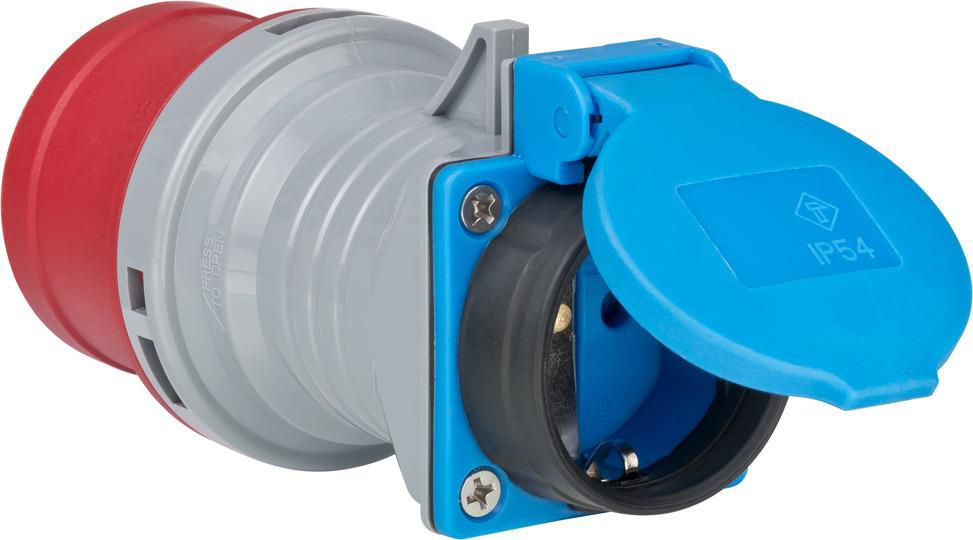

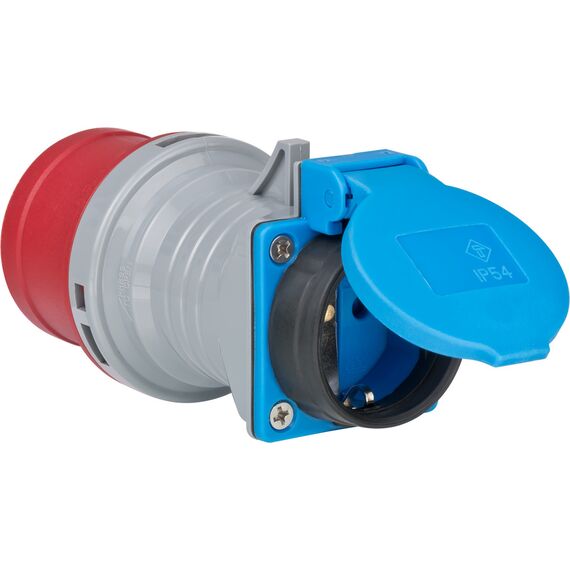

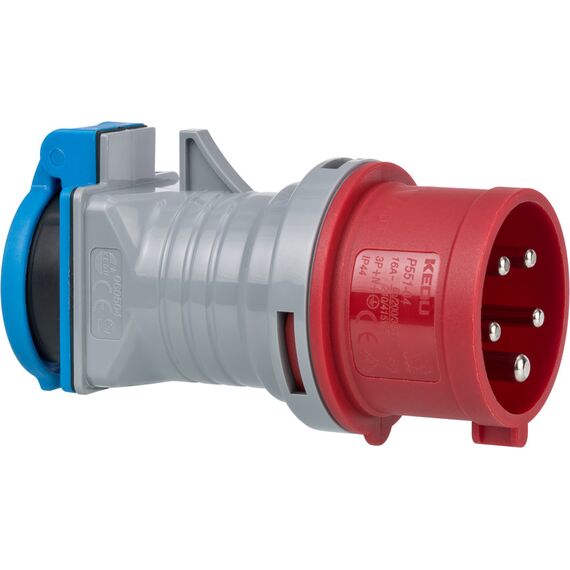

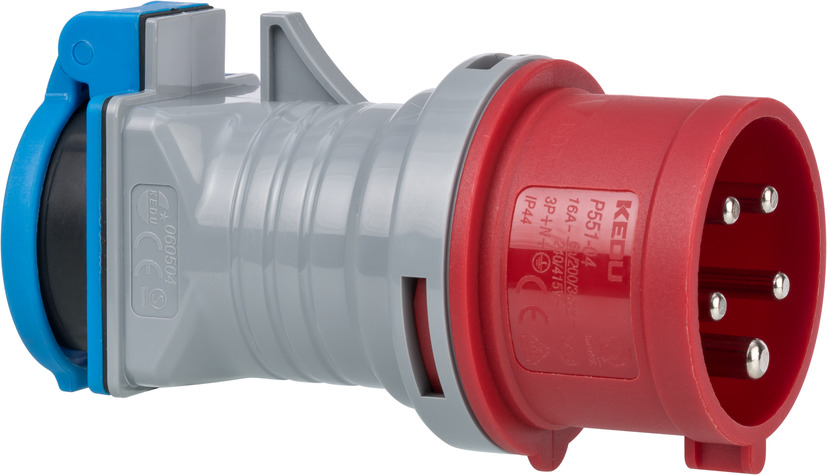

CEE 400V Plug to Earthed 230V Socket Adapter

5-pole CEE input230V earthed outputIP44

Provide an earthed 230V socket from a compatible 5-pole CEE 400V/16A connection for temporary service use. The compact Brennenstuhl 1081690 has a robust plastic housing, increased contact protection and a hinged socket cover. The attached manual requires use with extension leads and an arrangement that avoids mechanical stress.

Compatibility — check before buying:
Input: 5-pole CEE 400V/16A plug. Output: one earthed 230V/16A socket. The manual prohibits direct operation on a wall socket or mounted junction box, requires a cable at least 1.20m long and suitable strain relief, and limits household-type loads to 7360Wh over 3 hours. Check the full installation and supply requirements before use.

Key Features


Defined CEE-to-socket direction
The CEE plug is on the supply side; the single earthed socket is for matching 230V equipment. This is a dedicated mains connector adapter, not a universal travel plug.

Covered IP44 socket
The hinged cover and robust plastic housing provide the stated foreign-body and splash protection. Outdoor use must also follow the manual's effective weather-protection requirement.

Portable service arrangement
Use with suitable extension leads and strain relief to avoid tension, pressure or leverage at the fixed supply connection. The manual restricts it to temporary service purposes.

Technical Specifications

Identification and electrical connection
Manufacturer / MPN Brennenstuhl / 1081690
EAN / GTIN 4007123670383
Input plug / nominal input voltage 5-pole CEE, 400V / 16A
Output 1 earthed socket, 230V / 16A, with hinged cover
Maximum current carrying capacity 16A; subject to the manual's duty and load restrictions
Increased contact protection Yes
Assembly and operating limits
Intended operation Portable adapter for temporary service; use with extension leads
Direct wall / mounted-junction-box connection Not permitted by the attached assembly manual because of leverage effects
Cable arrangement Minimum cable length 1.20m; suitable strain relief; avoid mechanical tension or pressure
Manual household-load energy limit Maximum 7360Wh over a 3-hour period
Longer operation condition Manual permits several days only in the specified extension-lead / floor arrangement without mechanical stress; load limits still apply
Excluded environments Industrial applications, explosive environments and underwater use
Outdoor condition Ensure effective protection from weather, in addition to IP44
Construction and physical details
Housing Robust plastic
Ingress protection / area IP44 / outdoor, subject to the attached manual's conditions
Dimensions (W × L × H) 7.3 × 6.5 × 13cm, without packaging
Net weight 0.20kg

What Will Not Work

Direct use on a fixed wall socket or mounted junction box.
Industrial or explosive-environment use, immersion, or operation outside the manual's load limits.
An unmatched supply connector or equipment requiring a different output connection.

Frequently Asked Questions

Can I plug it directly into a fixed CEE wall socket?
No. The current attached manual prohibits that arrangement because of leverage effects. It requires extension-lead use, suitable strain relief and a cable length of at least 1.20m.
Does the 16A rating permit unrestricted continuous loading?
No. The manual adds a household-load energy limit of 7360Wh over 3 hours and temporary-use and mechanical-stress conditions. Check the full duty requirements, not just the connector rating.
Is IP44 enough for any outdoor setting?
No. The manual also requires effective weather protection and excludes underwater use. The electrical connectors and cable arrangement must remain suitable for the installation.
Singular Expert Insight
The mounting arrangement and duty limits are as important as the 400V/230V connector labels. Plan a suitable extension-lead connection and check the load against the current manufacturer manual before choosing this adapter. Confirm the CEE supply and intended load with Singular

Buyer’s Guide

Buy it if

You need this specific CEE-to-earthed-socket direction for an installation that meets the attached manual's temporary-service and load requirements.

Skip it if

You need direct fixed-wall use, industrial distribution or operation outside the specified duty limits.

Also consider

An appropriately specified distribution solution for continuous or industrial use, after checking the installation requirements.

Features - Brennenstuhl - 1081690

Colour
blue
More Details
Product Code
04:344733
EAN Code
4007123670383
Manufacturer
Brennenstuhl
