Brennenstuhl 1169970 BREMAXX 40m Orange Earthed Extension Cable, AT-N05V3V3-F 3G1.5, IP44

Brand:
Brennenstuhl

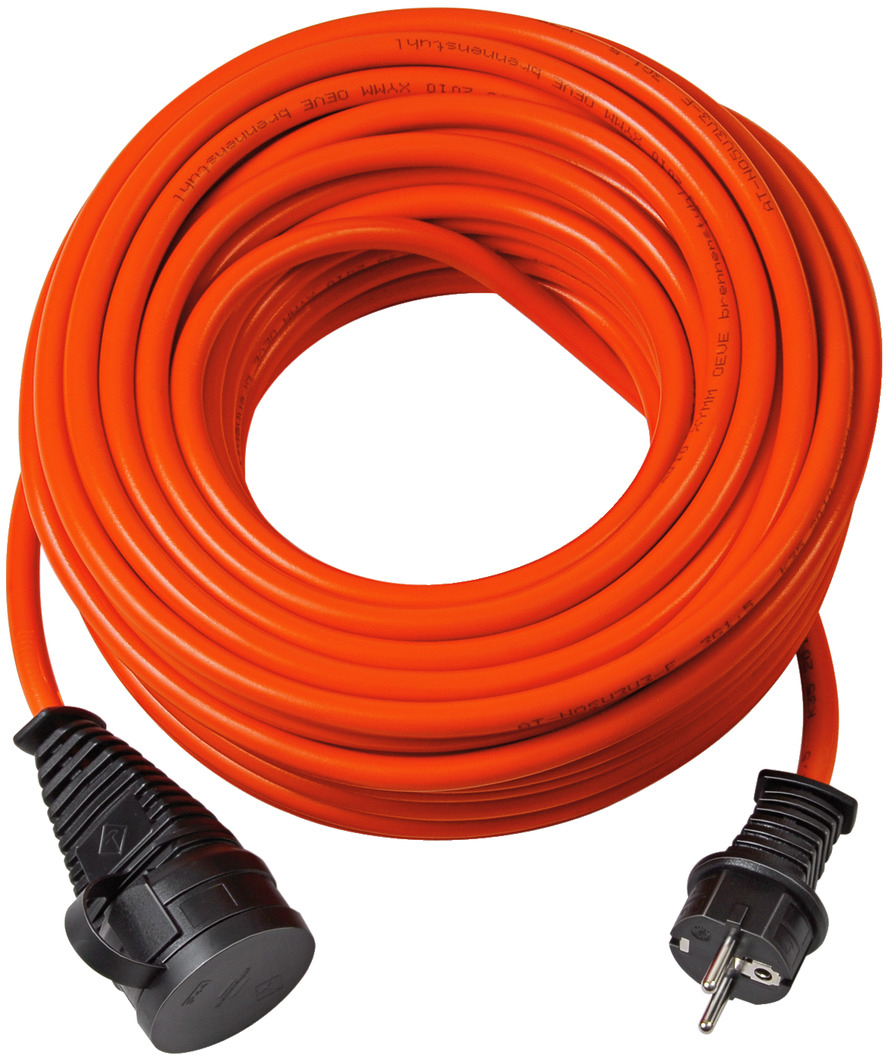

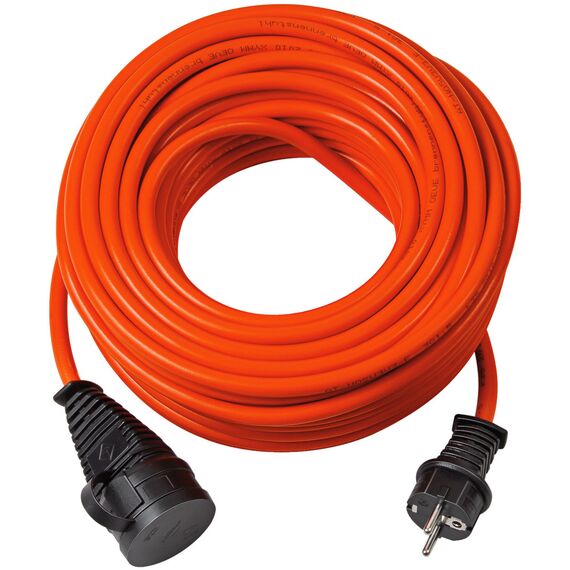

Brennenstuhl 1169970 Orange 40m BREMAXX Earthed Extension Cable IP44
Brennenstuhl 1169970 BREMAXX 40m Orange Earthed Extension Cable, AT-N05V3V3-F 3G1.5, IP44
€148.73 inc. VAT
Buy
1169970
€124.98
€148.73 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:456604
EAN Code
4007123686278
Manufacturer
Brennenstuhl

Quick Specs

Cable length / colour
40m / signal orange
Cable construction
AT-N05V3V3-F 3G1.5 BREMAXX
Cold / UV resistance
Down to −35°C / UV-resistant
Use / protection
Temporary outdoor use / IP44
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

40m BREMAXX Cable for Temporary Outdoor Tasks

40m signal orangeUV-resistantTemporary outdoor IP44

Connect matching earthed equipment for short-term outdoor tasks with a 40m signal-orange cable that is easier to see along its route. The BREMAXX sheath uses highly flexible special plastic; the manufacturer describes operation down to −35°C, UV resistance and high mechanical resilience.

Compatibility — check before buying:
Type E/F earthed plug to Type F coupling with sealing cap. Intended for short-term outdoor use with IP44 splash protection; fully unwind before operation. The product label rates maximum load at 3680W / 16A, 230V AC. UV and low-temperature resistance do not make it a permanent outdoor cable; the current manufacturer page states that it is not oil-resistant.

Key Features


Flexible BREMAXX sheath
AT-N05V3V3-F 3G1.5 cable uses a highly flexible special-plastic sheath rather than the H05RR-F rubber construction of other outdoor extensions.

Cold and UV performance
The manufacturer describes the cable as usable down to −35°C and UV-resistant. Keep the stated short-term outdoor duty in view.

Mechanical resilience
The matching manufacturer catalogue describes high abrasion resistance, while the product page highlights high mechanical resilience.

Signal-orange route and robust connectors

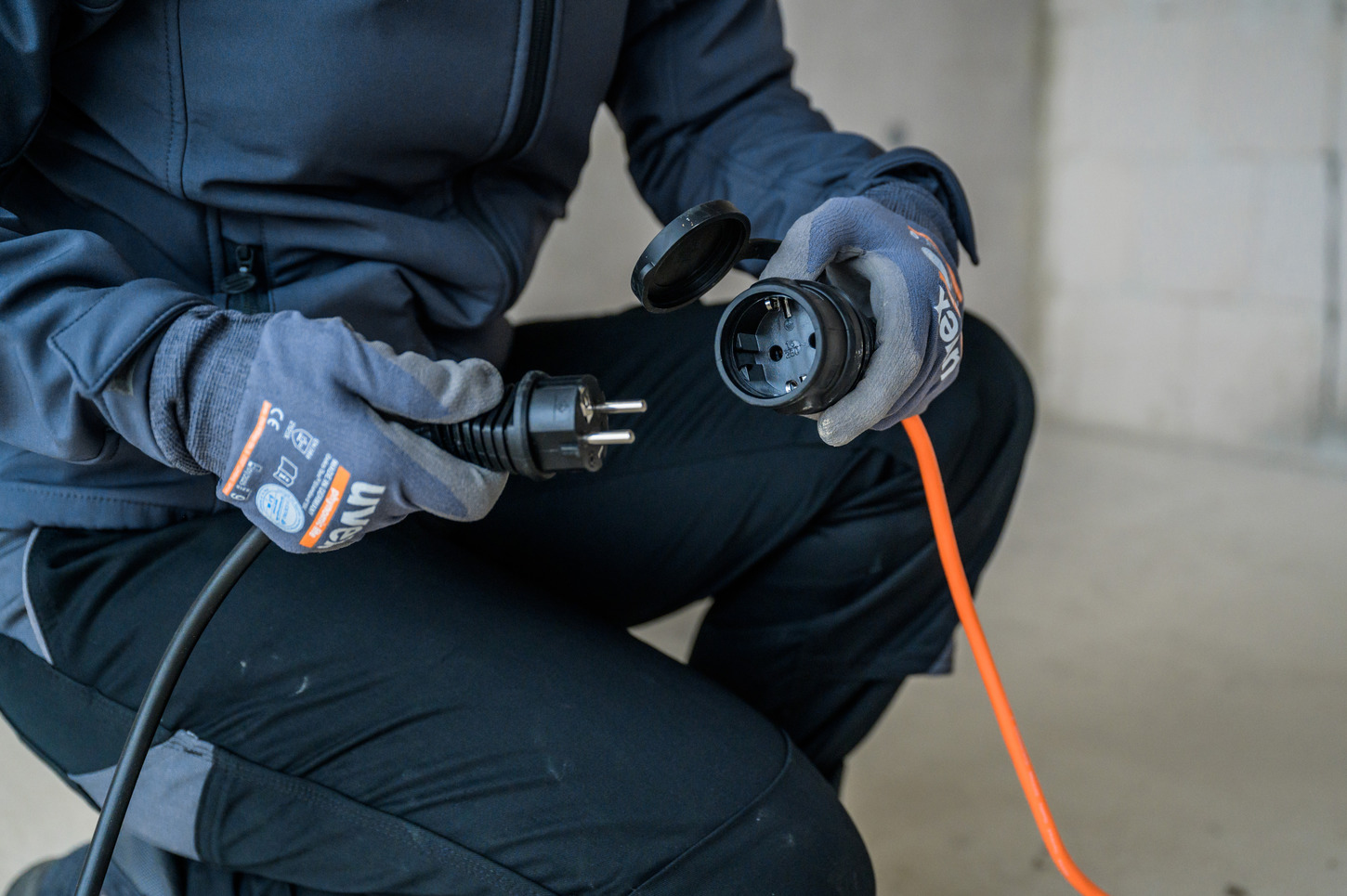

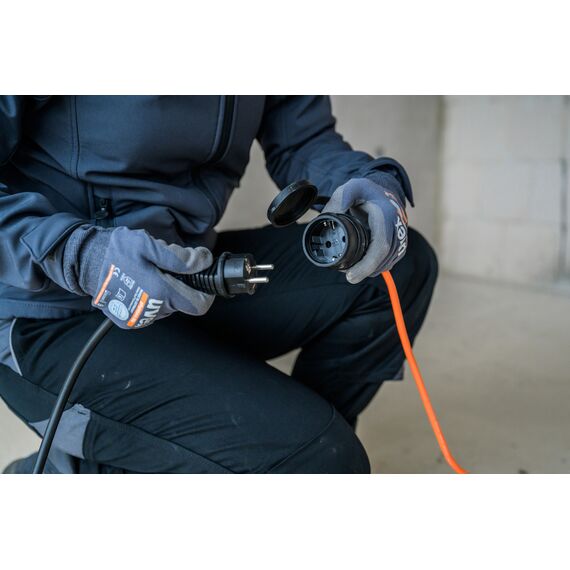

Orange helps make the cable route visible. An extra-robust Type E/F plug and Type F coupling with sealing cap provide the earthed connection; visibility still requires careful routing.

Technical Specifications

Identification and electrical connection
Manufacturer / MPN Brennenstuhl / 1169970
EAN / GTIN 4007123686278
Cable length 40m
Cable designation AT-N05V3V3-F 3G1.5
Cable quality BREMAXX; highly flexible special-plastic sheath
Low-temperature manufacturer reference Usable down to −35°C
UV resistance Yes
Mechanical manufacturer reference High mechanical resilience; matching catalogue describes high abrasion resistance
Oil resistance No, current exact manufacturer technical data
Connections Type E/F earthed plug with earth hole; Type F earthed coupling with sealing cap
Nominal input voltage 230V
Product-label electrical rating 230V AC / 16A / maximum 3680W
Residual-current circuit breaker (RCCB) No
Use and physical details
Ingress protection / use IP44 / dry indoor conditions and temporary outdoor use
Colour Signal orange
Manufacturer product dimensions (W × L × H) 26 × 26 × 11cm, without packaging; cable length listed separately
Net weight 4.22kg
Country of manufacture Germany

What's in the Box

1 orange 40m BREMAXX earthed extension cable IP44

What Will Not Work

Permanent outdoor installation or immersion.
Oil-exposed use requiring an oil-resistant cable; the manufacturer states oil resistance: No.
Use as an integrated RCCB, mismatched connectors or loads above the 3680W / 16A label limit.

Frequently Asked Questions

Is the 40m version oil-resistant?
The current exact manufacturer technical data states No. Its updated 2026 label does not claim oil resistance; do not rely on older retailer wording for this property.
How portable is the 40m cable?
The exact version weighs 4.22kg without packaging. The 26 × 26 × 11cm manufacturer dimensions describe the coiled product, while the working cable length is 40m.
Does the −35°C reference allow permanent outdoor use?
No. The manufacturer still specifies short-term outdoor use. Cold and UV resistance do not remove that duty qualification, and IP44 is splash rather than immersion protection.
Singular Expert Insight
Choose the 40m length only after measuring the route and considering the 4.22kg carrying weight. The signal-orange flexible sheath and qualified cold/UV references help with temporary outdoor work, while the stated lack of oil resistance remains a selection limit. Compare extension cable lengths and intended uses

Buyer’s Guide

Buy it if

You need a signal-orange 40m earthed extension for temporary outdoor work and the verified cold, UV and mechanical-resilience properties suit the task.

Skip it if

You need an oil-resistant cable, permanent outdoor installation, immersion protection, an RCCB or a much shorter lighter route.

Also consider

A shorter BREMAXX variant or a cable explicitly rated for your oil-exposure and continuous-duty requirements, verifying the exact model.
