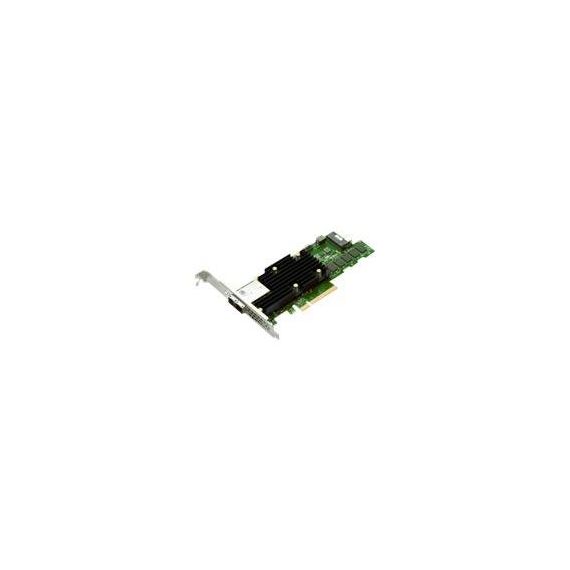

Broadcom MegaRAID 9580-8i8e / Storage controller (RAID) / 16 Channel / SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / PCIe 4.0 x8 | 05-50076-00
Brand: Broadcom
05-50076-00
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
Equipped with Slim SAS (SFF-8654) internal connectors and 36 pin 4x Mini SAS HD (SFF-8644) external connectors, this storage controller offers versatile connectivity options for SATA 6 Gb/s, SAS 12 Gb/s, and PCIe 4.0 (NVMe) interfaces, ensuring compatibility with a wide range of storage devices. - Robust performance
With support for up to 240 storage devices and a variety of RAID levels including JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, and RAID 60, the Broadcom MegaRAID 9580-8i8e provides flexible and powerful options for optimizing performance and data protection. - Reliable operation
Designed for durability and long-term use, this storage controller boasts an impressive mean time between failures (MTBF) of 3,000,000 hours, backed by a comprehensive compliance with multiple safety and environmental standards.
Special Features
- Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Form-factor friendly cable exit
- Support critical, high-bandwidth applications with PCIe 4.0 connectivity
- Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60
- JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments
- Add more protection and peace of mind with CacheVault flash cache protection
Product Specification
| Device Type | Storage controller (RAID) - plug-in card |
| Host Bus | PCIe 4.0 x8 |
| Storage Controller | Storage Controller |
| Interface | SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Buffer Size | 8 GB |
| Supported Devices | Disk array (RAID) |
| Channel Qty | 16 |
| Max Storage Devices Qty | 240 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - Slim SAS (SFF-8654) (internal) 2 x SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) - 36 pin 4x Mini SAS HD (SFF-8644) (external) |
| Miscellaneous | Miscellaneous |
| Features | Tri-Mode SerDes technology |
| MTBF | 3,000,000 hours |
| Compliant Standards | FCC Class B certified, EN 60950, EN55022, IEC 60950, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438 |
| Power | Power |
| Power Consumption Operational | 14.25 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, Oracle Enterprise Linux, CentOS, Ubuntu, VMware ESXi, Citrix XenServer, Linux Fedora, VMware vSphere (ESXi) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years Technical support - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Depth | 16.765 cm |
| Height | 6.89 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
Features - Broadcom - 05-50076-00
More Details
Product Code
04:347449
EAN Code
0830343007486
Manufacturer
Broadcom
