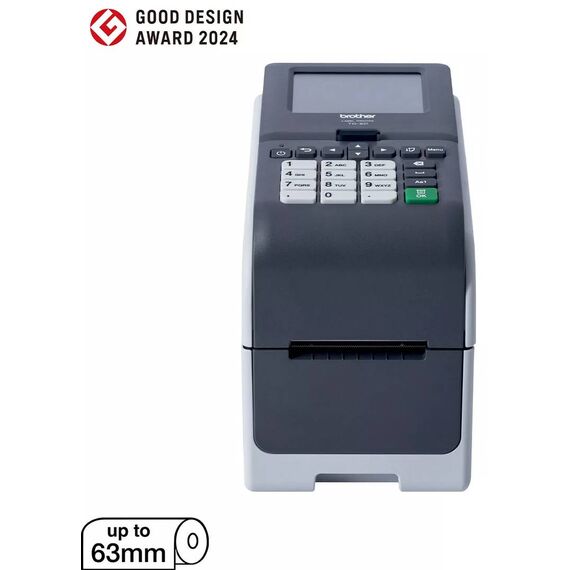

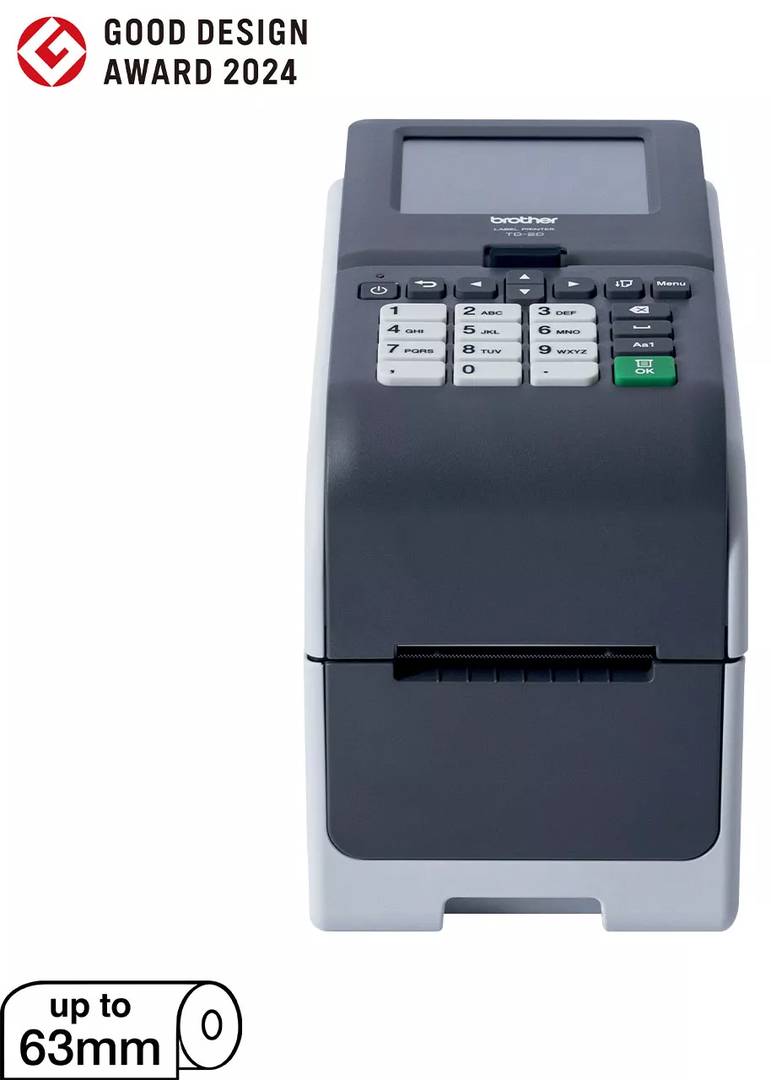

Brother TD-2320DSA300 300dpi Direct Thermal Label Printer
300dpiDirect thermal, monochrome3.5-inch colour touchscreen and keypadUSB Type-C, USB host, Ethernet
The Brother TD-2320DSA300 (SKU TD2320DSA300Z1) is a 300dpi standalone desktop direct thermal printer for suitable labels, receipts, tags and wristbands. Its colour touch display and keypad support template selection and editing after setup, while USB and wired LAN provide connection options. It prints without ink, toner or thermal-transfer ribbon.
Best For: A practical fit for users who need 300dpi direct thermal label or receipt printing, standalone template selection and editing after setup, and a choice of USB or wired Ethernet connection. It is not the wireless TD-2350 variant or the linerless TD-2320DF model.
Before you order: This is the 300dpi TD-2320DSA300 configuration, not the 203dpi variant. It has no built-in Wi-Fi or Bluetooth. Serial connection requires a dedicated conversion cable; the cutter, peeler, battery, medical adapter and serial conversion lead are optional separate items. The included media roll is not confirmed. Confirm that your chosen media and release method suit the application; maximum print width is 59mm although media width can reach 63mm. Maximum print speed depends on media and print conditions.
What's in the Box
- Brother printer
- AC adapter
- AC power cord
- USB cable
- Documentation
What It Means in Practice
- The 3.5-inch colour touchscreen and physical keypad allow standalone template selection and editing after setup; plan your workflow around prepared templates.

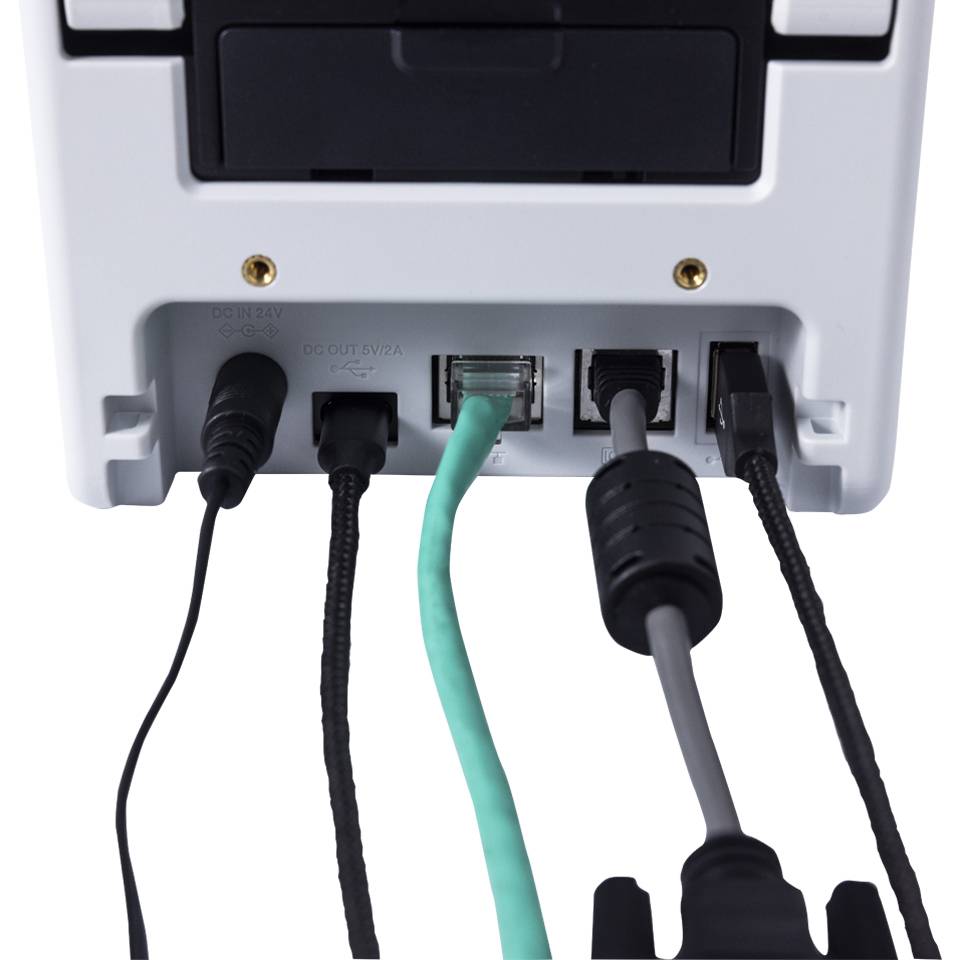

- Connect by USB 2.0 Type-C or 10/100BASE-TX Ethernet. USB Type-A is a host port; the printer has no built-in Wi-Fi or Bluetooth.
- Choose media between 15mm and 63mm wide, noting that maximum print width is 59mm. Maximum print length is 3000mm and depends on release mode.
- For serial use, the RS-232C connection is RJ25 and requires a dedicated conversion cable. The optional PA-SCA-002 lead is sold separately.
What Will Not Work
- No built-in Wi-Fi or Bluetooth.
- Serial connection requires a dedicated conversion cable; there is no standard DB9 socket.
- Cutter, peeler, battery, medical adapter and serial conversion lead are optional separate items.
- No included media roll is promised; inclusion is unverified.
- Use within 5–40°C and 20–80% relative humidity without condensation; maximum wet-bulb temperature is 27°C.
- Maximum print width is 59mm, narrower than the 63mm maximum media width.
Key Features
300dpi direct thermal printing
Prints monochrome on suitable thermal media without ink, toner or thermal-transfer ribbon.
Touchscreen and keypad
Select and edit templates standalone after setup.
USB and wired Ethernet
Offers USB device and host ports plus 10/100BASE-TX LAN; wireless is not built in.
Flexible media formats
Supports suitable wristbands, labels, receipts and tags within the stated media limits.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The combination of a 3.5-inch colour touchscreen, keypad and USB host supports standalone template workflows after setup, alongside USB device and wired Ethernet connections. Direct thermal printing also avoids ink, toner and thermal-transfer ribbon.
Buyer’s Guide
✓ Buy it if A practical fit for users who need 300dpi direct thermal label or receipt printing, standalone template selection and editing after setup, and a choice of USB or wired Ethernet connection. It is not the wireless TD-2350 variant or the linerless TD-2320DF model.
✕ Skip it if This is the 300dpi TD-2320DSA300 configuration, not the 203dpi variant. It has no built-in Wi-Fi or Bluetooth. Serial connection requires a dedicated conversion cable; the cutter, peeler, battery, medical adapter and serial conversion lead are optional separate items. The included media roll is not confirmed. Confirm that your chosen media and release method suit the application; maximum print width is 59mm although media width can reach 63mm. Maximum print speed depends on media and print conditions.
→ Also consider If built-in Wi-Fi or Bluetooth is required, consider a wireless-capable model such as the TD-2350 variant; this TD-2320 model has neither. For linerless media, the TD-2320DF is a different model family variant.
Features - Brother - TD2320DSA300Z1
Colour
grey
Interface
- USB Type-C,
- USB2.0,
- Ethernet
More Details
Product Code
04:515216
EAN Code
4977766832991
Manufacturer
Brother
