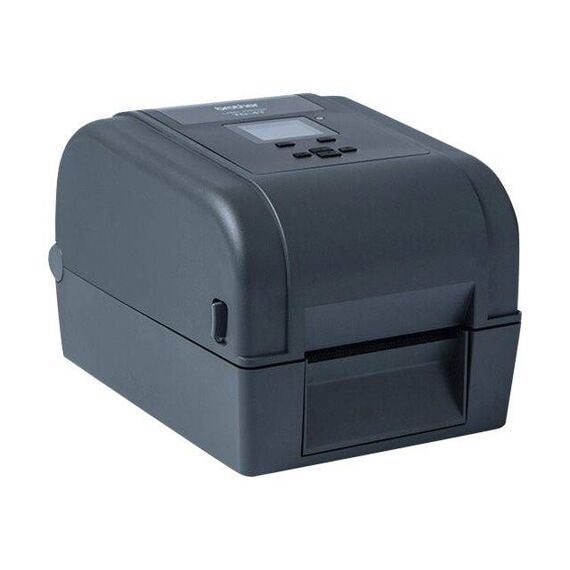

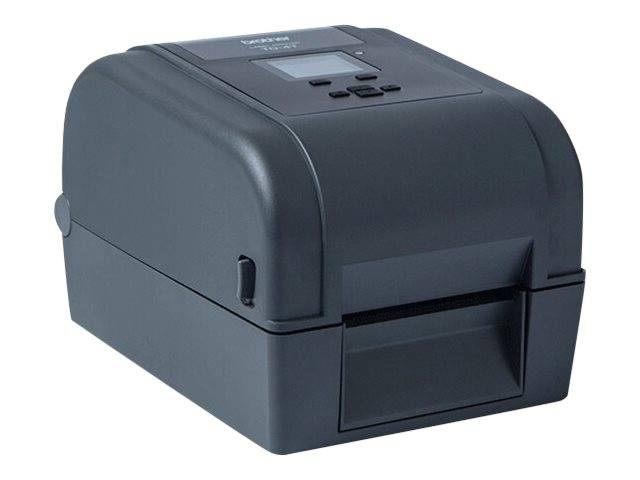

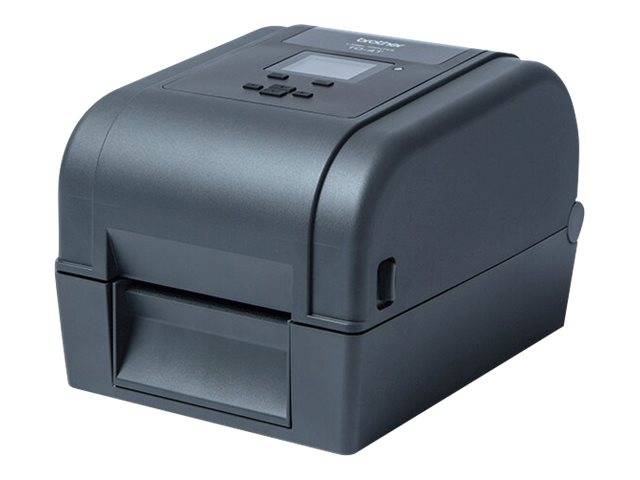

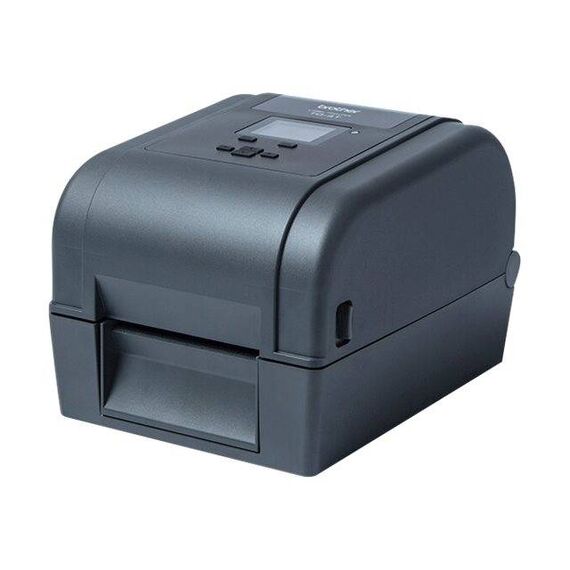

Brother TD-4650TNWBR 4-Inch RFID Desktop Label Printer, 203 dpi, Thermal Transfer, USB, Ethernet, Serial, Wi-Fi, Bluetooth

The Brother TD-4650TNWBR (TD4650TNWBRZ1) is a 4-inch thermal transfer desktop label printer with a built-in UHF RFID encoder, for retail, logistics, healthcare and manufacturing teams that print and encode RFID labels.

It prints at 203 dpi up to 108 mm wide and 203.2 mm/s, takes 300 m or 110 m ribbons, and connects over USB 2.0, USB host, 10/100 Ethernet, RS-232, Wi-Fi 802.11a/b/g/n, Bluetooth (Classic + LE). FBPL-EZD emulates EPL, ZPL II and DPL, so it can replace Zebra or Datamax printers without new formats.

• Brother printer
• AC adapter and power cord
• Pair of 1-inch ribbon spindles for 300 m ribbon and 1-inch ribbon core
• USB cable (1.5 m)
• Quick start guide and product safety guide

• Thermal transfer: with a wax, wax/resin or resin ribbon (300 m on 1-inch core or 110 m on ½-inch core, ink outside), labels resist heat, abrasion and sunlight.

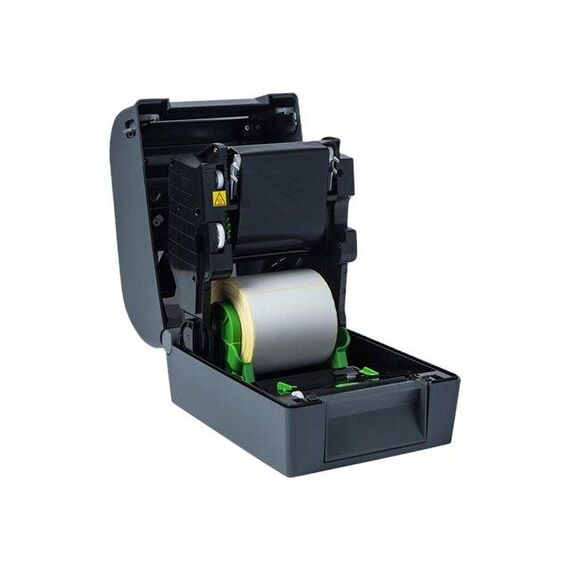

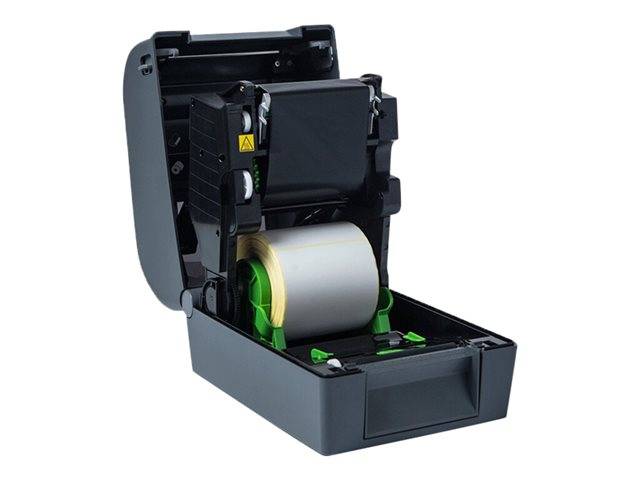

• Media: labels 20–112 mm wide and 0.06–0.19 mm thick on rolls up to 127 mm diameter, 25.4 or 38.1 mm core.
• RFID: UHF EPC Gen2 / ISO 18000-63 encoding (866–868 MHz for Europe) with a minimum tag pitch of 15.9 mm.
• Drop-in replacement: FBPL-EZD (EPL, ZPL II, DPL) and FBPL-EZS (EPL, ZPL II, SBPL) run label formats written for Zebra, Datamax and SATO printers.
• Connectivity: USB 2.0, USB host, 10/100 Ethernet, RS-232, Wi-Fi 802.11a/b/g/n, Bluetooth (Classic + LE); the USB host port takes a keyboard or scanner for standalone printing.

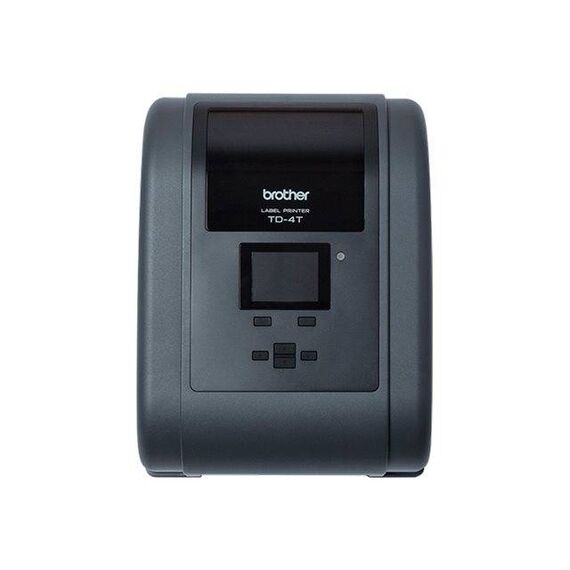

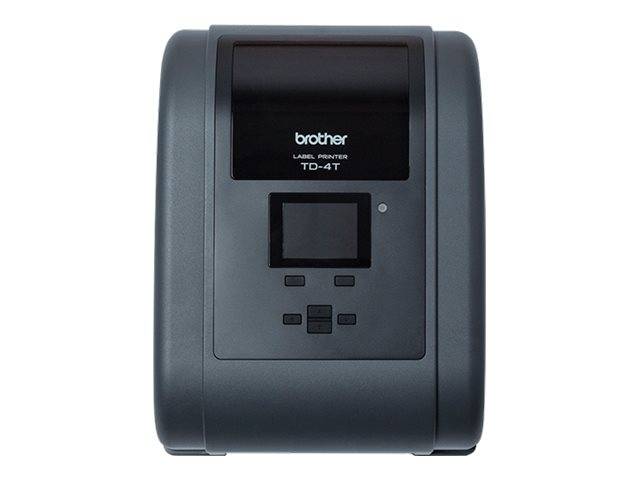

• Operation: a 2.3-inch colour LCD and status LED make setup and status checks easy.

• Cutting or peeling: tear-off as supplied; cutter and peeler are factory/dealer options (not for RFID tags).
• Wide labels: maximum print width is 108 mm.
• Very small print: 203 dpi only; choose a 300 dpi TD-4 model for tiny text.
• Wide labels: 6-inch labels need an industrial printer.
