Brother TJ-4020TN Industrial Label Printer, 203 dpi, Thermal Transfer/Direct Thermal, LED Controls, USB, Ethernet and Serial

Brand:
Brother

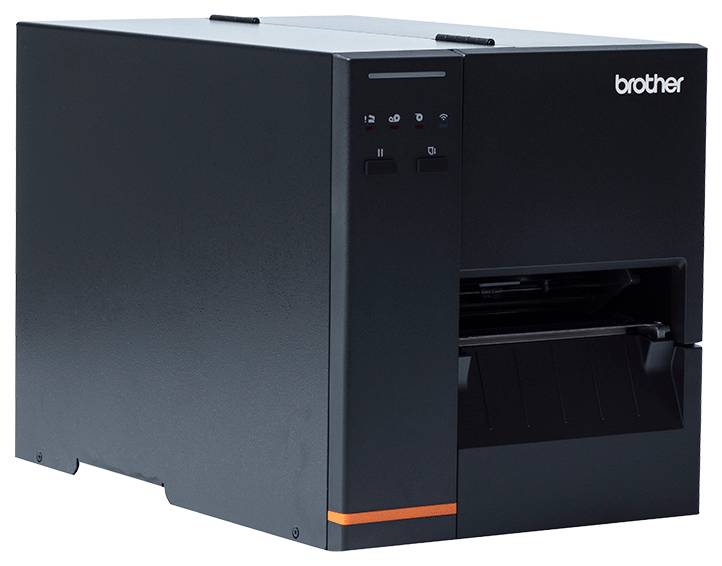

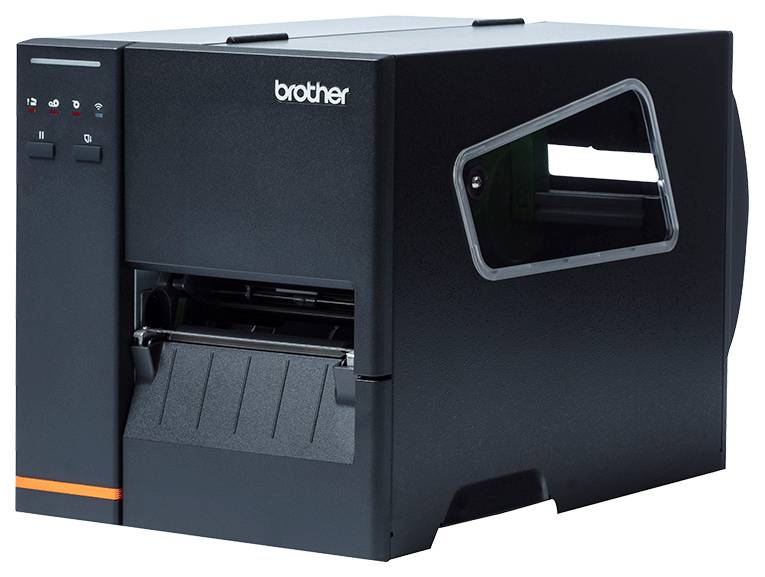

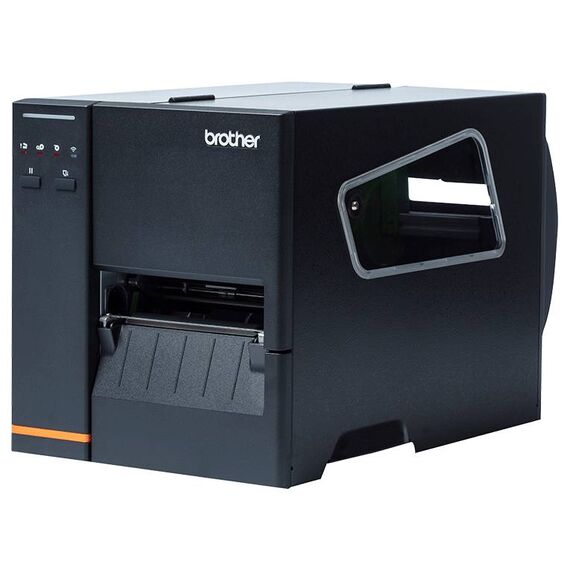

Brother TJ-4020TN TJ4020TNZ1 black LED industrial label printer
Brother TJ-4020TN Industrial Label Printer, 203 dpi, Thermal Transfer/Direct Thermal, LED Controls, USB, Ethernet and Serial
€1112.15 inc. VAT
Buy
TJ4020TNZ1
€934.58
€1,112.15 inc. VAT
Ships from EU stock: 21 item(s)
+ −
Add to wish list Ask a question
Product Code
04:348026
EAN Code
4977766804684
Manufacturer
Brother

Quick Specs

Print detail
203 dpi / 107 mm
Maximum speed
Up to 254 mm/s
Ribbon capacity
Up to 450 m
Local controls
LED indicators / no touchscreen
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Brother TJ-4020TN 203 dpi Industrial Label Printer

203 dpi107 mm450 m ribbonLED controls

The Brother TJ-4020TN is a 203 dpi industrial label printer for product identification, packing and warehouse label stations. It supports both ribbon-based thermal transfer and direct thermal printing, with a 107 mm print width and speeds up to 254 mm/s. This model uses status LEDs and Power/Feed buttons rather than a touchscreen. USB, USB Host, RS-232 and Ethernet are fitted; Wi-Fi, cutter and peeler are optional.

Before you order:
Plan mains power, compatible label software and the correct media. Thermal transfer needs suitable labels and a matching ribbon; direct thermal uses heat-sensitive stock without ribbon. Cutter/peeler installation and replacement must be performed by an authorised Brother dealer. Full regional box contents beyond the printer and confirmed USB cable require confirmation.

What's in the Box

  • Brother TJ-4020TN printer, TJ4020TNZ1
  • USB cable

What It Means in Practice

  • For example, load your product-label roll and matching ribbon, calibrate the gap or black-mark sensor, then send the design from compatible software over USB or Ethernet. Use direct thermal media without a ribbon when that method suits the label lifetime.
  • 450 m ribbons and 203.2 mm label rolls reduce consumable changes. The 203 dpi engine favours fine text and barcode detail, while the simple LED controls suit a host-managed station.

What Will Not Work

  • This model has no touchscreen and does not include Wi-Fi.
  • Automatic cutting or peeling requires the appropriate optional accessory; these features are not supplied in the standard configuration.

Key Features


203 dpi output with simple controls
Prints up to 107 mm wide at up to 254 mm/s. Four icon indicators and a power indicator provide local status without touchscreen menus.

Long ribbons and large rolls
Supports up to 450 m ribbons and 203.2 mm media rolls. Match 40–110 mm ribbon width, 25.4 mm core and inside/outside coating to the selected media.

Wired integration
USB-B, Ethernet and RS-232 connect compatible host systems. USB Host supports keyboard/scanner peripherals and flash storage; command emulation still needs validation with your application.

Technical Specifications

Identity and printing
Brand / model Brother TJ-4020TN
MPN TJ4020TNZ1
EAN 4977766804684
Print methods Thermal transfer and direct thermal
Resolution 203 dpi
Maximum print width 107 mm
Maximum print length 25400 mm
Maximum print speed 254 mm/s
Installed output handling Standard tear-off output; cutter and peeler optional
Optional peel-mode speed Up to 3 ips; peeler not included
Display No display; Power / Feed buttons
Status LED 5 indicators: 4 status icons and 1 power indicator
Media and ribbon
Flash memory 128 MB
Media width 20–120 mm
Media thickness 0.06–0.28 mm
Maximum media roll diameter 203.2 mm
Media core sizes 25.4–76.2 mm
Media winding Outside wound
Width with optional cutter Up to 114 mm; cutter not included
Media types Continuous, die-cut, black mark, fan-fold, notch
Media sensors Gap (transmissive), black mark (reflective)
Ribbon capacity 450 m; maximum outside diameter 81.3 mm
Ribbon width 40–110 mm
Ribbon core / coating 25.4 mm; ink coated inside or outside
Connections and software
USB device USB 2.0 High Speed, Type B
Serial RS-232
Ethernet 10/100 Mbit/s
USB Host USB keyboard, scanner and flash storage
Wireless Wi-Fi optional; not installed
Printer control languages FBPL-EZD (FBPL II, EPL II, ZPL II, DPL); FBPL-EZS (FBPL II, EPL II, ZPL II, SBPL)
Barcodes Linear and 2D, including Code 128, EAN-13, QR Code, GS1 DataMatrix, PDF417
Fonts 8 alphanumeric bitmap fonts; TrueType engine with CG Triumvirate Bold Condensed scalable font
Physical, power and environment
Dimensions (W × D × H) 248 × 436 × 274 mm
Weight Approximately 9.2 kg
Power input 100–240 V AC, 2.0 A, 50/60 Hz
Power supply output rating 24 V DC, 3.75 A, 90 W
Operating temperature 0–40°C
Storage temperature −40–60°C
Operating humidity 25–85%, non-condensing
Storage humidity 10–90%, non-condensing
Confirmed included cable USB

Frequently Asked Questions

Does the TJ-4020TN have a touchscreen?
No. It uses LED status indicators and Power/Feed buttons. Choose a touchscreen configuration if you need menu-driven local operation.
Can it use both inside- and outside-coated ribbon?
Yes. Brother specifies a 25.4 mm ribbon core with ink coated inside or outside, widths 40–110 mm and length up to 450 m. Match ribbon and labels to the application.
Can I add a cutter myself?
Brother specifies that cutter and peeler options are not user replaceable; accessory installation/replacement is for authorised Brother dealers.
Singular Expert Insight
Choose this 203 dpi configuration when a wired host application drives the work and simple LED status is sufficient. Prioritise the correct ribbon, label lifetime and output handling before comparing headline speed. A touchscreen model is useful when operators need more local menu control. Compare industrial label printers and output handling

Buyer’s Guide

✓

Buy it if

 you need 203 dpi, large media capacity and wired connections with simple controls.
✕

Skip it if

 you need an included touchscreen, Wi-Fi or automatic cutter/peeler.
→

Also consider

 a verified touchscreen configuration or dealer-installed handling accessory for the actual operator workflow.
Check current driver support, label materials and application commands before deployment. Optional cutter and peeler installation/replacement is for authorised Brother dealers.
