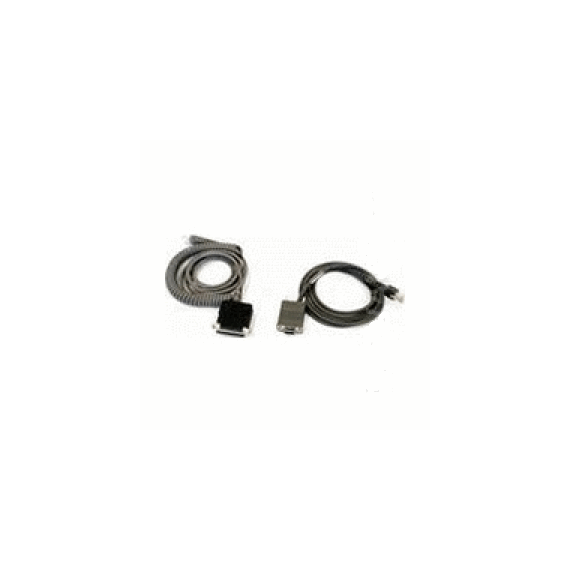

Datalogic CAB-433 RS-232 Powered Serial Cable for PowerScan Base Stations, DB9 Female, Straight, 1.8 m (6 ft)
Brand:
Datalogic
Datalogic CAB-433 RS-232 Powered Serial Cable for PowerScan Base Stations, DB9 Female, Straight, 1.8 m (6 ft)
€31.67 inc. VAT
CAB-433
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Datalogic CAB-433 — RS-232 PWR Cable, 9-pin Female, Straight, 6 ft
RS-232 (PWR)DB9 femaleStraight, 1.8 m / 6 ftPowerScan base stations
The Datalogic CAB-433 is a straight 6 ft (about 1.8 m) RS-232 cable with a 9-pin female connector that links a Datalogic PowerScan cordless base station to the serial (COM) port of a PC, POS or industrial controller. Datalogic lists it as "Cable, RS-232 PWR, 9P, Female, Straight, CAB-433, 6 ft" for the PowerScan 9500 series, PowerScan 9501-DPM and PowerScan 9100 series.
In Datalogic's PowerScan 9500 RS-232 kits this cable is paired with the BC9030 base station (BT, 433 MHz or 910 MHz versions) and the base station's power brick 8-0935 with a country power cord. In other words, the base is powered by its own supply, and this cable carries the serial data to the host.
Before you order: This is a base-station cable for Datalogic PowerScan cordless scanners. Distributor listings sometimes mention Magellan 8300/8500, but Datalogic does not list CAB-433 for Magellan — send us your scanner model before ordering.
What's in the Box
- 1 × Datalogic CAB-433 RS-232 PWR cable, 9-pin female, straight, 6 ft (~1.8 m)
- Power supply not included (the base station uses Datalogic PSU 8-0935)
What It Means in Practice
- Connects a PowerScan BC9030 base to a host COM port in warehouses, production and logistics.
- The DB9 female end plugs into the usual DB9 male COM port of PCs and terminals.
- Set the base/scanner to RS-232 and match baud rate and parity to the host using Datalogic programming barcodes or Aladdin.
- Keep the base station PSU connected — it powers the base and charges the scanner.
What Will Not Work
- USB hosts — Datalogic CAB-438 is the USB cable for the same base stations.
- Datalogic Magellan fixed scanners (not listed by Datalogic for this cable).
- Non-Datalogic scanners or bases.
- DB25 or female COM ports without an adapter.
Key Features
PowerScan base cable
Listed for PowerScan 9500, 9501-DPM and 9100.
RS-232 PWR
Datalogic's powered RS-232 cable variant.
DB9 female
Standard PC/POS COM port fit.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
PowerScan cordless kits are built around the base station, and the cable is chosen by the host port: CAB-433 for RS-232, CAB-438 for USB. If you are adding a base to an existing serial system, this is the cable to order. See our scanner accessories.
✓ Buy it if you connect a PowerScan 9500 / 9501-DPM / 9100 base station to a serial COM port.
✕ Skip it if your host only has USB, or your scanner is a Magellan or another brand.
→ Also consider Datalogic CAB-438 USB Type A straight cable for the same base stations.
Not sure which cable your scanner needs? Send us the scanner model (it is on the label under the scanner) and the port you will plug into, and we will confirm the right cable before you order.
Features - Datalogic - CAB-433
Length
1.8m
More Details
Product Code
V380445
EAN Code
5052179333910
Manufacturer
Datalogic
