EFB-Elektronik Cat6A S/FTP Patch Cable RJ45 0.15m Grey, LSZH

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200001
EFB-Elektronik Cat6A S/FTP Patch Cable RJ45 0.15m Grey, LSZH
€3.15 inc. VAT
Buy
EC020200001
€2.65
€3.15 inc. VAT
Ships from EU stock: 63 item(s)
+ −
Add to wish list Ask a question
Product Code
04:449940
EAN Code
4049759288495
Manufacturer
EFB
Quick Specs
Category
Cat 6A S/FTP PiMF
Length
0.15 m
Jacket
LSZH · 6 mm
Colour
Grey
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

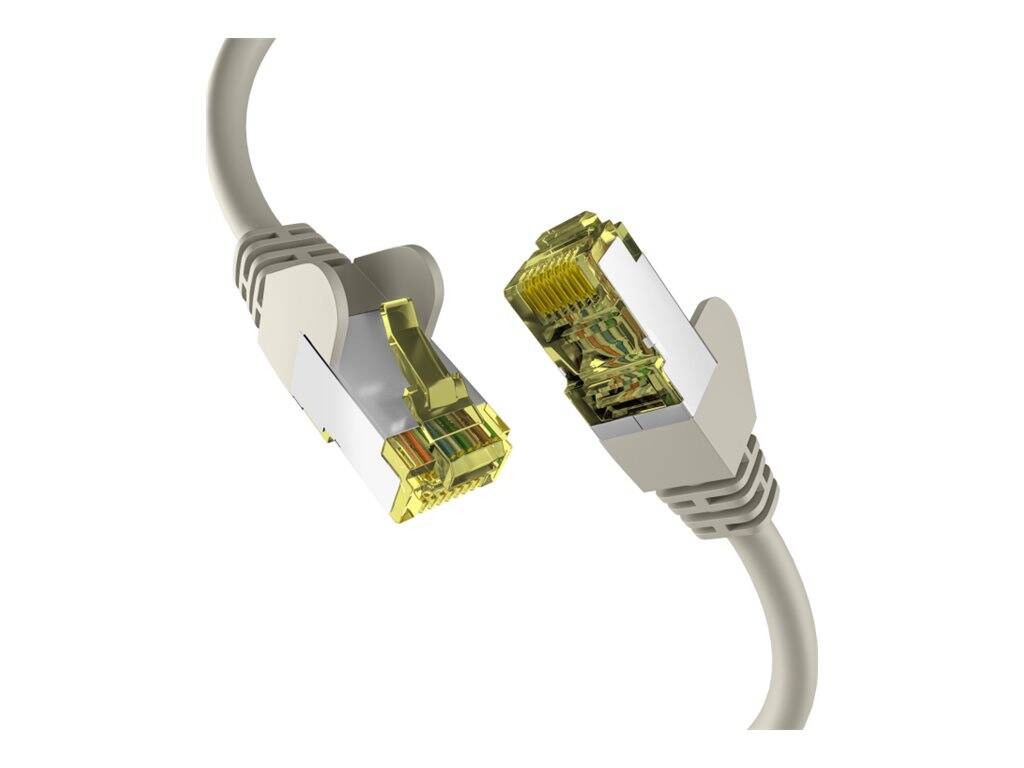

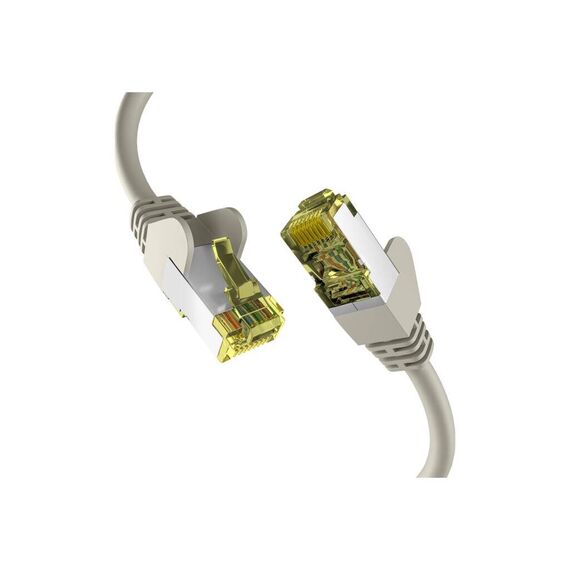

EFB-Elektronik EC020200001 Cat 6A S/FTP Patch Cable, 0.15 m Grey

Cat 6A S/FTP0.15 m · Grey500 MHz · 10 GbpsLSZH jacket

The EFB-Elektronik EC020200001 is a 0.15 m grey Cat 6A S/FTP patch cable with RJ45 plugs on both ends, built for patch-panel-to-switch jumpers, stacked switches and tight rack runs. Each pair is individually foil-screened under an overall braid (S/FTP PiMF), giving the crosstalk margin 10GBASE-T needs, while the moulded latch-protection boot keeps the release clip intact in dense panels. Part number EC020200001 (EAN 4049759288495) identifies this exact length and colour, so you can reorder identical cords when you extend a cabinet or colour-code a new VLAN.

Before you buy
At 0.15 m this is a rack jumper — it will not reach a desk. Cat 6A is backward compatible with Cat 5e/6 ports, but you only get 10 Gbps when both ends are 10GBASE-T. EFB publishes no PoE class for this cord; for certified 802.3bt PoE choose EFB MK6001.

Key Features


10 GbE Cat 6A S/FTP PiMF
500 MHz Cat 6A with foil-per-pair plus overall braid — full 10GBASE-T headroom and strong EMI immunity next to power cabling.

Latch-protection boot
Moulded, anti-kink boot shields the RJ45 release clip from snapping in crowded patch fields.

LSZH jacket, 6 mm
Halogen-free, low-smoke jacket for offices and server rooms; stranded AWG 27/7 copper stays flexible for tight bends.

Technical Specifications

Identification
Part Number EC020200001
EAN / GTIN 4049759288495
MPN EC020200001
Brand EFB-Elektronik
Cable
Category Cat 6A — 500 MHz channel, 10 Gbps Ethernet
Shielding S/FTP PiMF — each pair in its own foil plus an overall braid
Conductor Stranded copper, AWG 27/7
Pairs / Wires 4 pairs · 8 wires
Jacket LSZH — low smoke, zero halogen
Outer Diameter 6 mm
Connectors
Connectors RJ45 male to RJ45 male (8P8C)
Contacts Gold-plated
Wiring T568B, 1:1 straight-through — not a crossover
Boot Moulded, anti-kink sleeve + latch protection
Physical
Length 0.15 m
Colour Grey
Protection IP20 — indoor use
Performance & Compliance
Bandwidth 500 MHz
Max. Data Rate 10 Gbps Ethernet
PoE No PoE class published by EFB — for certified 802.3bt use EFB MK6001
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B, ANSI/TIA/EIA-568-C.2

Frequently Asked Questions

Does the EC020200001 work with my switch, router or patch panel?
Yes. It is a standard RJ45-to-RJ45 Cat 6A patch cord wired straight-through (T568B), so it connects any Ethernet port to any other — switches, routers, NAS units, access points, patch panels and PCs. Modern ports auto-negotiate speed and handle crossover automatically.
Is a 0.15 m cable long enough?
At 0.15 m (15 cm) it is a jumper, not a room cable: it is sized for linking a patch panel to the switch directly above or below it, or two stacked switches, without slack loops cluttering the cabinet. For desk or wall-outlet runs choose 1–3 m instead.
What is the difference between the EC020200001 and the EFB EC Cat 7 raw-cable version?
Both are 10 Gbps Cat 6A LSZH cords with RJ45 plugs. The EC020200001 uses standard Cat 6A 500 MHz cable with latch protection; the Cat 7 raw-cable EC variants add a 600 MHz-tested cable, locking-lug boot and length imprint. The link rating is Cat 6A either way.
Singular Expert Insight
The EC020200001 is our default 10 GbE rack jumper: fully screened, halogen-free and available in seven colours so you can colour-code uplinks, servers and VLANs. Step up to EFB MK6001 only when you need a published 802.3bt PoE rating. Browse the full range of network cables for other lengths and colours, or pair it with our network switches.

Buyer's Guide

Buy it if
You patch 10 GbE switches, servers or NAS in a cabinet and want LSZH, fully screened, colour-coded jumpers.
Skip it if
You need to reach a desk or wall outlet, or you require a published PoE++ (802.3bt) rating.
Also consider
EFB MK6001 Cat 6A (802.3bt PoE rated) or the EC Cat 7 raw-cable variant with locking-lug boot.
