EFB-Elektronik EC020200076 Cat 6A S/FTP PiMF Patch Cable RJ45 0.5 m Green LSZH 500 MHz 10 Gbps

Brand:
EFB
EFBElektronik Patch cable RJ45 (M) to RJ45 (M) EC020200076
EFB-Elektronik EC020200076 Cat 6A S/FTP PiMF Patch Cable RJ45 0.5 m Green LSZH 500 MHz 10 Gbps
€3.47 inc. VAT
Buy
EC020200076
€2.92
€3.47 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
04:450015
EAN Code
4049759289249
Manufacturer
EFB
Quick Specs
Category
Cat 6A S/FTP PiMF
Length
0.5 m
Jacket
LSZH
Colour
Green
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB EC020200076 Cat 6A S/FTP Patch Cable — 0.5 m Green

Cat 6A · 10 Gbps500 MHzS/FTP PiMF · LSZH0.5 m Green

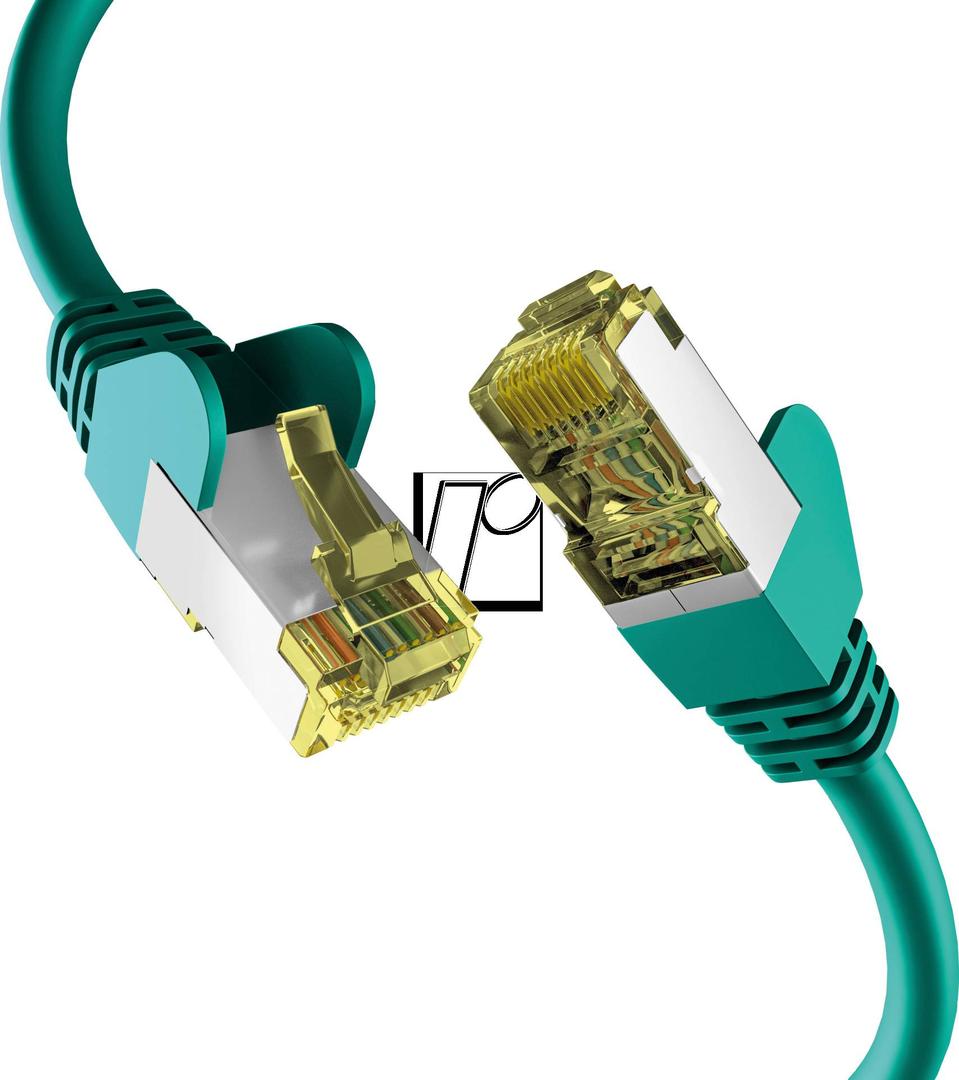

The EFB-Elektronik EC020200076 is a 0.5 m green Cat 6A S/FTP PiMF RJ45 patch cable with a halogen-free LSZH jacket and moulded, anti-kink boots, designed for short 10 Gigabit jumpers between patch panels, switches and servers. Part number EC020200076 (EAN 4049759289249). Typically in stock with fast delivery across Cyprus.
Before you buy
At 0.5 m it suits devices one or two rack units apart. EFB publishes no PoE class for the EC range — for certified 802.3bt 4PPoE choose the EFB MK6001 / EC6000A cords.

Key Features


10G-ready Cat 6A
S/FTP PiMF construction for 10GBASE-T with low crosstalk, backward compatible with Cat 6 and Cat 5e.

Halogen-free LSZH jacket
Low-smoke zero-halogen 6 mm sheath with stranded AWG 27/7 copper conductors for flexible, fire-safer patching.

Moulded anti-kink boots
Booted, moulded plugs with anti-kink sleeve and latch protection survive frequent re-patching.

Technical Specifications

Identification
Part Number EC020200076
EAN / GTIN 4049759289249
MPN EC020200076
Brand EFB-Elektronik
Product Line EFB EC Cat 6A S/FTP patch cables
Cable
Category Cat 6A — 10GBASE-T
Shielding S/FTP — overall braid screen plus foil around each pair (PiMF), best noise immunity
Bandwidth Up to 500 MHz
Conductor Stranded copper, 8 wires
AWG 27/7 — stranded patch gauge
Outer Diameter 6 mm
Jacket LSZH — low smoke, zero halogen
Data Rate 10 Gbps (10GBASE-T)
PoE No PoE class published by EFB
Connectors
Connectors 2 × RJ45 (8P8C) male
Wiring 1:1 straight-through, T568B
Contacts Gold-plated
Boot Booted, moulded, anti-kink sleeve, latch protection
Physical
Length 0.5 m
Colour Green
Protection IP20
Compliance
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B, ANSI/TIA/EIA 568-C.2

Frequently Asked Questions

Does the EFB EC020200076 work with my switch, router or PC?
Yes. It is a standard RJ45-to-RJ45 Cat 6A patch cable wired 1:1, so it connects any Ethernet port — switch, router, patch panel, NAS, PC or access point — with no configuration. It is backward compatible with Cat 6 and Cat 5e ports.
Is the EC020200076 suitable for 10 Gigabit Ethernet between a patch panel and a switch?
Yes. It is a shielded Cat 6A cord for 10GBASE-T, and the 0.5 m length is intended for short in-rack jumpers between a panel and a switch or server.
What is the difference between the EC020200076 and the EFB EC Cat 7-raw-cable cords?
Both give a Cat 6A 10 Gbps channel with LSZH jackets; the Cat 7-raw-cable variants use cable tested to 600 MHz for extra headroom and add a length marking. In everyday 10GBASE-T use they perform the same.
What do I need to know before buying the EC020200076?
Check the length first: this cable is 0.5 m end to end, including the plugs. Measure the port-to-port distance — 0.5 m is a short jumper. It is shielded, so shielded panels/ports give the full noise-rejection benefit, and no PoE class is declared.
Singular Expert Insight
EFB EC cords are our workhorse shielded Cat 6A jumpers: LSZH, correct 27/7 stranded copper and a wide colour range for patching servers and panels into your network switches. For declared 802.3bt PoE use EFB MK6001/EC6000A; for very dense panels a slim cord like DIGITUS DK-1632-A slim or Wantec Extraslim packs tighter.

Buyer's Guide

Buy it if
You need a short shielded, halogen-free Cat 6A jumper for 10G patching.
Skip it if
You need a declared PoE class or a much longer run.
Also consider
EFB EC in other lengths/colours, or DIGITUS DK-1644-A Cat 6A S/FTP.
