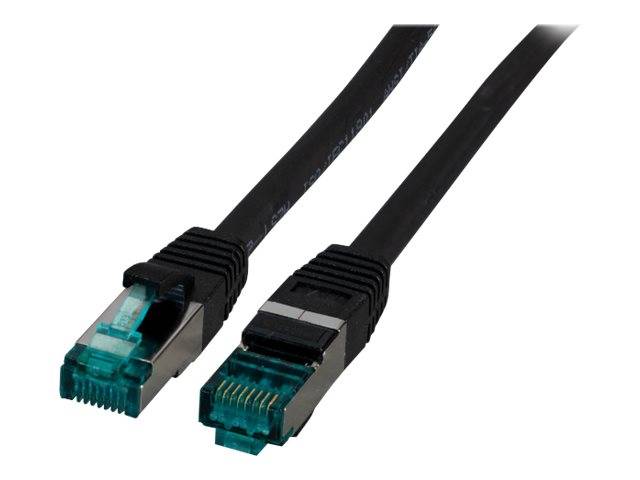

EFB-Elektronik MK6001.0,5B Cat 6A S/FTP Patch Cable 0.5 m Black LSZH 6 mm 500 MHz 10GbE 4PPoE Locking RJ45

Brand:
EFB

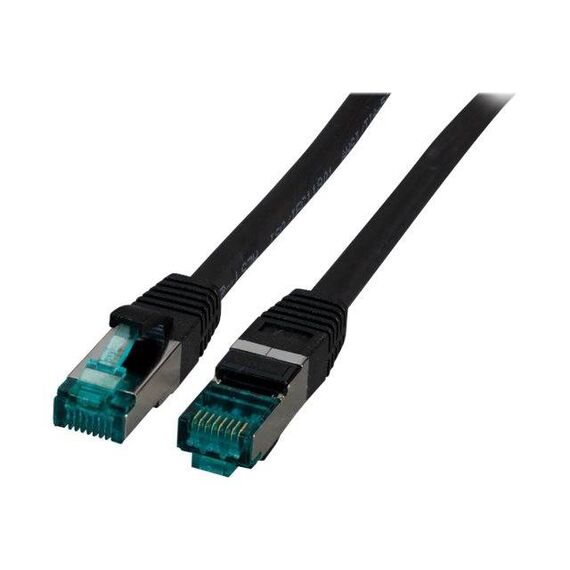

EFBElektronik Patch cable RJ45 (M) to RJ45 (M) MK6001.0,5B
EFB-Elektronik MK6001.0,5B Cat 6A S/FTP Patch Cable 0.5 m Black LSZH 6 mm 500 MHz 10GbE 4PPoE Locking RJ45
€4.11 inc. VAT
Buy
MK6001.0,5B
€3.45
€4.11 inc. VAT
Ships from EU stock: 64 item(s)
+ −
Add to wish list Ask a question
Product Code
04:366023
EAN Code
4049759224967
Manufacturer
EFB
Quick Specs
Standard
Cat 6A S/FTP · 500 MHz
Length / Colour
0.5 m · Black
Conductor
AWG 27/7 Cu · 6.0 mm
Jacket / PoE
LSZH · 4PPoE 802.3bt
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik Cat 6A S/FTP Patch Cable — 0.5 m Black

Cat 6A · 500 MHz0.5 m BlackLSZH · 6.0 mm4PPoE 802.3bt

The EFB-Elektronik MK6001.0,5B is a 0.5 m black Cat 6A S/FTP patch cable with a halogen-free, silicone-free LSZH jacket and a slim 6.0 mm outer diameter, made for 10 Gigabit Ethernet and PoE patching in racks, server rooms and structured-cabling installations.

Its part number is EFB MK6001.0,5B (EC6000A/MK6001 series). Four individually foil-screened pairs under an overall braid (PiMF), AWG 27/7 stranded copper, 500 MHz performance and 4-pair PoE to IEEE 802.3bt make it a full-spec Cat 6A cord. Typically in stock with fast delivery across Cyprus.

Before you buy
0.5 m is a short rack length — ideal from a switch to a patch panel one or two units away. Shielded S/FTP delivers its full benefit when the patch panel and switch are also shielded and earthed; it still works on unshielded U/UTP panels, just without the extra EMI advantage.

Key Features


Full Cat 6A, 500 MHz
S/FTP PiMF shielding (foil per pair + overall braid) with AWG 27/7 copper supports 10GBASE-T with excellent alien-crosstalk resistance.

LSZH and silicone-free
Flame-retardant IEC 60332-1, halogen-free IEC 60754-2 jacket, CPR EN 50575 — slim 6.0 mm OD keeps dense switch fronts manageable.

PoE up to 802.3bt
Rated for IEEE 802.3af, 802.3at and 4PPoE 802.3bt, max 1 A per contact — suitable for PoE++ cameras, access points and thin clients.

Technical Specifications

Identification
Part Number MK6001.0,5B
EAN / GTIN 4049759224967
MPN MK6001.0,5B
Brand EFB-Elektronik
Series EC6000A / MK6001
Cable
Category Cat 6A (TIA) — 500 MHz
Shielding S/FTP PiMF — braid overall + foil around each pair
Conductor 4×2 AWG 27/7 stranded copper
Jacket LSZH (IEC 60754-2), flame-retardant IEC 60332-1, silicone-free
Outer Diameter 6.0 mm
Min. Bend Radius > 30 mm
Connectors
Connectors 2× RJ45 (8P8C) male, IEC 60603-7-51
Housing Green RJ45 housings
Contacts Gold-plated, ≥ 750 mating cycles
Wiring 1:1 TIA/EIA-568B
Performance
Data Rate 10 Gbit/s (10GBASE-T)
PoE IEEE 802.3af / at / bt (4PPoE)
Electrical 100 ±15 Ω, DC 185 Ω/km, max 1 A per contact
Physical & Compliance
Length 0.5 m
Colour Black
Operating Temperature −20 to +60 °C
Protection IP20 — indoor use only
Standards EN 50575 (CPR), ISO/IEC 11801, EN 50173

Frequently Asked Questions

Does the EFB MK6001.0,5B support 10 Gigabit Ethernet?
Yes. It is a Cat 6A S/FTP cable rated to 500 MHz, so it supports 10GBASE-T across the full 100 m channel, and easily at 0.5 m.
Can I use the MK6001.0,5B with PoE++ devices?
Yes. EFB rates the series for IEEE 802.3af, 802.3at and 4-pair PoE to 802.3bt, so it can feed high-power cameras, access points and PoE lighting.
What is the difference between MK6001 and MK7001?
Both are EFB Cat 6A S/FTP LSZH cords. MK6001 uses 6.0 mm AWG 27/7 cable with green plugs; MK7001 uses thicker 6.5 mm Cat 7 raw cable (AWG 26/7) with yellow plugs. Both run at a 500 MHz Cat 6A channel.
Singular Expert Insight
The MK6001 series is our go-to Cat 6A LSZH cord when a rack needs 10 GbE and PoE without the bulk of Cat 7 raw cable — the 6.0 mm jacket is noticeably easier to dress on a 48-port switch. Choose black for uplinks or management ports to keep them visually separate from grey access patching.

Buyer's Guide

Buy it if
You need a 0.5 m shielded, halogen-free Cat 6A cord for 10 GbE or PoE++ switch-to-panel patching.
Skip it if
You only need Gigabit on an unshielded home network — a Cat 6 U/UTP cord is cheaper and thinner.
Also consider
EFB MK7001 (Cat 7 raw cable, 6.5 mm) for maximum shielding, or a 0.25 m jumper for directly adjacent ports.
