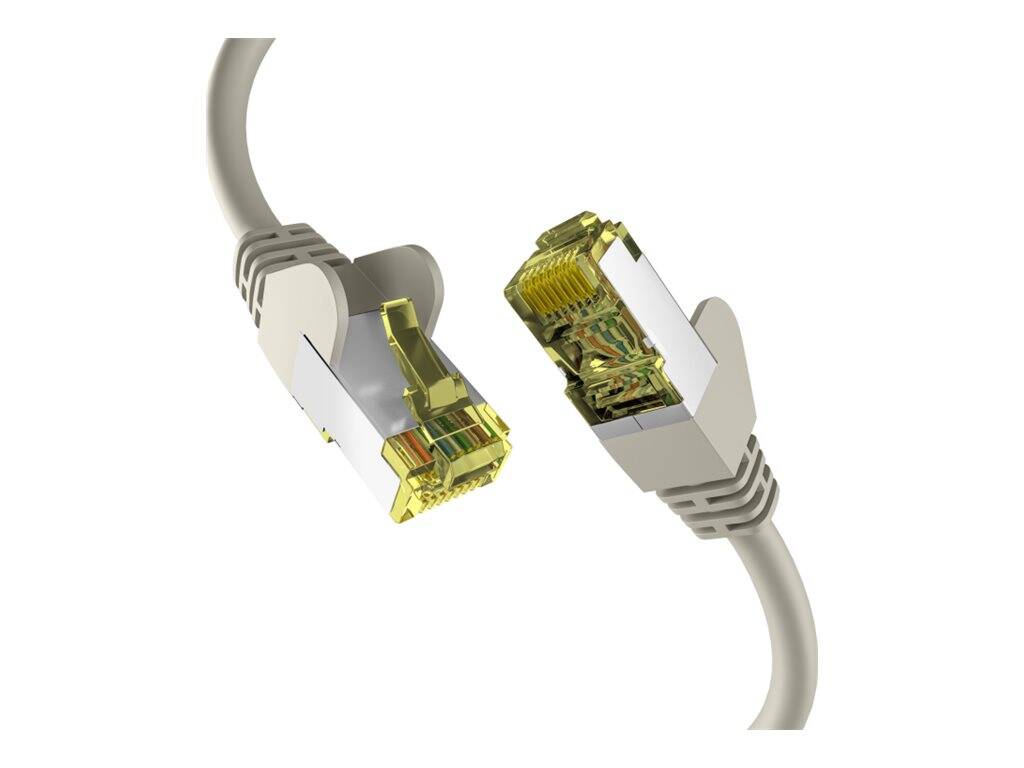

EFB-Elektronik EC020200006 Cat 6A S/FTP PiMF Patch Cable 2 m RJ45 LSZH 10 Gbps AWG 27/7 Latch Protection Grey

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200006
EFB-Elektronik EC020200006 Cat 6A S/FTP PiMF Patch Cable 2 m RJ45 LSZH 10 Gbps AWG 27/7 Latch Protection Grey
€4.65 inc. VAT
Buy
EC020200006
€3.91
€4.65 inc. VAT
Ships from EU stock: 200 item(s)
+ −
Add to wish list Ask a question
Product Code
04:449945
EAN Code
4049759288549
Manufacturer
EFB
Quick Specs
Category
Cat 6A S/FTP PiMF
Length
2 m · Grey
Speed
10 Gbps · 500 MHz
Jacket
LSZH · 6 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB EC020200006 Cat 6A S/FTP Patch Cable 2 m Grey

Cat 6A · 10 Gbps2 mS/FTP PiMFLSZH · Grey

The EFB-Elektronik EC020200006 is a 2 m Cat 6A S/FTP PiMF patch cable in grey for 10GBASE-T links between switches, patch panels, servers and workstations. Part number EC020200006 combines 4x2 AWG 27/7 stranded copper with foil-per-pair plus braid shielding, a 6 mm halogen-free LSZH jacket and gold-plated RJ45 plugs wired 1:1 to T568B. Typically in stock with fast delivery across Cyprus.

Compatibility note: The RJ45 connectors set the link class at Cat 6A (10GBASE-T, 100 m channel). Works with any Cat 5e/6/6A RJ45 port. EFB publishes no PoE class for this range — for IEEE 802.3bt 4PPoE loads choose EFB MK6001 or ECOLAN cords.

Key Features


10 Gbps Cat 6A
Supports 10GBASE-T over a full 100 m channel and is fully backward compatible with Gigabit and Fast Ethernet equipment.

S/FTP PiMF shielding
Each pair is foiled and the bundle is braided, giving strong alien-crosstalk and EMI rejection in busy racks and next to power cabling.

Latch protection
Moulded anti-kink boots with latch protection keep the plug clip from snagging or breaking during moves.

Technical Specifications

Identification
Part Number EC020200006
EAN / GTIN 4049759288549
MPN EC020200006
Brand EFB-Elektronik
Cable
Category Cat 6A
Bandwidth Up to 500 MHz
Data rate Up to 10 Gbps
Construction S/FTP PiMF — foil per pair + overall braid
Conductor AWG 27/7 stranded copper, 8 wires
Jacket LSZH — low smoke, zero halogen
Outer diameter 6 mm
Length 2 m
Colour Grey
Connectors
Connectors 2x RJ45 8P8C male
Contacts Gold plated
Wiring T568B, 1:1
Boots Moulded anti-kink sleeve, latch protection
Standards
Compliance EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B, ANSI/TIA/EIA 568-C.2
Protection class IP20 — indoor use
PoE No IEEE class published by EFB

Frequently Asked Questions

Is the EFB EC020200006 suitable for 10 Gigabit Ethernet?
Yes. It is a Cat 6A S/FTP cord rated for 10GBASE-T and also works at 1G/2.5G/5G with any RJ45 port.
What is the difference between the EC020200006 and the EC cords built on Cat 7 raw cable?
The Cat 7-raw EC versions add a printed length marking and locking-lug protection and more bandwidth headroom; both run at Cat 6A 10 Gbps because the RJ45 plugs set the class.
Singular Expert Insight
For a 2 m 10G rack or desk patch the EC020200006 is a solid, halogen-free S/FTP choice; pick the EC Cat 7-raw versions if you want a length imprint and locking lug, or EFB MK6001 when the port feeds 802.3bt PoE devices. See all network cables to colour-code your patching.

Buyer's Guide

Buy it if
You need a 2 m shielded Cat 6A LSZH cord for 10GBASE-T switches, servers or patch panels.
Skip it if
You power 802.3bt 4PPoE devices and want a published PoE class.
Also consider
EFB MK6001 Cat 6A LSZH cords with 4PPoE support.

Features - EFB - EC020200006

Colour
grey
Length
2m
Standard
CAT6a
More Details
Product Code
04:449945
EAN Code
4049759288549
Manufacturer
EFB
