EFB EC020200277 Cat 8.1 S/FTP Patch Cable 0.25 m RJ45 2000 MHz 40 Gbps LSZH AWG 26/7 Fluke Tested Orange

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200277
EFB EC020200277 Cat 8.1 S/FTP Patch Cable 0.25 m RJ45 2000 MHz 40 Gbps LSZH AWG 26/7 Fluke Tested Orange
€4.63 inc. VAT
Buy
EC020200277
€3.89
€4.63 inc. VAT
Ships from EU stock: 74 item(s)
+ −
Add to wish list Ask a question
Product Code
04:441418
EAN Code
4049759291259
Manufacturer
EFB
Quick Specs
Category
Cat 8.1 S/FTP PiMF
Length
RJ45 0.25 m (25 cm)
Speed
40 Gbps · 2000 MHz
Jacket
LSZH · 6.2 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

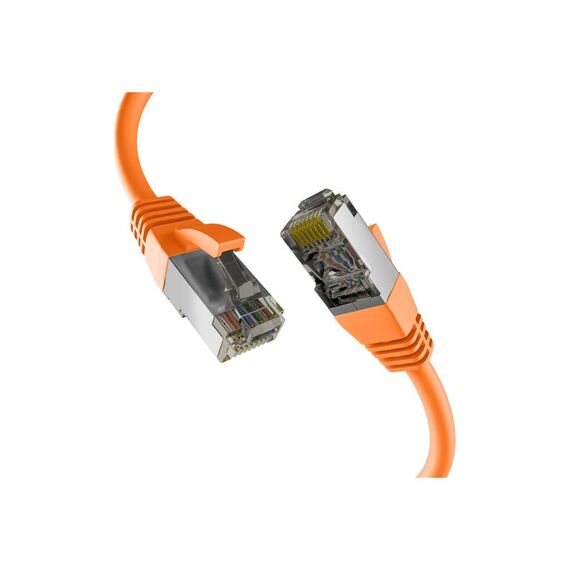

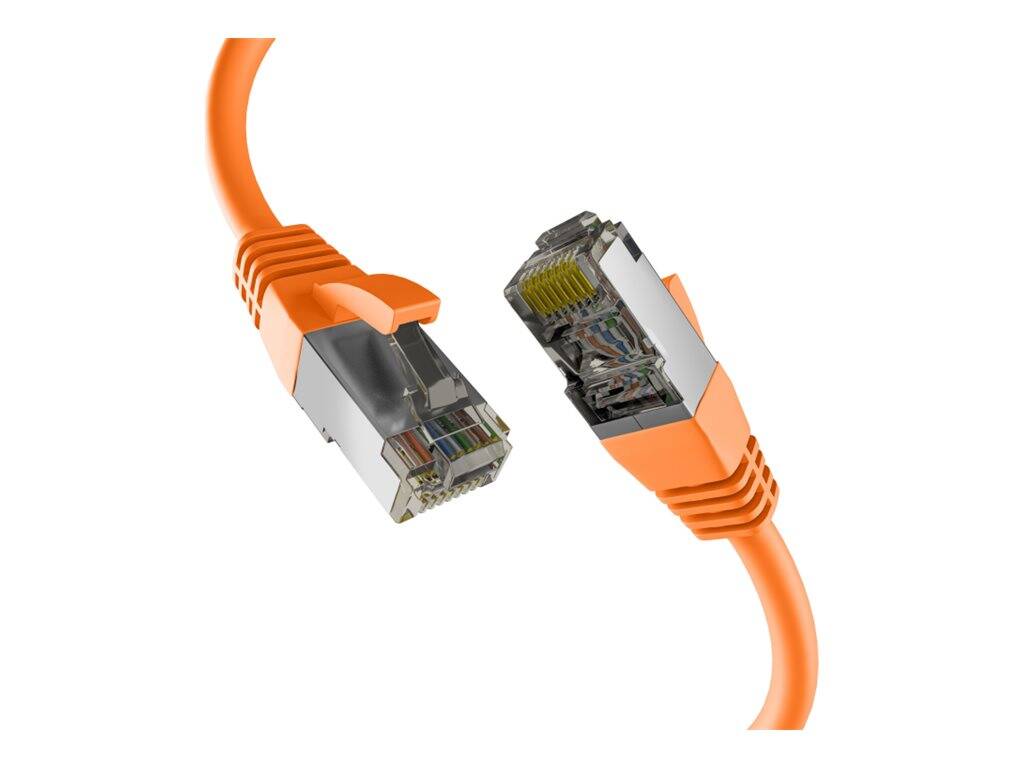

EFB EC020200277 Cat 8.1 S/FTP Patch Cable, 0.25 m Orange

Cat 8.1 · 2000 MHz40 GbpsFluke tested25 cm · Orange

The EFB EC020200277 is a Cat 8.1 S/FTP patch cable, 0.25 m long in orange, with shielded RJ45 plugs on both ends for 25G/40GBASE-T and 10G links in data-centre racks.

Part number EC020200277 uses 4 x 2 AWG 26/7 copper pairs, each foil-screened under an overall braid (S/FTP PiMF), standard RJ45 plugs with 50 µ″ gold contacts and an LSZH jacket of 6.2 mm; EFB tests every cable individually and includes the report. Typically in stock with fast delivery across Cyprus.

Before you buy
Cat 8.1 terminates in standard RJ45 plugs, so it is backwards compatible with Cat 6A, Cat 6 and Cat 5e ports — the link simply runs at the slowest device speed. 40GBASE-T itself is limited to short data-centre channels (up to 30 m). EFB states the line supports PoE but publishes no IEEE 802.3bt class.

Key Features


Cat 8.1 performance
Rated to 2000 MHz for 25G/40GBASE-T, with plenty of headroom for 10GBASE-T and multi-gig links.

Individually tested
Each cable is Fluke-tested by EFB with the test report included, so you know the cord met spec before it left the factory.

Rack-ready build
Moulded anti-kink sleeve, locking lever, length imprint, gold contacts and an LSZH jacket for data-centre and office use.

Technical Specifications

Identification
Part Number EC020200277
EAN / GTIN 4049759291259
MPN EC020200277
Brand EFB-Elektronik
Cable
Category Cat 8.1
Shielding S/FTP PiMF — foil per pair plus overall braid
Conductors 4 x 2 AWG 26/7 stranded copper
Jacket LSZH — low smoke, zero halogen
Bandwidth 2000 MHz
Max Data Rate 40 Gbps (40GBASE-T, short data-centre channels)
PoE Supported per EFB — no IEEE class published
Outer Diameter 6.2 mm
Connectors & Build
Connectors 2 x RJ45 8P8C, male to male, 50 µ″ gold contacts
Wiring 1:1 TIA/EIA-568B
Boots Moulded anti-kink sleeve, locking lever, length imprint
Testing Individually Fluke tested, report included
Length 0.25 m
Colour Orange
Compliance & Environment
Standards TIA/EIA-568-B
Protection Class IP20 — indoor use, no protection against water
Application Data centre, server and switch patching

Frequently Asked Questions

Is the EFB EC020200277 compatible with my Cat 6A switch?
Yes. It uses standard RJ45 plugs, so it works in any Cat 5e, Cat 6 or Cat 6A port; the link runs at the speed the devices support.
Do I need Cat 8.1 for 10 Gigabit Ethernet?
No, Cat 6A is enough for 10GBASE-T. Cat 8.1 is aimed at 25G/40GBASE-T in data centres, or at buyers who want maximum headroom in short server-rack links.
What should I know before buying the EC020200277?
It is 25 cm long, so it only bridges adjacent rack units. EFB says it supports PoE but gives no 802.3bt class, and it is IP20 for indoor use.
Singular Expert Insight
Cat 8.1 jumpers like the EC020200277 make most sense between network switches and 25G/40G server network cards in the same rack. For ordinary 10G office patching, a Cat 6A S/FTP cord such as the EFB MK6001 is thinner and cheaper, and it has a published 802.3bt rating.

Buyer's Guide

Buy it if
You patch 25G/40GBASE-T or future-proof 10G ports in a data-centre rack at 25 cm spacing.
Skip it if
You only need 1–10 Gbps, or need a published 802.3bt PoE rating.
Also consider
EFB Cat 8.1 in 0.5 m and longer, or MK6001 Cat 6A for 10G/PoE++.
