EFB-Elektronik EC020200266 Cat 8.1 S/FTP PiMF Patch Cable 0.25 m RJ45 2000 MHz 40 Gbps LSZH Fluke-Tested Green

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200266
EFB-Elektronik EC020200266 Cat 8.1 S/FTP PiMF Patch Cable 0.25 m RJ45 2000 MHz 40 Gbps LSZH Fluke-Tested Green
€4.63 inc. VAT
Buy
EC020200266
€3.89
€4.63 inc. VAT
Ships from EU stock: 13 item(s)
+ −
Add to wish list Ask a question
Product Code
04:441407
EAN Code
4049759291143
Manufacturer
EFB
Quick Specs
Category
Cat 8.1 S/FTP PiMF
Length
0.25 m · Green
Bandwidth
2000 MHz · 40 Gbps
Jacket
LSZH · 6.2 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB EC020200266 Cat 8.1 S/FTP Patch Cable 0.25 m Green

Cat 8.1 · 40 Gbps0.25 m2000 MHzLSZH · Green

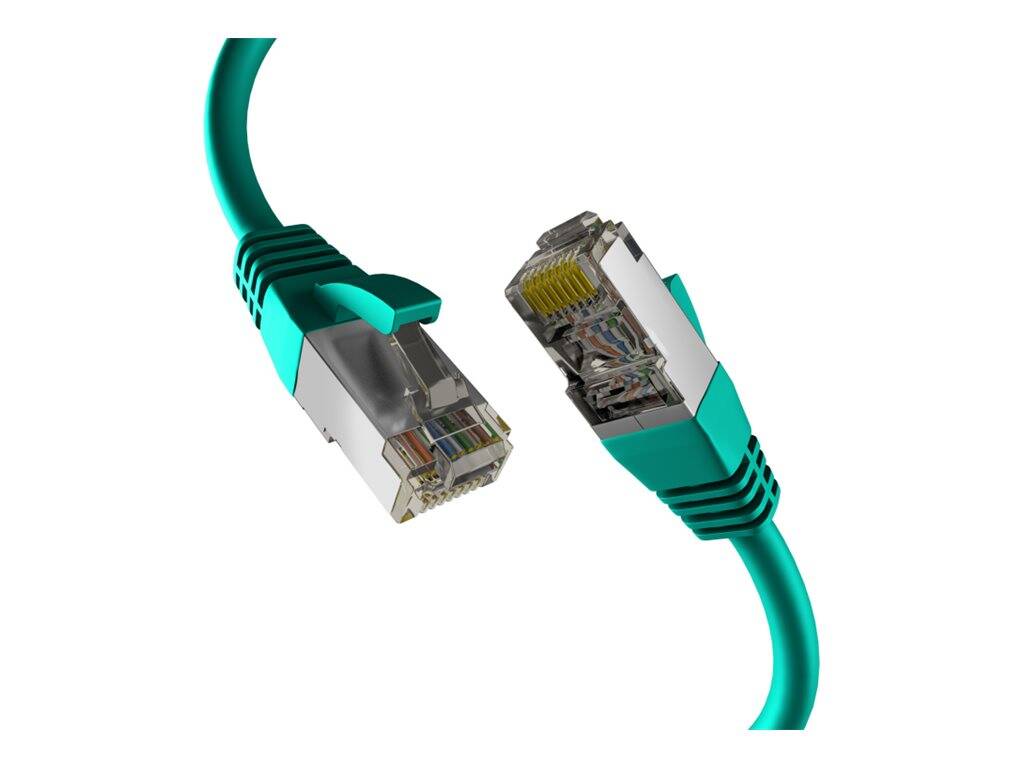

The EFB-Elektronik EC020200266 is a 0.25 m Cat 8.1 S/FTP PiMF patch cable in green, built for ultra-short switch-to-patch-panel and server-to-switch jumps in data-centre racks running 25G/40GBASE-T. Part number EC020200266 uses a 4x2 AWG 26/7 stranded copper Cat 8.1 raw cable rated to 2000 MHz, a 6.2 mm LSZH jacket and 50 µ″ gold-plated RJ45 plugs with a locking-lever guard. Typically in stock with fast delivery across Cyprus.

Compatibility note: Cat 8.1 uses standard RJ45 and is backward compatible with Cat 6A/6/5e ports, but a link only runs at the speed of its slowest component — a Cat 8.1 cord does not make a 1G or 10G port faster. 25G/40GBASE-T channels are limited to about 30 m with two connectors. EFB states PoE support but publishes no IEEE 802.3bt class.

Key Features


Cat 8.1, 2000 MHz
Rated for 25G/40GBASE-T with S/FTP PiMF shielding — each pair foiled plus an overall braid — for maximum crosstalk and EMI rejection in dense racks.

0.25 m rack jumper
The very short length keeps 1U patching tidy with no slack loops; the moulded anti-kink sleeve and length imprint make it easy to identify and service.

Tested and halogen-free
EFB tests every cable individually on a Fluke analyser with the report in the box; the LSZH jacket gives low smoke and zero halogen in enclosed spaces.

Technical Specifications

Identification
Part Number EC020200266
EAN / GTIN 4049759291143
MPN EC020200266
Brand EFB-Elektronik
Cable
Category Cat 8.1 — ISO/IEC class I, the RJ45-compatible 40G grade
Construction S/FTP PiMF 4x2 — foil per pair + overall braid
Conductor AWG 26/7 stranded copper
Bandwidth 2000 MHz
Data rate Up to 40 Gbps (40GBASE-T)
Jacket LSZH — low smoke, zero halogen
Outer diameter 6.2 mm
Length 0.25 m
Colour Green
Connectors
Connectors 2x RJ45 8P8C male, standard
Contacts 50 µ″ gold plated
Pin assignment 1:1, TIA/EIA-568B
Protection Moulded anti-kink sleeve + locking lever
Length imprint Yes
Protection class IP20 — indoor use only
Application
Area Data centre, server/switch racks
Quality Individually Fluke-tested, report included
PoE Supported per EFB — no IEEE class published

Frequently Asked Questions

Is the EFB EC020200266 compatible with my Cat 6A switch?
Yes. It uses standard RJ45 plugs and works with any Cat 5e/6/6A port; the link simply runs at the speed the ports support.
What is a 0.25 m Cat 8.1 cable used for?
Short jumps inside a rack — switch to patch panel, top-of-rack switch to an adjacent server, or between stacked switches — where 25G/40GBASE-T copper links are used and slack would block airflow.
What do I need to know before buying the EC020200266?
Cat 8.1 channels are limited to roughly 30 m and two connectors, so it is a rack cable, not a floor-cabling solution. For long runs or heavy 4PPoE loads choose a Cat 6A cord.
Singular Expert Insight
The EC020200266 makes sense where 25G/40G copper ports actually exist; for ordinary 1G/10G desk and rack links a Cat 6A cord such as EFB MK6001 or the EC Cat 6a range costs less and bends more easily. Browse more network cables, including the other colours of this 0.25 m Cat 8.1 series (black, grey, white, green) for colour-coded rack patching.

Buyer's Guide

Buy it if
You patch 25G/40GBASE-T equipment inside a rack and want 0.25 m, Fluke-tested LSZH cords.
Skip it if
Your ports are 1G or 10G — a Cat 6A cord is cheaper and just as fast there.
Also consider
EFB MK6001 Cat 6A LSZH cords with 4PPoE for PoE-heavy racks.
