10 Gbps · 500 MHzCat 7 raw cableRNS latch guard1 m Red

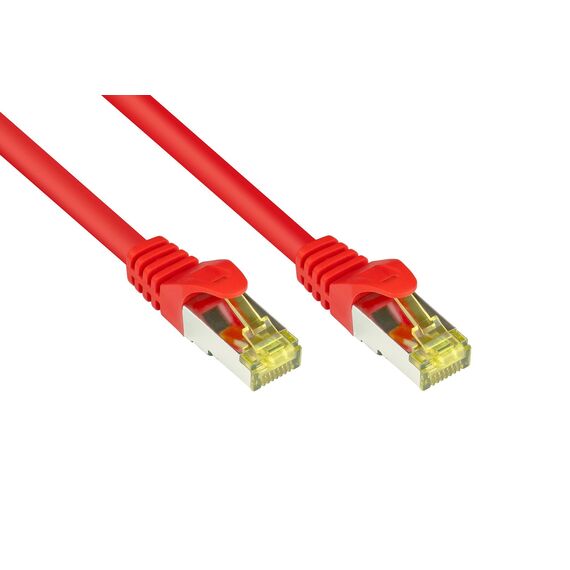

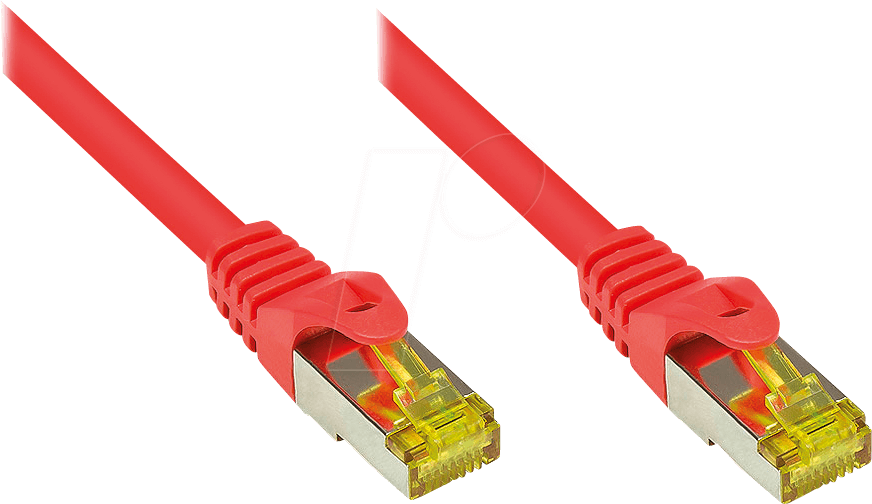

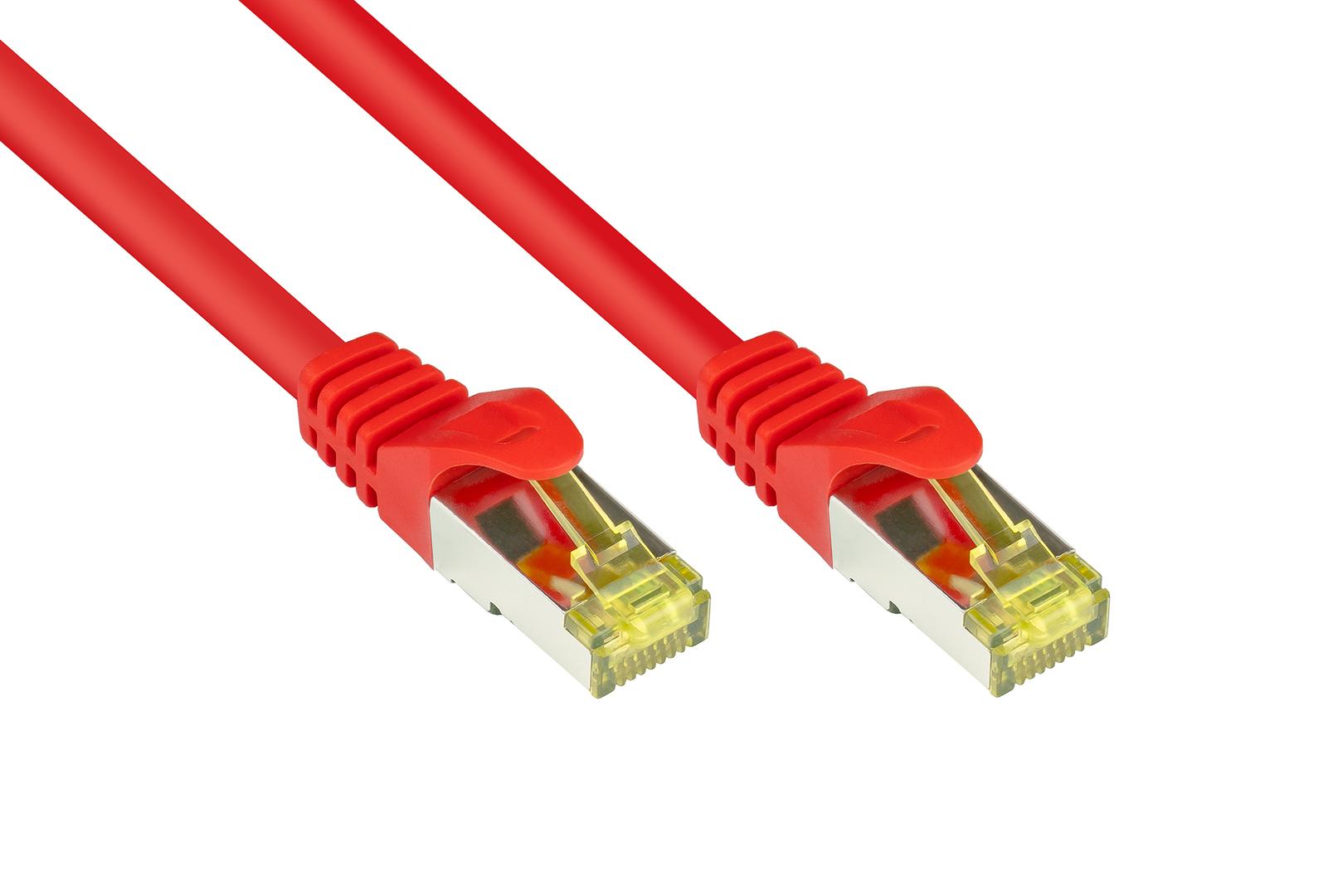

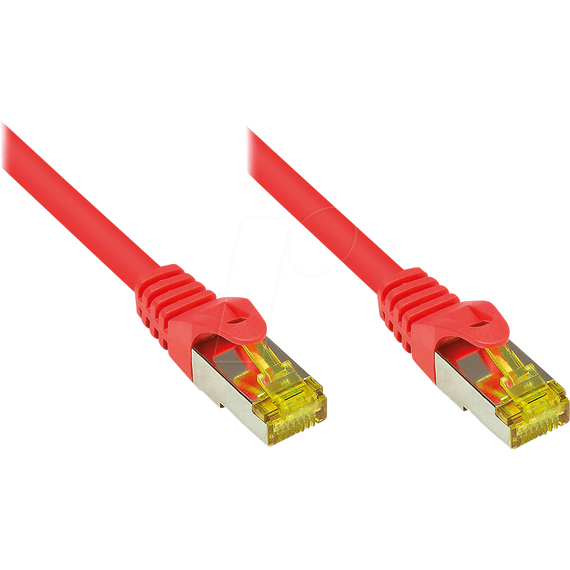

The Good Connections 8070R-010R is a 1 m red RJ45 patch cable built on Cat 7 raw cable with two shielded Cat 6A plugs, rated to 500 MHz for 10 Gigabit Ethernet in offices, server rooms and home networks. Part number 8070R-010R uses S/FTP PiMF shielding, AWG 26 oxygen-free copper, a halogen-free jacket and the RNS latch protector that stops the RJ45 clip from breaking off.
Compatibility note: The raw cable is made to Cat 7 specifications, but the RJ45 plugs are Cat 6A, so the finished cable performs as Cat 6A (500 MHz, 10GBASE-T). It is backward compatible with Cat 6 and Cat 5e ports at their own speed.
Key Features

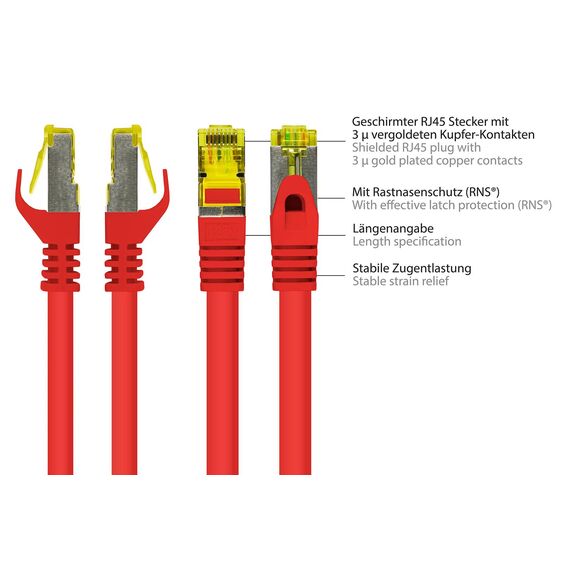

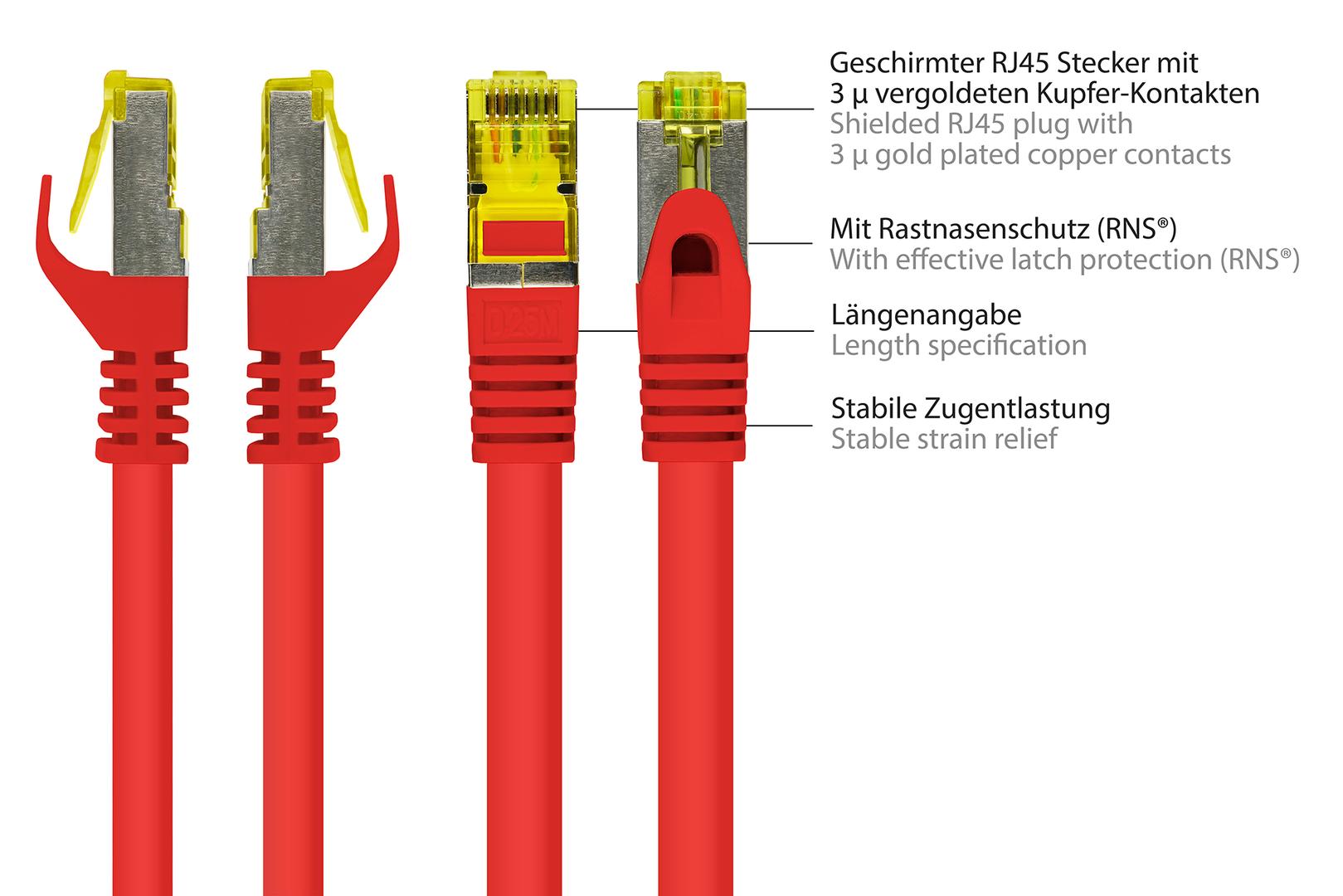

RNS latch protector
The Rastnasenschutz guard over the plug stops the RJ45 latch from bending back or snapping off when the cable is pulled through racks and desks — no more loose plugs.
Cat 7 raw cable, 10 Gbit ready

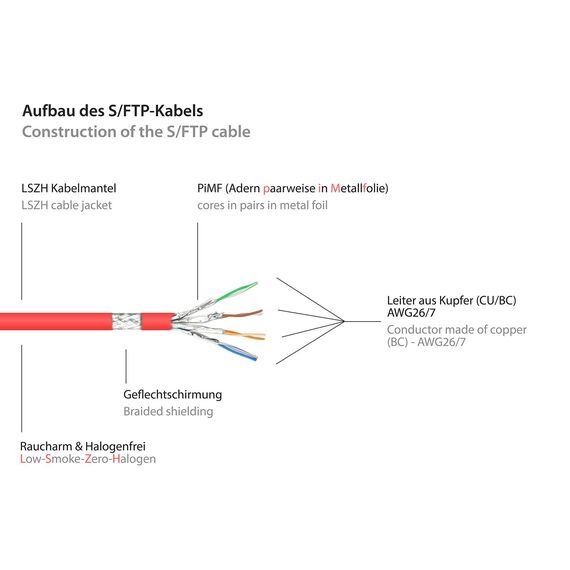

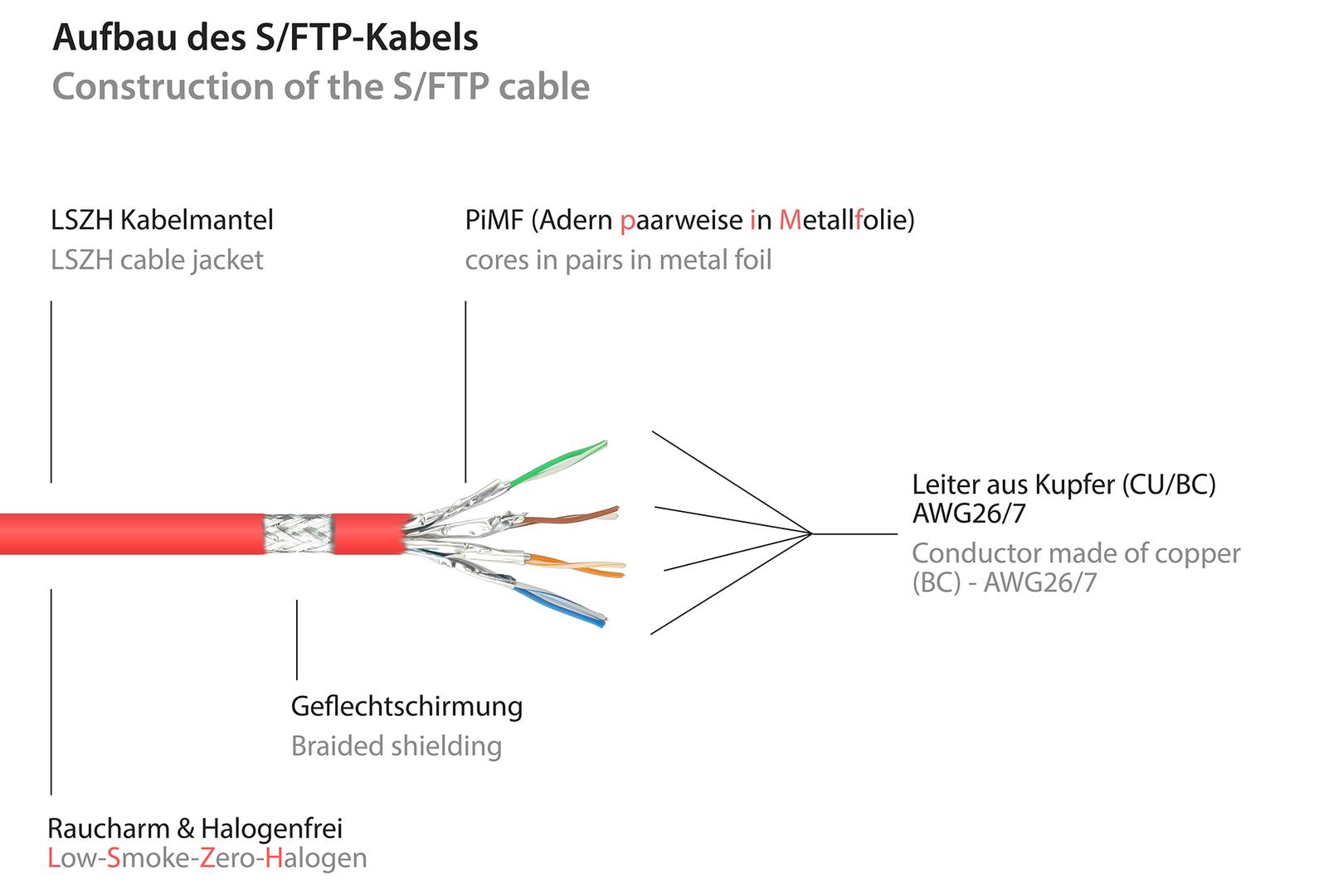

S/FTP cable with each pair in its own foil (PiMF) under an overall braid carries 10/100/1000/10000BASE-T at 500 MHz with strong resistance to crosstalk and interference.
OFC copper, halogen-free jacket
Conductors and contacts use 99.9 % oxygen-free copper with gold-plated contact surfaces, inside a 6.5 mm halogen-free, low-smoke, flame-retardant jacket.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The 8070R-010R is a sturdy choice for patching that gets handled often — the RNS guard and heavy S/FTP build suit racks, labs and hot desks. If you only need Gigabit and want a thinner, cheaper cord, a Cat 6 cable does the job. See our full range of {L} for other colours and lengths.
Buyer's Guide
Buy it if
You want a durable 1 m 10 Gbit patch cable with a halogen-free jacket and a latch that will not break off.
Skip it if
Space is tight and you need a slim or flat cable, or 25/40 Gbit Cat 8.1 speeds.
Also consider
Other colours of the 8070R-010 series, or Good Connections 8064 Cat 6A cords with a measurement protocol.
Features - GoodConnections - 8070R-010R
Colour
red
Length
1.0m
Standard
CAT6a
More Details
Product Code
04:479602
EAN Code
4014619324262
Manufacturer
GoodConnections
