EFB-Elektronik EC020200220 Cat 7 Raw Cable S/FTP Patch Cable with Cat 6A RJ45 0.5 m Orange LSZH 10 Gbps
Brand:
EFB
EFB-Elektronik EC020200220 Cat 7 Raw Cable S/FTP Patch Cable with Cat 6A RJ45 0.5 m Orange LSZH 10 Gbps
€3.5 inc. VAT
EC020200220
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

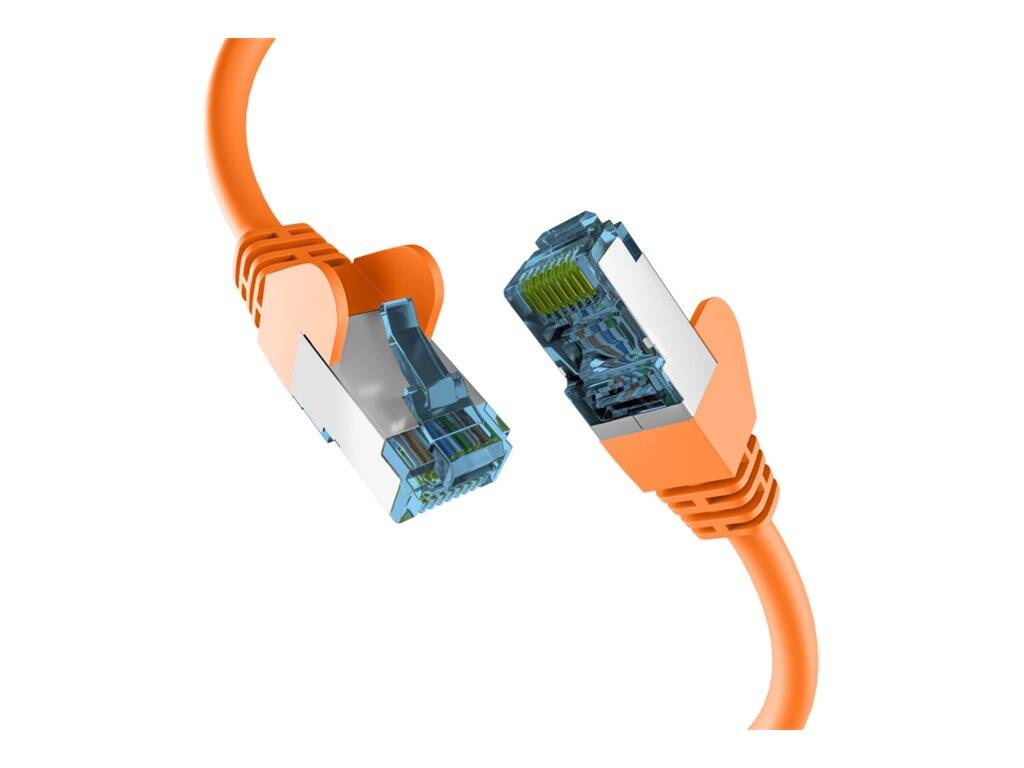

EFB-Elektronik EC020200220 — Cat 7 raw cable with Cat 6A RJ45 connectors S/FTP PiMF Patch Cable, 0.5 m Orange
Cat 7 raw / Cat 6A S/FTP PiMF0.5 m Orange500 MHz / 10 GbpsLSZH jacket
The EFB-Elektronik EC020200220 is a 0.5 m orange Cat 7 raw cable with Cat 6A RJ45 connectors patch cable with each pair in metal foil plus an overall copper braid shielding, rated for 500 MHz and 10 Gbps Ethernet, built for patch panel to switch jumpers, stacked switches and short in-rack links. Part number EC020200220 belongs to the EFB EC020200 patch cable range and ships with two moulded RJ45 (8P8C) male plugs wired 1:1 to T568B. Typically in stock with fast delivery across Cyprus.
Compatibility note: Works with any standard RJ45 Ethernet port (switches, routers, patch panels, NICs, access points, NAS). Actual 10 Gbps throughput requires 10GBASE-T ports on both ends; on Gigabit or 2.5G ports the cable simply runs at the port speed. Power over Ethernet class is not published by the manufacturer for this part — check your PoE device requirements separately.
Key Features
Cat 7 raw cable, Cat 6A plugs
Pairs are individually foil-screened (PiMF) inside an overall braid on a Cat 7-grade raw cable, terminated with Cat 6A RJ45 plugs — the link is rated to the 500 MHz Cat 6A class.
Short 50 cm rack jumper
At 0.5 m it bridges patch panel to switch, or switch to switch, without cable loops — keeping 1U cable management tidy and airflow clear.
Halogen-free and protected plugs
LSZH jacket for data rooms and public buildings, moulded anti-kink boots and a locking-lug guard plus length imprint on the boot.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For 10G copper patching between panels and network switches, the EC020200220 is a sensible default: full S/FTP PiMF shielding, a halogen-free jacket and protected plugs at a short 50 cm length. The Cat 7 raw cable adds no speed over plain Cat 6A — the plugs set the class — so choose it for colour coding or stock, not performance.
Buyer's Guide
Buy it if
You patch 10G or multi-gig switches in a rack and want orange colour coding with shielded, LSZH cabling at exactly 0.5 m.
Skip it if
You need more than 0.5 m, an unshielded (U/UTP) install with no grounding, or ultra-thin cords for 48-port high-density panels.
Also consider
EFB EC0202000xx plain Cat 6A S/FTP 0.5 m in the same colours, or 1 m versions for panels further from the switch.
Features - EFB - EC020200220
Colour
orange
Length
0.5m
Standard
CAT6a
More Details
Product Code
04:437722
EAN Code
4049759290689
Manufacturer
EFB
