EFB K5525FGR.0,25 Cat 6A S/FTP Superflex Patch Cable 0.25 m Cat 7 Raw Cable TPE LSZH 500 MHz PoE++ Grey

Brand:
EFB
EFBElektronik Patch cable RJ45 (M) to RJ45 (M) K5525FGR.0,25
EFB K5525FGR.0,25 Cat 6A S/FTP Superflex Patch Cable 0.25 m Cat 7 Raw Cable TPE LSZH 500 MHz PoE++ Grey
€4.58 inc. VAT
Buy
K5525FGR.0,25
€3.85
€4.58 inc. VAT
Ships from EU stock: 321 item(s)
+ −
Add to wish list Ask a question
Product Code
04:262344
EAN Code
4049759187279
Manufacturer
EFB
Quick Specs
Category
Cat 6A on Cat 7 raw
Length
RJ45 0.25 m (25 cm)
Jacket
TPE superflex LSZH
PoE
Up to 802.3bt
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB K5525FGR.0,25 Cat 6A Superflex S/FTP Patch Cable, 0.25 m Grey

Cat 6A · 500 MHzSuperflex TPE4PPoE 802.3bt25 cm · Grey

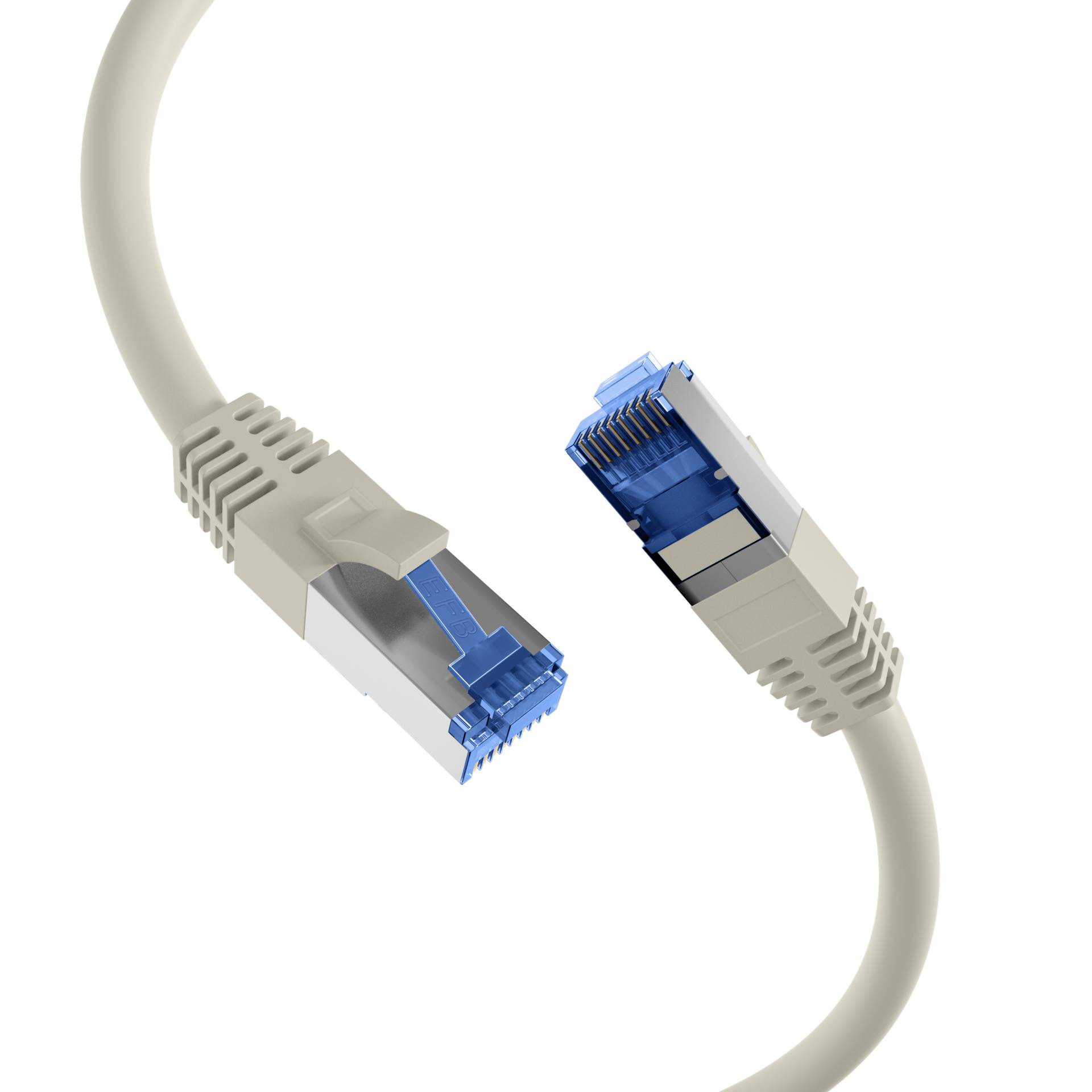

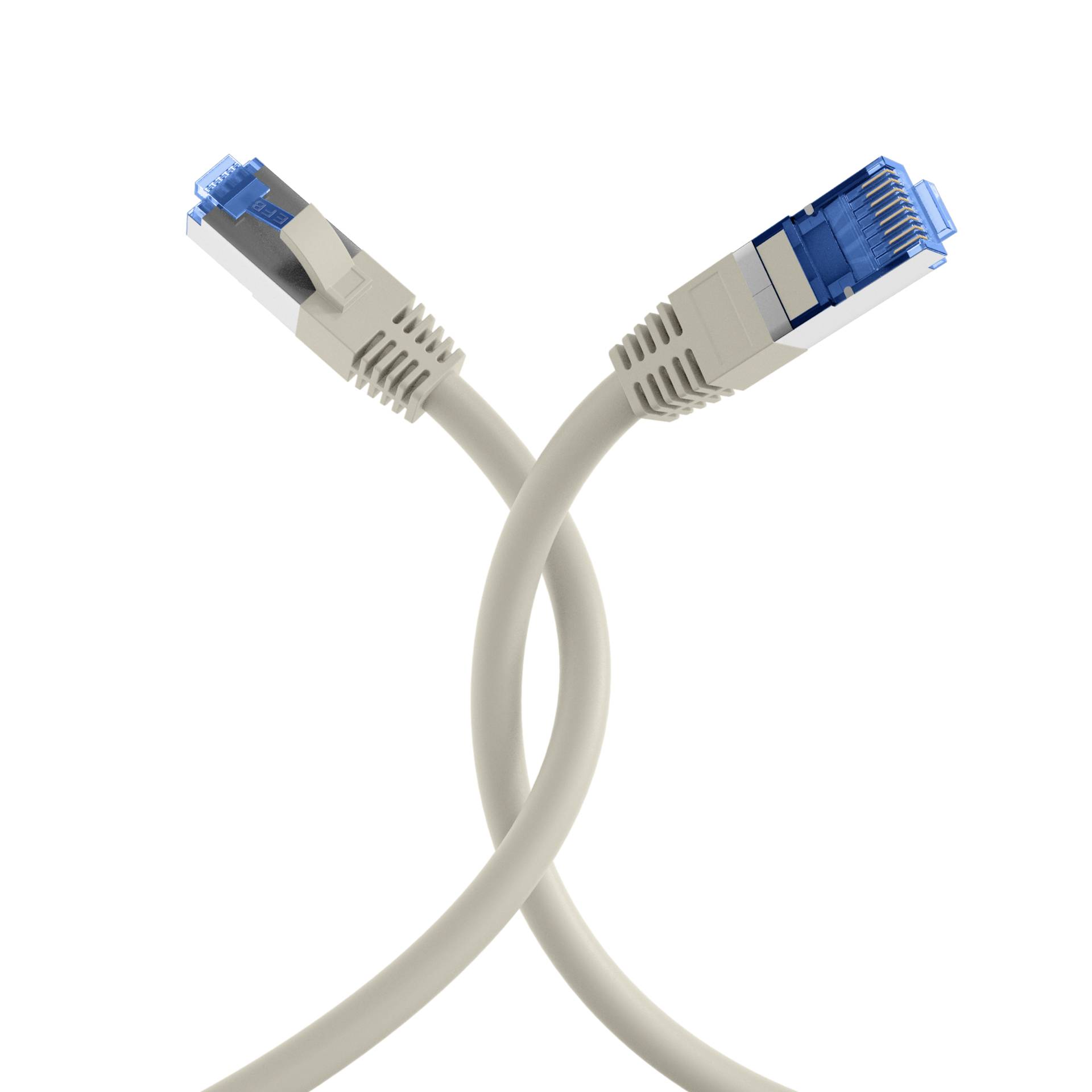

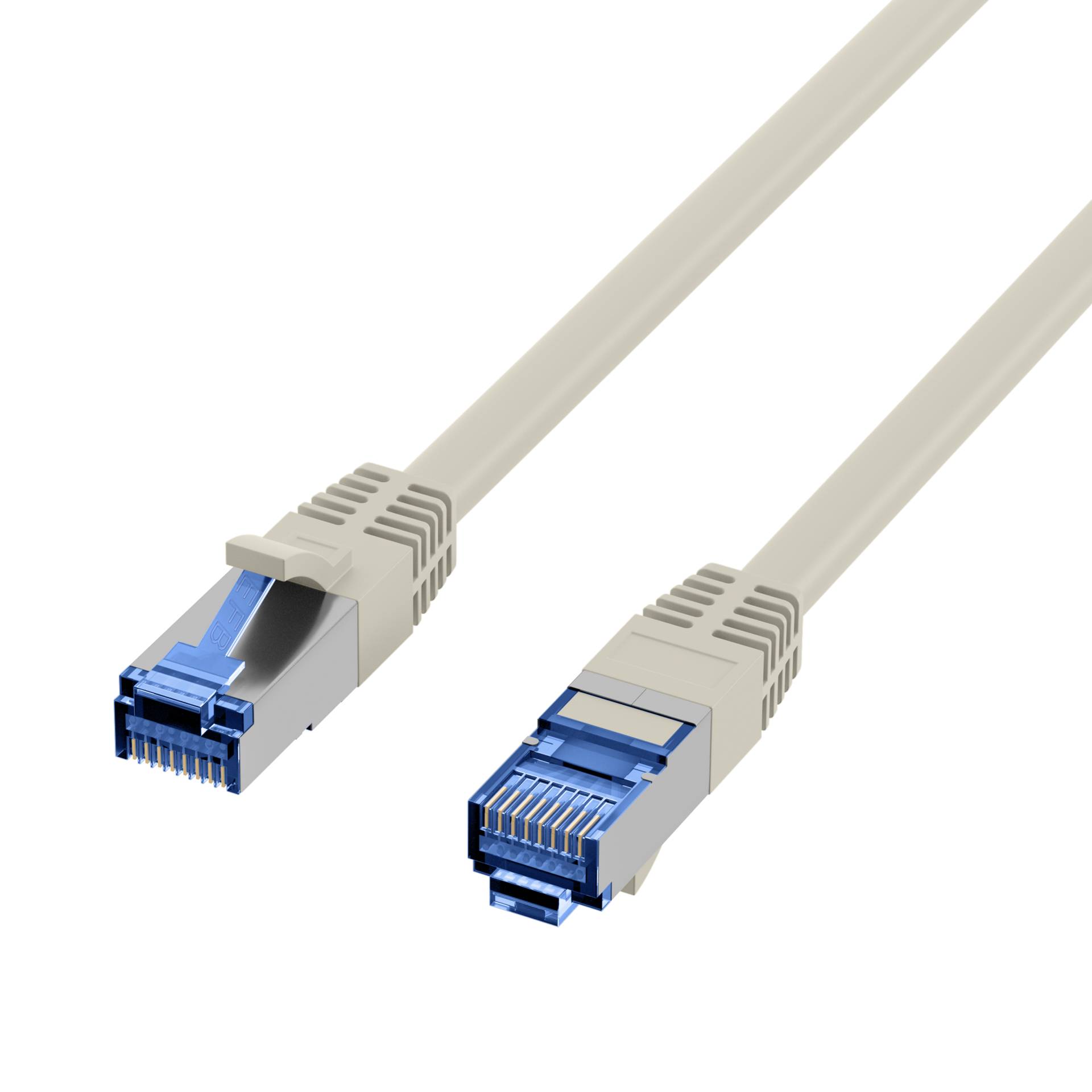

The EFB K5525FGR.0,25 is a highly flexible Cat 6A S/FTP patch cable on Cat 7 raw cable, 0.25 m long in grey, with shielded RJ45 plugs on both ends for short 10 Gigabit jumpers in dense racks.

Part number K5525FGR.0,25 pairs 4 x 2 AWG 26/7 copper conductors in an S/FTP PiMF screen with a superflex TPE/LSZH jacket, blue shielded RJ45 housings with 50 µ″ gold contacts and support for PoE up to 4PPoE IEEE 802.3bt. Typically in stock with fast delivery across Cyprus.

Before you buy
The raw cable is Cat 7 grade, but the RJ45 plugs set the channel class, so this cord performs as Cat 6A / 500 MHz / 10GBASE-T. At 25 cm it suits ports in adjacent rack units; measure the path before ordering.

Key Features


Superflex TPE jacket
The soft thermoplastic-elastomer jacket bends easily and keeps its shape in cable-management arms, making short jumpers much easier to dress than stiff PVC cords.

Cat 6A with 802.3bt
S/FTP PiMF screening, 500 MHz and 10GBASE-T, plus PoE, PoE+ and 4PPoE IEEE 802.3bt support.

Durable RJ45 plugs
Blue shielded housings with 360° screen contact, 50 µ″ gold, injected anti-kink grommet, locking-lever protection and at least 750 mating cycles.

Technical Specifications

Identification
Part Number K5525FGR.0,25
EAN / GTIN 4049759187279
MPN K5525FGR.0,25
Brand EFB-Elektronik
Cable
Category Cat 6A (IEC) channel on Cat 7 raw cable
Shielding S/FTP PiMF — foil per pair plus overall braid
Conductors 4 x 2 AWG 26/7 stranded copper
Jacket TPE superflex, LSZH, silicone-free
Bandwidth 500 MHz
Max Data Rate 10 Gbps (10GBASE-T)
PoE PoE, PoE+, 4PPoE — IEEE 802.3af / at / bt
Impedance 100 ±15 Ohm
Outer Diameter 6.5 mm
Bend Radius Greater than 32.5 mm
Connectors & Build
Connectors 2 x shielded RJ45 8P8C (IEC 60603-7-51), blue housings, 50 µ″ gold contacts
Wiring 1:1 T568B
Boots Injected anti-kink grommet, locking-lever protection, length print
Mating Cycles At least 750
Certification GHMT certified
Length 0.25 m
Colour Grey
Compliance & Environment
Standards ISO/IEC 11801, ANSI/TIA-568-C.2, TIA/EIA-568-B, IEC 60603-7-51, RoHS
Fire Safety IEC 60332-1 flame retardant, IEC 60754-2 halogen-free, IEC 61034 low smoke
Protection Class IP20 — indoor use, no protection against water
Operating Temperature -20 to +75 °C

Frequently Asked Questions

Why choose a superflex patch cable like the EFB K5525FGR.0,25?
The TPE jacket is far more flexible than PVC or standard LSZH, so short jumpers bend neatly in tight racks and cable-management arms without stressing the RJ45 plugs.
Does the K5525FGR.0,25 support 10 Gigabit and PoE++?
Yes. It is a Cat 6A S/FTP cord rated to 500 MHz and 10GBASE-T, with PoE, PoE+ and 4PPoE IEEE 802.3bt support.
What is the difference between the K5525FGR.0,25 and the EFB MK7001 series?
Both use Cat 7 raw cable with Cat 6A plugs and support 802.3bt; K5525F adds the superflex TPE jacket for tighter bends, while MK7001 uses a standard LSZH jacket.
Singular Expert Insight
Short, very flexible jumpers like the K5525FGR.0,25 make dense 10G racks far tidier between panels and network switches. Choose it over the MK7001 when cords must bend tightly or move on cable arms; for simple fixed patching the MK6001 or MK7001 lines do the same electrical job.

Buyer's Guide

Buy it if
You patch 10G or PoE++ ports in a crowded rack and want soft, easy-to-route 25 cm cords.
Skip it if
Ports are more than one rack unit apart, or you only need Gigabit on unshielded gear.
Also consider
EFB K5525F in longer lengths, or MK7001/MK6001 Cat 6A cords.

Features - EFB - K5525FGR.0,25

Colour
grey
Length
0.25m
Standard
CAT6a
More Details
Product Code
04:262344
EAN Code
4049759187279
Manufacturer
EFB
