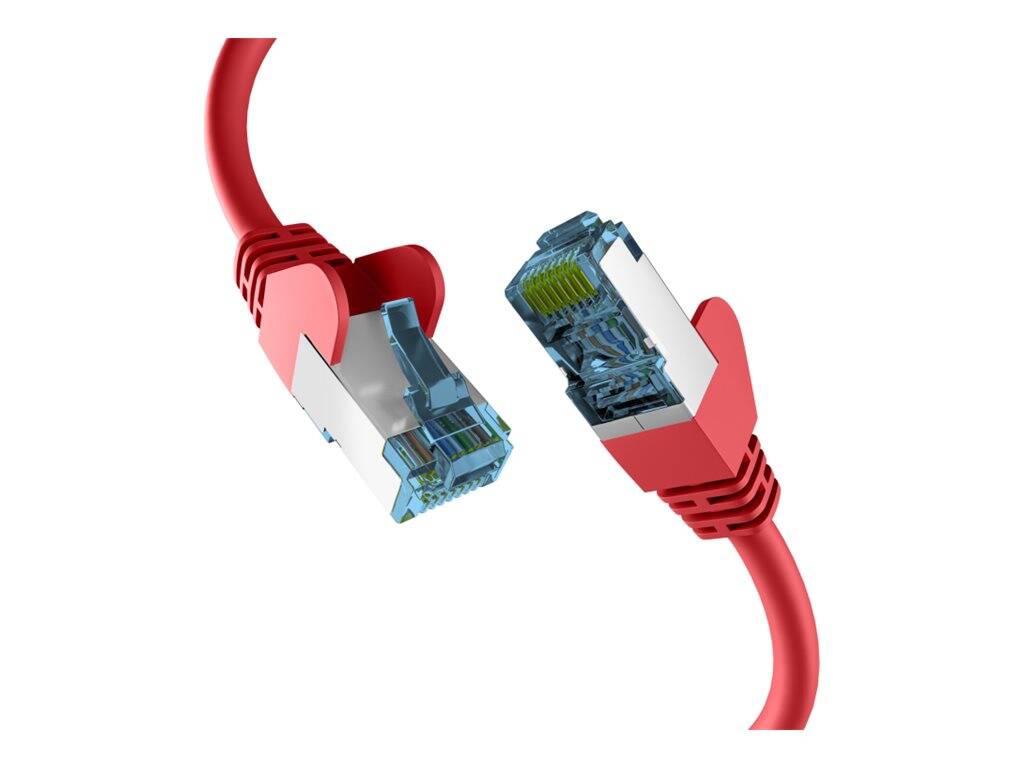

EFB-Elektronik Cat6A S/FTP Patch Cable RJ45 0.15m Red, Cat7 Raw Cable, LSZH
Brand:
EFB
EC020200162
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB-Elektronik Cat 6A S/FTP Patch Cable 0.15 m Red
Cat 6A · 500 MHz (channel)S/FTP0.15 mLSZHRed
The EFB-Elektronik EC020200162 is a 0.15 m Cat 6A S/FTP RJ45 patch cable in red, built for short rack jumpers between patch panel and switch. It is rated for 10 Gigabit Ethernet (10GBASE-T) at up to 500 MHz (channel), uses stranded copper conductors (AWG 27/7) and a LSZH (low smoke zero halogen) jacket. The manufacturer part number is EC020200162 (EAN 4049759290108). Typically in stock with fast delivery across Cyprus.
Compatibility note
Cat 7 describes only the raw cable. Because the ends are standard RJ45 plugs, the finished cord performs as a Cat 6A channel (500 MHz, 10 Gbps) — it is fully compatible with any RJ45 Cat 5e/6/6A port. At 15 cm it is meant for adjacent ports, e.g. patch panel to switch in a 1U-over-1U layout.
Key Features
Cat 6A performance at 500 MHz (channel)
Rated Cat 6A channel class set by the Cat 6A RJ45 plugs (Cat 7 raw cable) up to 500 MHz (channel) — enough headroom for 10 Gigabit Ethernet (10GBASE-T) links between switches, patch panels, routers, NAS units and desktops.
S/FTP construction
Pairs in metal foil (PiMF) under an overall braided screen give strong crosstalk and EMI rejection — ideal in dense 10 GbE racks where many jumpers run side by side.
LSZH jacket and anti-kink boots
Halogen-free LSZH sheath, 6 mm OD, moulded anti-kink sleeves with locking-lug (latch) protection and a length imprint on the boot, 1:1 T568B wiring and gold-plated contacts.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Short red S/FTP jumpers are a neat way to colour-code uplinks or a VLAN inside a dense 10 GbE rack. The EFB EC020200162 gives you Cat 7-grade raw cable, LSZH sheath and latch protection at 15 cm — useful when a switch is mounted directly beside the patch panel. If you need more slack, the same family comes in 0.25 m and 0.5 m. See our network switches for 10 GbE ports to match.
Buyer's Guide
Buy it if
You need very short red shielded 10 GbE jumpers between a patch panel and an adjacent switch.
Skip it if
Your switch is more than one rack unit away — 15 cm will be too tight; pick 0.25–0.5 m.
Also consider
EFB EC0202000xx plain Cat 6A S/FTP or MK6001 Cat 6A for 802.3bt PoE.
Features - EFB - EC020200162
Colour
red
Standard
CAT6a
More Details
Product Code
CI29852
EAN Code
4049759290108
Manufacturer
EFB
