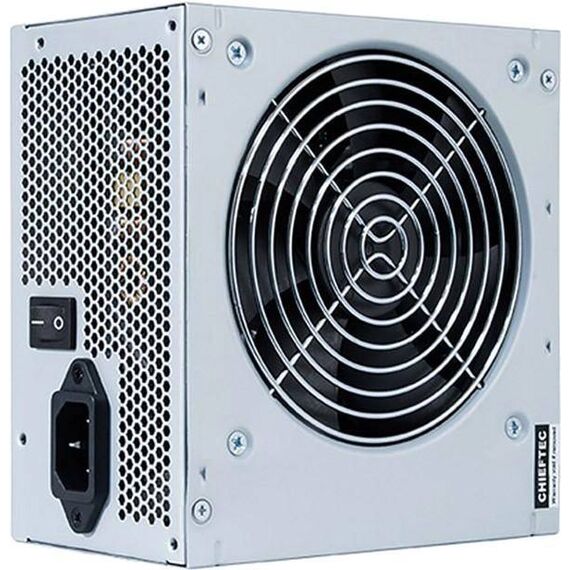

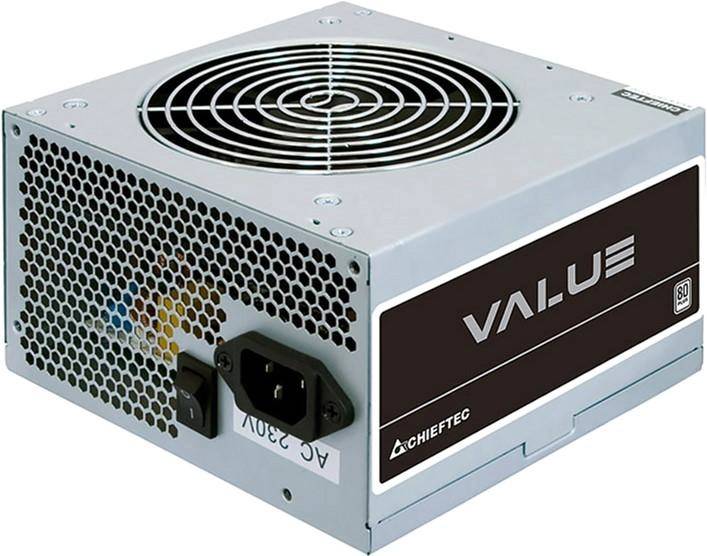

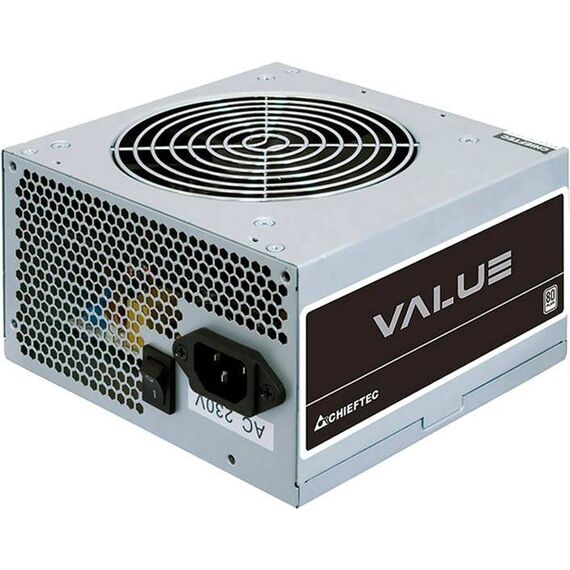

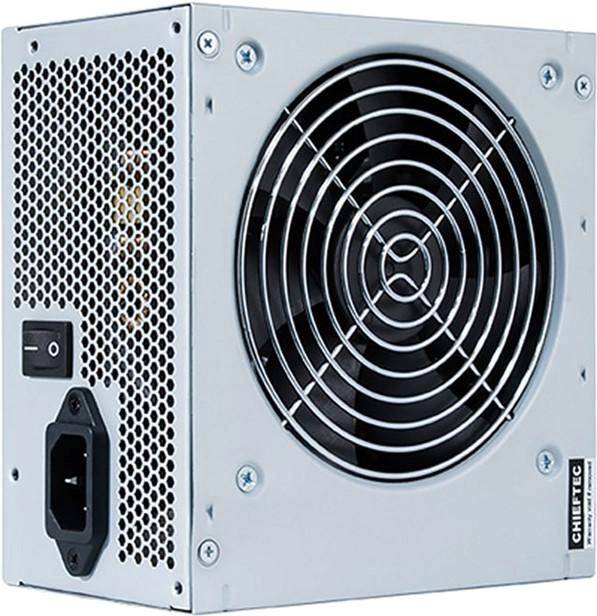

Chieftec VALUE SERIES APB-600B8 / Power supply (internal) / ATX12V 2.3 / 80 PLUS / AC 200 / 240 V / 600 Watt / active PFC | APB-600B8
Chieftec VALUE SERIES APB-600B8 / Power supply (internal) / ATX12V 2.3 / 80 PLUS / AC 200 / 240 V / 600 Watt / active PFC | APB-600B8
€74.45 inc. VAT
APB-600B8
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Efficient power supply
The Chieftec VALUE SERIES APB-600B8 power supply is designed with an 80 PLUS certification, ensuring efficient energy use and reduced electricity costs. Its active Power Factor Correction (PFC) with a power factor of 0.9 further enhances its efficiency, making it an eco-friendly choice for PC and server power needs. - Advanced cooling system
Equipped with a 120 mm fan featuring Automatic Fanspeed Control (AFC), this power supply maintains optimal cooling and noise levels, ensuring your system runs smoothly under any load without excessive noise. - Comprehensive protection
With built-in features for overpower, overvoltage, short-circuit, surge & inrush, and undervoltage protection, the Chieftec VALUE SERIES APB-600B8 offers a reliable safeguard for your hardware, ensuring longevity and stability of your system components.
Special Features
- 600 Watt power supply compatible with PC/Server
- 80 PLUS certified for energy efficiency
- Active PFC with a power factor of 0.9
- 120 mm cooling fan with AFC for optimal thermal performance
- Comprehensive protection mechanisms for system stability
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 200 - 240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V ¦ 2 x 8 pin PCI Express power ¦ 3 x Molex/floppy ¦ 4 x SATA connector |
| Output Voltage | +3.3, +5, ±12 V, -12V, +5Vsb V |
| Max Electric Current | 4.5 A |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 46 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Power Factor (PF) | 0.9 |
| 80 PLUS Certification | 80 PLUS |
| Miscellaneous | Miscellaneous |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, Automatic Fanspeed Control (AFC) |
| Compliant Standards | TUV, CB, RoHS, ERP, EAC, Interseroh |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
| Weight | 1.42 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 1.56 kg |
