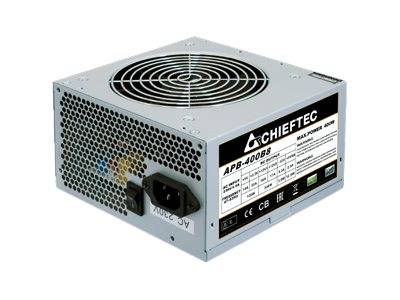

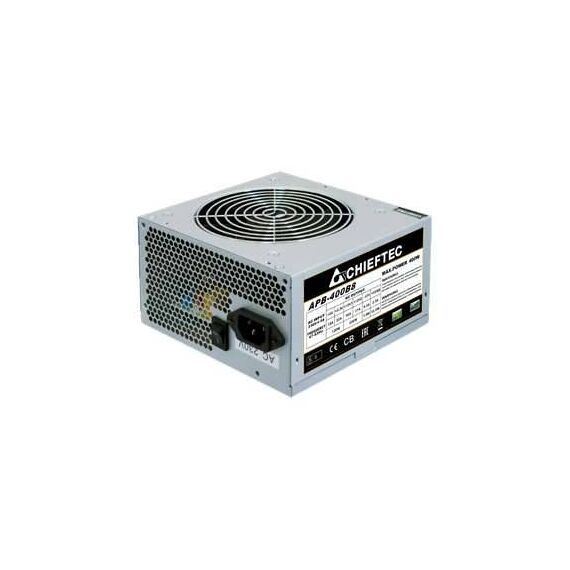

Chieftec VALUE SERIES APB-400B8 / Gamer Series / power supply (internal) / ATX12V 2.3 / AC 230 V / 400 Watt / active PFC / silver | APB-400B8

Chieftec VALUE SERIES APB-400B8 Gamer Series APB-400B8

Description
Features

Chieftec VALUE SERIES APB-400B8 / Gamer Series / power supply (internal) / ATX12V 2.3 / AC 230 V / 400 Watt / active PFC / silver | APB-400B8

Description

The APB-400B8 of the VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features.

Product Specification

Device Type	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance	ATX12V 2.3
PSU Form Factor	ATX
Colour	Silver
Input Voltage	AC 230 V
Frequency Required	50 Hz
Power Output Connectors Details	1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 4 pin ATX12V connector ¦ 3 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power
Output Voltage	+3.3, +5, ±12 V
Power Capacity	400 Watt
Output Current	+5V - 18 A ¦ +3.3V - 22 A ¦ +12V1 - 18 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12V2 - 17 A
Efficiency	80%
Power Factor (PF)	0.9
Cooling System	120 mm fan
Features	Thermal monitoring, over voltage protection, overload protection, undervoltage protection, short-circuit protection, fan speed control
Compliant Standards	TUV, CB, RoHS, EuP Ready
Service & Support	Limited warranty - 2 years
Width	15 cm
Depth	14 cm
Height	8.7 cm
