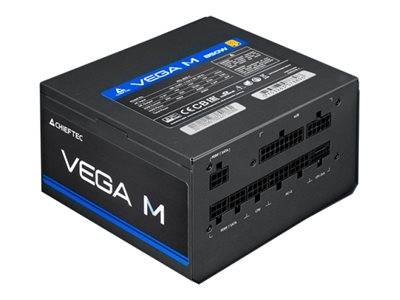

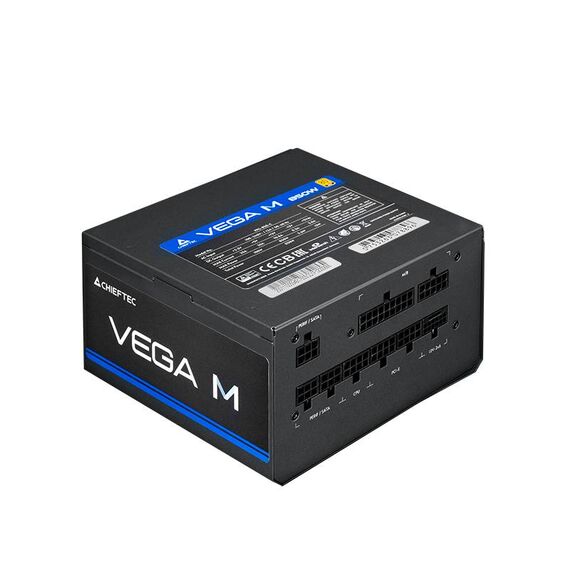

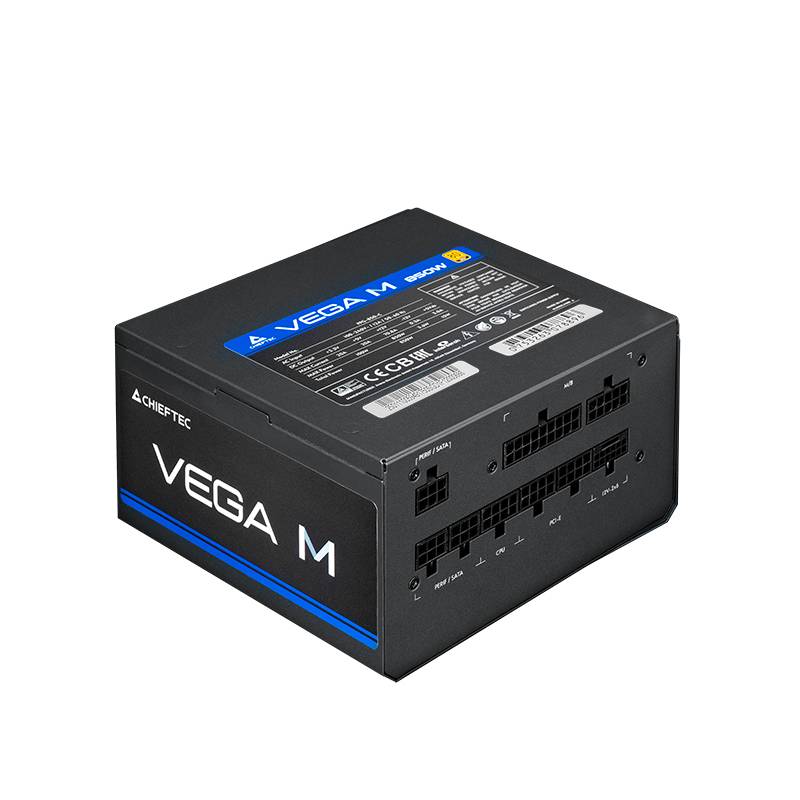

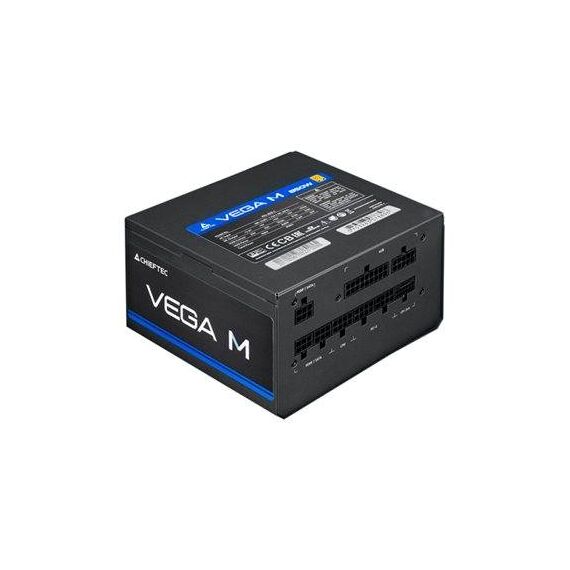

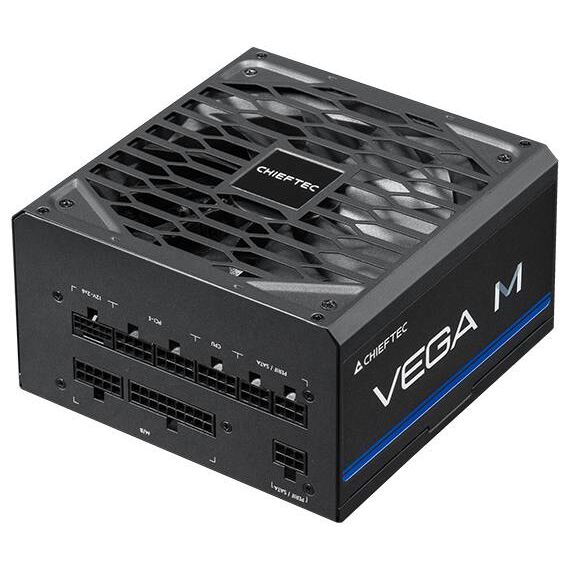

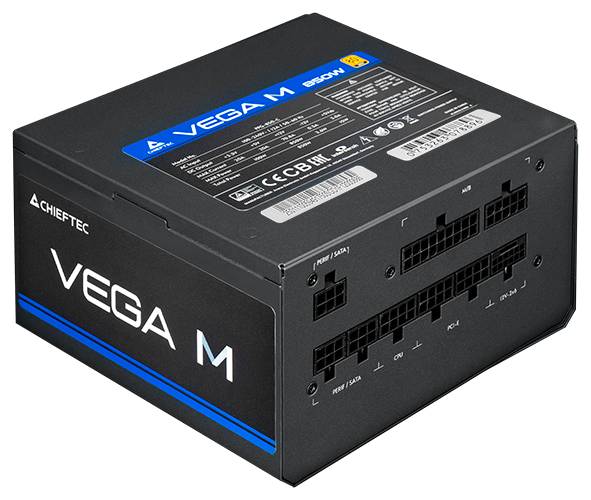

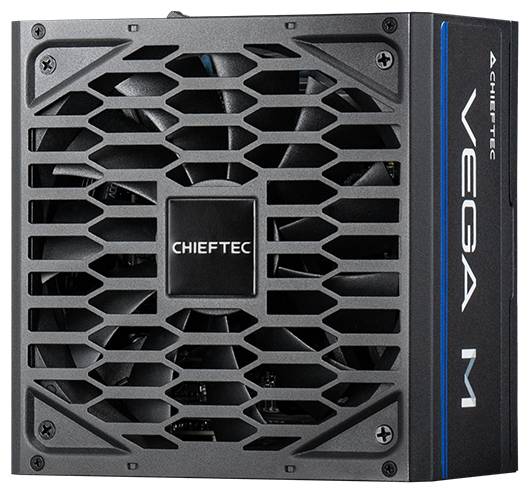

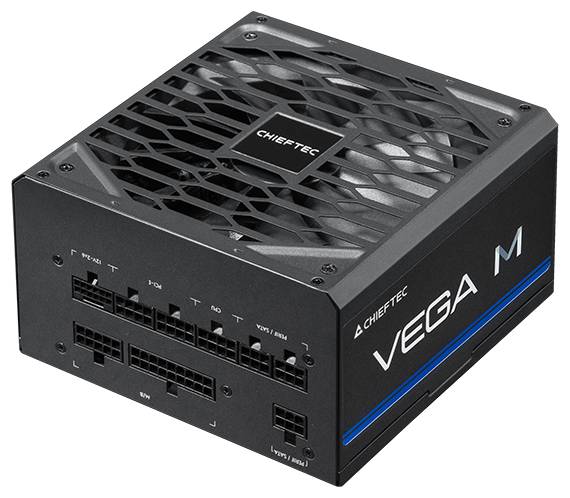

Chieftec VEGA M PPG-850-C / Power supply (internal) / ATX12V 3.1/ EPS12V / 80 PLUS Gold / AC 100-240 V / 850 Watt / active PFC | PPG-850-C
Brand: Chieftec
PPG-850-C
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features
- Efficient power output
The power supply delivers a maximum output of 850 W, ensuring stable power for high-performance graphics cards and processors. - Protective features
Incorporates multiple protections such as overcurrent, overload, and surge protection that safeguard connected components from electrical issues. - Fully modular design
Allows for only necessary cables to be connected, enhancing cable management and optimizing airflow within the case. - Active cooling solutions
Utilizes a 135 mm fan featuring fluid dynamic bearing technology, ensuring effective cooling with minimal noise during operation. - Compliance with standards
Meets stringent compliance standards such as CB, RoHS, and WEEE, reflecting a commitment to quality and safety in design.
Special Features
- Modular cable design for improved airflow and reduced clutter
- Robust protection features including overcurrent, overvoltage, and short-circuit protection
- 80 PLUS Gold certification for energy efficiency
- Advanced cooling system with 135 mm fan
- AC input voltage range of 100-240 V for versatile compatibility
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 12VHPWR |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.3 A +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |

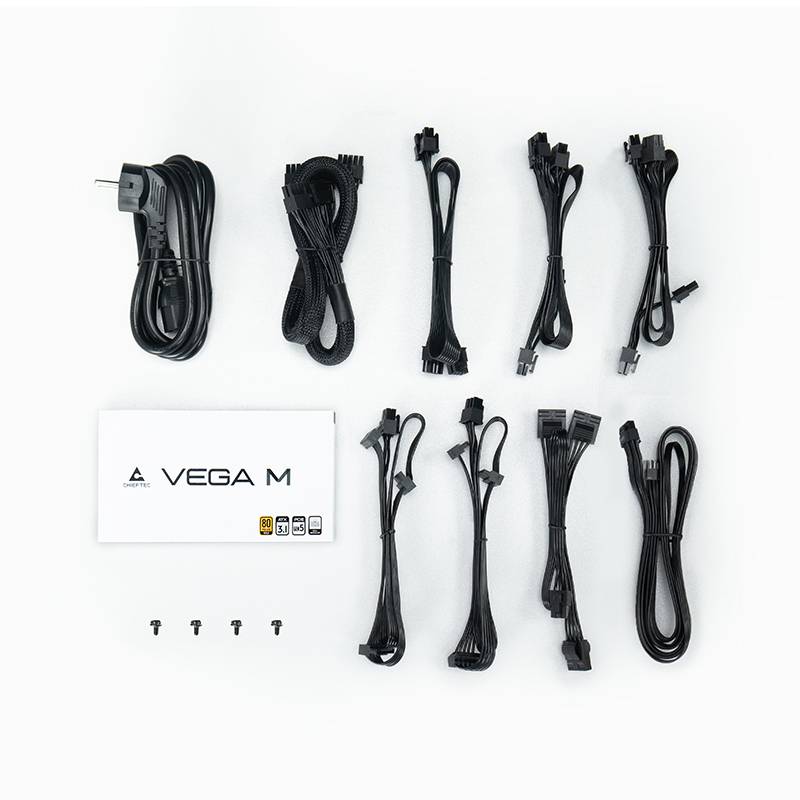

| Cables Included | AC power cable Power 24 pin ATX with detachable 4 pin section modular cable 60 cm Power 8 pin +12V with detachable 4 pin section modular cable 80 cm 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm 16-pin 12VHPWR power modular cable 60 cm 2 x 15 pin Serial ATA power modular cable 70 cm 4 pin internal power modular cable 70 cm |

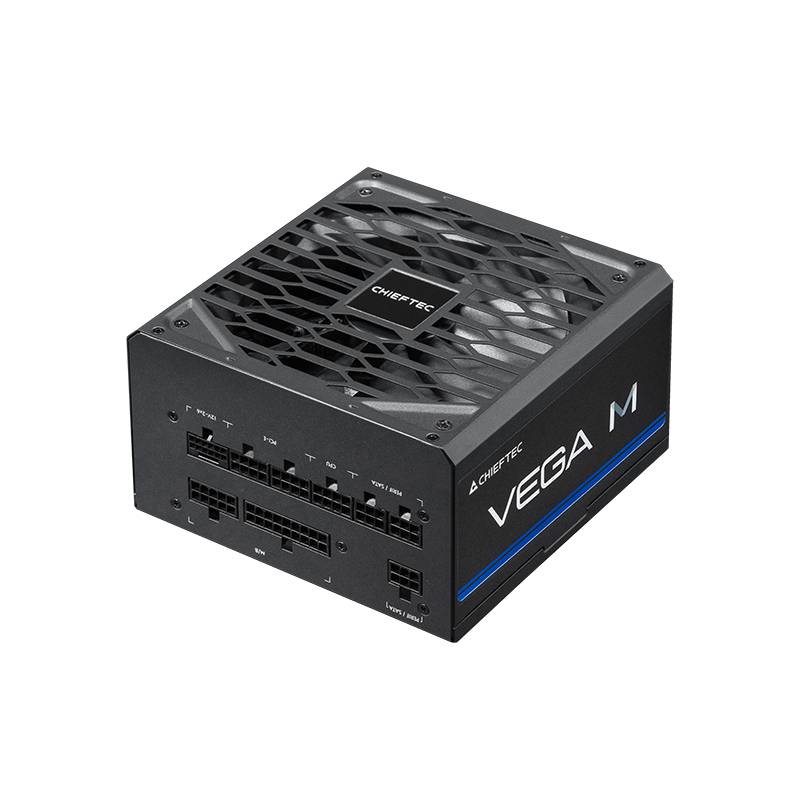

| Cooling System | 135 mm fan |
| Features | LLC Half Bridge Topology, DC-DC technology, fully modular, fluid dynamic bearing cooling fan, Automatic Fanspeed Control (AFC), overload protection, over voltage protection, surge & inrush protection, undervoltage correction, over current protection, high temperature protection, short-circuit protection |
| Compliant Standards | EAC, TUV Rheinland, RoHS, ERP, WEEE, CB, Interseroh |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.5 cm |
| Weight | 2.07 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 2.54 kg |
Features - Chieftec - PPG-850-C
More Details
Product Code
04:529516
EAN Code
0753263078902
Manufacturer
Chieftec
