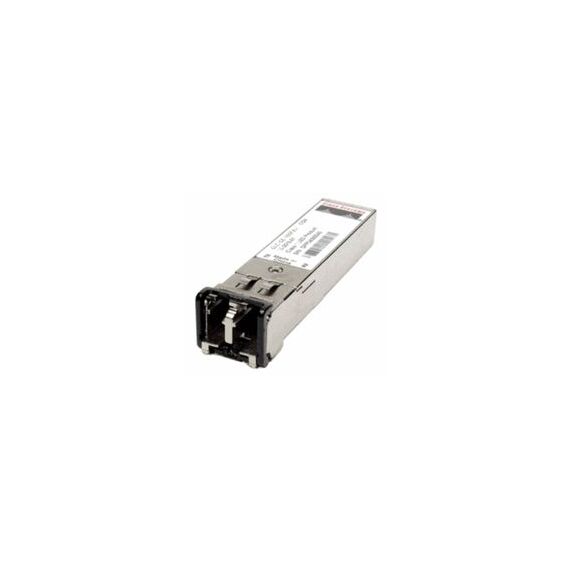

Cisco GLC-ZX-SMD= SFP Transceiver 1000BASE-ZX 1 Gbps 1550 nm Duplex LC Single-Mode up to 70 km with DOM
Brand:
Cisco
Cisco GLC-ZX-SMD= SFP Transceiver 1000BASE-ZX 1 Gbps 1550 nm Duplex LC Single-Mode up to 70 km with DOM
€4997.87 inc. VAT
GLC-ZX-SMD=
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Cisco GLC-ZX-SMD= — 1G Long-Haul SFP, ~70 km
~70 km1000BASE-ZX1550 nm · LCDOM
The Cisco GLC-ZX-SMD= is a long-haul Gigabit SFP transceiver for single-mode fibre, reaching approximately 70 km depending on link loss. It transmits at 1550 nm with a 21 dB link budget and supports digital optical monitoring. It is used for inter-city, carrier and utility links on Cisco switches and routers, and is rated for an extended −5 to 85 °C range. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.
Compatibility — check before buying:
This is a high-power optic. Cisco states that when the fibre span loss is less than 8 dB, a 10 dB inline attenuator must be fitted before the receiving port at each end — otherwise the receiver can be overloaded. The attenuators are not included. Both ends need a ZX module; a 10 km LX optic will not reach this distance. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your switch model and the cable run and we check it before you order.
Best For
✓ Links between towns or distant sites
✓ Carrier and utility fibre routes
✓ Long dark-fibre spans
✓ Outdoor cabinets with wide temperature swings
✓ Cisco switch and router WAN ports
✓ Replacing a failed ZX module
Key Features
70 km on one pair
A 21 dB link budget at 1550 nm carries Gigabit Ethernet across distances where LX optics give up.
Extended temperature
Rated −5 to 85 °C, so it tolerates street cabinets and plant rooms better than commercial-grade optics.
Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.
Monitoring you can read
Digital diagnostics (SFF-8472) let the switch report temperature, laser power and received light, so a dirty connector or a failing link shows up in the switch before users call.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We sell the GLC-ZX-SMD= for long routes where a 10 km optic is not enough. Before ordering, get the measured loss of the fibre from your carrier — if it is under 8 dB, add two 10 dB attenuators. For shorter single-mode links, a standard 1000BASE-LX optic is cheaper and needs no attenuation. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status from the switch and we help you find out whether it is the optic, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need 1G over single-mode fibre across tens of kilometres, with a known link loss within 21 dB.
Skip it if
Your link is short with low loss and you do not want attenuators, or you need 10G.
Also consider
Cisco GLC-BX-D=/GLC-BX-U= for single-strand 10 km links.
Features - Cisco - GLC-ZX-SMD=
More Details
Product Code
677V562
EAN Code
0882658340925
Manufacturer
Cisco
