Cisco PWR-C6-1KWAC= 1000W AC Config 6 Hot-Swap Power Supply for Catalyst 9200 48-Port PoE and 9300LM Switches 100-240V

Brand:
Cisco
Cisco PWR-C6-1KWAC= 1000W AC Power Supply Catalyst 9200
Cisco PWR-C6-1KWAC= 1000W AC Config 6 Hot-Swap Power Supply for Catalyst 9200 48-Port PoE and 9300LM Switches 100-240V
€1793.09 inc. VAT
Buy
PWR-C6-1KWAC=
€1,506.80
€1,793.09 inc. VAT
Ships from EU stock: 80 item(s)
+ −
Add to wish list Ask a question
Product Code
677SK17
EAN Code
0889728197243
Manufacturer
Cisco

Quick Specs

Output
1,000 W
Input
100–240 V AC
Fits
Catalyst 9200 48-port PoE, 9300LM
PoE (C9200)
740 W / 1,440 W with two
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

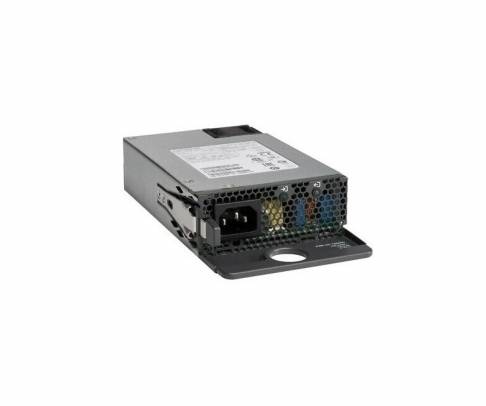

Cisco 1KW AC Config 6 Power Supply

1,000 W ACConfig 6Hot-swap48-port PoE

The Cisco PWR-C6-1KWAC= is the 1KW AC Config 6 Power Supply, a field-replaceable, hot-swappable module for Cisco Catalyst 9200 48-port PoE switches and the Catalyst 9300LM. It runs from 100–240 V AC and delivers 1,000 W. On a Catalyst 9200 48-port PoE switch one module gives a 740 W PoE budget, and two raise it to 1,440 W. It weighs 0.9 kg. In practice it is the supply you need when every port of a 48-port switch powers a phone, camera or access point.

Compatibility — check before buying:
Cisco power supplies are not interchangeable between families: Config 1 (PWR-C1) fits the Catalyst 9300, 9300L and 9300X; Config 5 (PWR-C5) the Catalyst 9200L; Config 6 (PWR-C6) the Catalyst 9200 and 9300LM. It does not work in a Catalyst 9200L (use PWR-C5-1KWAC=) or in the 9300, 9300L or 9300X. Cisco lists it for the C9200-48P, 48PB and 48PXG and the 9300LM series, with IOS XE 16.11.1 or later on the C9200. Cisco does not state whether a power cord ships with the spare module, so confirm the cord when you order. Not sure? Tell us your model and we check it for you.

Best For

✓ Catalyst 9200 48-port PoE switches
✓ Catalyst 9300LM switches
✓ Full-PoE access layers
✓ Dense camera and AP deployments
✓ Redundant power
✓ Spare stock for installers

Key Features


1,000 W AC
100–240 V input.

Hot-swappable
Change it with the switch running.

Big PoE budget
740 W per supply on the C9200.

Field-replaceable
No tools needed to change.

Technical Specifications

Identification
Brand Cisco
Product Cisco 1KW AC Config 6 Power Supply
Part Number PWR-C6-1KWAC
EAN / GTIN 0889728197243
Model PWR-C6-1KWAC
Product Type Power supply module, field-replaceable
Family Config 6
Electrical
Output 1,000 W
Input 100–240 V AC, 50–60 Hz, 12–6 A
Heat 3,412 BTU/h
MTBF 1,600,060 hours
PoE Budget
Catalyst 9200 48-port PoE 740 W with one supply, 1,440 W with two
Catalyst 9300LM-48UX-4Y 790 W base (default supply)
Compatibility
Catalyst 9200 C9200-48P, C9200-48PB, C9200-48PXG
Catalyst 9300LM Yes
Not for Catalyst 9200L, 9300, 9300L, 9300X
Physical
Dimensions 40.1 × 101.6 × 193 mm
Weight 0.9 kg
Cooling Internal fan
Before You Order
Your switch Catalyst 9200 48-port PoE model or 9300LM
Power cord Not stated by Cisco for the spare — confirm with us
Second slot Blank cover needed if you run one supply
In the Box
Included Power supply module (Cisco does not publish the box contents of the spare)
Not Included Switch; blank cover for the second slot
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Cisco does not publish a separate warranty term for this spare power supply; its switch data sheets describe the warranty of the switch itself. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does it fit a Catalyst 9200L?
No. The 9200L needs PWR-C5-1KWAC=.
How much PoE does it give?
740 W per supply on a Catalyst 9200 48-port PoE switch, 1,440 W with two.
Is it hot-swappable?
Yes.
Can I use it in a Catalyst 9300?
No. The 9300 family uses Config 1 supplies.
Singular Expert Insight
Before buying, add up the PoE draw of all connected devices: Wi-Fi 6 access points and PTZ cameras quickly exceed 370 W. The 1 kW supply keeps the headroom. For Catalyst switches, see our switches.

Buyer’s Guide

Buy it if

You need maximum PoE on a Catalyst 9200 48-port switch or 9300LM.

Skip it if

Your switch is a 9200L or 9300.

Also consider

Cisco PWR-C6-600WAC= for 24-port models.
