Cisco Aironet Dual-Band Polarization-Diverse Directional Array Antenna
The Cisco Aironet AIR-ANT2566D4M-RS is a dual-band, polarization-diverse directional array antenna for indoor or outdoor use. It is designed for wall or mast mounting and supports Cisco Aironet and Catalyst access points where a directional antenna solution is required.
Key Features
Dual-band operation for 2.4 GHz and 5 GHz use
Directional array design for targeted coverage

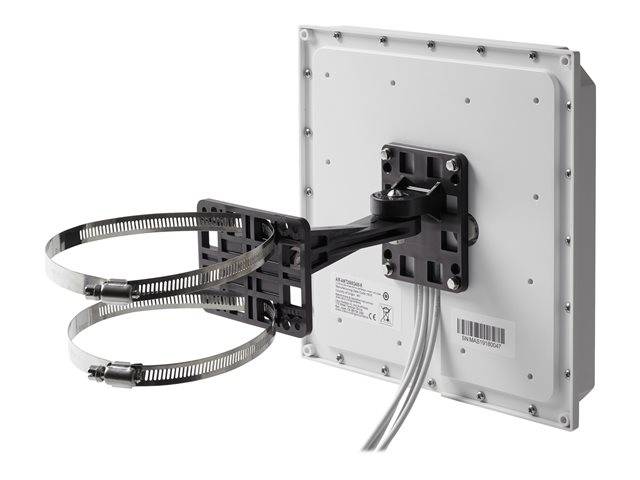

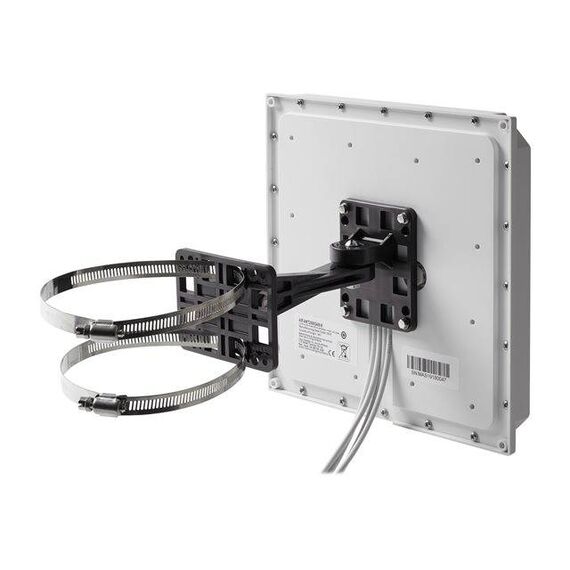

Wall or mast mounting options
IP-67 rated for indoor or outdoor installation
Supplied with four RP-TNC male connectors
Why Choose It
A practical choice for network deployments that need a Cisco-compatible directional antenna with dual-band support and rugged weather protection for flexible installation.
Technical Specifications
| Manufacturer | Cisco |
| Manufacturer part number | AIR-ANT2566D4M-RS |
| Antenna type | Dual-band polarization-diverse directional array |
| Supported frequency range | 2.4-2.5 GHz; 5.15-5.925 GHz |
| Gain | 6 dBi at 2.4 GHz; 6 dBi at 5 GHz |
| VSWR | 2:1 |
| Polarization | Linear |
| Azimuth 3-dB beamwidth | 65 degrees at 2.4 GHz; 55 degrees at 5 GHz |
| Elevation 3-dB beamwidth | 60 degrees at 2.4 GHz; 55 degrees at 5 GHz |
| Cable length | 36 in. (91 cm) |
| Dimensions | 11 x 6.3 x 1.2 in. (28 x 16 x 3 cm) |
| Operating temperature | -40 °C to 70 °C |
Singular Expert Insight
This antenna suits buyers who want a Cisco-access-point-compatible directional solution with simple wall or mast installation and verified outdoor durability. Its strongest appeal is the combination of dual-band coverage, 6 dBi gain on both bands, and IP-67 protection.
Features - Cisco - AIR-ANT2566D4M-RS=
More Details
Product Code
677UD09
EAN Code
0889728277488
Manufacturer
Cisco
