Cisco PWR-C1-715WAC-P= 715W AC 80 PLUS Platinum Config 1 Hot-Swap Power Supply for Catalyst 9300 9300L and 9300X Switches

Brand:
Cisco
Cisco PWR-C1-715WAC-P= 715W AC Platinum PSU Catalyst 9300
Cisco PWR-C1-715WAC-P= 715W AC 80 PLUS Platinum Config 1 Hot-Swap Power Supply for Catalyst 9300 9300L and 9300X Switches
€1566.62 inc. VAT
Buy
PWR-C1-715WAC-P=
€1,316.49
€1,566.62 inc. VAT
Ships from EU stock: 212 item(s)
+ −
Add to wish list Ask a question
Product Code
677QZ00
EAN Code
0889728133586
Manufacturer
Cisco

Quick Specs

Output
715 W
Efficiency
80 PLUS Platinum
Fits
Catalyst 9300, 9300L, 9300X
PoE (C9300-24P)
445 W
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

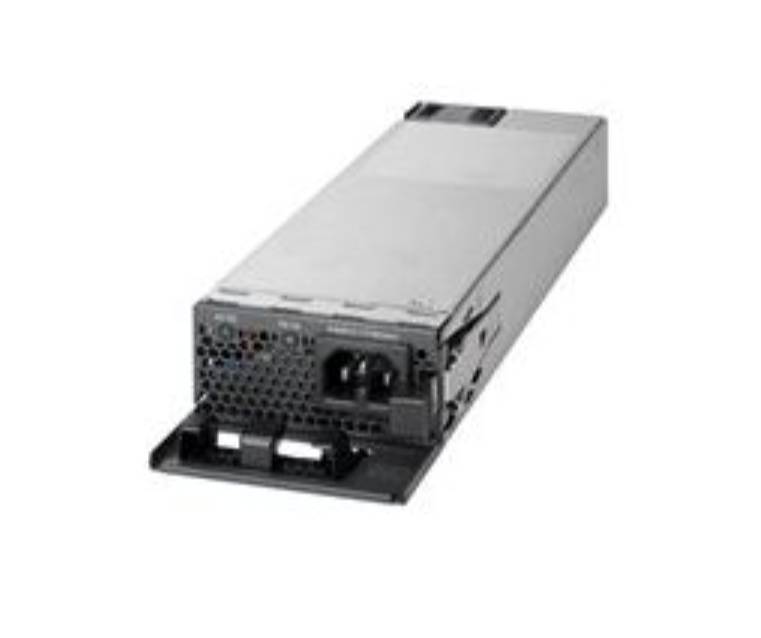

Cisco 715W AC 80+ Platinum Config 1 Power Supply

715 W AC80+ PlatinumConfig 1Catalyst 9300

The Cisco PWR-C1-715WAC-P= is the 715W AC 80+ Platinum Config 1 Power Supply, a hot-swappable module for Cisco Catalyst 9300, 9300L and 9300X switches. It runs from 100–240 V AC and delivers 715 W. It is the default supply of the Catalyst 9300-24P, where it gives a 445 W PoE budget. Both power slots of a 9300 must be filled, so a single supply runs with a blank cover in the second slot; Cisco supports mixing Platinum, Titanium and non-certified Config 1 supplies in one switch. On the 9300 and 9300X the supplies can also feed Cisco StackPower. In practice it is the standard spare or redundant supply for a 24-port Catalyst 9300 PoE switch.

Compatibility — check before buying:
Cisco power supplies are not interchangeable between families: Config 1 (PWR-C1) fits the Catalyst 9300, 9300L and 9300X; Config 5 (PWR-C5) the Catalyst 9200L; Config 6 (PWR-C6) the Catalyst 9200 and 9300LM. It does not fit the Catalyst 9300LM (Config 6) or the Catalyst 9200 family (Config 5/6). For the 9300X Cisco lists only the Platinum (-P), Titanium and DC Config 1 supplies, so the non-Platinum PWR-C1-715WAC= is not the one to order there. Cisco does not state whether a power cord ships with the spare module, so confirm the cord when you order. Not sure? Tell us your model and we check it for you.

Best For

✓ Catalyst 9300 24-port PoE
✓ Catalyst 9300L switches
✓ Catalyst 9300X switches
✓ Redundant supplies
✓ StackPower stacks
✓ Spare stock for installers

Key Features


715 W AC
100–240 V autoranging input.

80 PLUS Platinum
High-efficiency Config 1 supply.

Hot-swappable
Change it with the switch running.

Mix and match
Can run alongside other Config 1 supplies.

Technical Specifications

Identification
Brand Cisco
Product Cisco 715W AC 80+ Platinum Config 1 Power Supply
Part Number PWR-C1-715WAC-P
EAN / GTIN 0889728133586
Model PWR-C1-715WAC-P
Product Type Power supply module, field-replaceable
Family Config 1
Electrical
Output 715 W, −56 V at 12.8 A
Input 100–240 V AC, 47–63 Hz, 10–5 A
Efficiency 80 PLUS Platinum
Heat 2,440 BTU/h
PoE & Power
Catalyst 9300-24P 445 W PoE (default supply)
StackPower Catalyst 9300 and 9300X (not 9300L/LM)
Mixing Platinum, Titanium and non-certified Config 1 supported
Compatibility
Switches Catalyst 9300, 9300L, 9300X
Not for Catalyst 9300LM, Catalyst 9200 family
Physical
Dimensions 40.1 × 82.55 × 309.9 mm
Cooling Internal fan
Before You Order
Your switch Catalyst 9300, 9300L or 9300X
Power cord Not stated by Cisco for the spare — confirm with us
Second slot Blank cover needed if you run one supply
In the Box
Included Power supply module (Cisco does not publish the box contents of the spare)
Not Included Switch; blank cover for the second slot
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Cisco does not publish a separate warranty term for this spare power supply; its switch data sheets describe the warranty of the switch itself. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does it fit a Catalyst 9300LM?
No. The 9300LM uses Config 6 supplies.
Can I mix it with a 1100 W supply?
Yes, Cisco supports mixing Config 1 supplies.
Is it hot-swappable?
Yes.
Do I need two?
One runs the switch; a second adds redundancy and PoE power.
Singular Expert Insight
For a 48-port full-PoE Catalyst 9300 the 715 W supply is usually too small; compare the 1100 W Config 1 supply before ordering. For Catalyst switches, see our switches.

Buyer’s Guide

Buy it if

You run a Catalyst 9300, 9300L or 9300X and need a spare AC supply.

Skip it if

Your switch is a 9300LM or 9200.

Also consider

Cisco PWR-C1-1100WAC-P= for more PoE budget.
