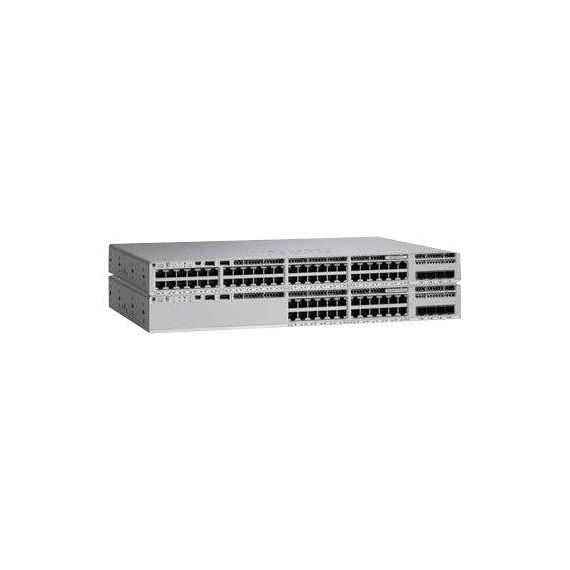

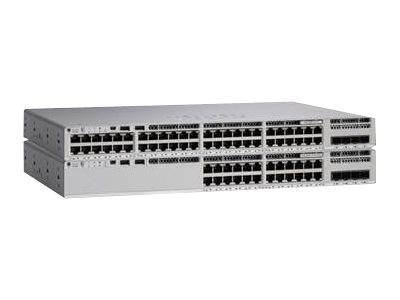

Cisco Catalyst 9200L / Network Essentials / switch / L3 / Managed / 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) + 2 x 25 Gigabit Ethernet / rack-mountable / PoE+ (370 W) | C9200L-24PXG-2Y-E

C9200L-24PXG-2Y-E
8,990.60
10,698.81 inc. VAT
Standard DeliveryStandard delivery within 4 to 8 business days.Express DeliveryExpress delivery within 2 to 3 business days.
Availability: 34 item(s)
Find similar
Delivery
Payment options
Product Code677RQ80 EAN Code0889728170215 ManufacturerCisco

Description

Cisco Catalyst 9200L / Network Essentials / switch / L3 / Managed / 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) + 2 x 25 Gigabit Ethernet / rack-mountable / PoE+ (370 W) | C9200L-24PXG-2Y-E

Product Specification

Device Type Switch - 24 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) + 2 x 25 Gigabit Ethernet
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 292 Gbps ¦ Switching capacity with stacking: 327 Gbps ¦ Forwarding rate: 229.16 Mpps
Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8 ¦ Packet buffer size: 6 MB
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG
Encryption Algorithm 128-bit AES
Features Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco StackWise-80 technology, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
RAM 2 GB
Flash Memory 4 GB
Interfaces 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 16 x 1000Base-T RJ-45 PoE+ ¦ 2 x 25GBase-X uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Power Device Internal power supply - hot-plug
Installed Qty 2 (max)
Power Redundancy Optional
Power Provided 600 Watt
Voltage Required AC 100-240 V (50 - 60 Hz)
MTBF 374,730 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Width 44.5 cm
Depth 4.4 cm
Height 35 cm
Weight 5.44 kg
Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature -5 °C
Max Operating Temperature 45 °C
Humidity Range Operating 5 - 90% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Humidity Range Storage 5 - 90% (non-condensing)

Features - Cisco - C9200L-24PXG-2Y-E

More Details
Product Code
677RQ80
EAN Code
0889728170215
Manufacturer
Cisco
