Cisco Catalyst 1200-48P-4G | 48-Port Gigabit PoE+ L3 Smart Switch | X ARM: 1.4 GHz | Packet buffer size: 3 MB

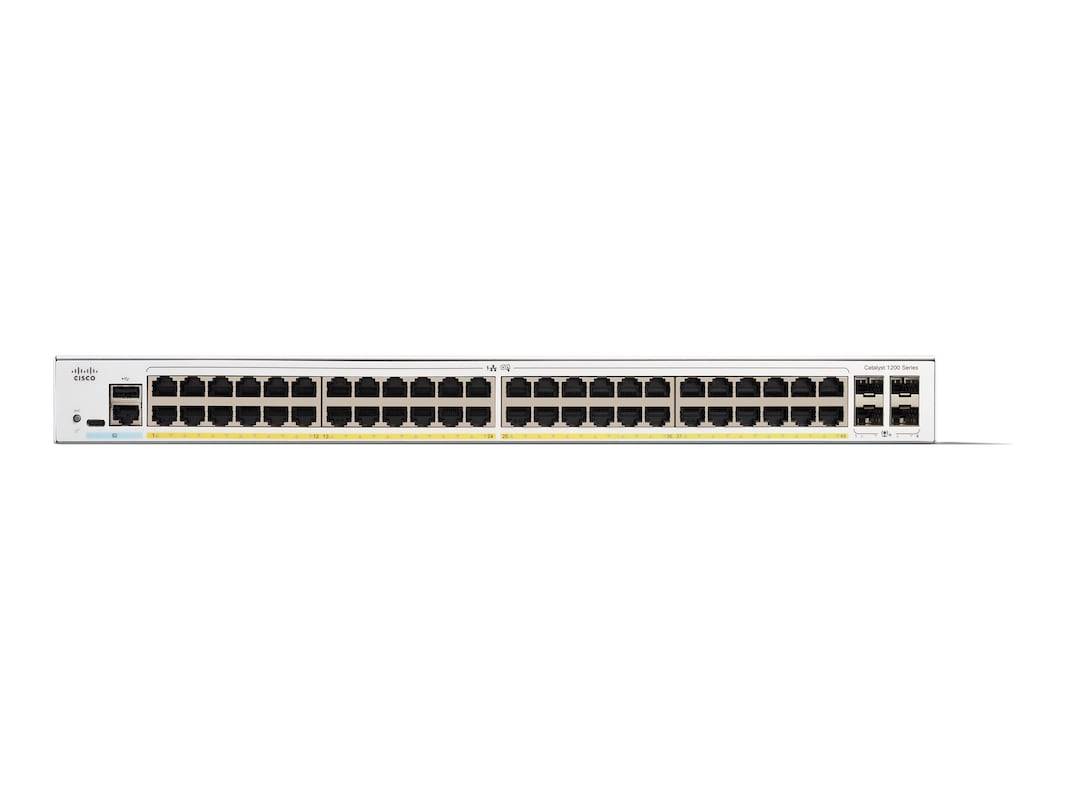

The Cisco Catalyst 1200-48P-4G is a rack-mountable Layer 3 smart switch for small business networks that need Gigabit PoE+ access, fibre uplinks and managed networking features. It combines 48 PoE+ Ethernet ports, 4 Gigabit SFP ports, static IP routing support and Cisco management tools in a compact desktop-to-rack format.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 48 ports - L3 - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power over Ethernet | PoE+ |
| PoE Budget | 375 W |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9000 bytes |
| Packet Buffer Size | 3 MB |
| IPv4 Routes (Static) | 32 |
| IPv4 Interfaces | 16 |
| Active VLANs | 255 |
| ACL Rules | 512 |
| Priority Queues | 8 |
| Link Aggregation Groups | 4 |
| Link Aggregation Ports | 8 |
| IGMP Multicast Groups | 255 |
| MSTP Instances | 8 |
| PVST+ Instances | 126 |
| RPVST+ Instances | 126 |
| Processor | X ARM: 1.4 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Management Protocols | SNMP | RMON | Telnet | SNMP 3 | SNMP 2c | HTTP | HTTPS | TFTP | SSH | SSH-2 | CLI | SCP | ICMP | DHCP | RADIUS | Syslog |
| Security | SSL |
| Authentication Method | RADIUS |
| Routing Protocols | IGMPv2 | IGMP | static IP routing | IGMPv3 | MLDv2 | MLD | CIDR | MSTP | RSTP | STP | Bounjour |
| Features | BOOTP support | VLAN support | IGMP snooping | DoS attack prevention | port mirroring | DiffServ support | Broadcast Storm Control | Multicast Storm Control | Unicast Storm Control | SNTP support | DHCP server | reset button | Cable Diagnostics Function | DHCP relay | Port Security | SNMP trap | DHCP client | port grouping | Link Aggregation | IGMP querier | VLAN mirroring | DNS client | 1 fan | Voice VLAN | VLAN management | LLDP-MED | Guest VLAN | ingress rate limiting | STP loop guard | EEE | TCP/UDP proxy | DSCP based CoS | loopback detection | port-based VLAN | Telnet server | Telnet client | Unknown Storm Control | IPv4 and IPv6 dual stack | Zero-Touch Deployment | cable length detection | trustworthy systems | layer 3 routing | remote firmware upgrade | ACL support | eco-friendly button | Auto Surveillance VLAN | TCP congestion | chip guard | boot integrity | time-based port operation | tag-based VLANs | WRR queuing | MSTP support | TFTP support | QoS | PVST+ | LACP | CoS | SP | GARP | GVRP | ToS | SCP | SCT | SSD | UDP | DoS protection | WRR | HoL Blocking Prevention | LAG | CDP | VSDP | RPVST+ | DAD | LLDP | EQS | path MTU discovery |
| Compliant Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3z | IEEE 802.1D | IEEE 802.1Q | IEEE 802.3ab | IEEE 802.1p | IEEE 802.3af | IEEE 802.3x | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1x | IEEE 802.1s | IEEE 802.1ab (LLDP) | IEEE 802.3at | IEEE 802.3az |
| Interfaces | 48 x 10/100/1000 Base-T (PoE+) RJ-45 | 4 x 10GBase-X SFP | 1 x console RJ-45 | 1 x USB-C console |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Status Indicators | System | PoE | link/activity/speed |
| Dimensions | 44.5 cm W x 35 cm D x 4.4 cm H |
| Weight | 5.43 kg |
| Included Accessories | Mounting kit | pointer card |
| Service & Support | Limited warranty - lifetime - response time: next business day | Technical support - consulting - 1 year |
| Power | Internal power supply |
| Package Contents | Mounting kit, pointer card |
| Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
| SKU / EAN | C1200-48P-4G | 0889728521741 |
SINGULAR RECOMMENDS
For who
For small business, office and network installers who need a managed 48-port Gigabit PoE+ switch with fibre uplinks and Layer 3 static routing.
Real reason to buy it
It gives you 48 PoE+ Gigabit ports, 4 SFP uplinks and Cisco Layer 3 smart switch features in one rack-mountable unit.
Know before
This model is rack-mountable and uses an internal power supply. The package contents listed are the mounting kit and pointer card only, and the supported routing is static IP routing rather than full dynamic routing.
